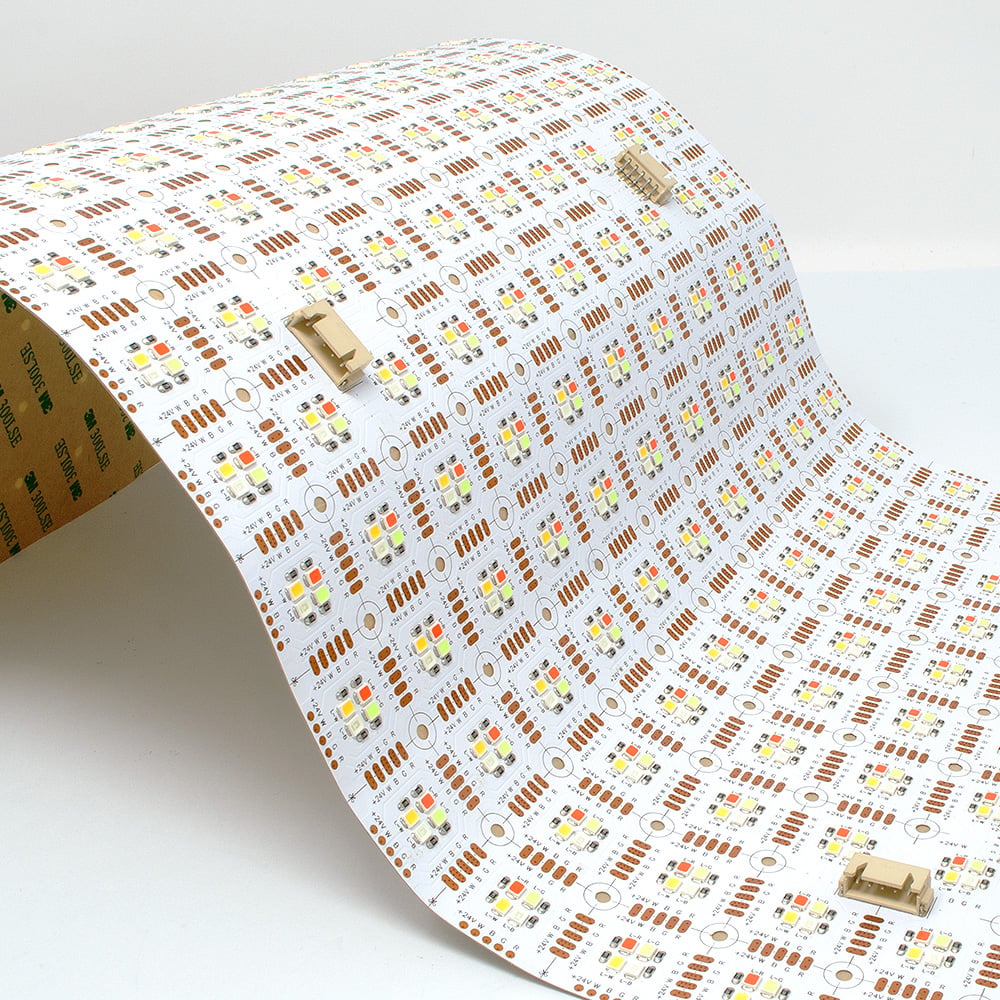

Honeycomb Flexi LED Light Sheet Pack 3pcs 32W 24V RGBW (4000K)

Product Code: 102.116
  • Can be cut to size as required
  • Very flexible
  • 120° beam angle
  • 800 x 2835 LEDs at 32W / sheet
  • Colour changing RGBW (4,000K)
  • Light sheet size 480mm x 240mm
  • Linkable up to 3 x units together
  • Supplied in packs of 3 sheets
  • Powerful 300LSE 3M™ sticky backing to fix firmly in place
RGB / Natural White
24V DC
check-circle Same day shipping available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

This LED Light Sheet requires the following products:

Starter Cable
RGBW Flexi Light Sheet Starter Cable (102.121)

Link Cables
RGBW Flexi Light Sheet Link Cables (102.122).

Product Description

LED Light Sheets – Flexible RGBW Panel Lighting Solution

These LED light sheets are high-performance flexible lighting panels designed for professional backlighting, signage, and architectural applications. This RGBW version delivers vibrant colour control alongside a natural 4000K white output, making it suitable for both decorative and functional lighting projects.

Key Features of LED Sheets

  • Can be cut to size as required

  • Very flexible design for curved installations

  • 120° beam angle for wide, even illumination

  • 800 x 2835 LEDs per sheet at 32W

  • Colour changing RGBW with 4000K white option

  • Sheet size: 480mm x 240mm

  • Linkable up to 3 units together

  • Supplied in packs of 3 sheets

  • Strong 300LSE 3M™ adhesive backing for secure fixing

LED Sheet Lighting Performance & Technical Specifications

This LED sheet lighting solution delivers exceptional brightness and colour versatility. Each panel produces 32W of output, equating to approximately 1,635 lumens, with a wide 120-degree beam angle for smooth, uniform illumination.

When paired with a compatible controller (sold separately), the system supports over 16 million colour combinations plus a stable 4000K daylight white mode.

Sheet of LED Lights Installation & Connectivity

This sheet of LED lights system is designed for simple installation and scalable configuration.

Each panel includes connection points on all sides, allowing easy linking using compatible cables. Up to three panels can be connected in series, or additional drivers can be used for larger installations.

The flexible structure allows cutting along marked lines, enabling precise fitting into custom-shaped lightboxes, signage, and architectural features.

Ideal applications include:

  • Backlit signage and lightboxes

  • Curved wall features and reception desks

  • Pillar and architectural detailing

  • Retail and exhibition displays

The panels are highly flexible, making them suitable for curved or irregular surfaces while maintaining consistent illumination.

LED Sheets System Requirements

Each installation requires:

  • 24V Constant Voltage LED Driver

  • 4-channel RGBW LED controller

  • Starter cable (sold separately for controller connection)

For larger installations, additional LED sheets can be powered via the main driver or separate drivers depending on system size.

Quick Specs

  • CRI Rating (greater than)CRI >90
  • Beam Angle:120 degree
  • ColourRGB / Natural White
  • Guarantee Period3 Years
  • IP RatingIP20 Non-Waterproof
  • Input Voltage24V DC

What's in the box

  • 3 x Flexible Light Sheets
  • Data Sheet
  • Connectors NOT included

Technical Specification

  • Product Code: 102.116
  • Product Packed Poly / Anti static Bag
  • Manufacturer LED Technologies
  • Product Type Light Panel
  • Colour RGB / Natural White
  • IP Rating IP20 Non-Waterproof
  • Colour Temperature 3600K - 4500K
  • Guarantee Period 3 Years
  • Wattage 32W
  • Current 1.325A
  • Input Voltage 24V DC
  • Output Voltage 24V DC
  • PCB Weight 2oz
  • PCB Colour White PCB
  • Size 480mm x 240mm
  • Beam Angle: 120 degree
  • Appx Lumens: 1,635 Lumens Per Sheet
  • Light Intensity Per LED 600 - 900mcd
  • Lumens Per LED 2 - 3lm
  • CRI Rating (greater than) CRI >90
  • Dimmable: Yes
  • LED Quantity 800 x RGBW SMD2835 LEDs
  • LED Type Led chip 2835
  • Average LED life Hrs 30,000
  • Peelable Back 300LSE 3M™

Product Datasheets

  • pdf Datasheet - 102.116 Download
  • pdf Photometrics - 102.116 Download
  • pdf 32W RGBW Light Sheets - Installation & Handling Instructions Download
