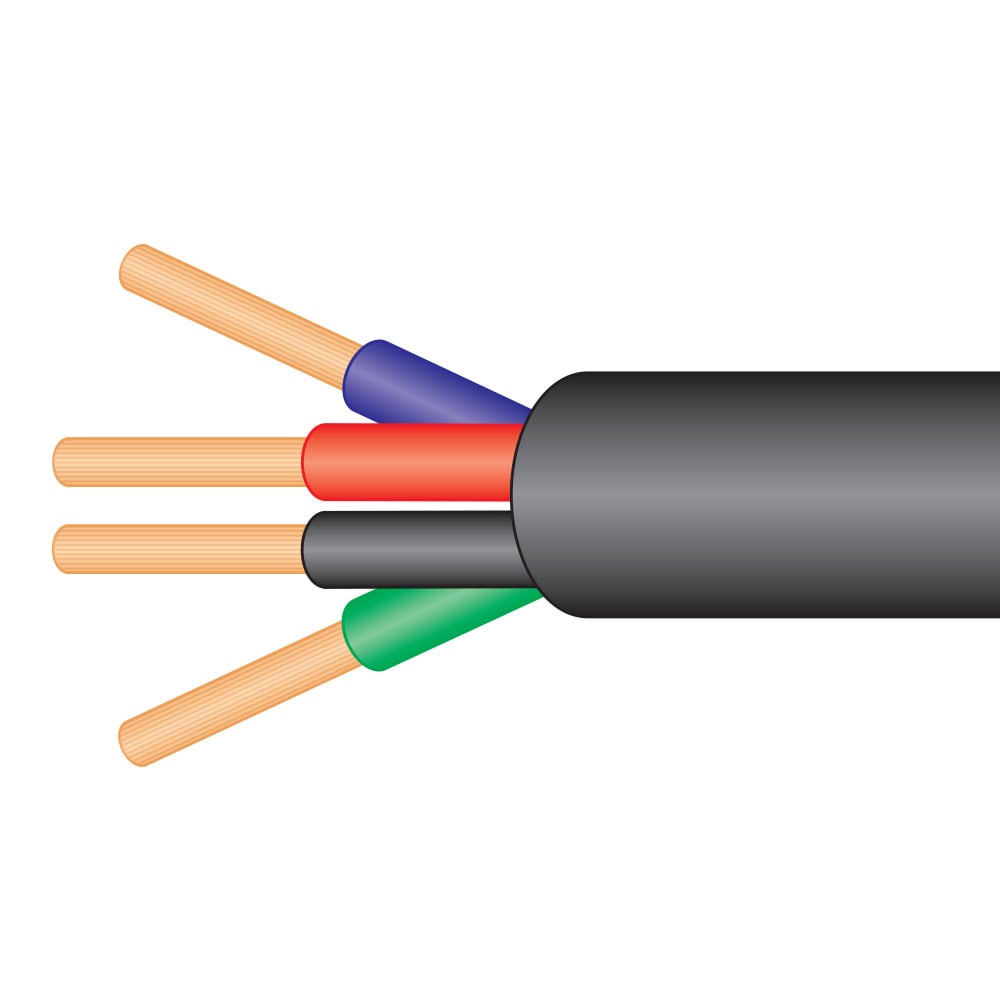

Four Core 10A Cable 50m

Product Code: 100.978
  • Four core colour coded cable
  • Up to a maximum load of 10A
  • For Tri-colour RGB LED products
  • Black PVC outer sheath
  • Multi-stranded 1mm2 cable
  • Overall cable diameter of 6.5mm
  • Supplied on a 50m roll
  • Durable and Flexible
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

Our four core LED cable extension is ideal for powering our RGB LED flexible lighting products. This four-core LED cable can be used up to maximum power consumption of 10A. This equates to 12v LED products up to a maximum of 120w or 24v LED products up to a maximum of 240w.

Each individual wire on this handy 50m roll of four core flex is colour coded red, green, blue & black. This will allow you to connect your LED lighting with ease, ensuring the correct connection. Each LED light cable can be cut to length from the 50-metre roll. Our selection of cables can be used on our range of LED strip lighting products and other LED lights.

This cable has a super soft black silicone sheath. This covering provides protection for the wires and allows the cable to be used in colder temperatures.

LED Technologies supplies a light extension cable suitable for single colour, dual colour, RGB & RGBW.

Important: Do not connect more than the recommended load of 10A.

Our LED experts at LED Technologies can help you with your LED products and installations. For more information, please contact us by calling our technical sales team or sending an email or via live chat.

Quick Specs

The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.

What's in the box?

  • 50m roll of Four core 10A cable
Product Code: 100.978
Product Packed Box
Manufacturer LED Technologies
Product Type Cables
Colour Black
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
1 Year
Current 10A Max
PCB Weight Not Applicable
Reel Length 50m
CRI Rating (greater than) CRI >80
Dimmable: No
LED Type Not Applicable
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Continuous Operation Not suitable for 24/7 continuous use
Insulation PVC
Flame Retardant Grade VW-1
Conductor Material Copper
Rated Temperature 80deg C
Rated Voltage 300V
