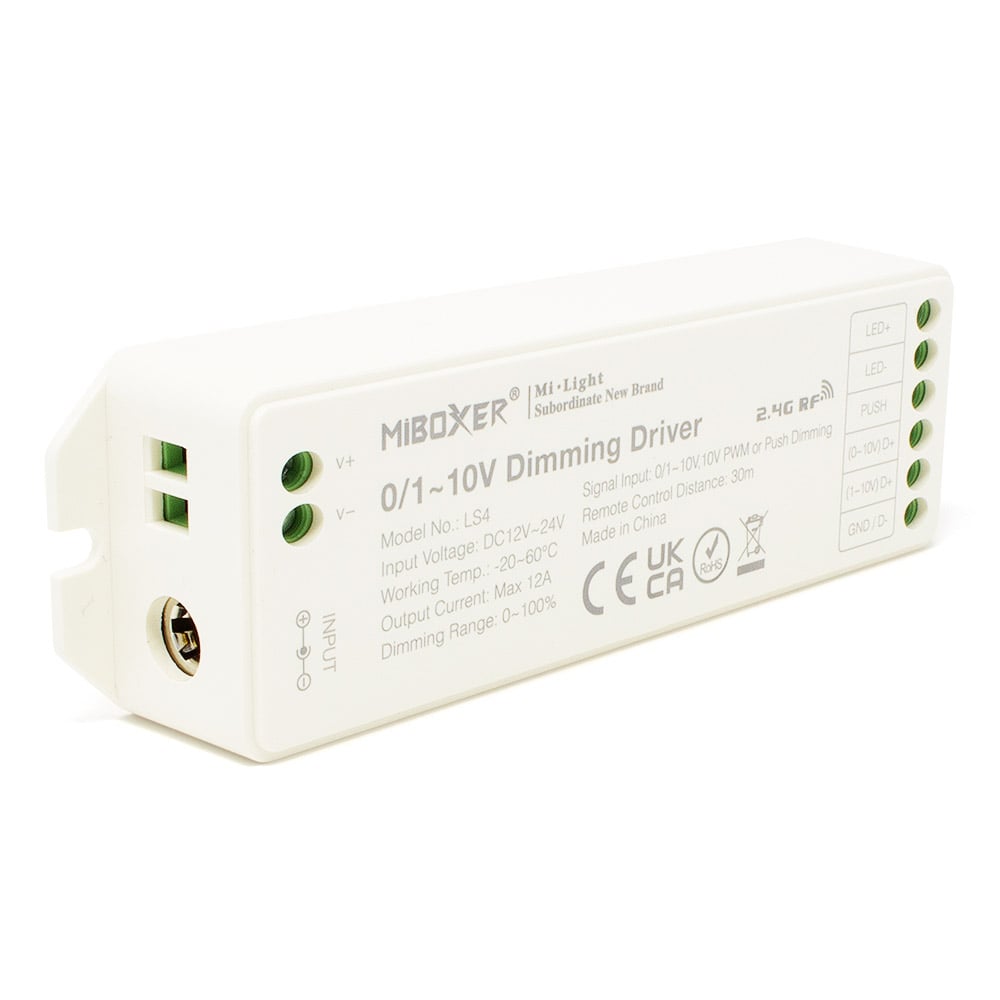

LS4 MiBoxer 2.4GHz 0-10V Dimming Driver

Product Code: LS4

2.4GHz / 0-10V Dimming Driver
Compatible with Mi-Light / MiBoxer handsets and wall panels
Smartphone Compatible
30m signal transmitting and synchronization between receivers
Quick and easy to pair with handsets and wall panels

View full product details and specification

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Currently in Stock

Next day delivery available*

In stock

Speak with an Expert

Product Details

Product Description

This compact single-channel dimmable LED driver is a stunning modern product from our Mi-Light range of LED Controllers. The unit is compact and easy to install wherever needed, measuring just L124mm x W38mm x H23mm.

The unit controls your single colour 12V or 24V LED products when paired to a compatible Mi-Light RF LED dimming remote control handset or wall panel on the 2.4GHz frequency.

In addition, there are hard-wired terminals for 0-10v, 1-10v and "push dimming control" inputs. Using any of these 0-10v control options will allow full smooth 0-10v dimming from 1-100% of your low voltage single colour LED lighting products.

Note: The 0-10v LED Controller is rated at a 12A Maximum load. A 12v or 24v DC (Direct Current) constant voltage input is required.

In addition, this smart wireless LED controller can be controlled from your phone with the free Mi-Light phone app. You can also control your LED lights with your voice using home automation devices such as Amazon Alexa or Google Assistant. This LED controller is the perfect addition to your smart home lighting system.

Note: Additional 2.4GHz hub required for these features.

All our 2.4GHz radio frequency LED receivers feature auto transmitting & synchronising functions. As long as the multiple controllers are all within 30m of each other, the multiple receivers in the group will sync together. No interconnecting control cables are needed.

It is also possible to control the following types of LED Strip lights / LED Tapes with this RF Receiver:

Single Colour / White LED Strip Lights

Compatible Mi-Light LED lighting and single colour LED controllers are sold separately.

For product assistance, please contact us by telephone, email, or online chat.

LS4 MiBoxer 2.4GHz 0 10V Dimming Driver

Quick Specs

What's in the box?

LED Controller
3M Sticky Pad
Instruction manual

Technical Specification

Product Code:	LS4
Product Packed	Gift box
Manufacturer	Mi-Light / MiBoxer
Product Type	Controller / Receiver
IP Rating	IP20 Non-Waterproof
Guarantee Period The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.	5 Years
Input Voltage This is the required amount of volts needed to power the product.	12V / 24V DC
Connectivity	0-10v protocols
Size	L124mm x W38mm x H23mm
Dimmable:	No
Wireless Range	Up to 30 metres
Transmitting Power	6dBm
Operation Frequency	2.4GHz
Operating Temp	-20~60°C
Total Output	Max12A
Output Max	12A/Channel
