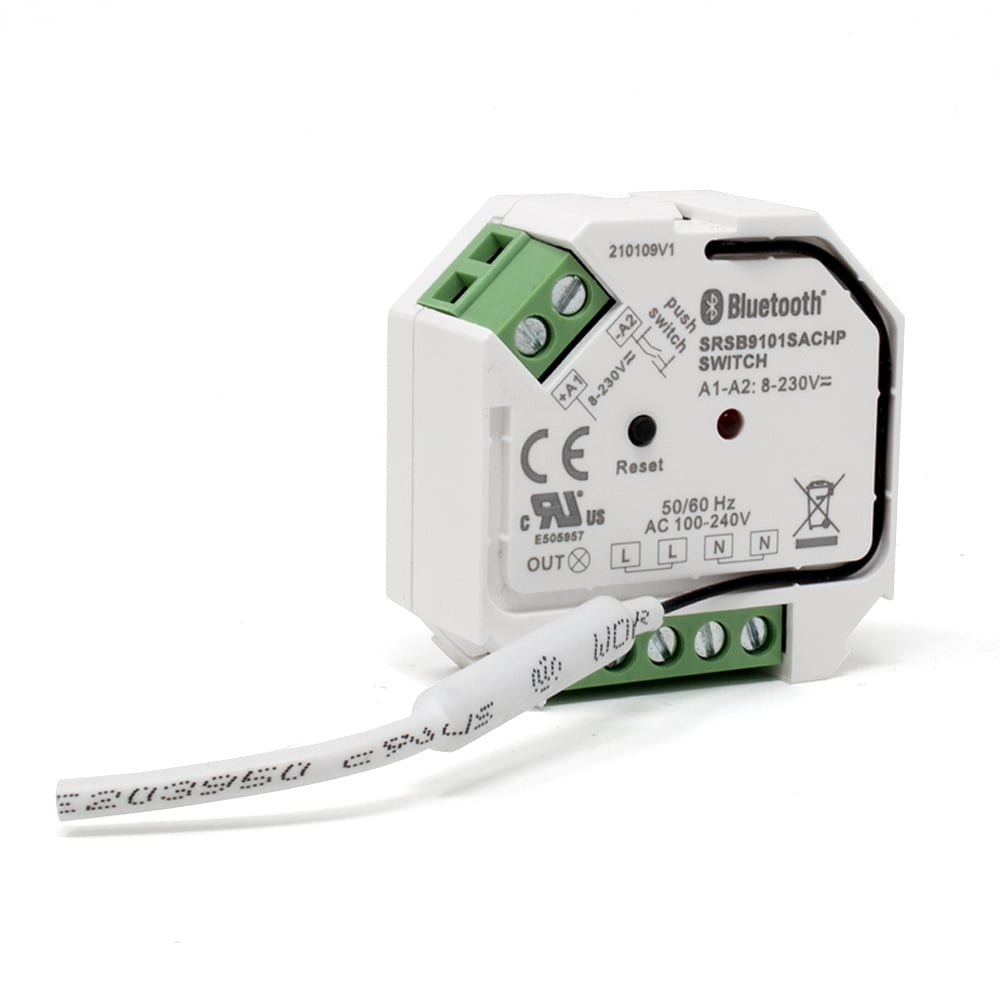

Sunricher SR BUS AC Phase Cut Bluetooth Switch

Product Code: SRSB9101SACHPSWITCH
  • AC Phase Cut Switch RF + Bluetooth Mesh Network
  • Allows switching of mains powered products
  • Supports resistive & capacitive loads
  • Single channel output up to 400w
  • Control via App & remote controls without a hub
  • Mesh Network allows longer control distance
  • Encrypted two way communication between devices
  • Compact size
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This compact Phase Cut Switch is from the Sunricher range. It is designed to be integrated with your Bluetooth mesh network.

The AC phase cut switch is essentially a wireless LED light switch, to turn your LED lighting fixtures on or off from your phone. It controls the AC power that the light product will receive, and therefore can stop the electric current from getting to the LED lights to turn them off.



The LED controller is easy to install. The smart light switch can either be controlled from your phone by simply downloading the app from the appropriate app store, or through universal universal RF+bluetooth remotes. This enables you to control all of your devices without the need for a hub or gateway.



This wireless switch product is safe and reliable to use within a range of places, such as bedrooms, living rooms or even offices as it has a wireless range of 30m. The switch can be used with a range of products such as LED strip lights.



This Sunrichher SR BUS system allows you to control signal to jump from one node to the other. This extends the control network much more than a standard RF system around your home.

The wireless light switch needs an input voltage of 100v or 240v. It has a maximum 400w output.



Additional products can be added to this remote control light switch, such as handsets and receivers to extend your bluetooth mesh network.



Quick Specs

The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.

What's in the box?

  • Sunricher SR BUS AC Phase Cut Bluetooth Dimmer
  • Instruction manual
Product Code: SRSB9101SACHPSWITCH
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller / Receiver
Colour White
IP Rating IP20 Non-Waterproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Current 1.8A
Input Voltage
This is the required amount of volts needed to power the product.
100v - 240v AC
Connectivity Bluetooth
PCB Weight Not Applicable
Size 45.5 x 45 x 20.3mm
CRI Rating (greater than) CRI >80
Dimmable: Yes
LED Type Not Applicable
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Wireless Range Up to 30 metres
Continuous Operation Not suitable for 24/7 continuous use
Operation Frequency 2.4GHz
Operating Temp 0-40°C
Datasheet - SRSB9101SACHPSWITCH Download
