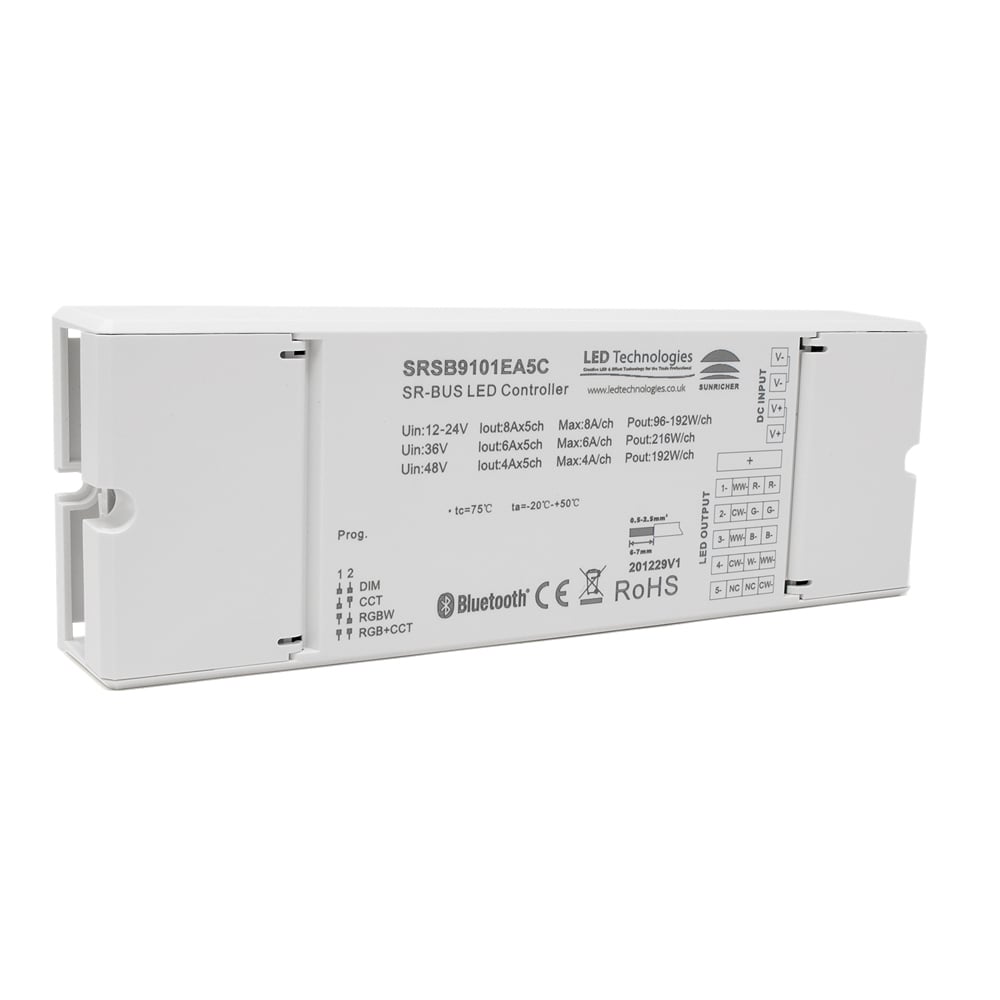

Sunricher SR BUS 5 Channel RGB & CCT 4 in 1 C/V Bluetooth Receiver

Product Code: SRSB9101EA5C
  • For use with the SR BUS Bluetooth RF System
  • Works with all Sunricher SR BUS products
  • Works without a Hub
  • Extends Bluetooth Mesh network
  • Works with SR BUS remote controllers
  • Also works with smart devices via App
  • Controls RGB & CCT LED products
  • Can be set to 1, 2, 4 or 5 channel modes
  • Reliable encrypted bi-directional communication
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This 4 in 1 SR BUS RF Bluetooth Five Channel is from the Sunricher range. It is designed to work as part of your SR BUS Mesh Network. This enables you to control a range of products from your smart device app.



The wireless Bluetooth receiver adapter allows you to control your lights in 4 different channel modes. It allows ON/OFF control as well as brightness control between 0% and 100%. You can adjust the colour temperature from Cool, Daylight or Warm White colours and instantly colour select.

It is designed control a range of products such as single colour, CCT, RBGW or RBG+CCT LED strip lights.

Easily switch the receiver to the correct mode that you require using the dial switch. This will enable you to switch the Bluetooth adapter to 1, 2, 4 or 5 channel modes.



The LED lights receiver can be easily controlled from your phone . It can be integrated with your SR BUS home automation system. Simply download the LED light controller app from the appropriate app store. It also gives you the option to control your lights with universal radio frequency remote controller or Bluetooth handsets. This enables you to control all of your devices without the need for a hub or gateway.



The LED receiver allows effortless LED control with its 30 m wireless range.

The receiver requires a 12v , 24v or 48v DC power supply.

Additional products can be added to this wireless receiver adaptor, such as handsets and receivers to extend your Bluetooth mesh network.

Quick Specs

The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.

What's in the box?

  • Sunricher ZIGBEE 1 x Zone RGB&CCT (Five Channel) Kinetic Wall Panel
  • Instruction manual
Product Code: SRSB9101EA5C
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller / Receiver
Colour White
IP Rating IP20 Non-Waterproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Input Voltage
This is the required amount of volts needed to power the product.
12v / 24v / 36v DC
Connectivity Bluetooth
PCB Weight Not Applicable
Size 170 x 59 x 29mm
CRI Rating (greater than) CRI >80
Dimmable: No
LED Type Not Applicable
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Wireless Range Up to 30 metres
Continuous Operation Not suitable for 24/7 continuous use
Relative Humidity 8% to 80%
Operation Frequency 2.4GHz
Operating Temp 0-40°C
Datasheet - SRSB9101EA5C Download
