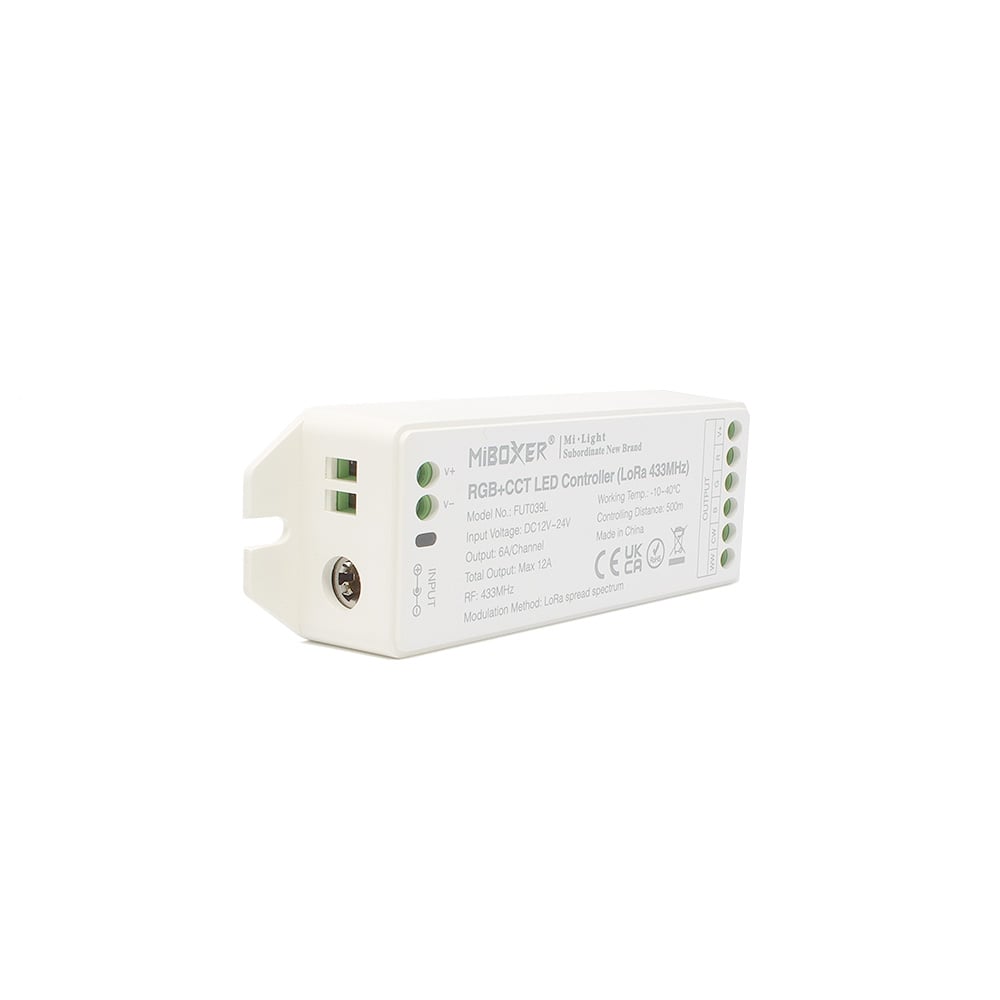

FUT039L MiBoxer Five Channel (RGB+CCT) LoRa 433MHz Receiver

- LoRa 433MHz Receiver
- For RBG+CCT LED Lighting
- Compatible with 433MHz Mi-Light / MiBoxer handsets
- Smartphone Compatible (additional gateway needed
- Super long distance control up to 500m
- Quick and easy to pair with handsets and wall panels
*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Product Description
The FUT039L is an excellent 433MHz LoRa receiver which works off the LoRa spread spectrum system.
This MiBoxer LED Controller/Receiver has super long-range communication, and when paired with the LoRa Handset (FUT086), it can be operated up to 500m away from the handset. If there are obstacles between the units it may affect the range of the LED receiver dramatically.
The receiver will switch, dim, and control your 12V or 24V DC RGB+CCT LED lighting products such as RGB+CCT LED Strip which will offer you over 16 million colour combinations. The Maximum overall load across all five channels is 12A.
The FUT039L LoRa Modulation Receiver is suitable for both domestic and commercial applications where a wide area network control signal is required such as garden offices.
The receiver supports eight pre-set programs that are selectable from the handset. The receiver can also be paired to our 433MHz gateway (purchased separately) which will enable you to control it from a hard-wired DMX512 connection or wirelessly from your smartphone or smart speaker.
For more information on this and all our professional control products, contact our technical sales team by phone, email, or live chat via our website.
Quick Specs
- Guarantee Period5 Years
- IP RatingIP20 Non-Waterproof
- Input Voltage12V / 24V DC
What's in the box
- LoRa 433MHz Receiver
- 3M Sticky Pad
- Instruction manual
Technical Specification
- Product Code: FUT039L
- Product Packed Gift box
- Manufacturer Mi-Light / MiBoxer
- LED Strip Brands Mi-Light MiBoxer
- Product Type Controller / Receiver
- IP Rating IP20 Non-Waterproof
- Guarantee Period 5 Years
- Input Voltage 12V / 24V DC
- Output Voltage 12V / 24V DC
- Connectivity RF: 433MHz (LoRa Spread Spectrum)
- Size L119x W37.5 x H22mm
- Dimmable: No
- Voltage Type Constant Voltage
- Rated Current Max Output Current 12A
- Voltage Range 12v DC & 24V DC
- Frequency Range 433MHz
- Transmitting Power Up to 500m
- Operation Frequency 433MHz
- Operating Temp -10 to 40ºC
- Total Output Max12A
- Output Max 6A/Channel
Product Datasheets
- Datasheet - FUT039L Download
