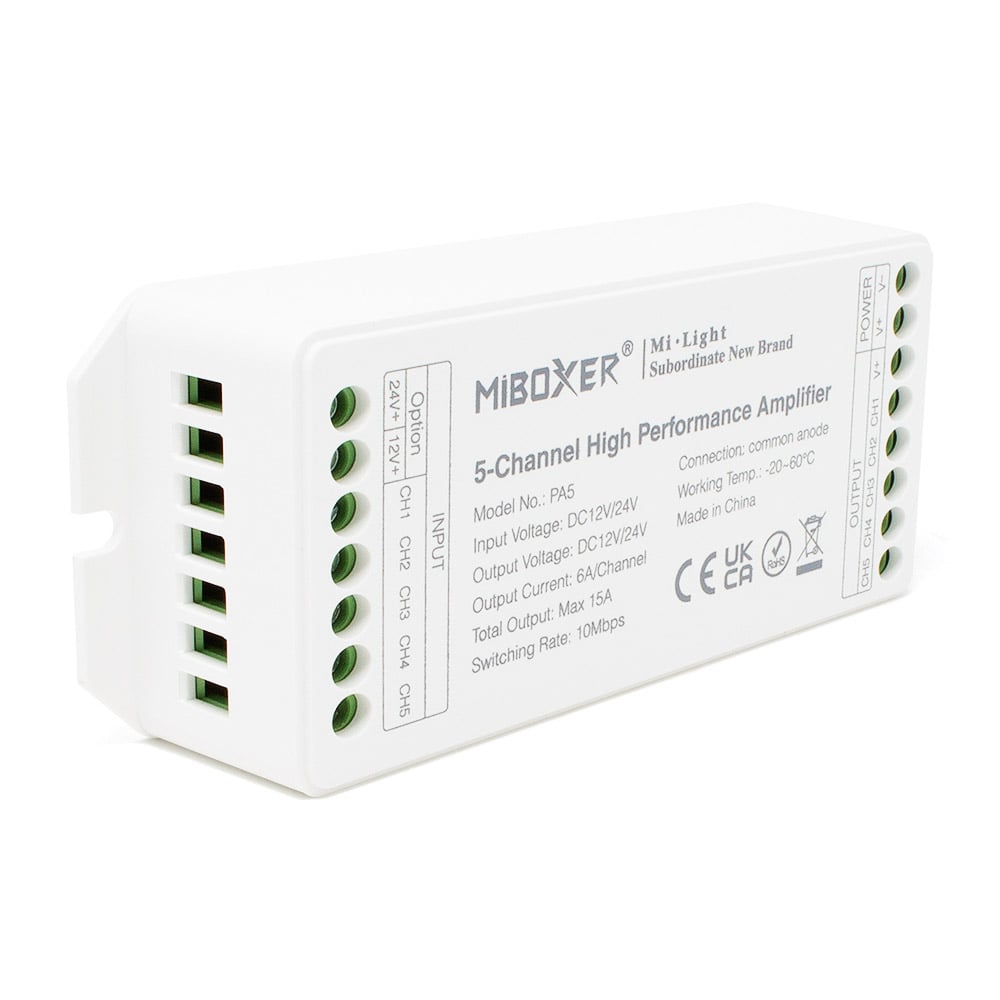

PA5 MiBoxer 5 Channel High Performance Amplifier

Product Code: PA5
  • 5 Channel Amplifier
  • Compatible with Mi-Light / MiBoxer handsets and wall panels
  • Smartphone Compatible
  • 30m signal transmitting and synchronization between receivers
  • Quick and easy to pair with handsets and wall panels
12V / 24V DC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

From our full range of Mi-Light & MiBoxer products comes this 5-channel high-performance amplifier. This high-powered amplifier is ideal for controlling multiple low-voltage LED products together from one controller.

The LED 5-channel amplifier works by copying the output signal from the remote controller. It will then synchronise that signal with the output from the data repeater.

For example:

  • Running a program such as colour fading, the data amplifier will keep all the connected products synchronised together. This feature requires colour-changing LED lights.



The unit incorporates a high-speed optical coupler with a 10Mbps output rate. This ensures an accurate sync between the data input and output sides of the amplifier. The signal-amplifying 5 channel amplifier will work with all types and brands of PWM controllers.

The 5 channel LED amplifier will power low voltage 12v or 24v DC five-channel (RGB + tunable white) LED products. The maximum load for this data 5 channel amplifier is 6A / channel. The overall load across all channels must not exceed 15A. Multiple data amplifiers can be linked together, as each unit amplifies the signal from the previous unit.



This data 5-channel amplifier is the perfect choice for your RGB+CCT LED strip lights and Mi-Light LED lighting systems. A constant voltage 12v or 24v DC driver must be used with this data amplifier.

Note: The same voltage product must be used on the output side and the input side of the data amplifier.



For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

PA5 MiBoxer High Performance 5 Channel Amplifier

Quick Specs

  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Input Voltage12V / 24V DC

What's in the box

  • LED Controller
  • 3M Sticky Pad
  • Instruction manual

Technical Specification

  • Product Code: PA5
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type Controller / Receiver
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 12V / 24V DC
  • Output Voltage 12V / 24V DC
  • Connectivity RF
  • Size L115mm x W48mm x H27mm
  • Dimmable: No
  • Wireless Range Up to 30 metres
  • Transmitting Power 6dBm
  • Operation Frequency 2.4GHz
  • Operating Temp -20~60°C
  • Total Output Max15A
  • Output Max 6A/Channel

Product Datasheets

  • pdf Datasheet - PA5 Download
