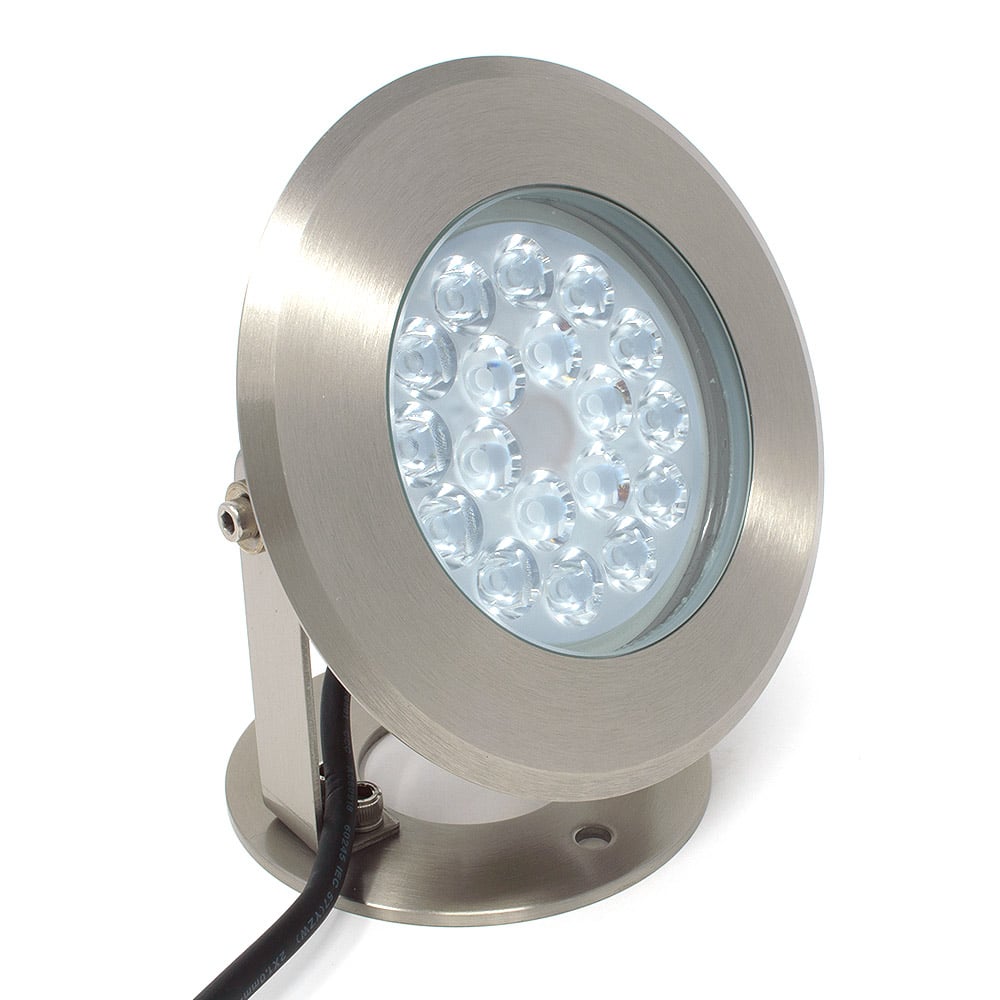

UW03 MiBoxer 9W RGB+CCT 12-24V Underwater LED Light

Product Code: UW03
  • RGB+CCT Underwater Light
  • 9W / AC 12V / DC 12-24V
  • Colour temperature 2700~6500K
  • Dimmable
  • Home automation compatibility
  • 5 Year Guarantee
RGB / CW & WW
AC 12V / DC 12V~24V
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

This compact LED underwater lighting is available from our stunning range of MiLight MiBoxer products. Providing a lumen rating of 600LM, it is the perfect solution for lighting up water features such as pools, fountains and ponds.

It has an excellent IP rating of IP68, which can withstand submersion up to 1.5m underwater as well as resistant to dust, sand and dirt.



This underwater pool light can create a huge amount of stunning lighting effects with the ability to produce 16 million colours. The colour temperature can even be adjusted from Warm White (2700K) to Cool White (6500K).



These compact LED underwater swimming pool lights have a diameter of 150mm with a height of 125mm. While it is small, this does not compromise on light output featuring a stunning 15-degree beam angle that will illuminate the water.



Installations

This underwater LED light is designed to be mounted on the floor of the water features or pools. Simply screw the light into place This can be tilted to suit the installation's requirements.



The Pool Floor Light is controlled from a remote control RF handset (FUT086). You can also control your lighting system from your smartphone or by voice control from your smart speaker. It has a wonderful wireless range of up to 50m.

Note: The WL433 (433MHz) wireless Gateway is required for smartphone or voice control features. The gateway also accepts a DMX input.



For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED pool lights through our website or contact our technical sales team.



UW03 MiBoxer 9W RGB+CCT 12-24V Underwater LED Light

Quick Specs

  • CRI Rating (greater than)CRI >80
  • Beam Angle:15 degree
  • ColourRGB / CW & WW
  • Guarantee Period5 Years
  • IP RatingIP68 Weatherproof
  • Input VoltageAC 12V / DC 12V~24V

What's in the box

  • Underwater Light
  • Instruction manual
  • Fixings

Technical Specification

  • Product Code: UW03
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type Pool Light
  • Colour RGB / CW & WW
  • IP Rating IP68 Weatherproof
  • Colour Temperature 2700 - 6500K
  • Guarantee Period 5 Years
  • Input Voltage AC 12V / DC 12V~24V
  • Connectivity RF: 433MHz (LoRa Spread Spectrum)
  • Size ø150 X 125mm Height
  • Beam Angle: 15 degree
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • Average LED life Hrs 50,000
  • Wireless Range Up to 30 metres
  • Operation Frequency 433MHz
  • Operating Temp -20~45°C
  • Luminous Flux: 600LM
  • Light Efficiency: 70LM/W
  • Smart Synchronisation Version 2.0

Product Datasheets

  • pdf UW03 - Datasheet Download
  • pdf Mi-Light MiBoxer LED Pool Light Installation Guide Download
