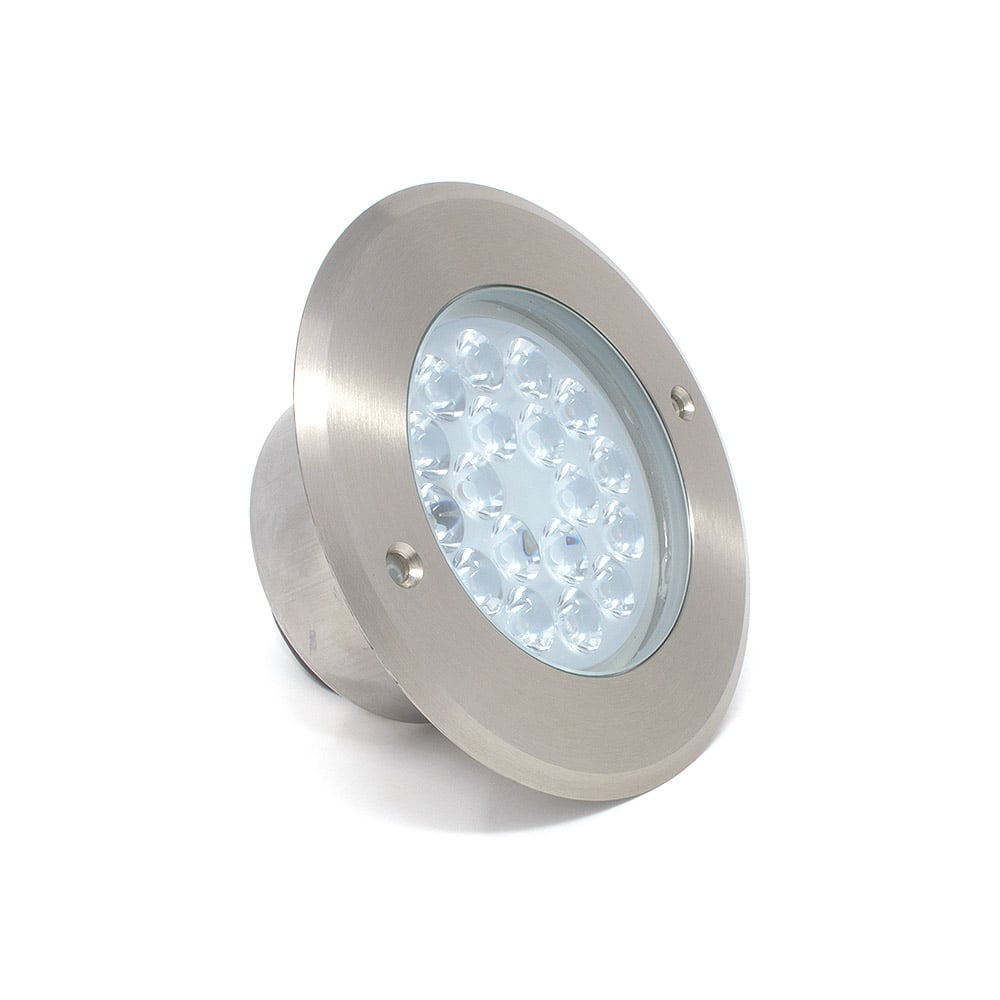

RD9L MiBoxer 9W RGB+CCT LoRa 433MHz In Ground LED Light

Product Code: RD9L
  • RGB+CCT In Ground Light
  • 9W / AC12V / DC 12-24V / LoRa 433MHz
  • Colour temperature 2700~6500K
  • Dimmable
  • Home automation compatibility
  • 5 Year Guarantee
RGB / CW & WW
AC 12V / DC 12V~24V
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

This high-quality 9w outdoor ground lighting is available from our stunning range of MiLight products. Providing a lumen rating of 600LM, this is the perfect lighting solution for driveways, decking areas or gardens.

Featuring an incredible IP68 rating, this ground outdoor light can withstand severe weather conditions and sand, dust and dirt. With a strong, silver bezel and thick lens, they can be walked over or driven over without causing any damage.



These ground lights can create a huge amount of stunning lighting effects with the ability to produce 16 million colours. The colour temperature can even be adjusted from Warm White (2700K) to Cool White (6500K) as well as the brightness.



With a compact size of 150m in diameter and 104mm in height, this compact recessed ground light has a 15-degree beam angle which is ideal for achieving a spotlight effect.



Installation

The In-Ground light is supplied with a mounting sleeve that should be sunk into the ground and fixed into place. The light body is then slid into the sleeve and screwed into place allowing for easy removal for maintenance.



This garden ground light is designed to be used with a 433MHz RF remote control system and is compatible with the FUT086 433MHz RF handset.

In addition, this LED light can also be controlled from your smartphone using the Mi-Light phone application or by voice control from your smart speaker. Please note for these control options you must have the WL433 Gateway (433MHz Gateway available separately).



For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED ground lights through our website or contact our technical sales team.



RD9L MiBoxer 9W RGB+CCT LoRa 433MHz In Ground LED Light

Quick Specs

  • CRI Rating (greater than)CRI >80
  • Beam Angle:15 degree
  • ColourRGB / CW & WW
  • Guarantee Period5 Years
  • IP RatingIP68 Weatherproof
  • Input VoltageAC 12V / DC 12V~24V

What's in the box

  • LED In Ground Light
  • Instruction manual
  • Fixings

Technical Specification

  • Product Code: RD9L
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type In Ground Light
  • Colour RGB / CW & WW
  • IP Rating IP68 Weatherproof
  • Colour Temperature 2700 - 6500K
  • Guarantee Period 5 Years
  • Input Voltage AC 12V / DC 12V~24V
  • Connectivity RF: 433MHz (LoRa Spread Spectrum)
  • Size ø150mm x H104mm x ø138mm Built-In Fitting
  • Beam Angle: 15 degree
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • Average LED life Hrs 50,000
  • Wireless Range Up to 2000 metres
  • Modulation Method LoRa Spread Spectrum
  • Operation Frequency RF: 433MHz
  • Operating Temp -20~45°C
  • Luminous Flux: 600LM
  • Light Efficiency: 70LM/W
  • Smart Synchronisation Version 2.0

Product Datasheets

  • pdf Datasheet - RD9L Download
