architectureFor Designers & Specifiers

Advanced LED Solutions for Professional Schemes

Interior designers and architects across residential, commercial and hospitality schemes need LED systems that match their ambition. Whether specifying architectural LED strip lighting for a ceiling cove, architectural LED downlights for a plinth run, or planning exterior architectural LED lighting to bring a facade to life, each area calls for a different solution.

This guide is structured around real-world applications and the brands behind them. Understand which product family is right for each area of your project, then navigate to full specifications and ordering.

ApplicationCove, Profile & Linear Lighting01 / 06
NEOLINEAR architectural LED range logo
architectureFive Distinct Series

The Benchmark for Architectural Linear LED Lighting

NEOLINEAR delivers pixel-free, uniform LED illumination across five specialist series covering every tier from general commercial cove work to DMX-addressable pixel animations. All series share IP67 waterproof protection and 24V DC operation, covering both interior architectural LED lighting and exposed exterior applications.

NEOLINEAR architectural LED cove ceiling kitchen
check_circleWhat Every Series Shares

Pixel-Free by Design. IP67 as Standard.

Every NEOLINEAR product eliminates visible LED hotspots through a seamless silicone diffuser. All operate on 24V DC with IP67 waterproof protection throughout.

  • check_circlePixel-free, hotspot-free uniform glow across all five series
  • check_circleIP67 waterproof interior coves and exposed exterior
  • check_circleTop-view (vertical bends) & side-view (horizontal bends)
  • check_circle24V DC standard driver compatibility throughout
  • check_circleRGB+W, Dynamic CCT, fixed colour and DMX pixel options

Select Your Series

NEOLINEAR Professional

General Commercial & High-End Residential

High output, broad colour palette and long runs for hotel corridors, retail ceilings and residential coves. 12+ colours, RGB, RGBW and Dynamic CCT.

10–12W/mIP67Runs to 20m3yr
Explore chevron_right NEOLINEAR Mini

High-End Retail & Precision Residential

Ultra-compact with CRI >90 accuracy for jewellery display, luxury joinery and anywhere quality of light is the design. 50,000 hours rated.

CRI >90IP6750k Hours3yr
Explore chevron_right NEOLINEAR Nano

Signage, Lettering & Custom Fabrication

3mm wide, 30mm bend radius and free-cut anywhere, the precision tool for architectural signage, channel lettering and bespoke fabrication.

3mm wideFree-CutIP675yr
Explore chevron_right NEOLINEAR Express

Dynamic Colour & Architectural Impact

RGB, RGBW and Dynamic CCT in a long-run hollow-core profile for hospitality coves, commercial shopfronts and dramatic ceiling features.

RGB+WIP67Runs to 20m3yr
Explore chevron_right NEOLINEAR Pixel HD

Animated Facades & DMX Effects

Eight individually addressable pixel blocks per metre, DMX512 control and 15W/m intensity moving bands of colour for entertainment and large facades.

DMX5128 Pixels/mIP673yr
Explore chevron_right
arrow_forwardView All NEOLINEAR infoFull Range Guide
Top View vs Side View

Top-view strips emit light upwards and bend vertically ideal for ceiling coves and horizontal reveals. Side-view emit outwards and bend horizontally for curved fascias, signage letterforms and furniture edge detail. Both orientations available across most series with IP67 throughout.

ApplicationFeature Wall & Media Wall Lighting02 / 06
DarkMatters logo
Slat Wall Neon Lighting System
grid_viewFeature Walls

Invisible by Day.
Architectural by Night.

DarkMatters sits invisibly within the groove of your slat wall delivering vivid colour when lit and leaving the wall's natural character untouched when off. The definitive led interior lights for home feature walls.

  • check_circle13mm friction-fit no tools, no adhesive, no wall modifications
  • check_circleCompatible with most 13mm groove slat wall brands
  • check_circle14 solid colours + 5 white temperatures from 2000K to 5500K
  • check_circleControl via 10-step dimmer, RF remote or Tuya WiFi smart app
  • check_circle24V DC one PSU powers up to four strips via 4-way splitter
  • check_circleSwap colours instantly slide out and slide in, no tools required

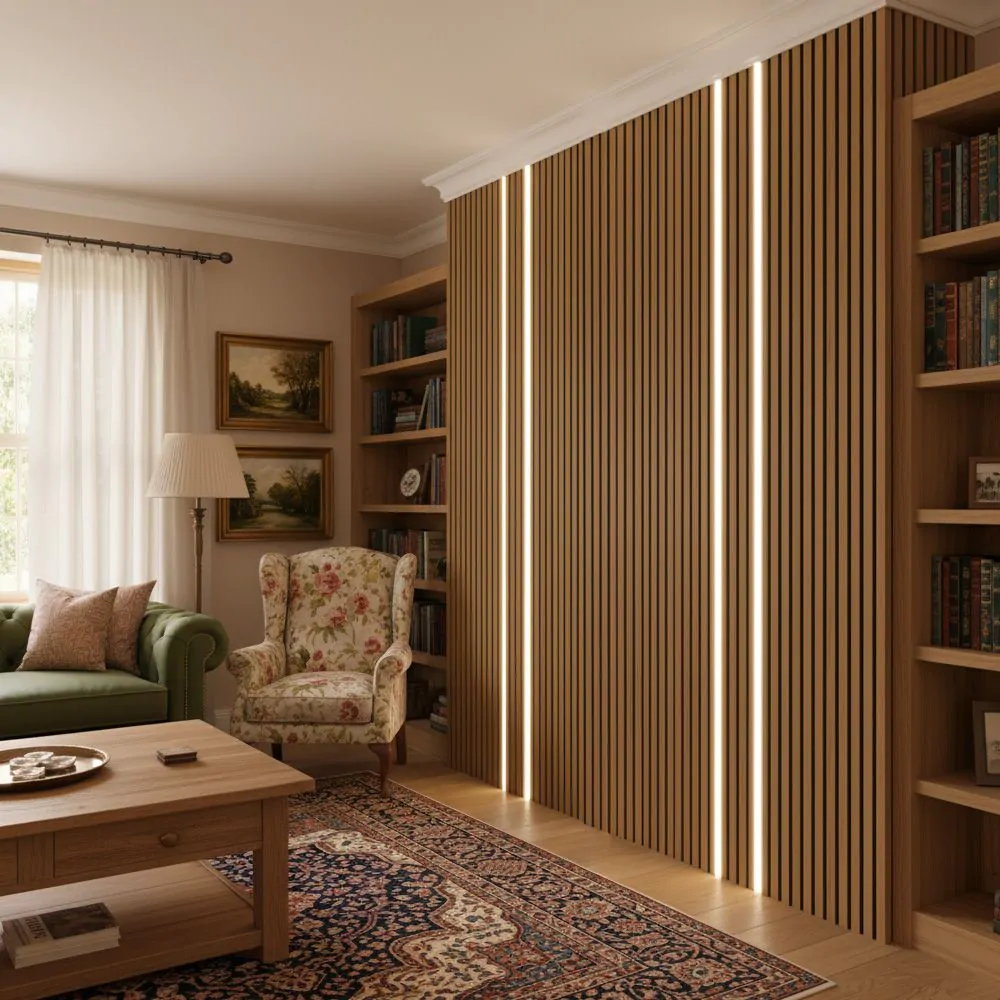

DarkMatters living room media wall
DarkMatters feature wall

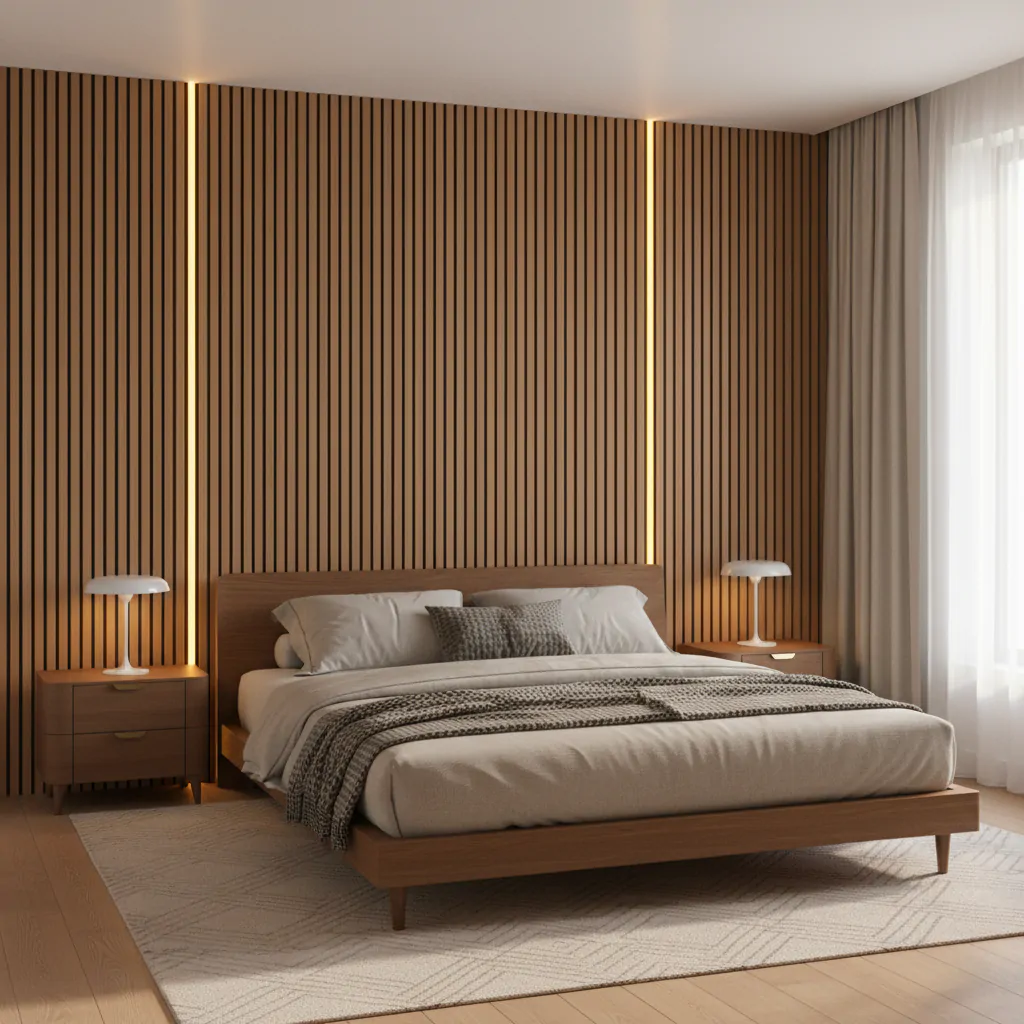

DarkMatters warm white neon slat wall

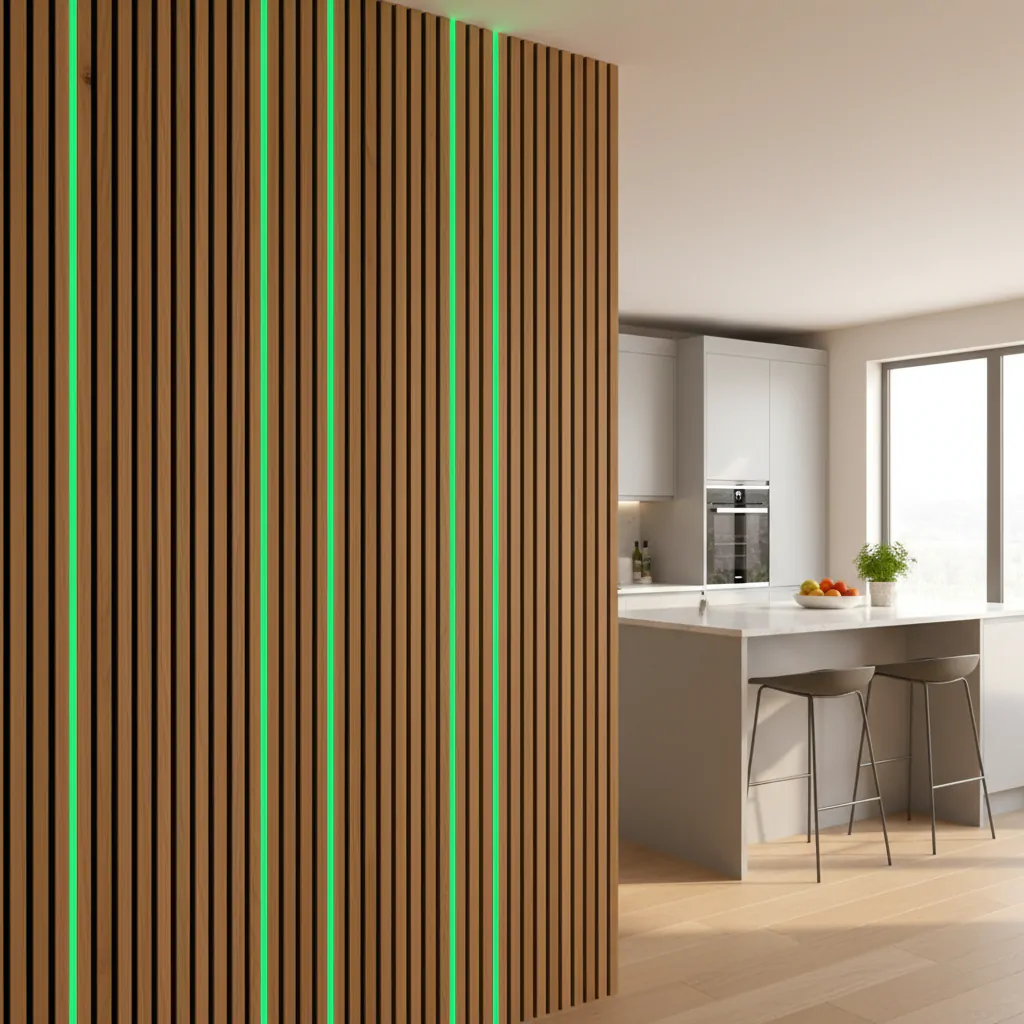

DarkMatters colour neon feature wall

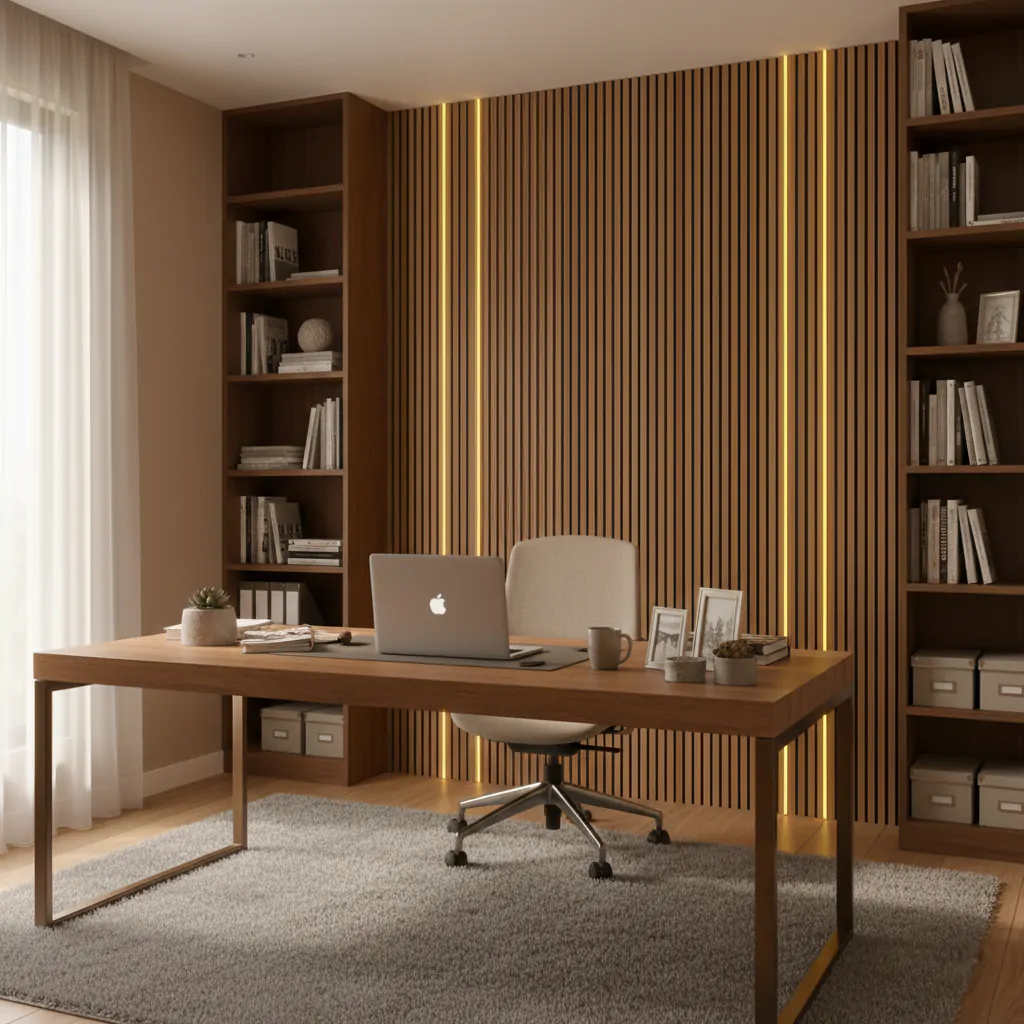

DarkMatters architectural feature wall

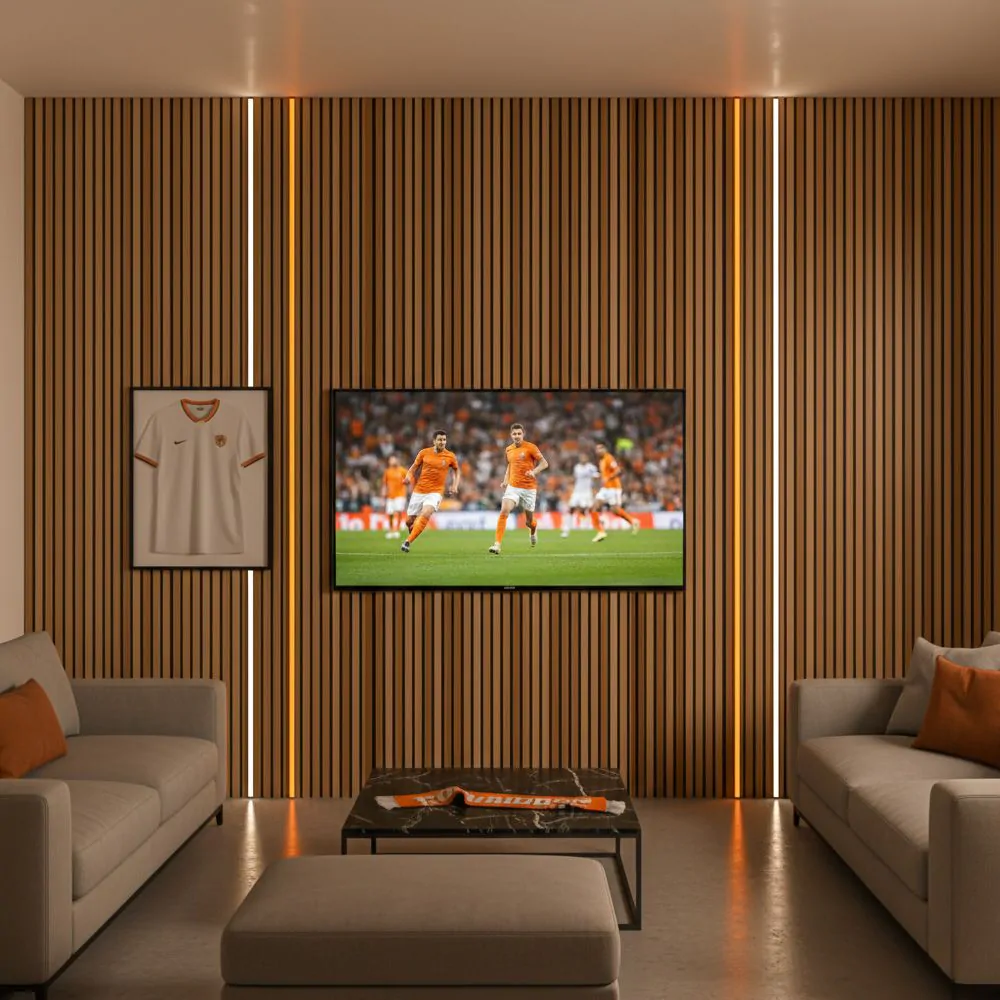

DarkMatters media room wall
visibility_off

Invisible When Off

Disappears completely into the slat groove when switched off. No visible hardware, the clean, natural wall character is preserved entirely.

palette

A Colour for Every Scheme

From 2000K extra-warm amber through to vivid Red, Blue, Green, Pink, Turquoise, Orange and more, a palette covering every interior design brief.

swap_horiz

Refresh Any Time

Friction-fit means swapping a colour is as simple as sliding one strip out and another in. No tools, no rewiring, update an entire room in minutes.

Confirmed Compatible Brands
B&Q VolgapanelsNaturewallAKU WoodpanelWalls & Floors CoThe Panel CompanyCharles & IvyThe Wood Veneer HubAny Slat Wall with 13mm Gap
arrow_forwardView DarkMatters Range infoLearn More
ApplicationPlinth, Accent & Recessed Downlighting03 / 06

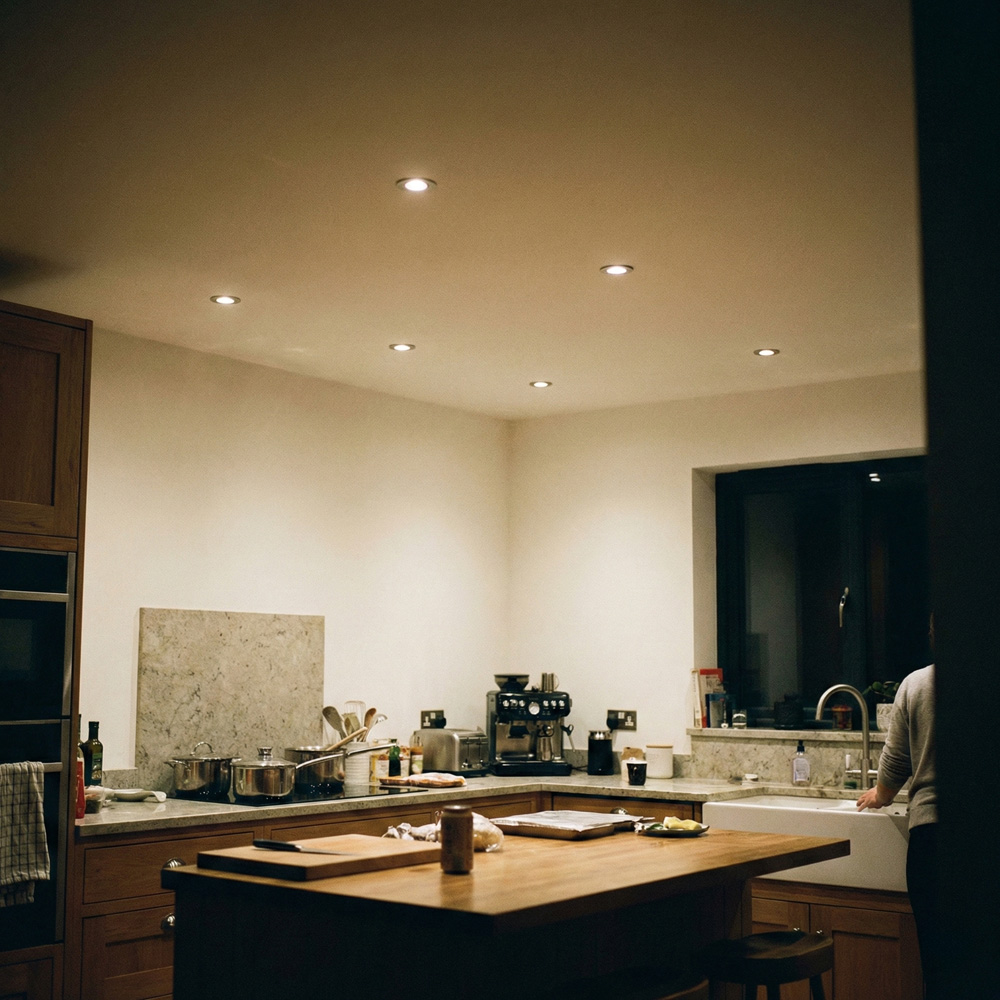

Mini downlights gallery image 1 Mini downlights gallery image 2 Mini downlights gallery image 3 Mini downlights gallery image 4 Mini downlights gallery image 5
lightMiBoxer Mini Downlight System

Precision 12V Downlighting Small Scale, Big Impact

The MiBoxer Mini 12V system delivers precision architectural led downlights from an aluminium luminaire smaller than a pound coin. At just 42mm across, these lights disappear into surfaces leaving only the quality of light to speak for itself.

Up to 20 downlights daisy-chain from a single 12V driver. Five colour variants share the same body, cut-out and cabling system, making mixed installations across a project consistent and straightforward.

How the System Works

01

Choose Your Colour Variant

Select from warm white, daylight, CCT adjustable, RGB or RGBW. All five share the same body and cut-out, colour decisions can change at any stage without changing the installation plan.

02

Plan Your Run & Power

String up to 20 units from one 12V driver using starter and link cables. One driver, one cable run, up to 20 lights keeping voids clean for both new builds and retrofits.

03

Install & Control

A 36mm cut-out and 40mm void is all that is needed. Spring-loaded wings lock each luminaire in place. Pair with MiBoxer controllers for dimming, CCT, RGB or smart-home integration.

Five Colour Variants

Warm White

1800–2200K
Cosy ambient

Daylight

3900–4100K
Crisp & clear

CCT Tunable

Warm to cool
Dynamic white

RGB

16M+ colours
Full spectrum

RGBW

Colour +
white channel

arrow_forwardView All Mini Downlights infoLearn More Here
Perfect For

Kitchen plinths, bathroom recesses, outdoor decking (IP66), stair nosing, cinema room detail, retail display plinths, under-stair and furniture accent lighting.

ApplicationExterior & Facade Floodlighting04 / 06
Floodlight gallery image 1 Floodlight gallery image 2 Floodlight gallery image 3 Floodlight gallery image 4 Floodlight gallery image 5
highlightRGB+CCT LED Floodlights

Exterior Architectural LED Flood Lights Garden to Large Facade

The right exterior architectural led lighting transforms how a property reads after dark. The RGB+CCT range covers every scale: from discreet 10W units for planters up to 200W powerhouses throwing light 100 metres.

  • check_circleIP65 rated all models for permanent outdoor installation
  • check_circleZigBee, RF and DMX512 control options across the range
  • check_circleAuto-Mesh unlimited synchronised units
  • check_circleFocused 25° beam and wide 160° wash options
  • check_circleZigBee models link to Apple Home, Google Home and Alexa
Lumen Output by Wattage Understanding the Scale Difference
10W
~900 Lumens
20W
~1,800 Lumens
30W
~2,800 Lumens
50W
~4,000–4,200 Lumens
100W
~7,500–8,700 Lumens
200W
~17,000 Lumens
Compact floodlight for garden feature lighting
10W–50W Compact
Gardens, Planters & House Walls

Intimate Accent & Wall Washing

From 900Lm (10W) for planters to 4,200Lm (50W) for house walls and trees. Choose a 25° focused or 160° wide beam. RF sync links multiple units for easy installation without complex network setups.

900–4,200LmIP65RGB+CCT25° or 160°
View Range chevron_right
100W architectural LED floodlight ZigBee
100W High Intensity
Driveways, Large Trees & Facades

High-Output Architectural Lighting

Delivering 7,500–8,700Lm, this tier offers serious architectural illumination for multi-storey facades, long driveways and large trees. ZigBee and RF models smoothly integrate with smart homes.

7,500–8,700LmIP65ZigBee+RFSmart Home
View Range chevron_right
200W DMX LED floodlight for large commercial facades
200W Powerhouse
Car Parks, Sports & Commercial

Long-Throw, Large-Scale Illumination

With 17,000Lm and a 100m+ throw, this powerhouse tier brilliantly illuminates sports courts, car parks and large commercial facades. It integrates with professional controllers via DMX512 or RF.

17,000LmIP65DMX512100m+ Throw
View Range chevron_right
arrow_forwardView All Floodlights infoFloodlight Guide
ApplicationSmart Control & Matter Protocol05 / 06
Matter smart home LED lighting background

The Future of Smart Lighting Control Has Arrived

Matter is the universal open standard making smart lighting work seamlessly across every major ecosystem with no lock-in, no complexity, no compromise. For any project specifying smart-integrated home interior design led lights, Matter is the most future-proof specification choice available today.

language

Universal Compatibility

Works natively with Apple Home, Google Home and Amazon Alexa. Specify once and deploy into any ecosystem today or in five years.

verified_user

Secure by Design

Built on modern cryptographic security with local network priority. No cloud dependency, private, reliable and fast at all times.

bolt

Local Speed

Commands run on the local network for near-instant response critical for scene-based architectural lighting.

qr_code_2

Simple Commissioning

QR code scan-and-assign setup. Assign to rooms, create scenes and control by voice or app with no specialist tools required.

homeApple Home
homeGoogle Home
record_voice_overAmazon Alexa
phone_androidTuya App
wifiLocal Wi-Fi
hubThread Network
arrow_forwardView Matter Products infoWhat Is Matter?
Professional ControlSunricher The Professional Choice06 / 06
The Professional Choice in Lighting Control
We Are the Sole UK & Ireland Authorised Distributor for Sunricher
Sunricher professional LED control wall panel

Intelligent Control Systems Trusted by Professionals Worldwide

Sunricher is a leading manufacturer of intelligent lighting control solutions, including advanced LED controllers, dimmers, and wireless control systems designed for reliable performance in commercial and architectural environments. Their range delivers precise control and seamless integration across every modern lighting installation, from single-room residential schemes to large-scale building automation. Available exclusively in the UK and Ireland through LED Technologies, every Sunricher product comes with the direct support of a dedicated distribution partner who knows the entire range inside out.

Why Specify Sunricher

01

Reliable Performance

Consistent quality that reduces faults and callbacks. Stable control hardware that performs reliably in commercial environments protecting both your schedule and your reputation on every project.

02

Wide Compatibility

The range supports DALI, DMX, Zigbee, Bluetooth, WiFi and many more so specify products that integrate smoothly with existing systems, remove risk and keep your design flexible throughout a project's life.

03

Installer-Focused Design

Practical layouts, efficient installation features and dependable firmware. Projects are faster to deliver, easier to commission and simpler to support long-term built with the installer, not just the end user, in mind.

Product Categories

light_mode

Wall Panels

Stylish touch and switch panels for RF, DALI and DMX lighting control designed to complement any interior.

View Range → settings_remote

Handsets

Ergonomic wireless remotes with rotary, button or touch controls for RGB, CCT and single-channel LED systems.

View Range → router

Receivers

Wide range of receivers converting RF, Zigbee and DMX signals into compatible LED outputs for any installation type.

View Range → electric_bolt

Drivers

Installation-grade drivers acting as receivers, available for 12V and 24V systems with clean, reliable LED output.

View Range → tune

DMX Decoders

DMX512 decoders with RDM options, easy setup and seamless integration into existing DMX control systems.

View Range → category

View All

Explore the complete catalogue of Sunricher professional lighting control devices and accessories.

Explore →

All Control Types in One Place

Pick the Right Protocol for Every Project

Sunricher covers every major control standard including wireless mesh, wired bus and gateway protocols so you can specify exactly the right control method for each job, whether it is a single room or an entire building.

bluetoothBluetooth MeshApp-based mesh network control managed from smartphone devices. signal_cellular_altRF RadioWireless radio frequency control with flexible placement and reliable range. wifiWiFiNetwork-integrated smart control managed remotely via dedicated apps. tuneDMXA robust digital protocol for precise, advanced control over lighting fixtures. device_hubDALIUniversal protocol with individual addressing and detailed group management. swap_vert0–10VAnalogue dimming protocol for smooth 0–100% output control. hubZigBeeLow-power wireless mesh protocol forming a resilient self-healing network. cell_towerZ-WaveUniversally compatible wireless protocol for smart lighting and home automation. account_treeKNXLeading open standard for comprehensive domestic and commercial building automation. sensorsCasambiFlexible wireless BLE control for commercial and residential lighting installations. qr_code_2MatterIP-based connectivity enabling all smart home devices to work seamlessly together. categoryView AllExplore the complete catalogue of Sunricher professional control protocols.

Home Automation with Sunricher How It Works

Sunricher offers professional lighting control products built for robust, scalable installations across homes and commercial projects. Here is the straightforward four-step path from brief to commissioned system.

Planning a Sunricher lighting installation
Step 01

Plan Your Installation

Map out the project before wiring or pairing. Decide which zones need wired control (DALI or KNX) versus wireless (Zigbee, Bluetooth Mesh, RF). Identify lighting types and total load per circuit. Planning early ensures smooth commissioning and avoids rework.

Selecting the right Sunricher control devices
Step 02

Select the Right Devices

Choose Sunricher receivers, controllers, drivers, wall panels and handsets that match your project's requirements for Zigbee or Bluetooth for wireless flexibility, DALI or KNX for professional bus-based control, or DMX for theatrical or pixel-mapped effects. Ensure devices match the voltage, wattage and LED type.

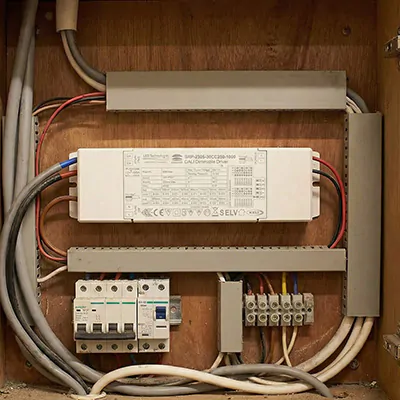

Installing and wiring Sunricher LED control devices
Step 03

Install & Wire Your Zones

Mount wall panels, receivers and controllers in their designated locations. Connect drivers, dimmers and gateways to the correct circuits. Label each device clearly to correspond with its assigned zone. For wireless devices, ensure optimal placement for signal coverage and line-of-sight where necessary.

Commissioning and testing a Sunricher lighting system
Step 04

Commission & Test

Power up and verify each zone: test local control via wall panels and handsets, test app or hub control for wireless devices, confirm dimming, colour changing and scene recall. For larger installations, check signal coverage and consider repeaters. Document each zone and scene for future reference.

arrow_forwardView All Sunricher Products infoLearn More About Sunricher
homeFind Your Solution

Which Solution for Which Space?

Match the right led lighting for home interiors or architectural led lighting brand to each area of your project. Click any tag to jump to that section.

home

Living Rooms & Lounges

Feature wall neons for media walls, cove ceiling strip lighting for layered ambience, and plinth downlights for floor-level accent around furniture and fireplace surrounds.

DarkMattersNEOLINEARMini Downlights
countertops

Kitchens & Dining

Plinth downlights under kitchen units, over-cabinet linear strip for layered task and ambient lighting, and dynamic CCT controls shifting from crisp morning light to warm evening tone.

NEOLINEARMini DownlightsMatter Control
bed

Bedrooms & Dressing Rooms

Soft warm-white cove lighting, wardrobe interior strip with high CRI accuracy, and scene-based smart dimming from a bedside app or voice assistant.

NEOLINEAR MiniMini DownlightsSunricher
park

Gardens & Outdoor Spaces

Facade washing, tree and planter uplighting, path edge accent and full-colour feature illumination. IP65 and IP67 rated products throughout for year-round permanence.

FloodlightsNEOLINEAR IP67Decking Lights
storefront

Commercial & Retail

Pixel-free linear profile lighting for shopfronts, high-CRI display case lighting, Nano for channel lettering and Pixel HD for animated brand-defining visual displays.

NEOLINEAR MiniNEOLINEAR NanoSunricher DMX
apartment

Hospitality & Hotels

Dynamic colour for lobbies and bars, architectural ceiling and wall reveals, exterior facade floodlighting and full building automation unified via a professional Sunricher control system.

NEOLINEAR Express200W FloodlightsSunricher KNX/DALI

Looking for a bespoke solution?

We offer more than what is listed online. For custom shapes, specialist finishes or technical advice for complex projects, our team is here to help.
