IP66 Waterproof 12V DC System 36° Beam

MiBoxer Mini Downlight System

Small scale. Massive impact.
A modular 12V lighting solution engineered for precision.

View Full Product Range Here

MiBoxer Mini Downlight System

Small scale. Massive impact. A modular 12V lighting solution engineered for precision.

Full Spectrum

RGB + CCT Colour Mixing

Plug & Play

Daisy chain up to 20 units

36°

Focused Beam

Architectural Detail

☂

IP66 Rated

Wet Room Ready

View Full Product Range Here

The Mini Downlight Collection

Available in 5 distinct variations to suit any lighting design requirement. All models feature a 36° beam angle and 12V DC input.

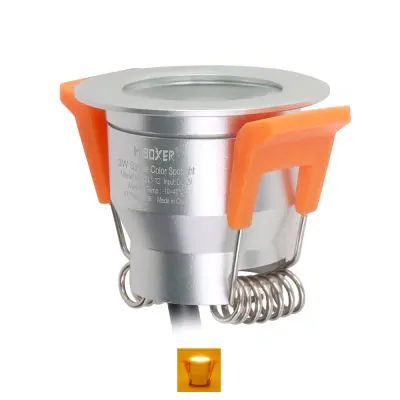

SL112 Warm White
Warm White (1800-2200K)

SL112 3W Mini Downlight

Creates a cosy ambient atmosphere perfect for living areas and decorative accents within your home.

View Product
SL113 Daylight White
Daylight White (3900-4100K)

SL113 3W Mini Downlight

Crisp modern lighting ideal for task lighting in kitchens and bathrooms requiring clear bright illumination.

View Product

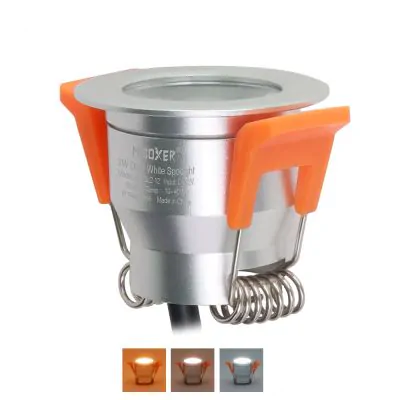

SL212 CCT Adjustable
CCT Adjustable (Warm to Cool)

SL212 3W Dynamic Downlight

Dynamic control adjusts from warm to cool white offering you the best of both worlds.

View Product

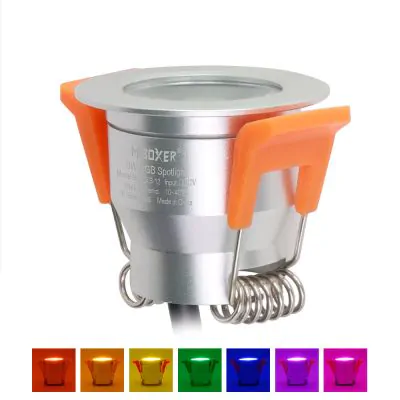

SL312 RGB
RGB Colour Changing

SL312 3W RGB Downlight

Full colour control allows for dramatic effects and mood lighting in commercial or domestic settings.

View Product

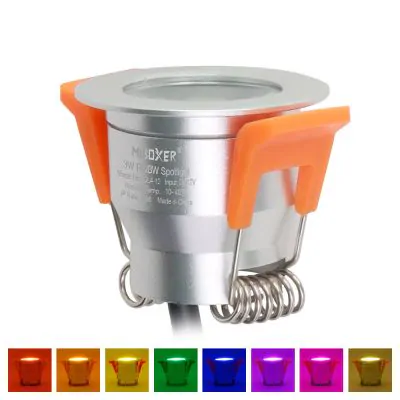

SL412 RGBW
RGB + Warm White

SL412 3W RGBW Downlight

Create millions of vibrant colours plus a dedicated Warm White channel for the ultimate experience.

View Product
View Full Product Range Here

Easy "Plug & Play" Installation

The MiBoxer Mini Downlights are designed as a modular system. They can be installed in strings of up to 20 units.

Installation Steps:

  1. Drill a 36mm diameter hole in the mounting surface (ceiling, plinth, decking).
  2. Ensure a void depth of at least 40mm for ventilation (Do not cover with insulation).
  3. Connect the downlights using the specific Starter and Link cables.
  4. Push the downlight into the hole; the spring-loaded wings will secure it in place.
  5. Connect to your 12V DC driver and control system.
MiBoxer Mini Downlight Installation Diagram

System Connection Blueprint

Mini Downlights Wiring Diagram

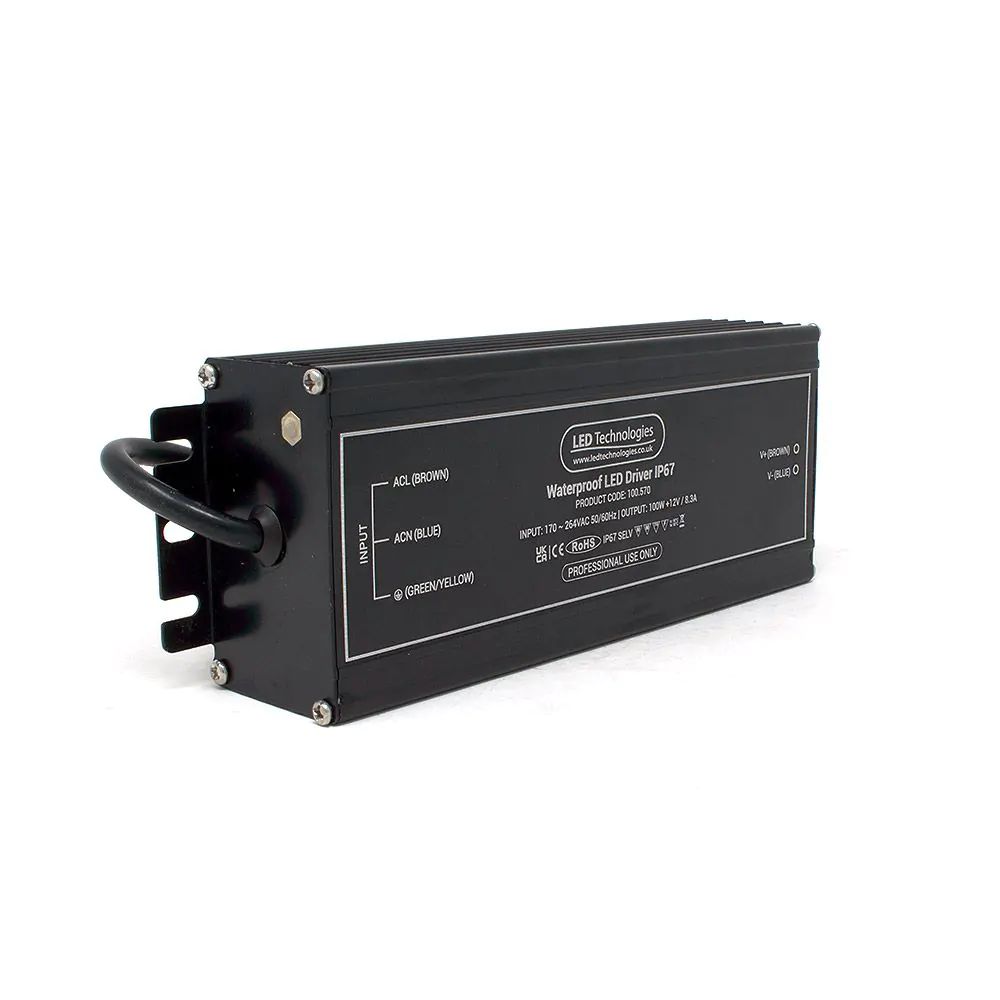

100W 12V LED Driver

Recommended: 100W 12V LED Driver

Product Code: 100.570

This superb quality constant voltage LED driver from our LED Tech range is essential for powering a full string of 20 downlights. Compact and robust, it features an IP67 rating, making it suitable for wet or damp environments.

Note: The driver is supplied with input/output wire tails which need to be connected to a waterproof junction box (e.g., IP68 gel connectors) to maintain the IP rating. Ensure the driver is installed in a ventilated area as the unit is air cooled.

✓ 100W (8.33A) Output
✓ Auto-reset Thermal Cut-out
✓ IP67 Waterproof
✓ 3 Year Warranty
✓ Over-voltage Protection
✓ Input: 100-240V AC
View Driver

High-Quality IP66 LED Lighting

These stylish 3W Mini 12V LED Downlights deliver surprisingly powerful output from a compact aluminium luminaire.

Featuring an IP66 splashproof rating, they are perfect for damp areas like bathrooms and decking. Versatile and easy to install, they require just a 36mm cut-out and a 40mm void.

Perfect Applications:

  • Cinema rooms
  • Bathrooms
  • Retail spaces
  • Bedrooms and living rooms
View Full Product Range Here

Required Accessories: The Cabling System

To power and control your system, you must select the correct core cable for your chosen downlight. Starter Cables connect the first light to the controller, and Extension Cables link lights together.

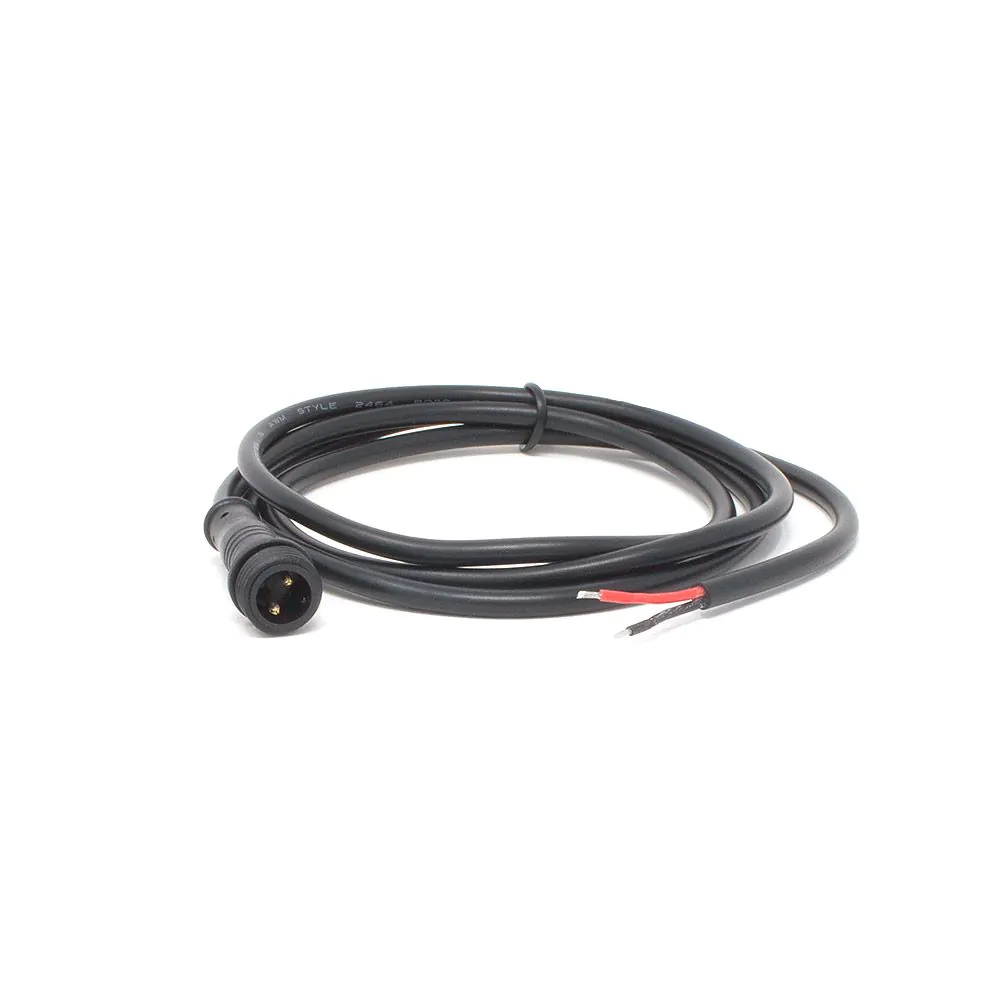

2 Core Cable
For SL112 & SL113

2-Core Cables

Required for Single Colour (Warm White / Daylight) models.

  • Red & Black Wires
  • IP65 Splashproof
View Starter Cable

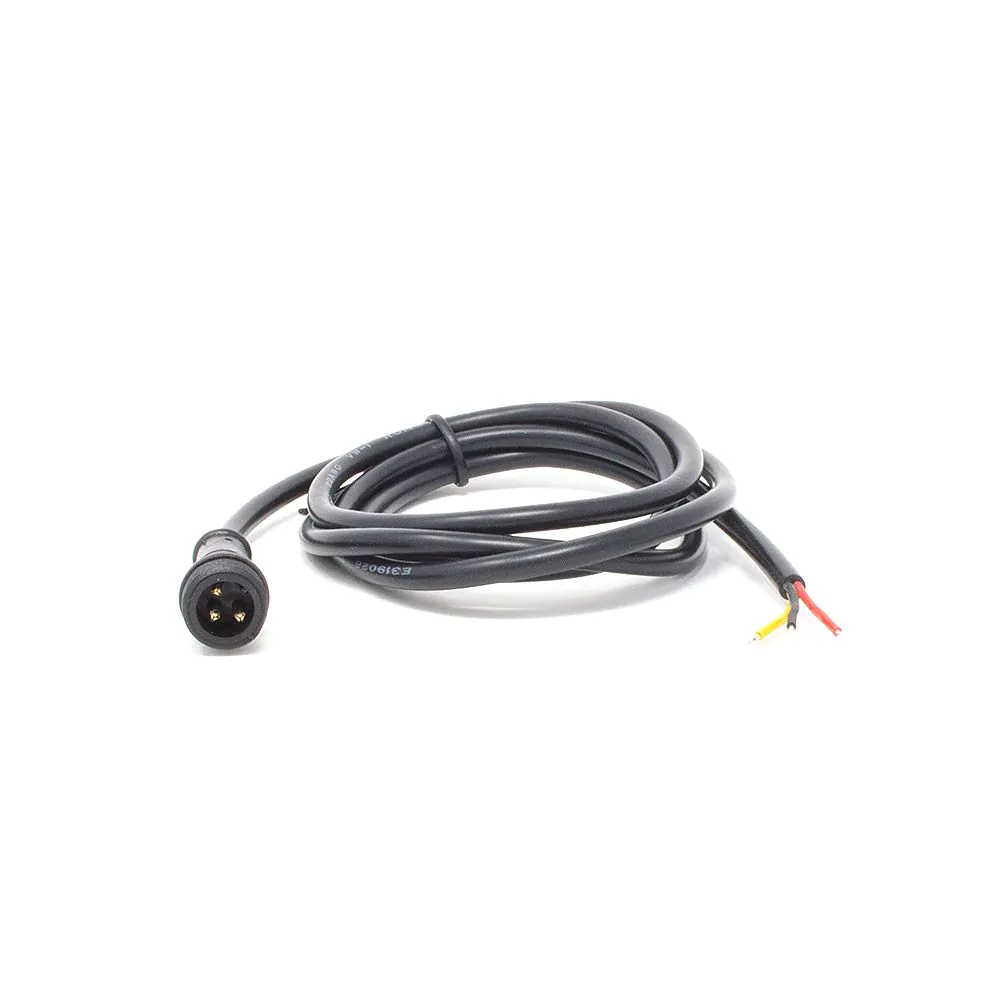

3 Core Cable
For SL212

3-Core Cables

Required for CCT Adjustable (Dynamic White) models.

  • Red, Green & Blue Wires
  • IP65 Splashproof
View Starter Cable View Extension Cable

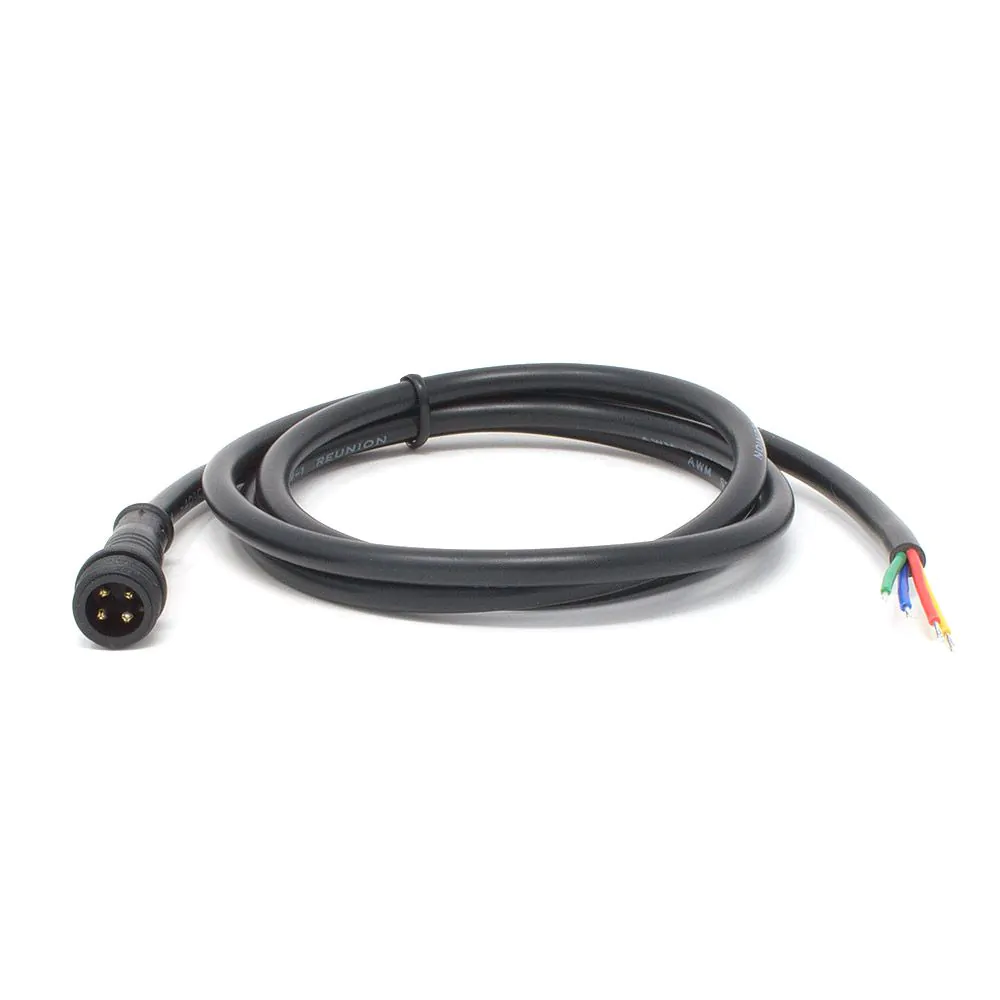

4 Core Cable
For SL312

4-Core Cables

Required for RGB Colour Changing models.

  • Red, Green, Blue & Yellow Wires
  • IP65 Splashproof
View Starter Cable View Extension Cable

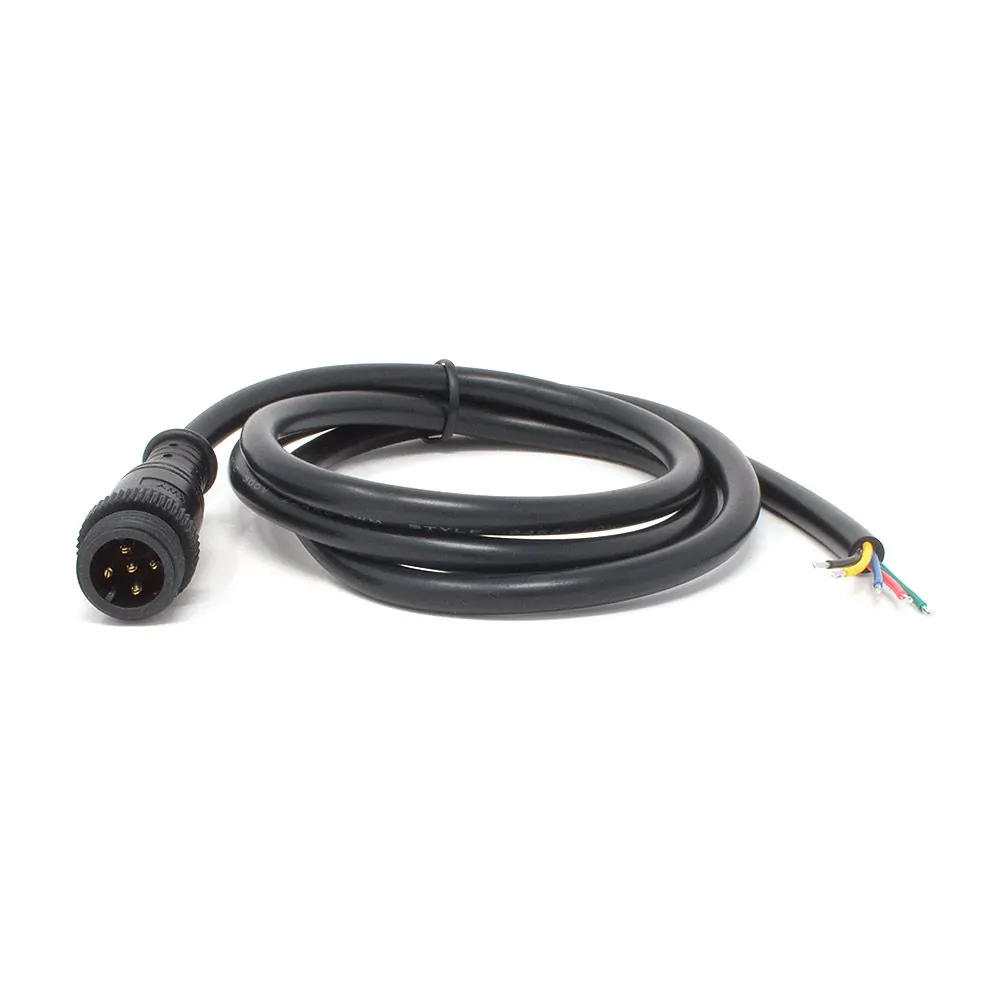

5 Core Cable
For SL412

5-Core Cables

Required for RGBW Colour Changing models.

  • Red, Green, Blue, Yellow & Black
  • IP65 Splashproof
View Starter Cable View Extension Cable

Technical Specifications

Specification Detail
Input Voltage 12V DC
Wattage 3W
IP Rating IP66 (Splashproof/Weatherproof)
Cut-out Diameter Ø36mm
Dimensions Ø42mm x 36mm (Height)
Beam Angle 36 Degrees
Material Aluminium
Max Connection String 20 Units
Warranty 5 Years

*Note: Compatible Mi-Light LED controllers & additional lighting power supplies are sold separately.

MiBoxer Mini Downlight Dimensions Diagram
