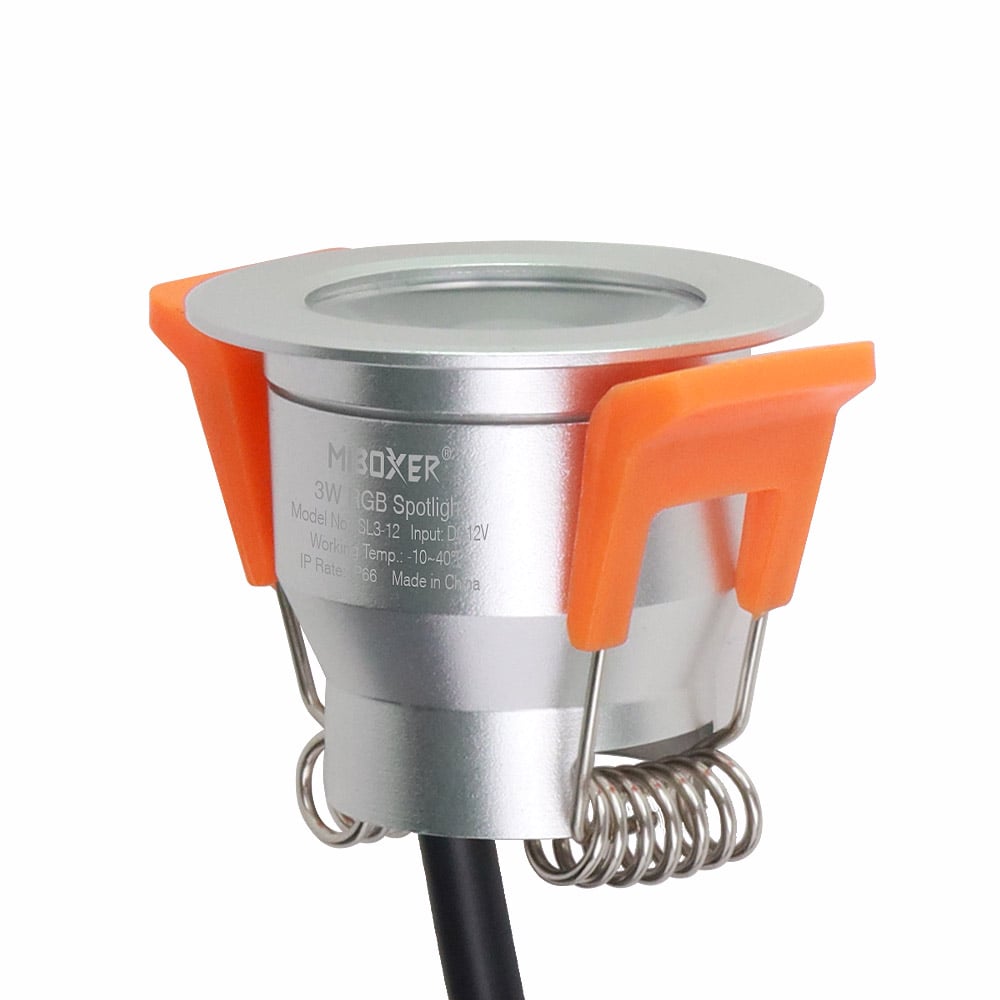

SL312 MiBoxer 3W Mini Downlighter 12V RGB

Product Code: SL312
RGB
CRI 80
5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP66
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This single-colour mini LED spotlight is available from our stunning range of Mi-Light products. Providing a lumen rating of 10.9LM, it is perfect for achieving subtle and modern lighting.



This dynamic small LED spotlight runs at 3W, featuring tri-coloured LEDs that allow unique blends and custom lighting aesthetics to be achieved. This small spotlight can also be fully dimmed, giving further control over the light effect.



Our MiLight MiBoxer mini downlights are long-lasting and reliable products, perfect for lighting in both commercial and domestic projects. It has a narrow 36-degree beam angle which will achieve a spot-light effect, the perfect solution for applications that require focused light.



Installation

The downlighter is housed in an aluminium IP66-rated case. This makes it perfect for use both indoors and outdoors in wet or damp conditions.



Our mini spotlight has a diameter of 42mm with a height of 36mm. A void with a diameter of 36mm is required to instal this miniature LED downlight. Push the downlighter through the hole and clip it into place with the attached spring-loaded wings. This will hold the lights firmly in position.

Note: It is important that enough ventilation is available around the light. It is not recommended to cover them with insulating materials such as loft insulation.



Multiple mini spotlights can be connected, up to a maximum of 20 so that they can be controlled together. The first downlighter in the chain will require a 2-core starter cable, and subsequent downlighters will require a 2-core link cable.





Mini Downlights Connection Diagram

Compatible Mi-Light LED controllers & additional lighting are sold separately.



For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Downlights through our website or contact our technical sales team.

Mi-Light MiBoxer Mini LED Downlights

Quick Specs

RGB
CRI 80
5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP66
12v
This is the required amount of volts needed to power the product.
RF

What's in the box?

  • LED Mini Downlight
  • Instruction manual
Product Code: SL312
Product Packed Gift box
Manufacturer Mi-Light / MiBoxer
Product Type Mini Downlight
Colour RGB
IP Rating IP66 Splashproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Wattage 3W
Current 0.0607A
Input Voltage
This is the required amount of volts needed to power the product.
12V DC
Connectivity RF
Size ø42 X 52mm Width X 36mm Height
Beam Angle: 36 degree
CRI Rating (greater than) CRI >80
Dimmable: Yes
Average LED life Hrs 50,000
Power Factor > 1.0
Operation Frequency 2.4GHz
Operating Temp -10 to 40ºC
Luminous Flux: 10.9LM
Light Efficiency: 14.30LM/W
Lightsource Report - SL312 Download
Datasheet - SL312 Download
