Mi-Light MiBoxer RGB+CCT LED Battens / Wall Washers

Mi-Light MiBoxer RGB+CCT LED Battens / Wall Washers

From our range of Mi-Light LED lighting comes the RGB+CCT LED Wall Washer Lights. These are available as a 24W or 48W Smart batten and a 72W DMX512 & RDM batten.

Our range of long-life LED battens has commercial grade RGB+CCT LEDs. This lets you select millions of colour combinations. You also have the option to adjust the colour temperature from 2700K (warm white) to 6500K (cool white) for great ambient lighting. Each batten fitting is just over 1 MTR long and can be angled as required using the adjustable fixing brackets...

With a beam angle of 15 degrees height and 60 degrees wide, each batten is ideal for projecting an even wash of light to walls of:

  • Buildings
  • Marquees
  • Event studios
  • Public areas
  • Car parks
  • And many more

The units are IP66 rated, meaning they can be used on buildings or other outdoor structures. These LED battens are a perfect choice for creating the ideal ambient wall light for your indoor and outdoor spaces.

The professional 72W DMX LED Wall Washer has a built-in DMX512 decoder, featuring RDM. This enables you to set up multiple parameters, including a dimming curve from an RDM enabled DMX desk.

You can also set the DMX addresses and various other parameters using the built-in DMX decoders digital user interface and control buttons. The connected cables of the LED Batten include:

  • A mains input power cable
  • A DMX input at one end of the batten
  • A DMX output link cable at the opposite end of the batten

The DMX link cables have IP66 rated connectors and an IP66 connector to flying lead link cable, available separately if required. Our fixtures require an input voltage of AC100-240V.

You can control your dimmable LED batten from a single 2.4G RF remote control Mi-Light Handset or Mi-Light Wall panel. These controllers give you the perfect controlled lighting.

Controlling your energy efficient LED batten lights from your phone is possible with the free Mi-Light phone app. You can also control your LED lights with your voice using Alexa or Google Assistant.

Note: An additional hub is required for smartphone & voice control.

Using wireless control helps to minimise cable runs so all the battens require is a mains supply to power them.

The Mi-Light control system features “Signal Transmitting & Mode sync”. This means each LED light re-transmits the signal from the LED controller to other LED lights in the group. This effectively creates a MESH network that means all the Mi-Light Wall Washers in the network will synchronise together wirelessly, without any connecting control leads.

As long as the first LED light is within 30 meters of the LED controller, the signal from the controller will jump from the first light to the rest of the lights that are within 30 meters of each other.

Our LED Battens are ideal for marquees where cable runs need to be kept to a minimum to reduce set-up times. It also enables you to wirelessly synchronise the battens together without having to run control cables over doorways and emergency exits.

We confidently offer a 5-year warranty on our Mi-Light LED Battens.

Mi-Light MiBoxer LED Wall Washers

View as Grid List

8 Items

per page
Set Descending Direction
  1. RL124
    RL124 MiBoxer 24W RGB+CCT AC100-240V LED Wall Washer
  2. RL248
    RL248 MiBoxer 48W RGB+CCT AC100-240V LED Wall Washer

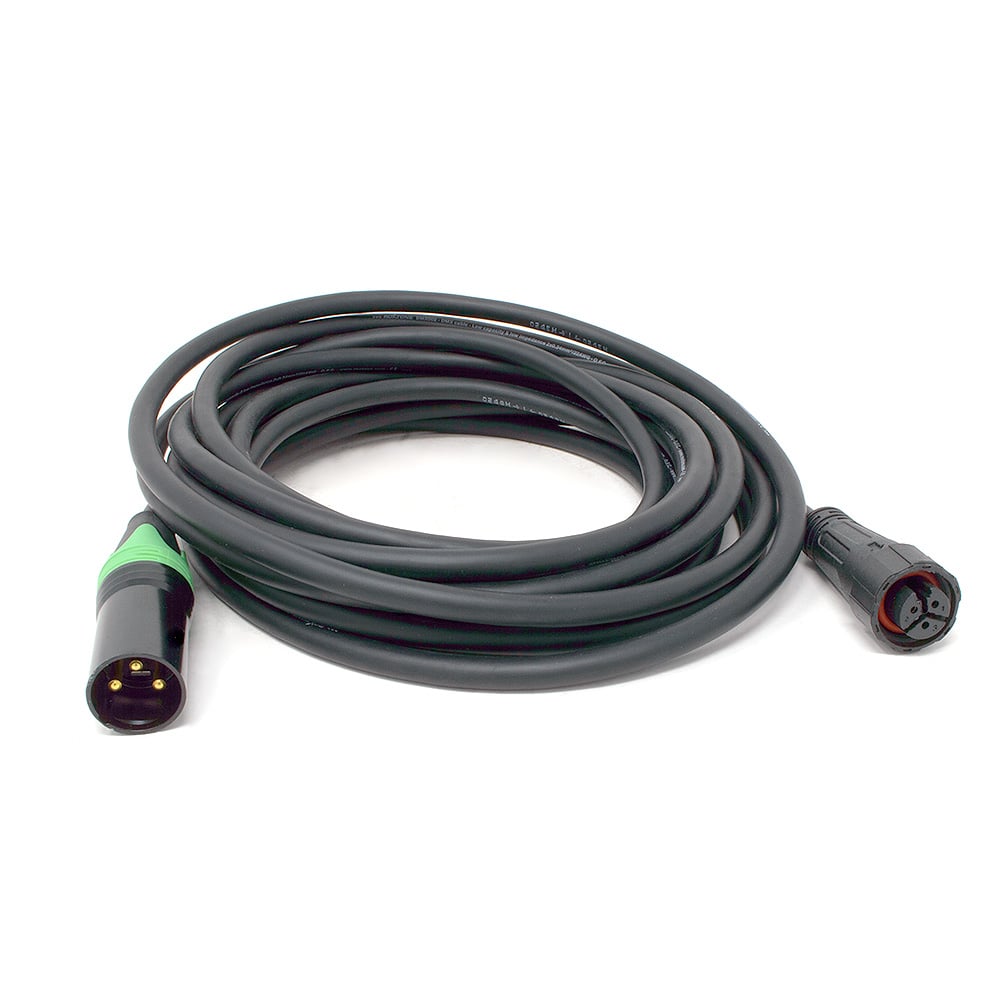

    Mi-Light 5m DMX Starter Cable Male 3-Pin XLR to Female IP66
  4. D5W72
    D5W72 MiBoxer 72W RGB+CCT AC100-240V DMX LED Wall Washer
  5. D4W72
    D4W72 MiBoxer 72W RGBW AC100-240V DMX LED Wall Washer
  6. RL124L
    RL124L MiBoxer 24W LoRa 433MHz RGB+CCT AC100-240V LED Wall Washer
  7. LL118
    LL118 MiBoxer 18W RGB+CCT AC100-240V LED Linear Light
  8. SYSRL1
    SYSRL1 MiBoxer 24W RGB+CCT 24V LED Wall Washer Light
