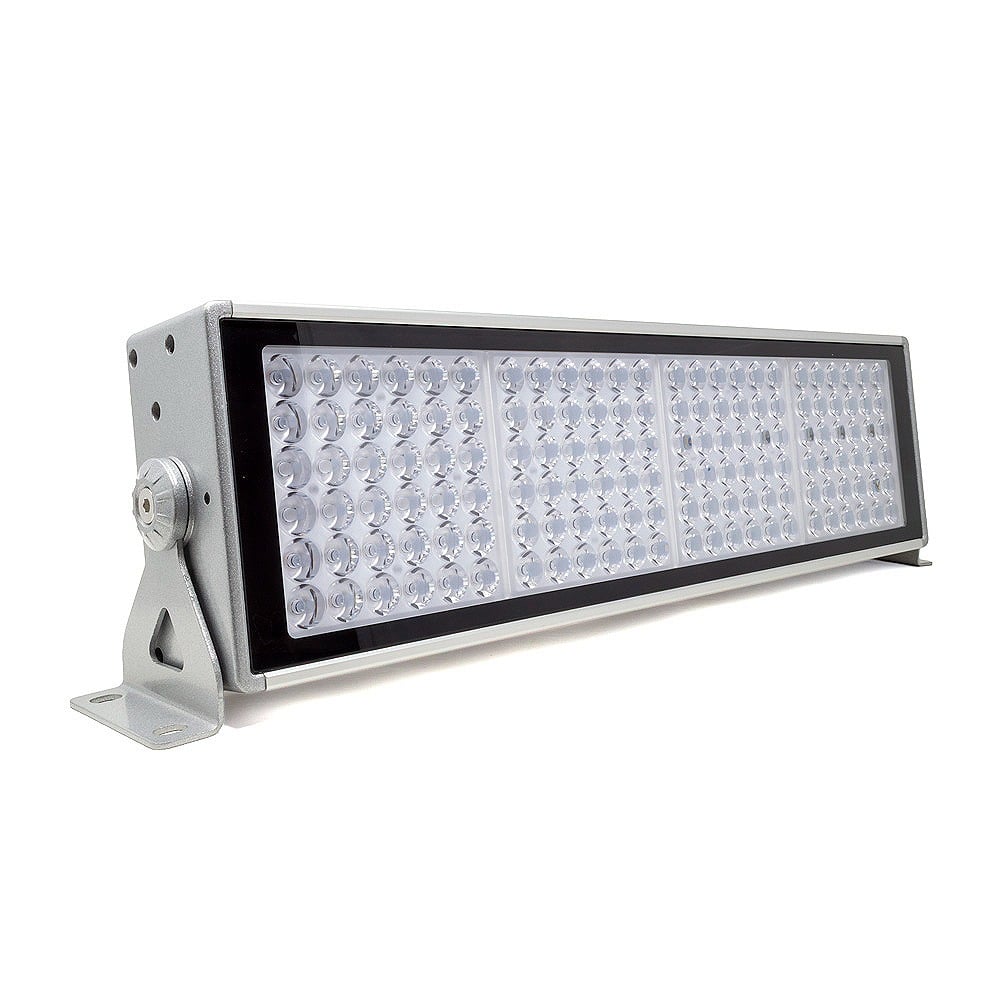

MiBoxer 100W RGB+CCT Architectural LED Floodlight (RF + ZigBee)

Product Code: FUTC13
  • Sole UK Distributor
  • Supports both 2.4G & ZIGBEE 3.0 Control
  • Supports TUYA SMART app control
  • Very bright (8,700Lm) with a 15º Beam angle
  • Supports Alexa & Google Assistant
  • Wireless Auto-synchronisation between units
  • Over 16 million colours + Cool to Warm White
  • Adustable DND function for loss of power
  • IP65 Water Resistant
  • 5 Year Guarantee
RGB / CW & WW
100V - 240V AC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This compact, 100W LED Floodlight is extremely bright, producing 8,700Lm with an efficiency of 88Lm/W and a 15º Beam Angle. With over 16million colour combinations plus colour temperature adjustment from Cool White (6500K) to Warm White(2700K) this is an ideal unit for architectural use, easily lighting areas up to 20m, it is an ideal product for colour washing buildings and large outdoor spaces. The floodlight features dual chip technology, enabling it to be controlled wirelessly from any Mi-Boxer 2.4G handset or wall panel or ZIGBEE 3.0 protocols through a ZIGBEE gateway making this a great addition to your home automation MESH network. Full colour selection, colour temperature adjustment and dimming can all be performed wirelessly from your chosen control method. Using MESH technology, multiple units can be synchronised together wirelessly, and providing each unit is within 30m of the previous unit, there is no limit to the number of lights that can be linked together. Being wireless means less cabling as each floodlight simply requires a mains power supply from 100V to 240V and then paired to a compatible 2.4G or ZIGBEE controller. There are several built in programs that can be accessed through the controller such as fading through or flipping through the colours, and the programs have a speed adjustment control to set the desired effect. For more information on this and our other architectural lighting solutions, please contact our technical sales team by email, phone or via Live Chat and WhatsApp on our website.

Quick Specs

  • CRI Rating (greater than)CRI >80
  • Beam Angle:15 degree
  • ColourRGB / CW & WW
  • Guarantee Period5 Years
  • IP RatingIP65 Splashproof
  • Input Voltage100V - 240V AC
  • Input Signal2.4g and ZIGBEE

What's in the box

  • MiLight 100W Architectural Flood Light
  • Instruction manual

Technical Specification

  • Product Code: FUTC13
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type Floodlight
  • Colour RGB / CW & WW
  • IP Rating IP65 Splashproof
  • Guarantee Period 5 Years
  • Wattage 100W
  • Input Voltage 100V - 240V AC
  • Connectivity ZigBee 3.0 + 2.4GHz
  • Size 555mm X 141.5mm X 65mm Height
  • Beam Angle: 15 degree
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • Average LED life Hrs 50,000
  • Wireless Range Up to 30 metres
  • Operation Frequency 2.4GHz
  • Operating Temp -20~60°C
  • Luminous Flux: 550LM
  • Smart Synchronisation Version 2.0

Product Datasheets

  • pdf Datasheet - FUTC13 Download
