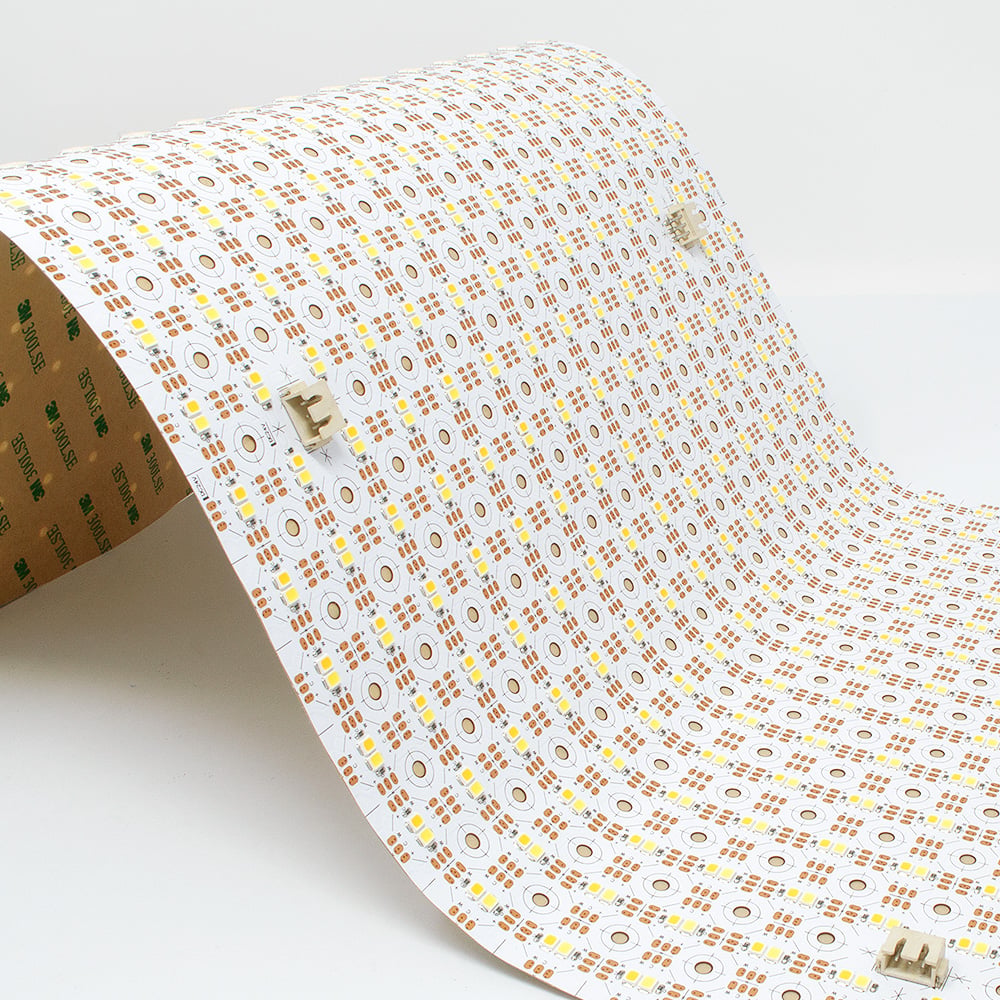

Honeycomb Flexi LED Light Sheet Pack 3pcs 32W 24V 2700-6500K CCT

Product Code: 102.115
  • Can be cut to size as required
  • Very flexible
  • 120° beam angle
  • 784 x 2835 LED's at 32W / sheet
  • Bright colour temperature adjustable (2700K-6500K)
  • Light sheet size 480mm x 240mm
  • Linkable up to 3 x units together
  • Supplied in packs of 3 sheets
  • Powerful 300LSE 3M™ sticky backing to fix firmly in place
Angle 120
Cool / Warm White
CRI 90
3 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Stock Arriving Soon
Next day delivery available*

In stock
Speak with an Expert

This LED Light Sheet requires the following products:

Starter Cable
CCT Flexi Light Sheet Starter Cable (102.119)

Link Cables
CCT Flexi Light Sheet Link Cables (102.120).

Speak with an Expert

Product Description

This colour temperature adjustable (CCT) version of Flexible LED Light sheets from LED Technologies is part of our extensive range of flexible panel lighting products. The CCT version features 784 x 2835 LED chips with a CRI rating of >90 producing an exceptional quality of light. Each panel emits 32W of light which equates to 2,570 Lumens with a beam angle of 120 degrees. The colour temperature of these high-quality LED panels can be varied between Cool white (6,500K) to Warm White (2,700K) when connected to a suitable controller (available separately). The light sheets are supplied in a pack of three and you can connect up to 3 x LED Panels together to create a consistent light over a large area or large lightbox. For larger projects, additional light sheets can be incorporated into your project by connecting them back to the LED Driver or an additional driver, each light sheet is 480mm x 240mm and requires a 24V Constant Voltage LED Driver and a dual channel LED Controller that can be connected to any of the terminals using the starter cable (sold separately).

Link/power terminals can be found on all sides of the LED Sheet, enabling them to be connected together easily using the link cables. Our LED sheets can be cut along the marked cutting lines as required to enable you to install them into various shaped light boxes or for other special projects where a bright flexible light is required.

The light sheets are highly flexible allowing them to bend as required making this product ideal for backlighting curved areas, walls, reception desks, pillars, and similar shapes. The panels are energy-efficient and easy to install, making them suitable for any project that requires a bright flexible lighting solution.

For further information about our Flexible LED panel Lighting solutions and professional control equipment, please contact our technical sales team by phone, email, WhatsApp or via live chat on our website.

Quick Specs

Angle 120
Cool / Warm White
CRI 90
3 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP Rating 20
24v
This is the required amount of volts needed to power the product.

What's in the box?

  • 3 x Flexible Light Sheets
  • Data Sheet
  • Connectors NOT included
Product Code: 102.115
Product Packed Anti static Bag
Manufacturer LED Technologies
Product Type Light Panel
Colour Cool / Warm White
IP Rating IP20 Non-Waterproof
Colour Temperature
Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.
2700 - 6500K
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
3 Years
Wattage 32W
Current 1.337A
Input Voltage
This is the required amount of volts needed to power the product.
24V DC
Output Voltage 24V DC
PCB Weight 2oz
PCB Colour
White PCB
Size 480mm x 240mm
Beam Angle: 120 degree
Appx Lumens: 2,570 Lumens Per Sheet
Light Intensity Per LED 1,800 - 2,100mcd
Lumens Per LED 6 - 7lm
CRI Rating (greater than) CRI >90
Dimmable: Yes
LED Quantity 784 x CCT SMD2835 LEDs
LED Type Led chip 2835
Average LED life Hrs 30,000
Peelable Back 300LSE 3M™
Datasheet - 102.115 Download
Photometrics - 102.115 Download
32W CCT Light Sheets - Installation & Handling Instructions Download
