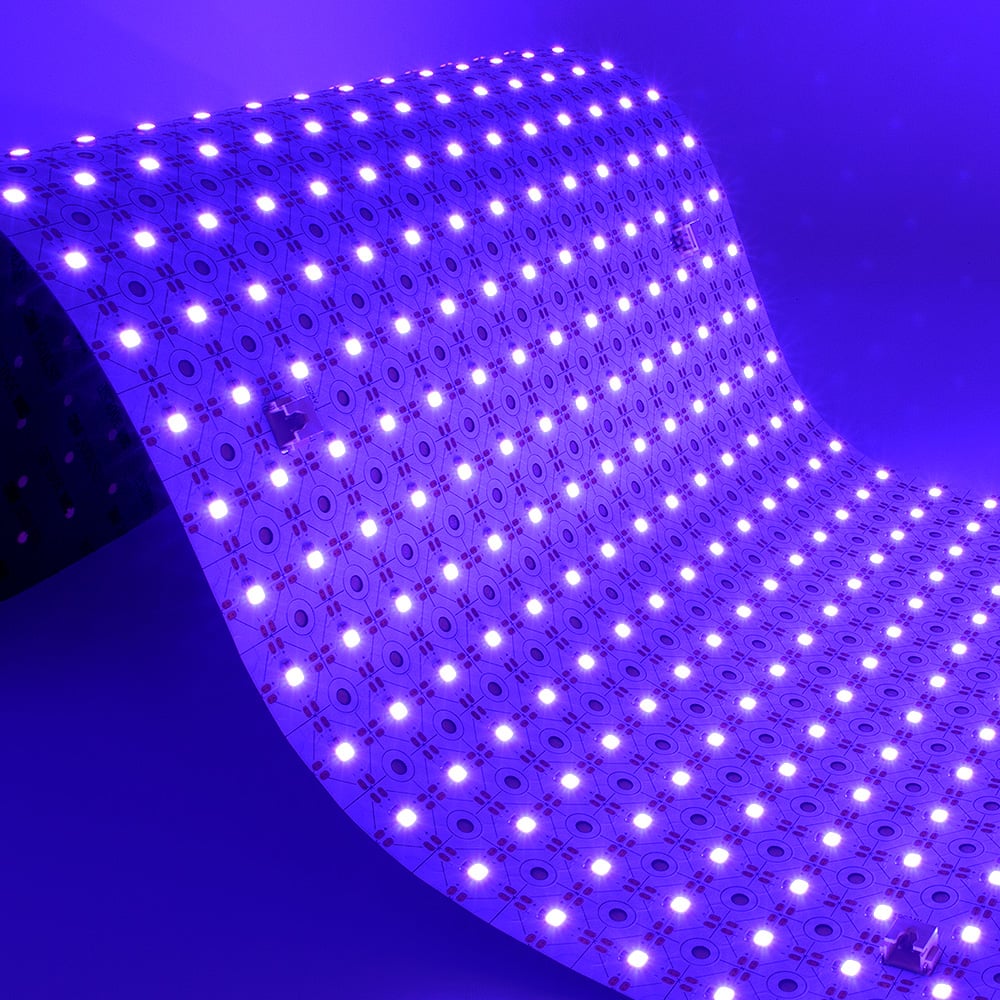

Honeycomb Flexi LED Light Sheet Pack 3pcs 32W 24V UV Effect
- Can be cut to size as required
- Very flexible
- 120° beam angle
- 392 x 2835 LED's at 32W / sheet
- Bright UV Effect light
- Light sheet size 480mm x 240mm
- Linkable up to 3 x units together
- Supplied in packs of 3 sheets
- Powerful 300LSE 3M™ sticky backing to fix firmly in place
*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.
Product Description

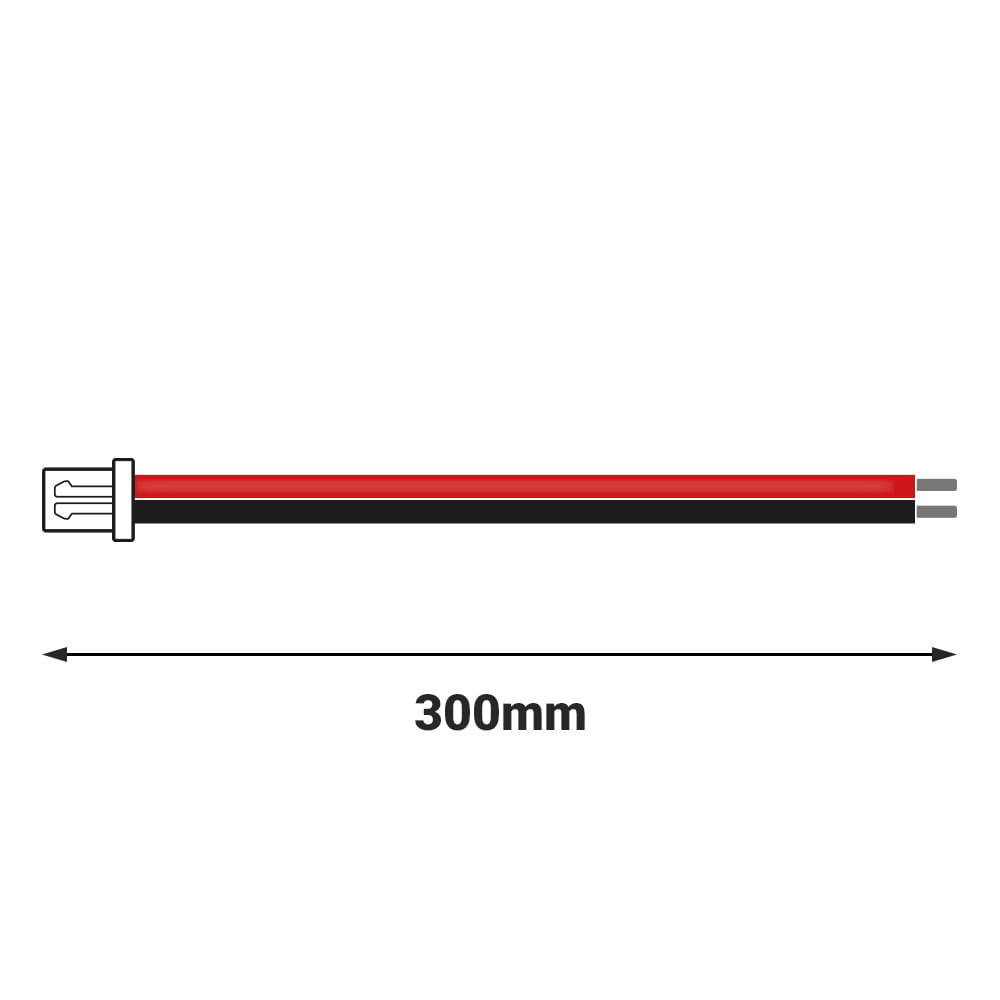

These UV Effect Flexible LED Light sheets are unique to LED Technologies and are part of our extensive range of Flexible lighting products. This LED Sheet features 392 x 2835 LED chips, producing an exceptional quality of bright UV Effect light. Each panel emits 32W of light which equates to 1,190 Lumens with a beam angle of 120 degrees. The light sheets are supplied in a pack of three and you can connect up to 3 x LED Panels together to create a consistent light over a large area or large lightbox. For larger projects, additional light sheets can be incorporated into your project by connecting them back to the LED Driver or an additional driver, each light sheet is 480mm x 240mm and requires a 24V Constant Voltage LED Driver that can be connected to any of the terminals using the starter cable (sold separately).

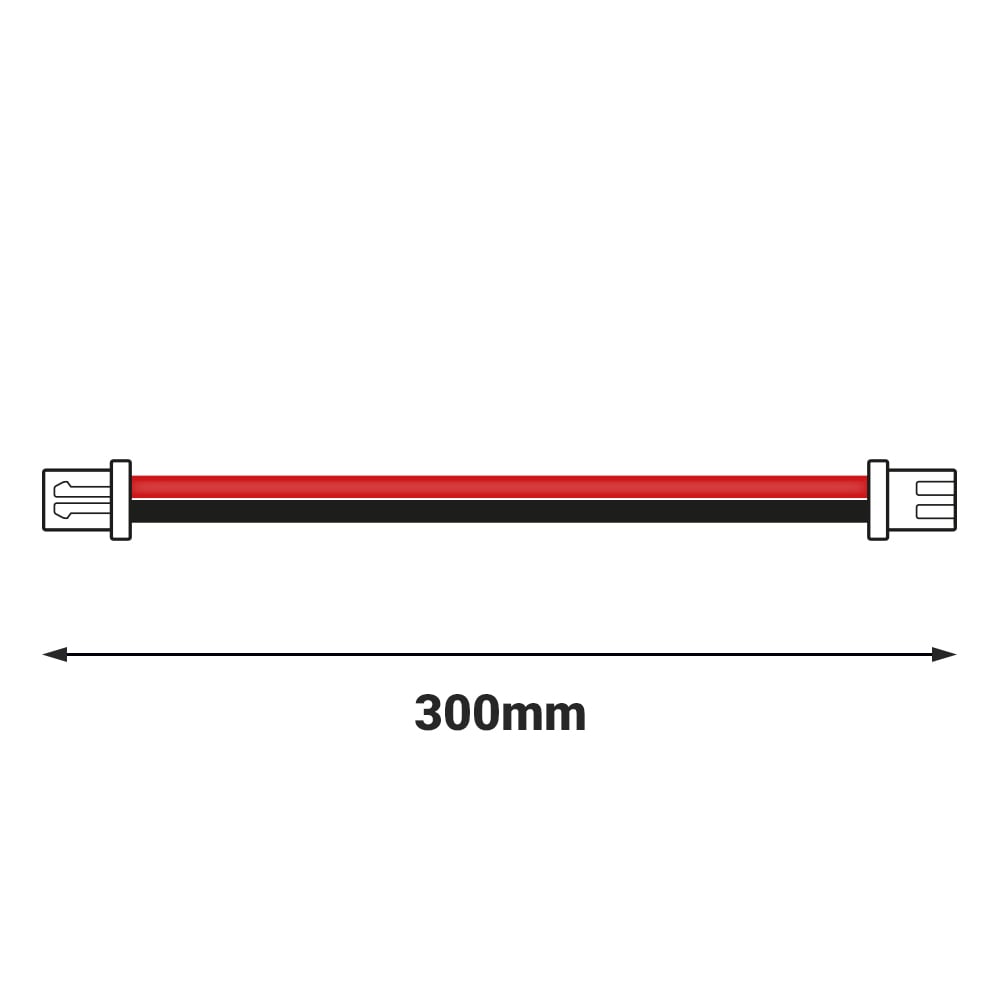

Link/power terminals can be found on all sides of the LED Sheet, enabling them to be connected together easily using the link cables. Our LED sheets can be cut along the marked cutting lines as required to enable you to install them into various shaped light boxes or for other special projects where a bright flexible light is required.

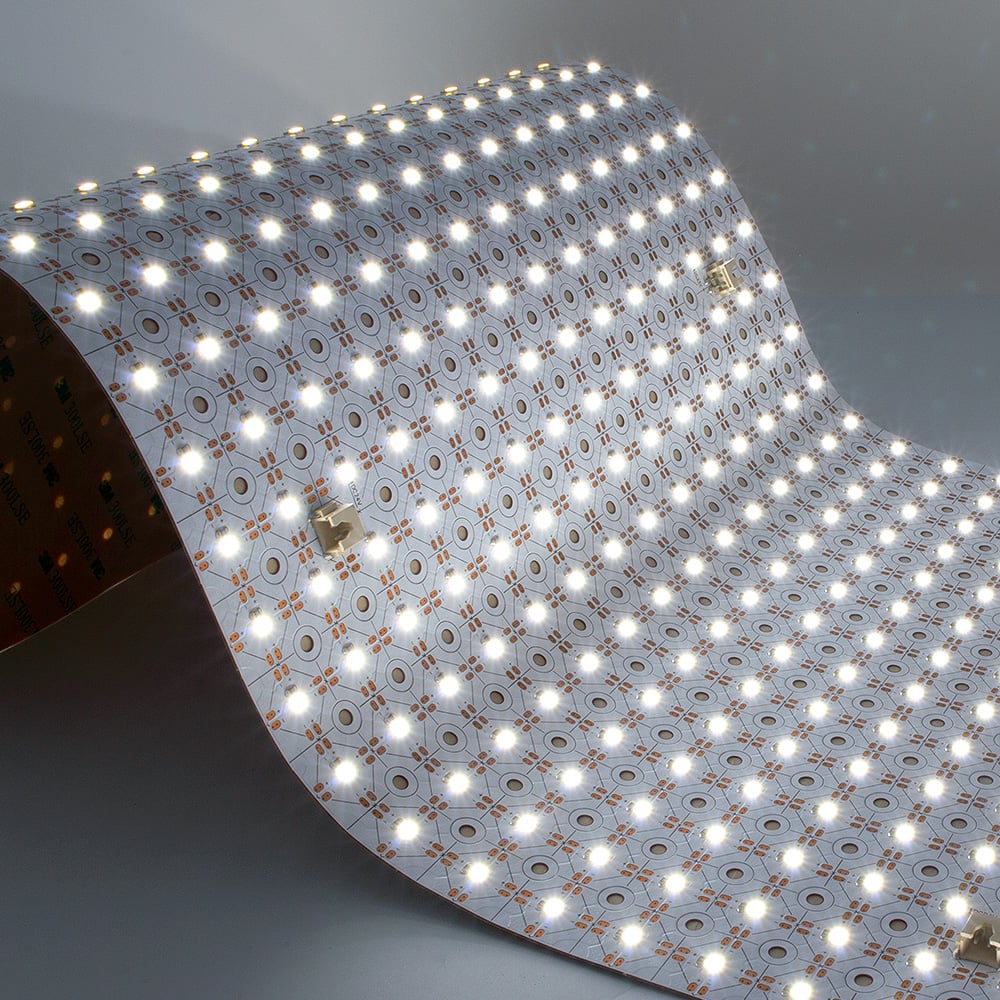

The light sheets are highly flexible allowing them to bend as required making this product ideal for backlighting curved areas, walls, reception desks, pillars, and similar shapes. The panels are energy-efficient and easy to install, making them suitable for any project that requires a bright flexible lighting solution.
For further information about our Flexible LED panel Lighting solutions and professional control equipment, please contact our technical sales team by phone, email, WhatsApp or via live chat on our website.
Quick Specs
- Beam Angle:120 degree
- ColourUltra Violet
- Guarantee Period3 Years
- IP RatingIP20 Non-Waterproof
- Input Voltage24V DC
What's in the box
- 3 x Flexible Light Sheets
- Data Sheet
- Connectors NOT included
Technical Specification
- Product Code: 102.114
- Product Packed Poly / Anti static Bag
- Manufacturer LED Technologies
- Product Type Light Panel
- Colour Ultra Violet
- IP Rating IP20 Non-Waterproof
- Guarantee Period 3 Years
- Wattage 32W
- Current 1.249A
- Input Voltage 24V DC
- Output Voltage 24V DC
- PCB Weight 2oz
- PCB Colour White PCB
- Size 480mm x 240mm
- Beam Angle: 120 degree
- Appx Lumens: 1,190 Lumens Per Sheet
- Light Intensity Per LED 900mcd
- Lumens Per LED 3lm
- Dimmable: Yes
- LED Quantity 392 x UV Effect SMD2835 LEDs
- LED Type Led chip 2835
- Average LED life Hrs 30,000
- Peelable Back 300LSE 3M™
