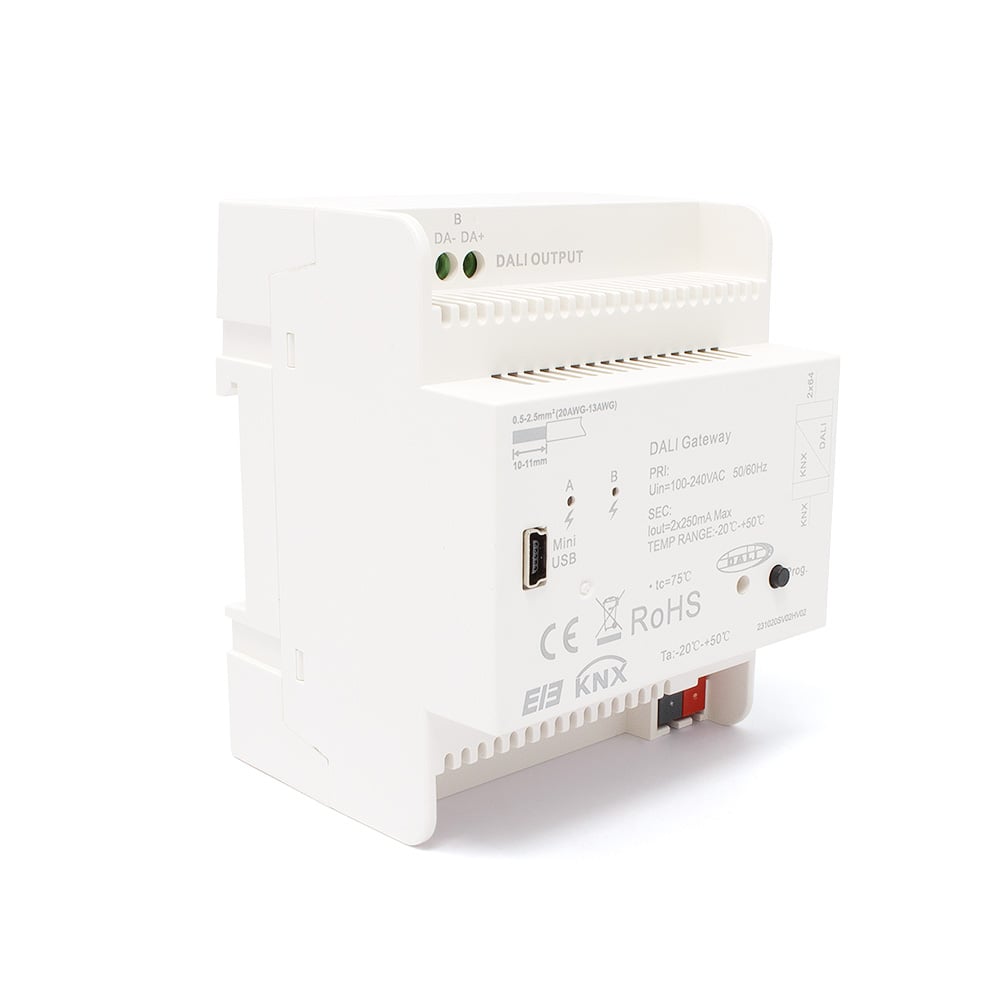

Sunricher KNX to DALI Master

Product Code: SRKN9100DA22CH

Suitable for DALI DT6 & DT8 devices
Integrates DALI into a KNX system
2 x Channel DALI output
No additional DALI power supply required
Programmable through ETS software
Integral DALI BUS state monitor
KNX BUS input
Mini USB Port for connecting to PC
35mm DIN Rail mountable

View full product details and specification

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Currently in Stock

Next day delivery available*

In stock

Speak with an Expert

Product Details

Product Description

The Sunricher KNX to DALI Gateway enables you to control your DALI 1 or DALI 2 products from your KNX automation system. The device has 2 x DALI outputs which can support up to 64 DALI devices on each output. This device is from our professional range of Sunricher control products and enables smooth integration between the KNX and DALI protocols. With its 35mm DIN mount, the gateway can be fitted to a standard 35mm DIN rail for ease of mounting, and it easily connects to both the KNX and DALI BUS. The unit is powered by a 100V to 240V AC 50/60Hz mains power supply.

The two DALI outputs on the gateway support DT6, DT8, DT8 RGB, Tc and XY Coordinates to IEC 62386, and you can mix the DALI DT6 & DT8 devices in a mixed configuration if required, the lamps connected to each of the DALI Channels are controlled via KNX using: Broadcast, 16 x lighting groups & 6 x scenes and the fault status (lamps or ballasts) of each DALI device or the lighting group is sent via the KNX BUS.

There is a Mini USB port on the front of the unit to connect to a PC for programming, to program the KNX / DALI Gateway, the KNX and DALI parts need to be programmed separately, for the DALI section this needs to be done with the DALI PC software "DALI MASTER", the KNX part of the Gateway needs to be programmed using the "ETS5" Software.

For more information on this and all our professional control products please contact our technical sales team by phone, email or via live chat on our website.

Quick Specs

What's in the box?

KNX to DALI Master
Instruction manual

Technical Specification

Product Code:	SRKN9100DA22CH
Product Packed	Gift box
Manufacturer	LED Technologies
Product Type	DALI Gateway
Colour	White
IP Rating	IP20 Non-Waterproof
Guarantee Period The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.	5 Years
Input Voltage This is the required amount of volts needed to power the product.	100V - 240V AC
Connectivity	KNX Protocols
Dimmable:	Yes
DALI Channels	Two x DALI Channels
Operating Temp	NA
Gateway Supply Voltage	100-240VAC, 50/60Hz
Total Current Draw from Mains	Maximum 48mA
Total Power Consumption via Mains	Maximum 11W
KNX BUS Voltage	21-30V DC, via the KNX/EIB BUS
KNX Current Consumption	Maximum 10mA

Power Consumption via KNX	Maximum 210mW
Number of Outputs	2 x DALI Outputs
Number of DALI Devices	Maximum 64 per output
Supported Device Types	DT6, DT8 Tc, DT8 XY coordinate, DT8 RGB
DALI Voltage	Typical 16VDC
Maximum Supply Current	2x250mA
