Engineered For Excellence

Discover the ultimate in pixel-free, high-specification architectural linear lighting.

Explore The Collection

Elevate your linear lighting with our top-tier flagship range, engineered for commercial and residential brilliance.

  • ✓ Exceptionally Seamless Glow
  • ✓ Superior Durability
  • ✓ Uniform Light Distribution

Professional Topview

Topview - 5300-6000K

Topview - 5300-6000K

Code: 100.865

  • 17mm x 16mm Profile
  • 150mm Max Bend Radius
  • Daisy chain 10m in one line
View Product
Topview - 3700-4200K

Topview - 3700-4200K

Code: 100.864

  • Natural White Glow
  • 17mm x 16mm Profile
  • IP67 Waterproof Protection
View Product
Topview - 2900-3200K

Topview - 2900-3200K

Code: 100.907

  • Warm Daylight Output
  • 17mm x 16mm Profile
  • Bespoke Lengths Available
View Product

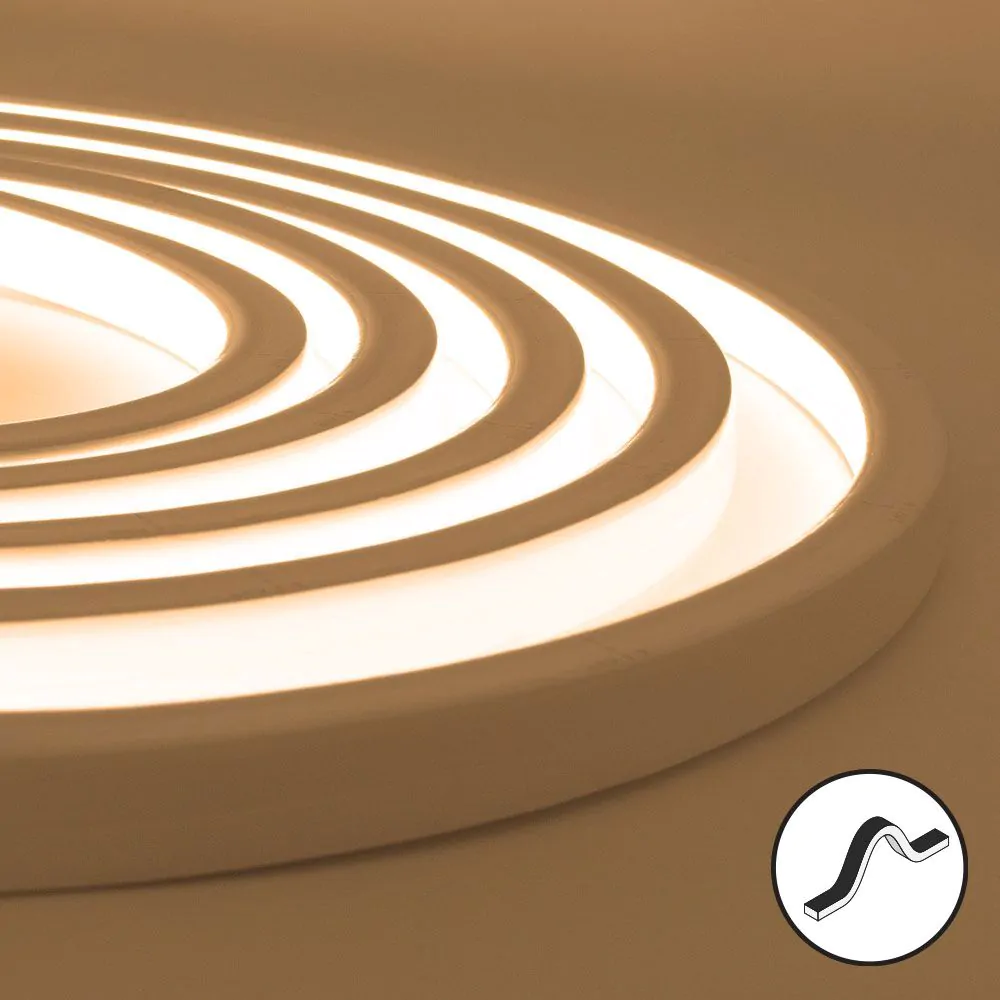

Topview - 2600-2900K

Topview - 2600-2900K

Code: 100.906

  • Warm White Ambiance
  • 17mm x 16mm Profile
  • 3 Year Warranty
View Product
Topview - Red

Topview - Red (620-625nm)

Code: 100.866

  • Rich Red Light Output
  • 17mm x 16mm Profile
  • UV Resistant Housing
View Product
Topview - Orange

Topview - Orange (600-610nm)

Code: 100.869

  • Vibrant Orange Glow
  • 150mm Bend Radius
  • High Specification Strip
View Product
Topview - Green

Topview - Green (520-525nm)

Code: 100.867

  • Lush Green Illumination
  • 17mm x 16mm Profile
  • IP67 External Grade
View Product
Topview - Blue

Topview - Blue (465-470nm)

Code: 100.868

  • Rich Blue Output
  • 17mm x 16mm Profile
  • Bespoke Length Choice
View Product
Topview - Pink

Topview - Pink

Code: 100.904

  • Vivid Pink Glow
  • 17mm x 16mm Profile
  • Professional Linear Light
View Product

Professional Sideview

Sideview - 5300-6000K

Sideview - 5300-6000K

Code: 100.872

  • Cool White Output
  • 11.5mm x 20mm Profile
  • Side-to-Side Flexing
View Product
Sideview - 3700-4200K

Sideview - 3700-4200K

Code: 100.871

  • Natural White Glow
  • 11.5mm x 20mm Profile
  • IP67 Waterproofing
View Product
Sideview - 2900-3200K

Sideview - 2900-3200K

Code: 100.908

  • Warm Daylight Output
  • 11.5mm x 20mm Profile
  • Uniform Pixel-free Light
View Product
Sideview - 2600-2900K

Sideview - 2600-2900K

Code: 100.905

  • Warm White Ambiance
  • 11.5mm x 20mm Profile
  • UV Resistant Housing
View Product
Sideview - Red

Sideview - Red (620-625nm)

Code: 100.873

  • Rich Red Lighting
  • 11.5mm x 20mm Profile
  • 3 Year Warranty
View Product
Sideview - Orange

Sideview - Orange (600-610nm)

Code: 100.876

  • Vibrant Orange Output
  • 11.5mm x 20mm Profile
  • Bespoke lengths choice
View Product
Sideview - Yellow

Sideview - Lemon Yellow

Code: 100.881

  • Lemon Yellow Hue
  • 11.5mm x 20mm Profile
  • Side-View Flexing
View Product
Sideview - Green

Sideview - Green (520-525nm)

Code: 100.874

  • Vibrant Green Lighting
  • 11.5mm x 20mm Profile
  • IP67 External Protection
View Product

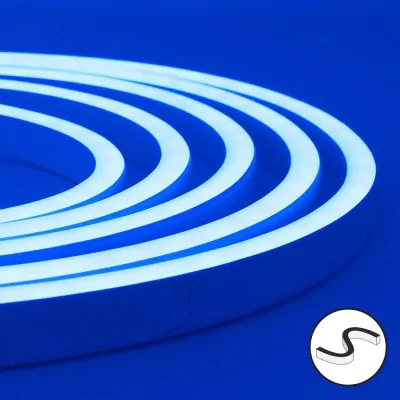

Sideview - Blue

Sideview - Blue (465-470nm)

Code: 100.875

  • Deep Blue Ambiance
  • 11.5mm x 20mm Profile
  • Bespoke Cutting point
View Product
Sideview - Pink

Sideview - Pink

Code: 100.903

  • Soft Pink Glow
  • 11.5mm x 20mm Profile
  • IP67 External Grade
View Product
Sideview - RGB

Sideview - RGB Colour Changing

Code: 100.870

  • 16M+ Colour Palette
  • 11.5mm x 20mm Profile
  • Side-Flex Housing
View Product

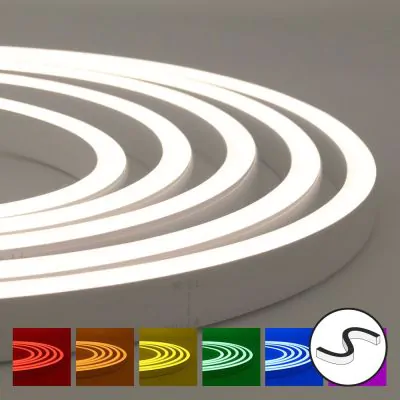

Sideview - RGBW

Sideview - RGBW 4000K

Code: 100.902

  • RGB + Pure White
  • 11.5mm x 20mm Profile
  • Uniform Linear Glow
View Product
View All NEOLINEAR Professional

Big impact, compact design. The perfect pixel-free solution for intricate feature lighting and bright accents.

  • ✓ Ultra-Slim Profile
  • ✓ IP67 Rated Protection
  • ✓ Premium Colour Options

Mini Topview

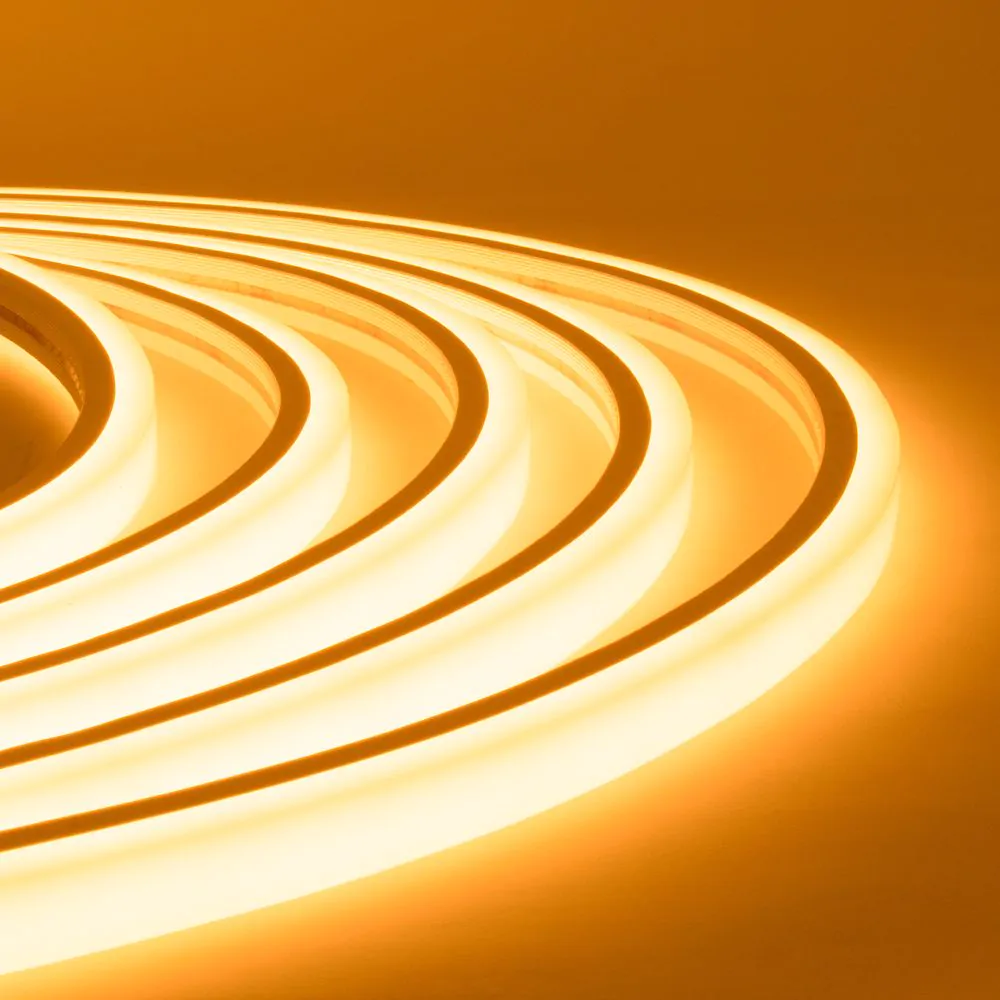

Topview - Warm White 2200K

Topview - Warm White 2000K-2200K

Code: 100.934

  • Compact 10x10mm Profile
  • High CRI >90 Output
  • IP67 Waterproofing
View Product

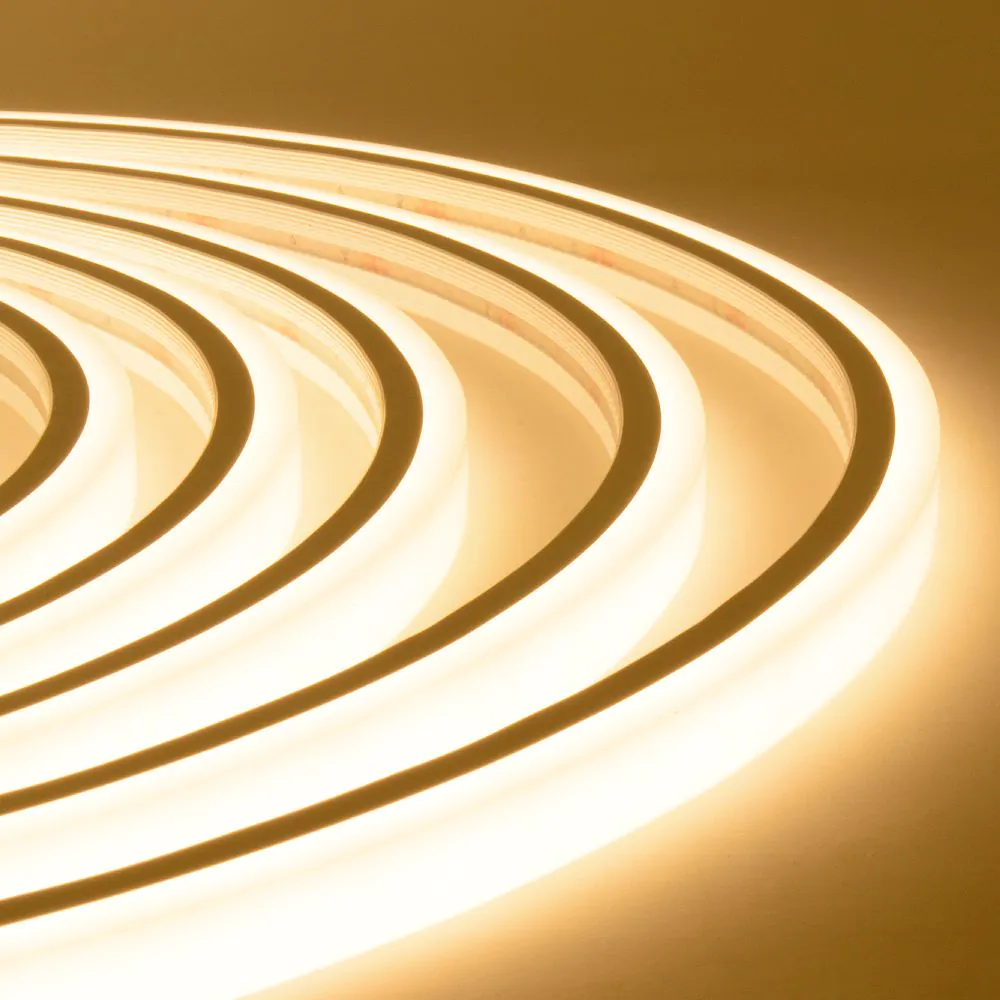

Topview - Warm White 3000K

Topview - Warm White 2900K-3100K

Code: 100.935

  • Compact 10x10mm Profile
  • High CRI >90 Output
  • 100mm Bend Radius
View Product

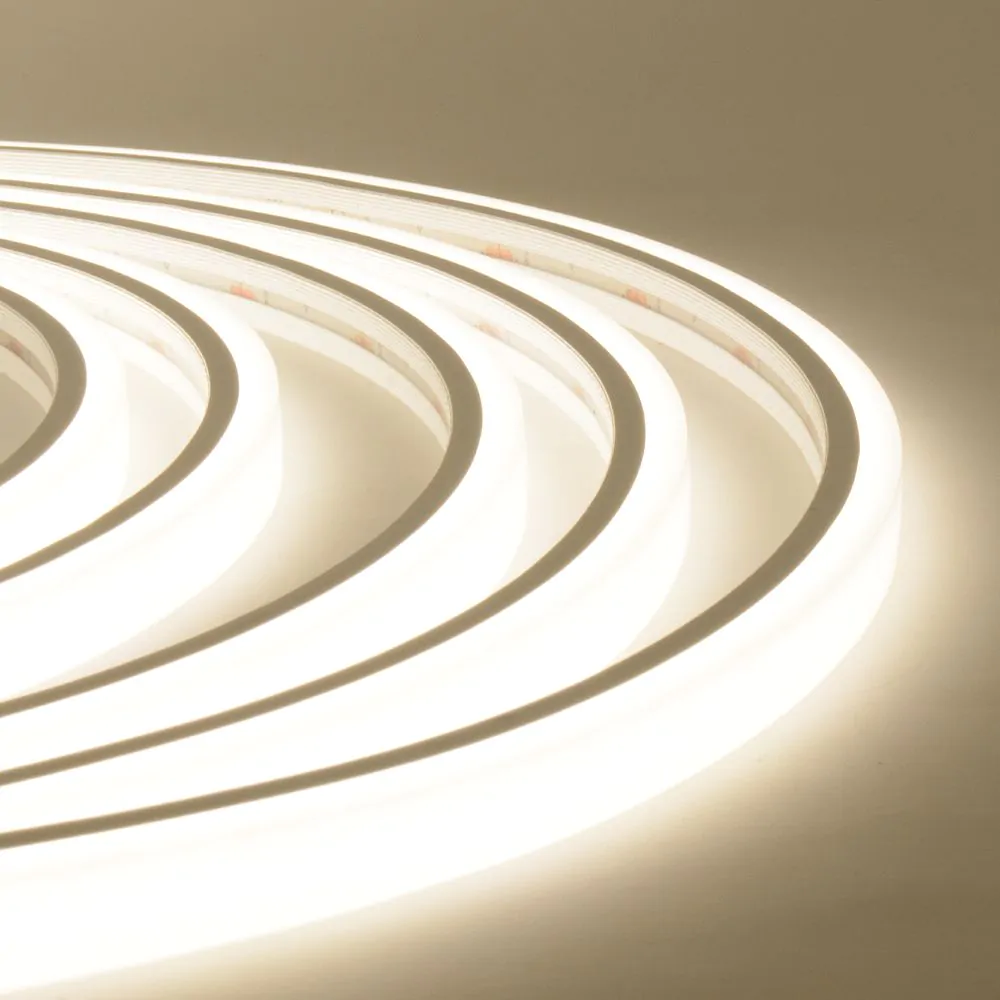

Topview - Daylight White 4000K

Topview - Daylight White 3800K-4000K

Code: 100.936

  • Natural White Glow
  • Compact 10x10mm Profile
  • Professional Grade
View Product

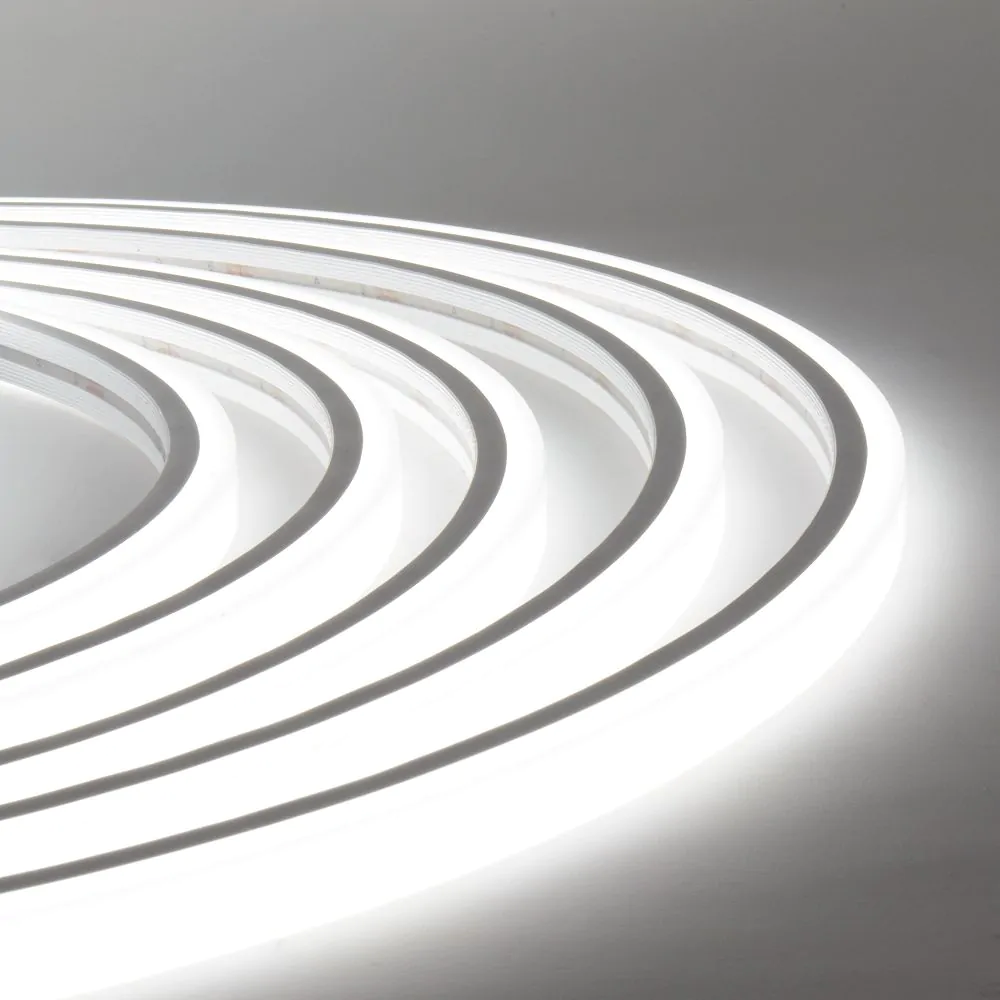

Topview - Cool White 6000K

Topview - Cool White 5900K-6400K

Code: 100.937

  • 644lm per Metre
  • Compact 10x10mm Profile
  • IP67 External Grade
View Product

Mini Sideview

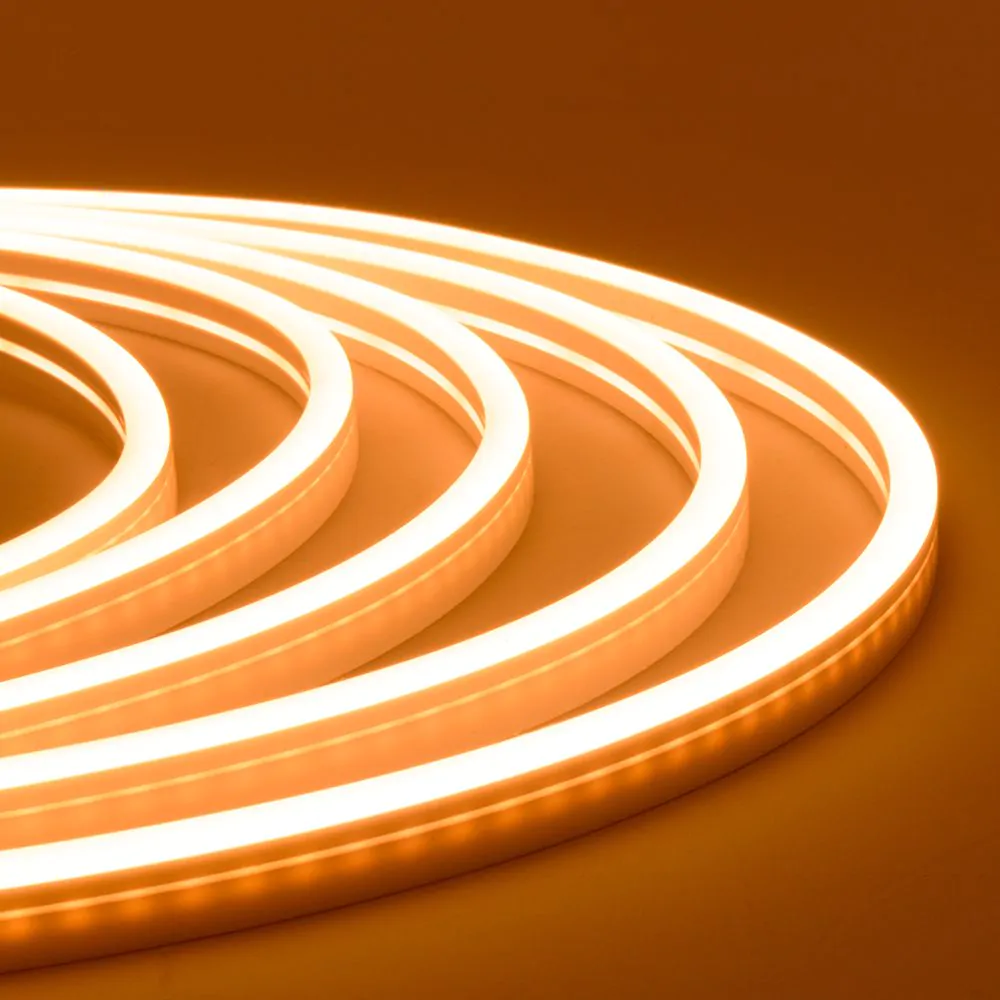

Sideview - Warm White 2000K

Sideview - Warm White 2000K-2200K

Code: 100.938

  • Ultra-Slim 4mm x 8mm
  • 30mm Min Bend Radius
  • High CRI >90 Rating
View Product

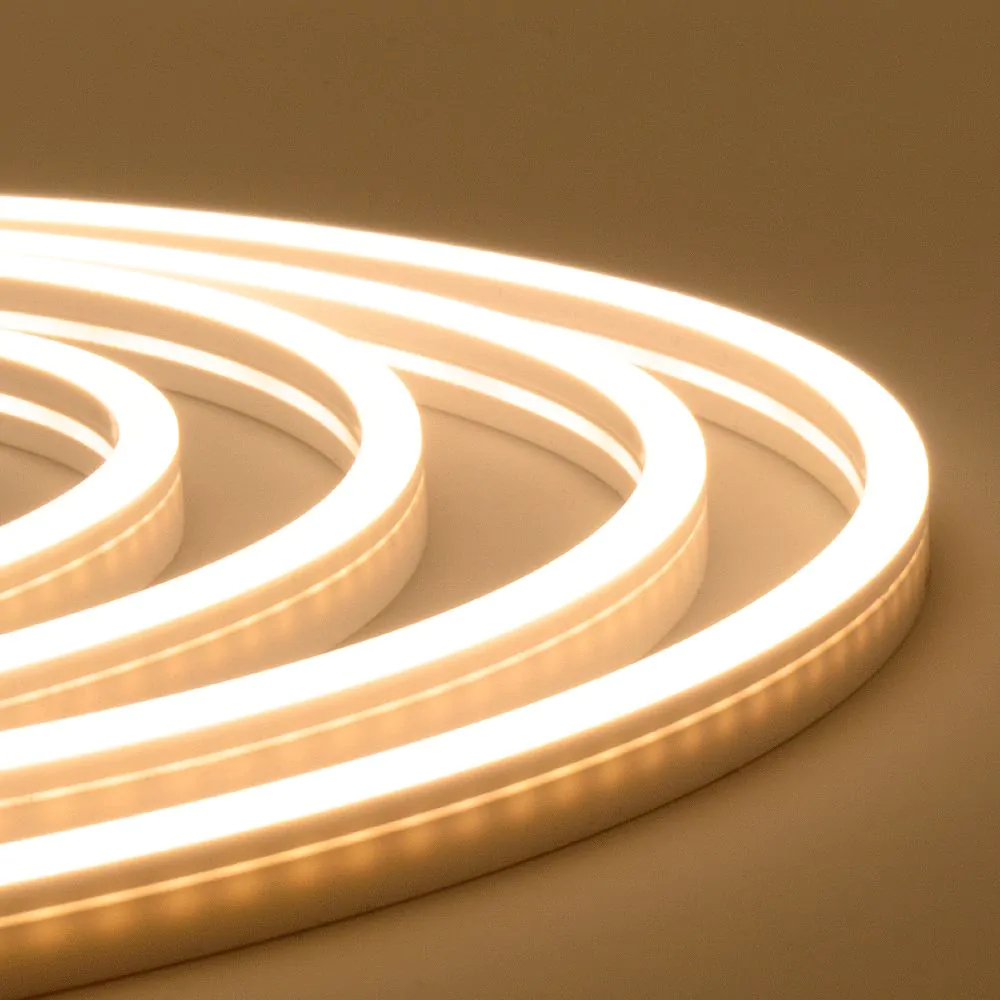

Sideview - Warm White 3000K

Sideview - Warm White 2800K-3300K

Code: 100.939

  • Ultra-Slim 4mm x 8mm
  • Pixel-Free Smooth Output
  • 3 Year Warranty
View Product

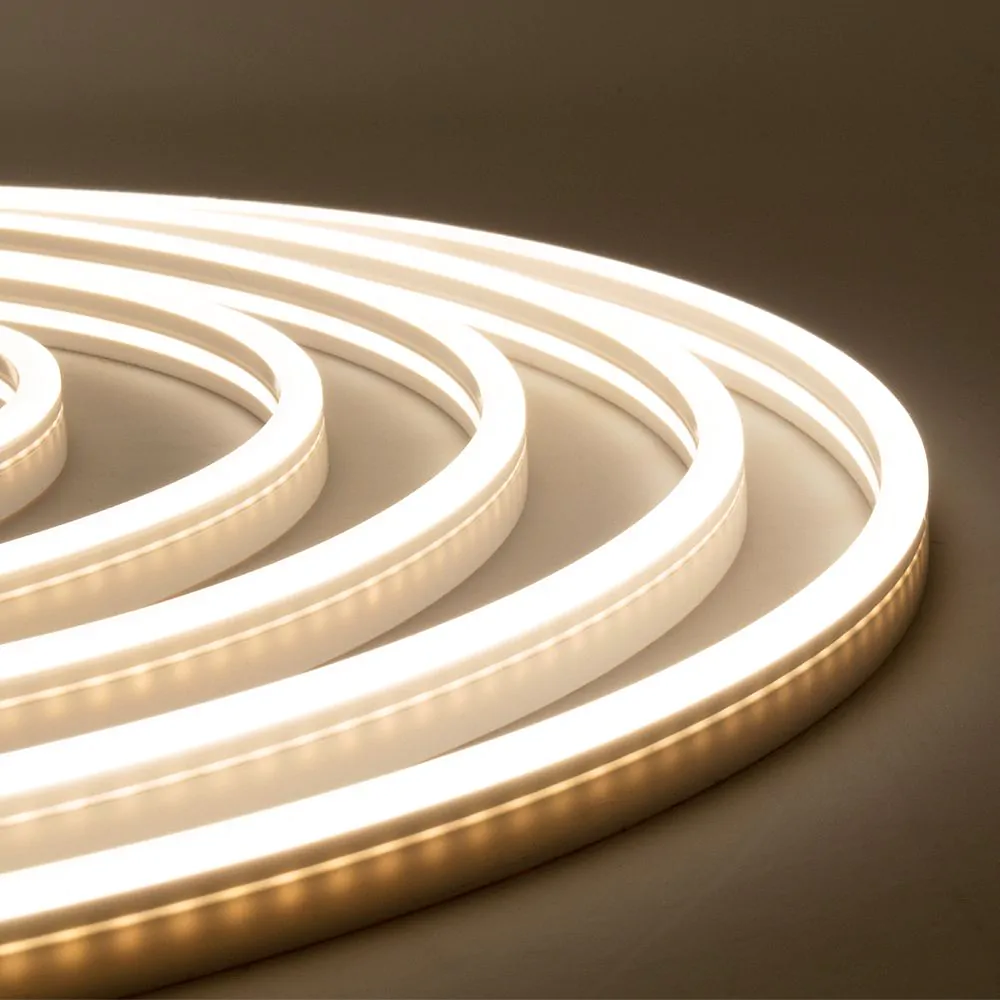

Sideview - Daylight White 4000K

Sideview - Daylight White 3800K-4300K

Code: 100.940

  • Ultra-Slim 4mm x 8mm
  • IP67 Waterproofing
  • Daylight 4000K Glow
View Product

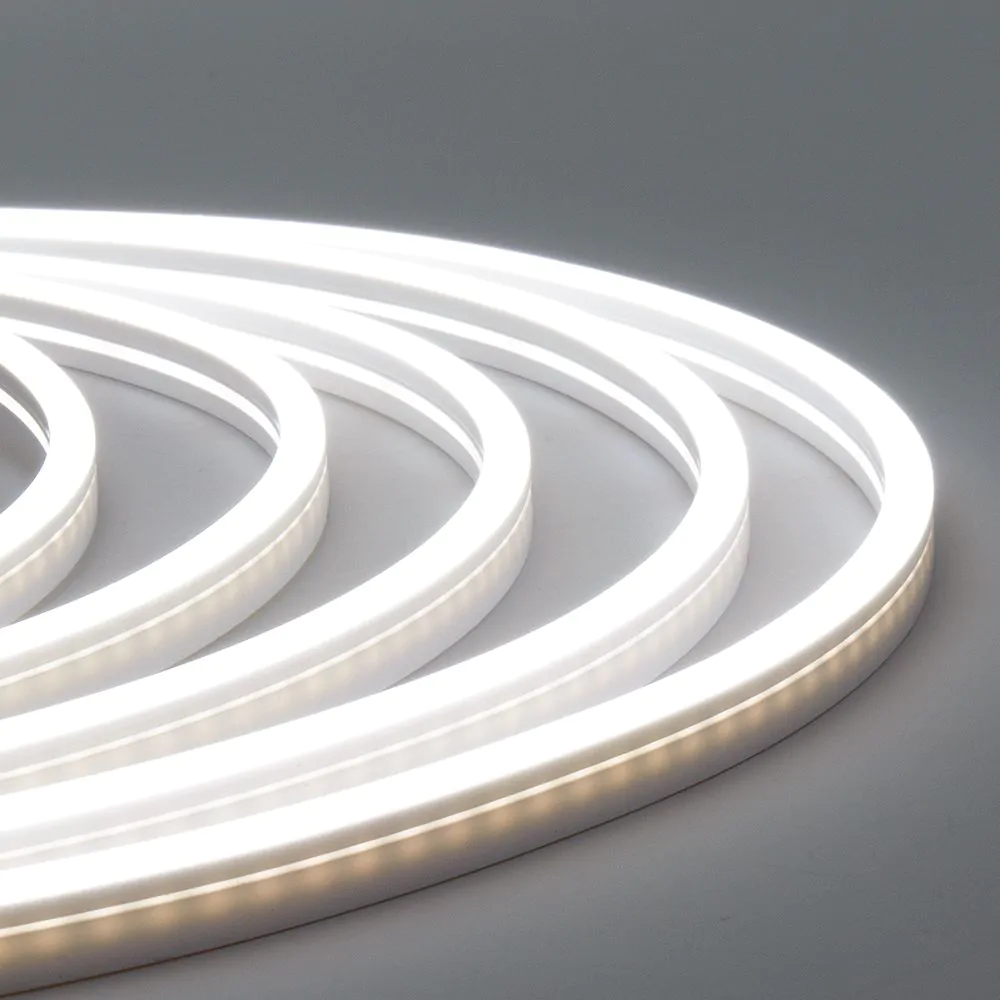

Sideview - Cool White 6000K

Sideview - Cool White 5900K-6400K

Code: 100.941

  • 644lm per Metre
  • Ultra-Slim 4mm x 8mm
  • Side-View Flex Housing
View Product

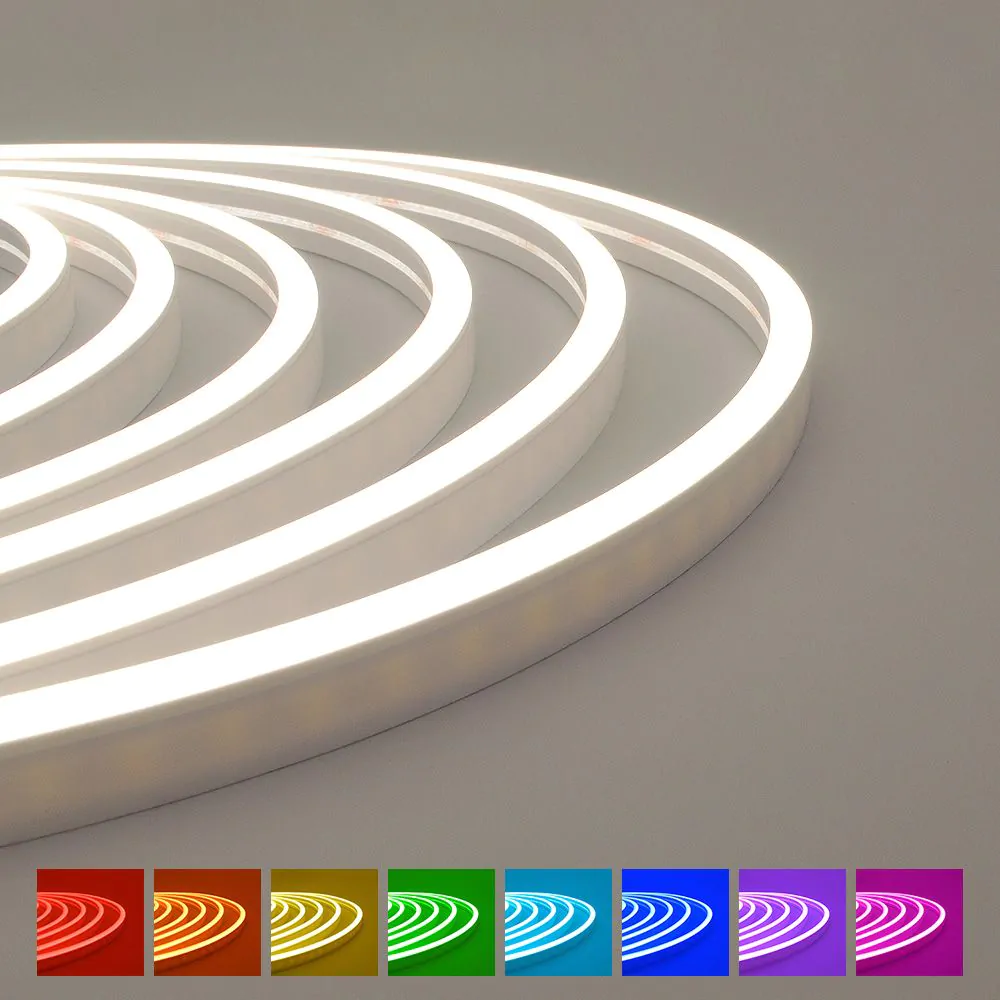

Sideview - RGBW

Sideview - RGBW (4000K)

Code: 101.991

  • 16M+ Colours + White
  • 6mm x 12mm Profile
  • Professional Grade Design
View Product
View All NEOLINEAR Mini

Cutting-edge and ultra-flexible. Create flawless precision signage with zero dark spots.

  • ✓ Free-Cutting Anywhere
  • ✓ Extreme 30mm Bend Radius
  • ✓ Seamless Illumination

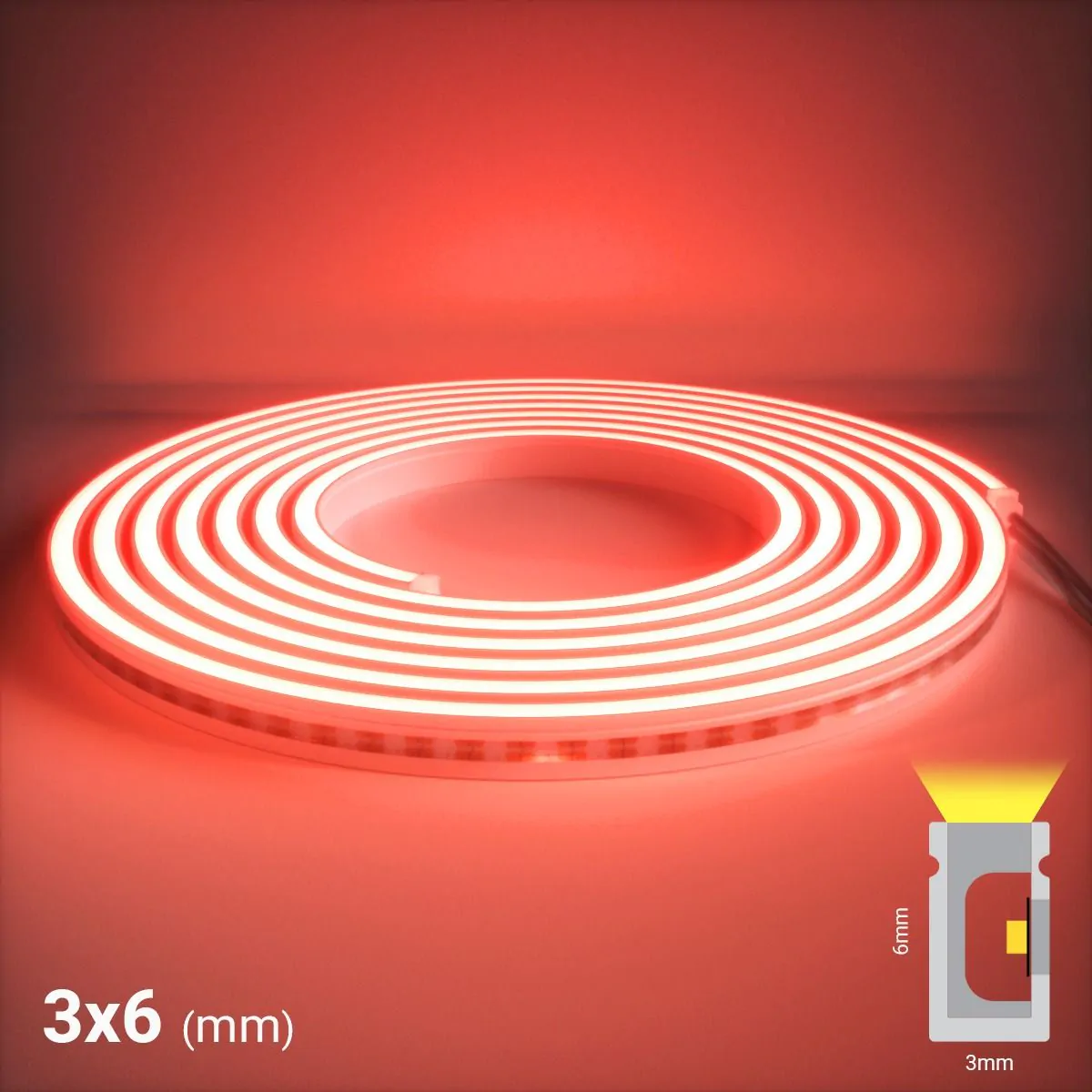

Sideview - Red

Sideview - Red (3x6mm)

Code: 102.195

  • Ultra-Slim 3mm Width
  • Free Cutting Anywhere
  • 5 Year Warranty
View Product

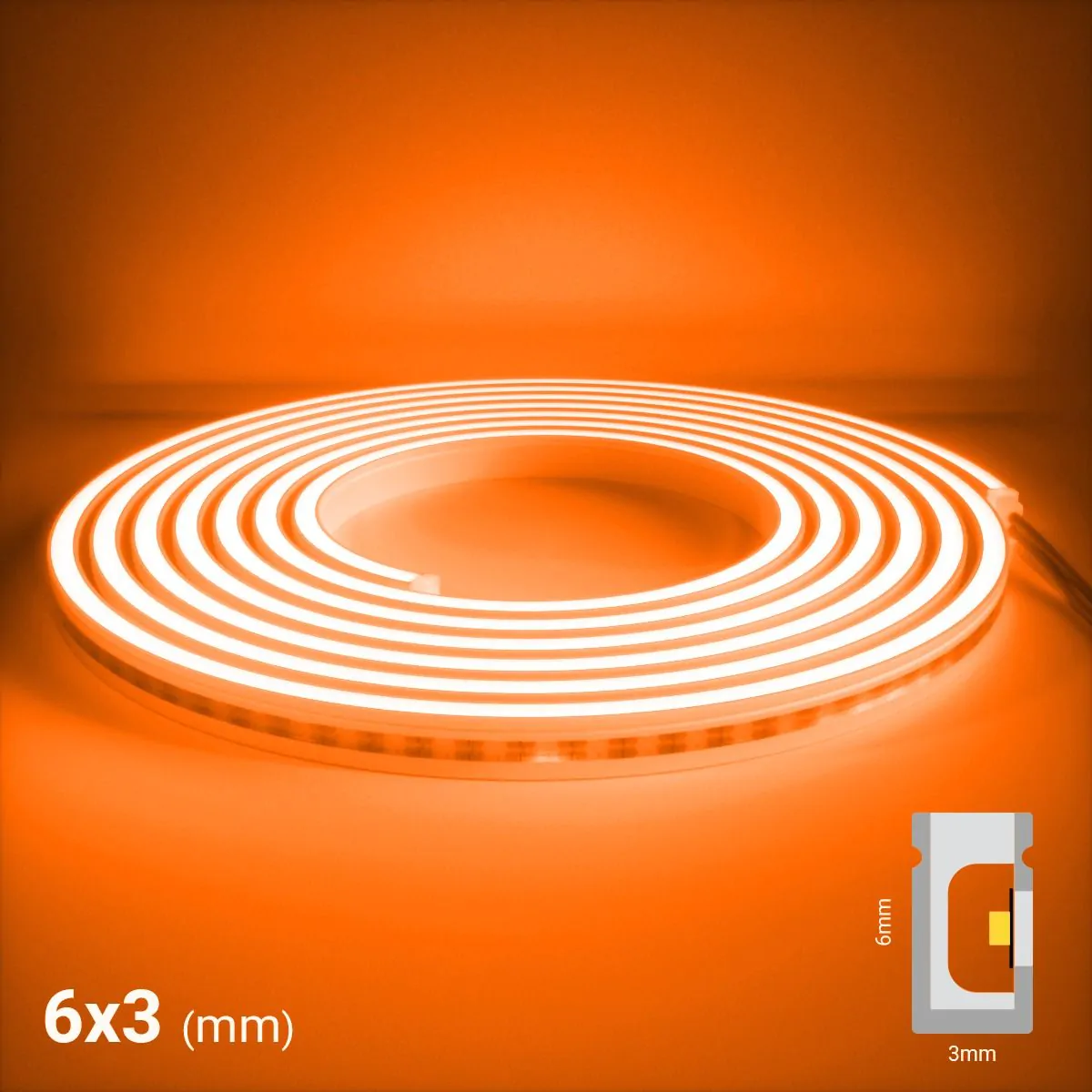

Sideview - Orange

Sideview - Orange (3x6mm)

Code: 102.304

  • Ultra-Slim 3mm Width
  • Vibrant Orange Output
  • IP67 External Grade
View Product

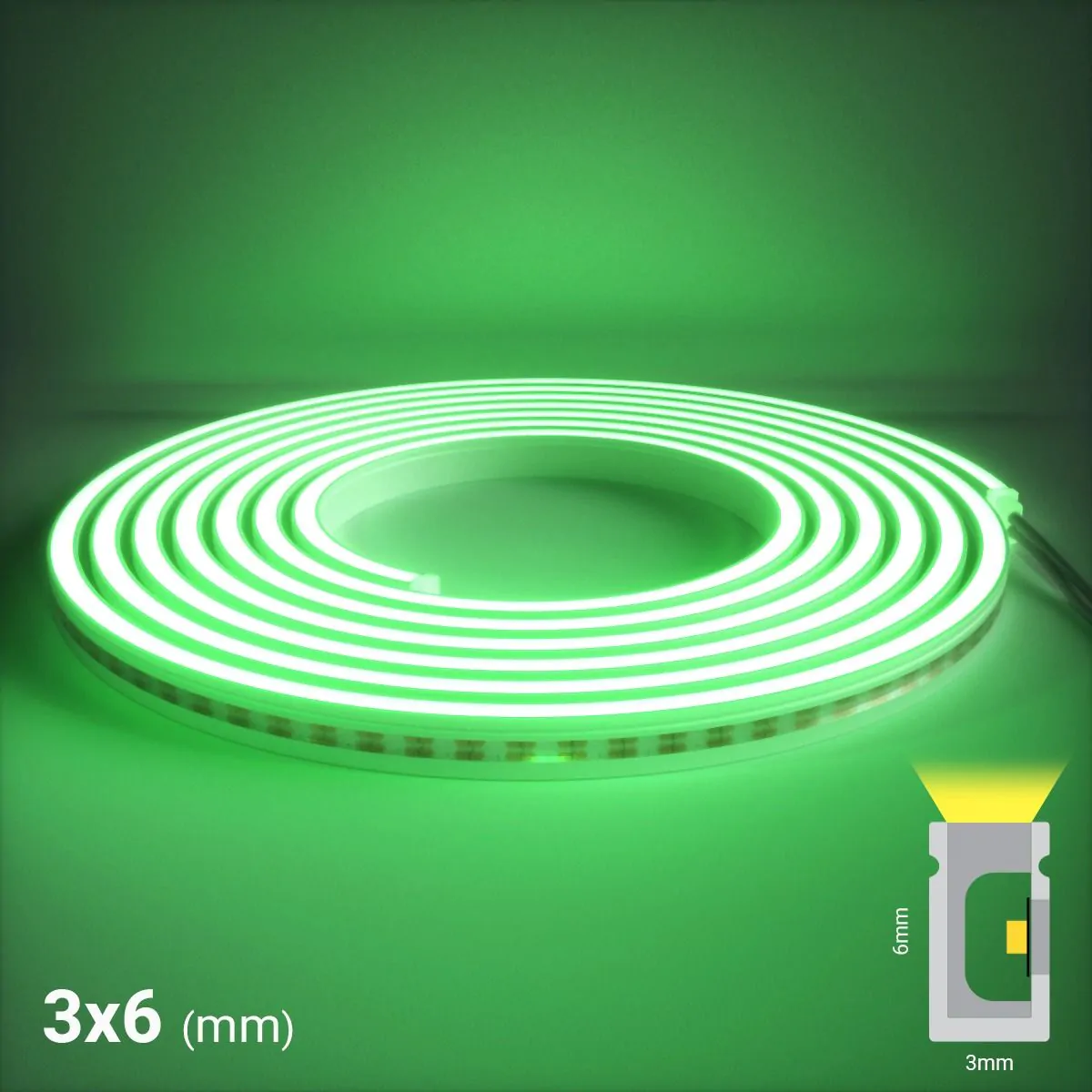

Sideview - Green

Sideview - Green (3x6mm)

Code: 102.196

  • Ultra-Slim 3mm Width
  • High CRI >90 Accuracy
  • 30mm Min Bend Radius
View Product

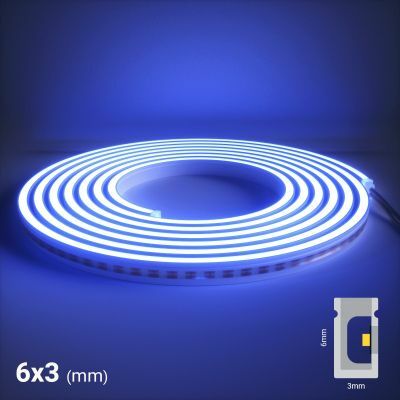

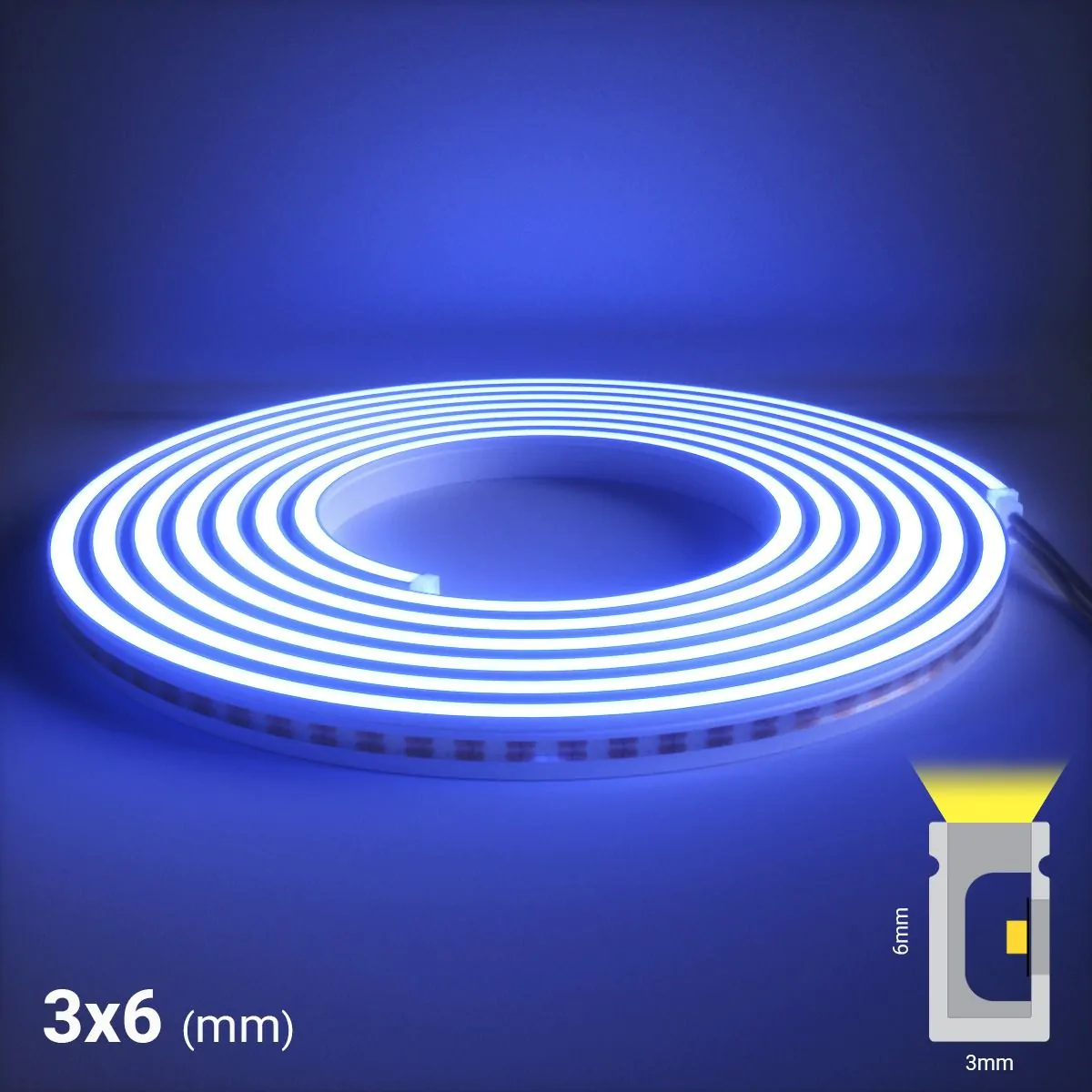

Sideview - Blue

Sideview - Blue (3x6mm)

Code: 102.197

  • Vibrant Blue Output
  • Ultra-Slim 3mm Width
  • 5 Year Warranty
View Product
Sideview - 2200K

Sideview - 2200K (3x6mm)

Code: 102.189

  • Ultra-Warm White
  • Free Vertical Cutting
  • IP67 External Grade
View Product
Sideview - 3000K

Sideview - 3000K (3x6mm)

Code: 102.191

  • Warm White Output
  • Ultra-Slim 3mm Width
  • IP67 Waterproofing
View Product

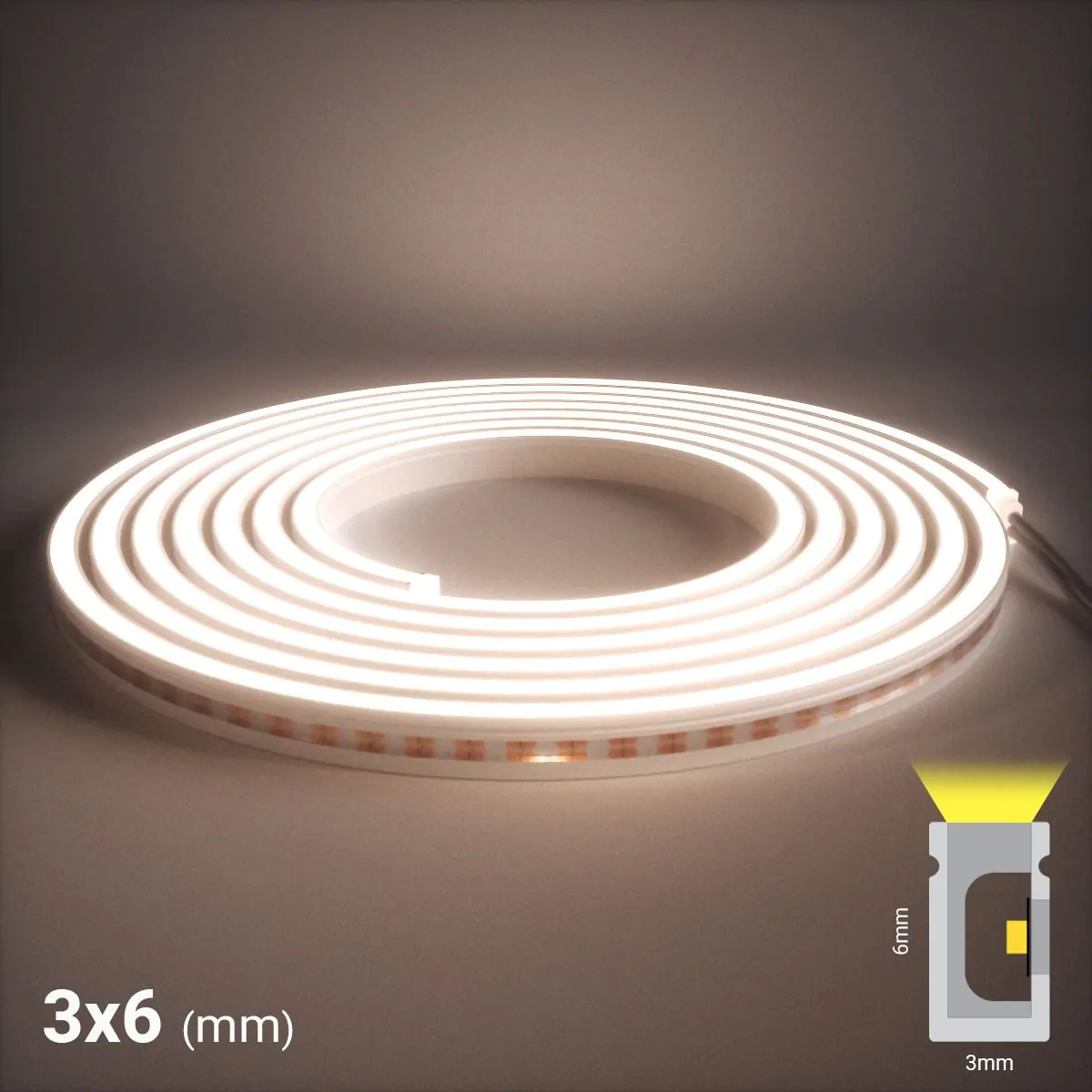

Sideview - 4000K

Sideview - 4000K (3x6mm)

Code: 102.192

  • Daylight White Hue
  • 30mm Min Bend Radius
  • Ultra-Slim Profile
View Product

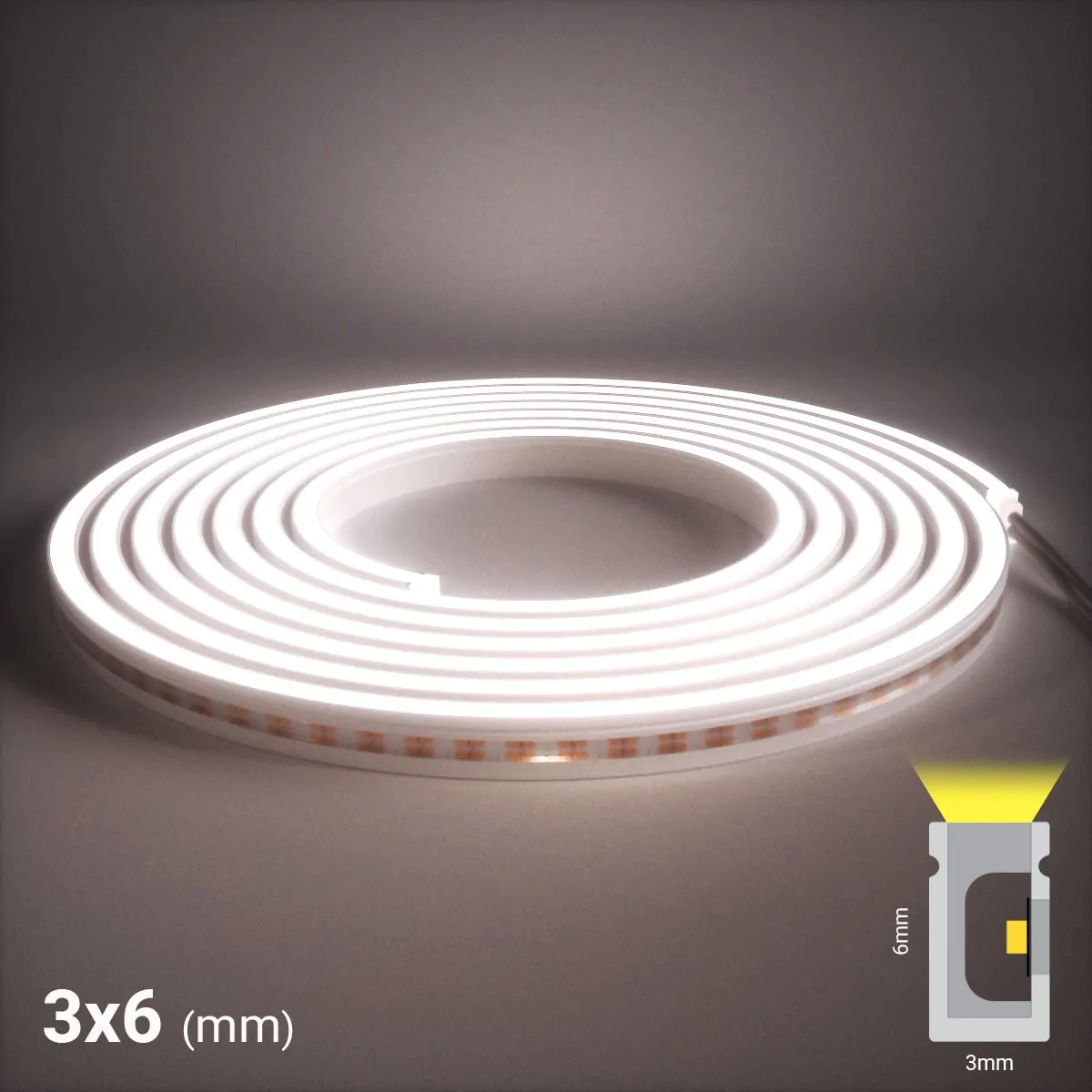

Sideview - 5000K

Sideview - 5000K (3x6mm)

Code: 102.193

  • Natural White Output
  • 5 Year Warranty
  • Ultra-Slim 3mm Width
View Product
Sideview - 6000K

Sideview - 6000K (3x6mm)

Code: 102.194

  • Cool White Output
  • IP67 External Grade
  • Free Vertical Cutting
View Product
View All NEOLINEAR Nano

Maximum architectural impact. Choose Top View for vertical bends or Side View for horizontal curves.

  • ✓ RGB, RGBW & Dynamic CCT
  • ✓ Hollow-Core Flexibility
  • ✓ Bold Colour Mixing

Express Topview

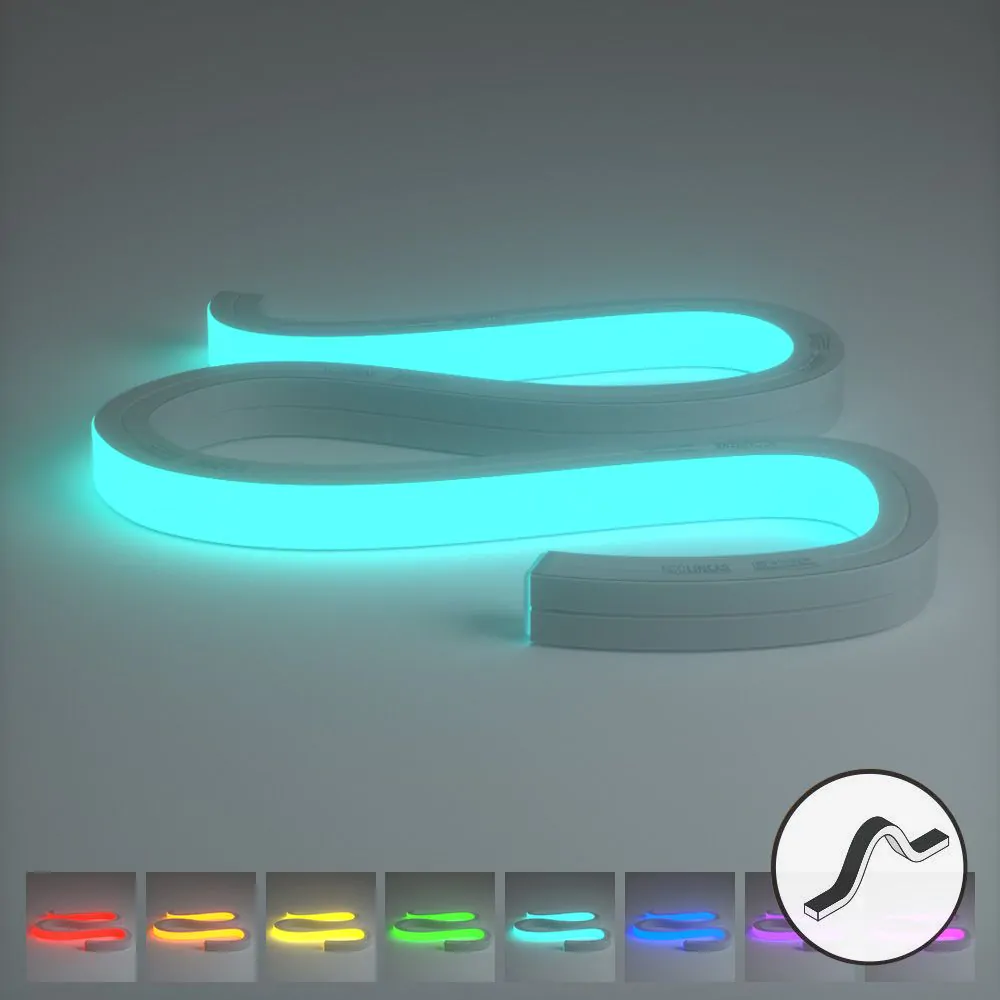

Topview - RGB

Topview - RGB (10Mtr)

Code: 101.954

  • Hollow-Core Design
  • 16M+ Colour Palette
  • IP67 Weatherproof
View Product

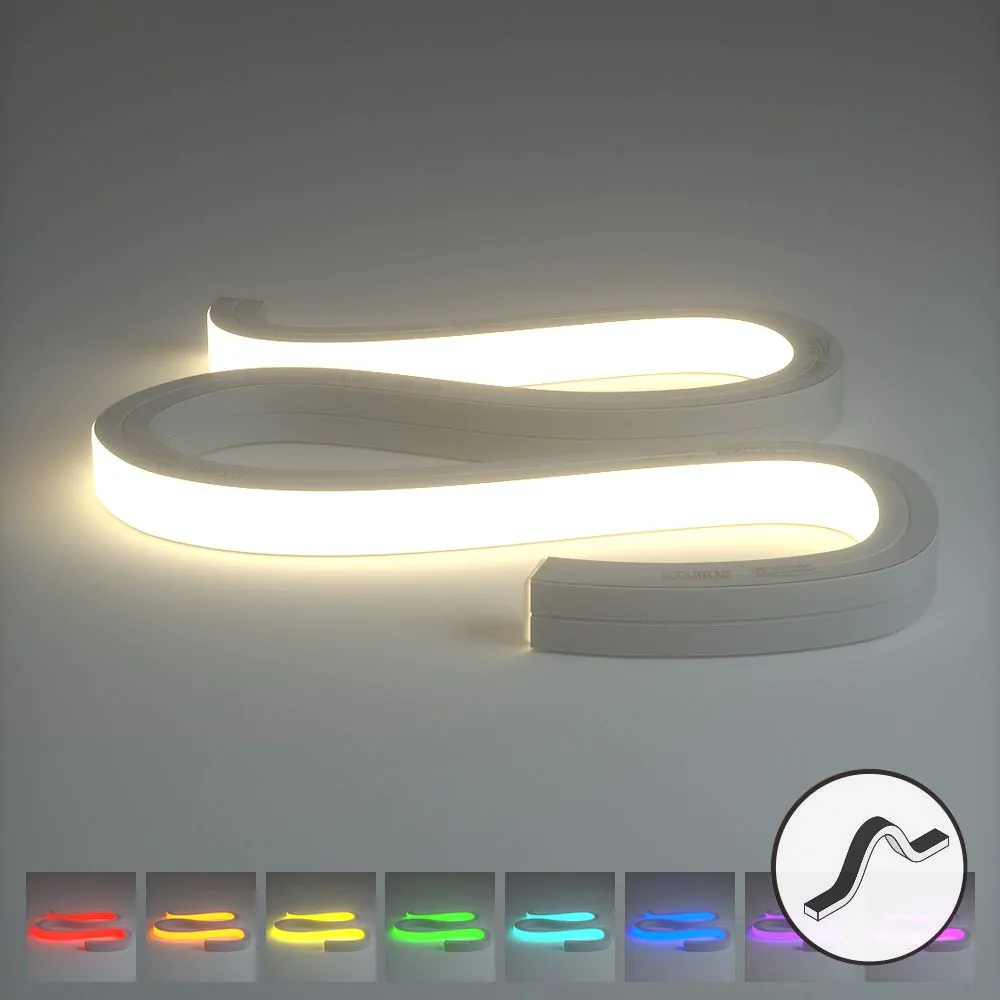

Topview - RGBW

Topview - RGBW 4000K (10Mtr)

Code: 101.956

  • RGB + Daylight White
  • 125mm Cut Intervals
  • Hollow-Core Flexibility
View Product

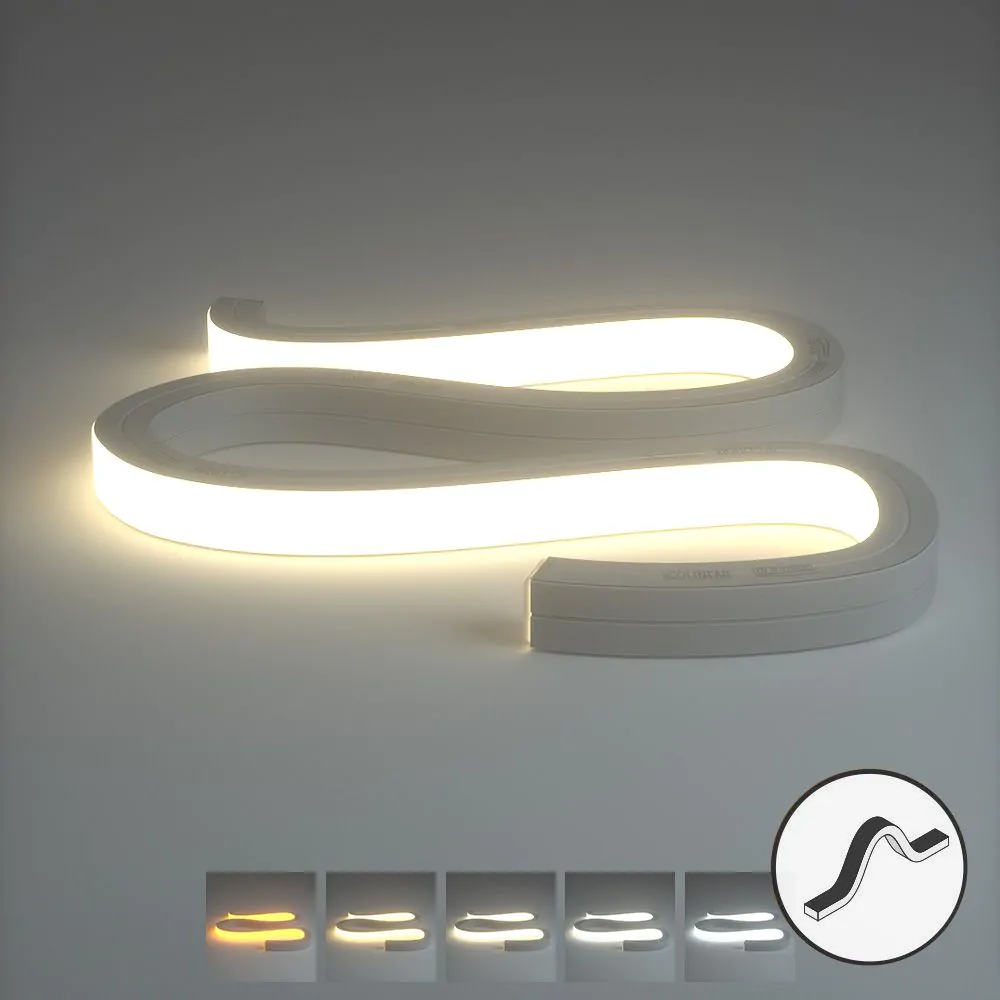

Topview - Dynamic

Topview - Dynamic CCT

Code: 101.958

  • Adjustable 2200K-6000K
  • CRI >90 Accuracy
  • Hollow-Core Housing
View Product
Topview - Pixel

Topview - Pixel RGBW (5Mtr)

Code: 101.962

  • DMX Addressable
  • 8 Pixel Blocks / Metre
  • Moving bands of light
View Product

Express Sideview

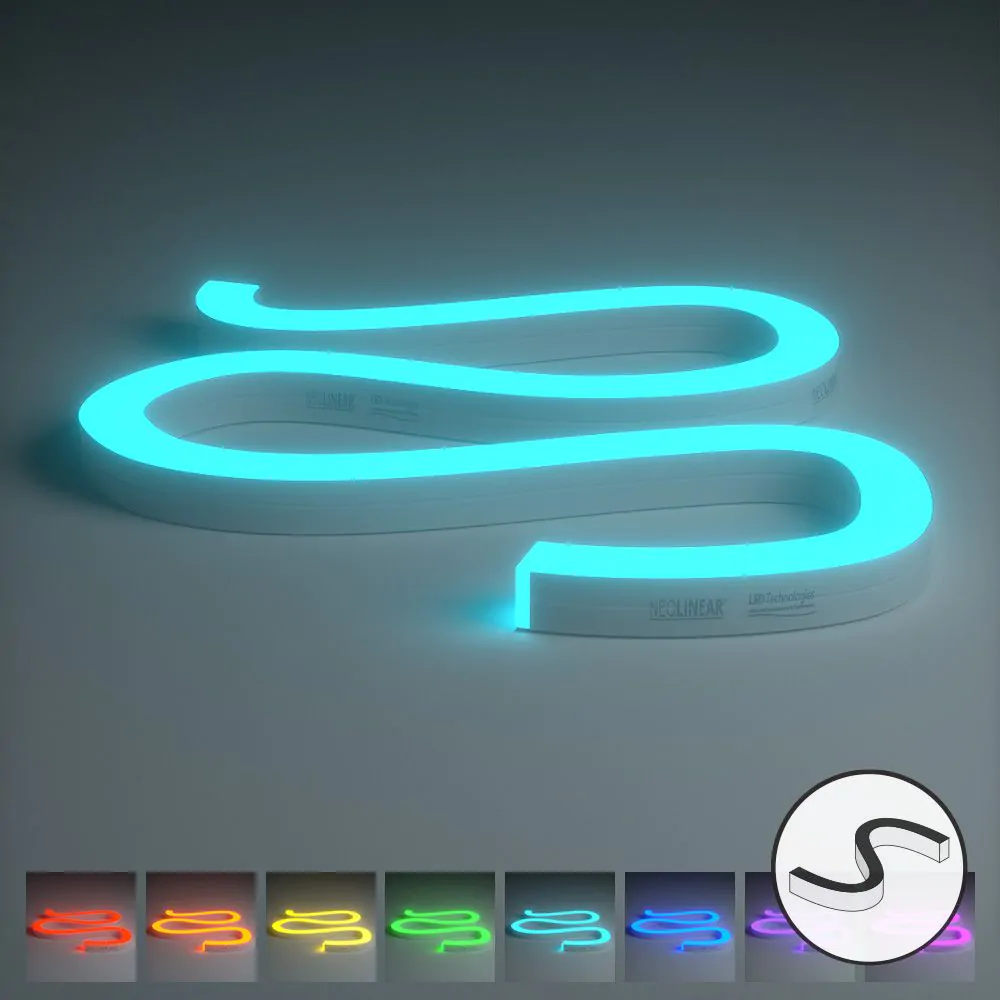

Sideview - RGB

Sideview - RGB (10Mtr)

Code: 101.955

  • Side-flexing Housing
  • 16M+ Colour Combos
  • 3 Year Warranty
View Product

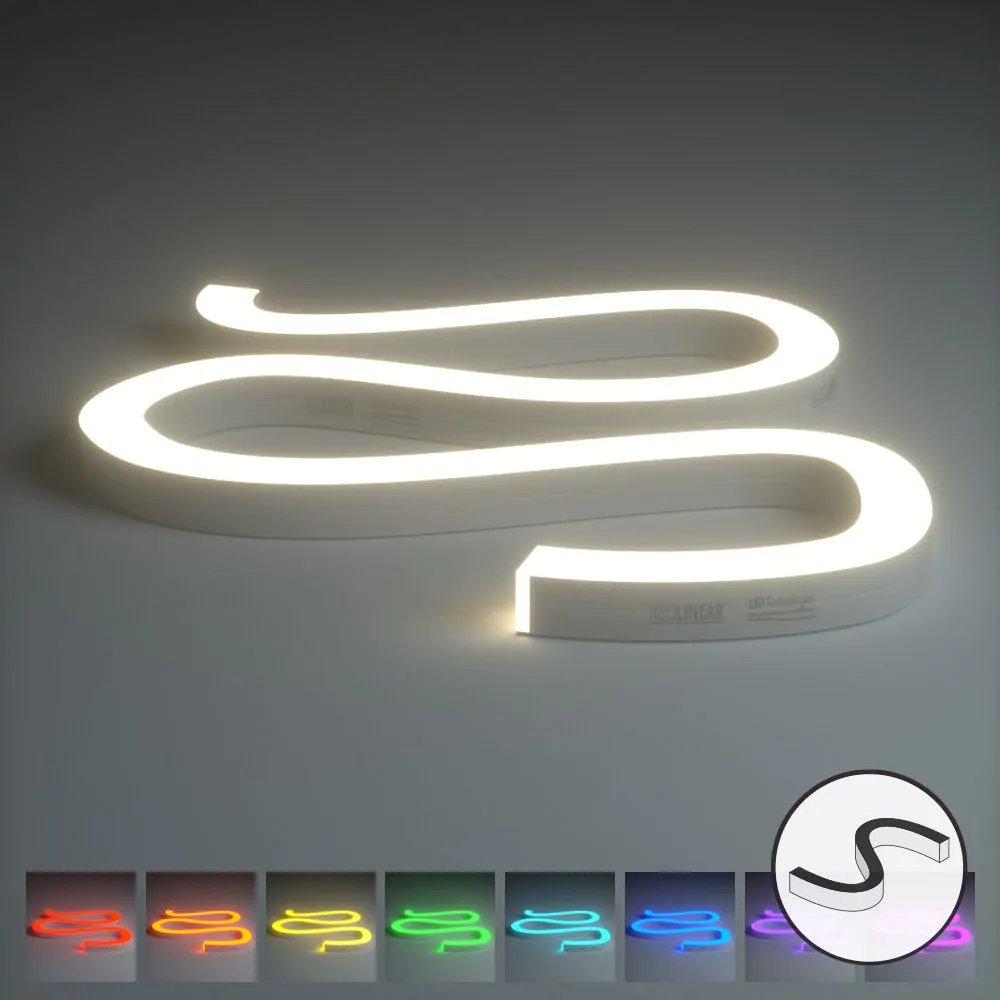

Sideview - RGBW

Sideview - RGBW 4000K (10Mtr)

Code: 101.957

  • RGB + Pure White
  • IP67 Weatherproof
  • Side-view direction
View Product

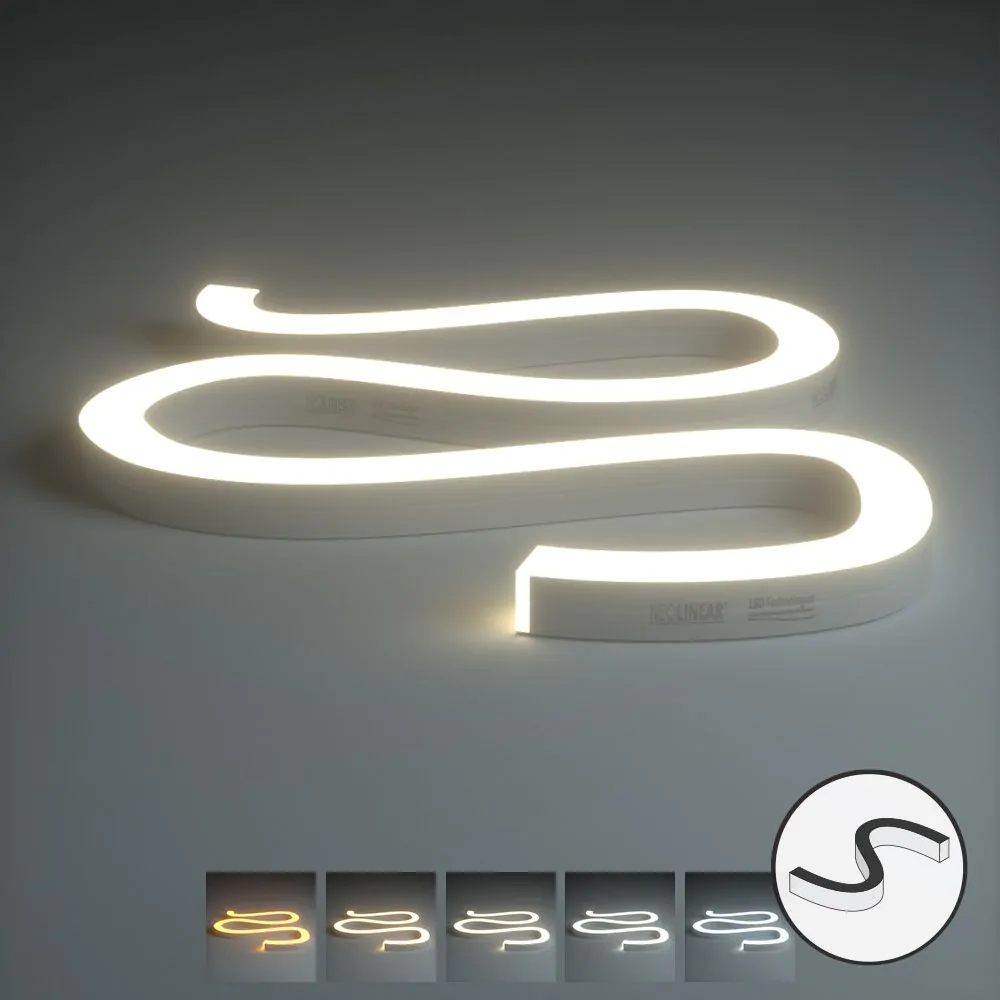

Sideview - Dynamic

Sideview - Dynamic CCT

Code: 101.959

  • Adjustable 2200K-6000K
  • CRI >90 Rating
  • Side-flexing design
View Product

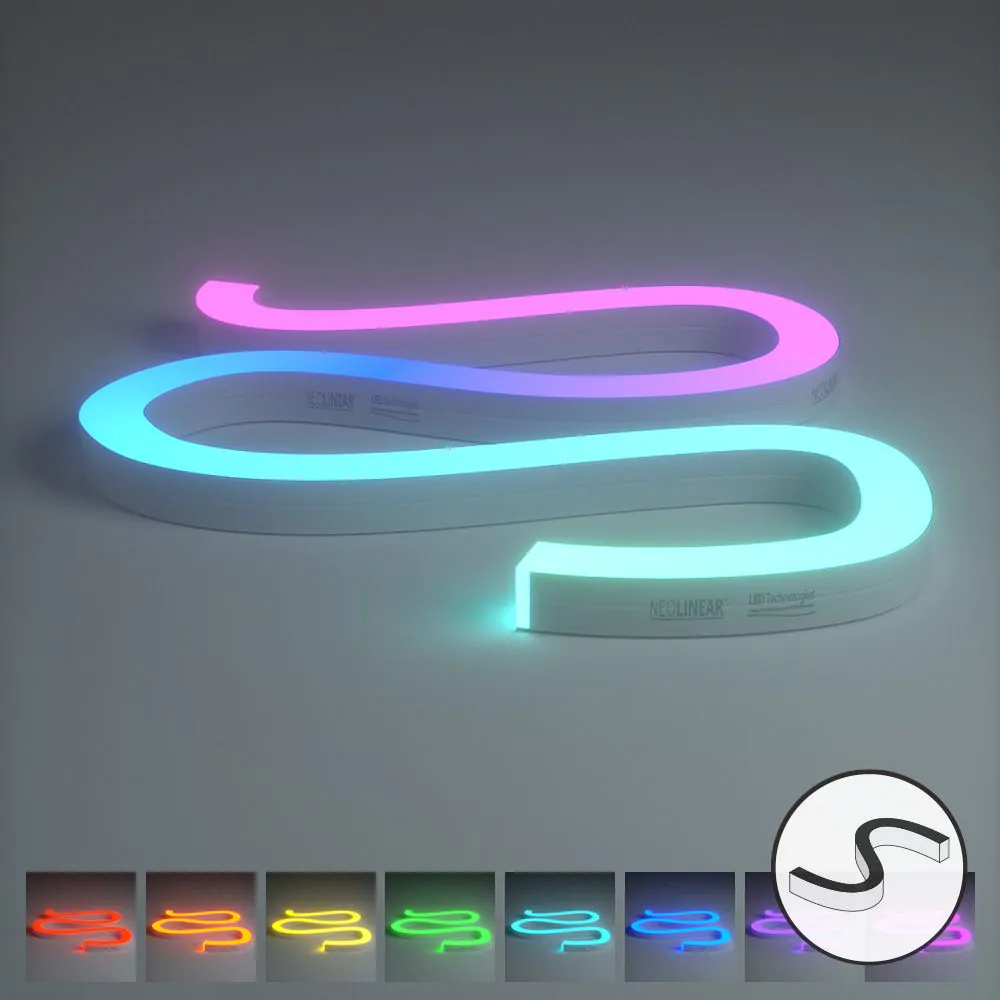

Sideview - Pixel

Sideview - Pixel RGBW (5Mtr)

Code: 101.963

  • DMX Controllable
  • 8 Programmable Pixels/m
  • IP67 External Grade
View Product
View All NEOLINEAR Express

Bring architecture to life with moving bands of vivid light using high-grade programmable effects.

  • ✓ DMX Addressable
  • ✓ 8 Pixel Blocks / Metre
  • ✓ Intense 15W/m Brightness

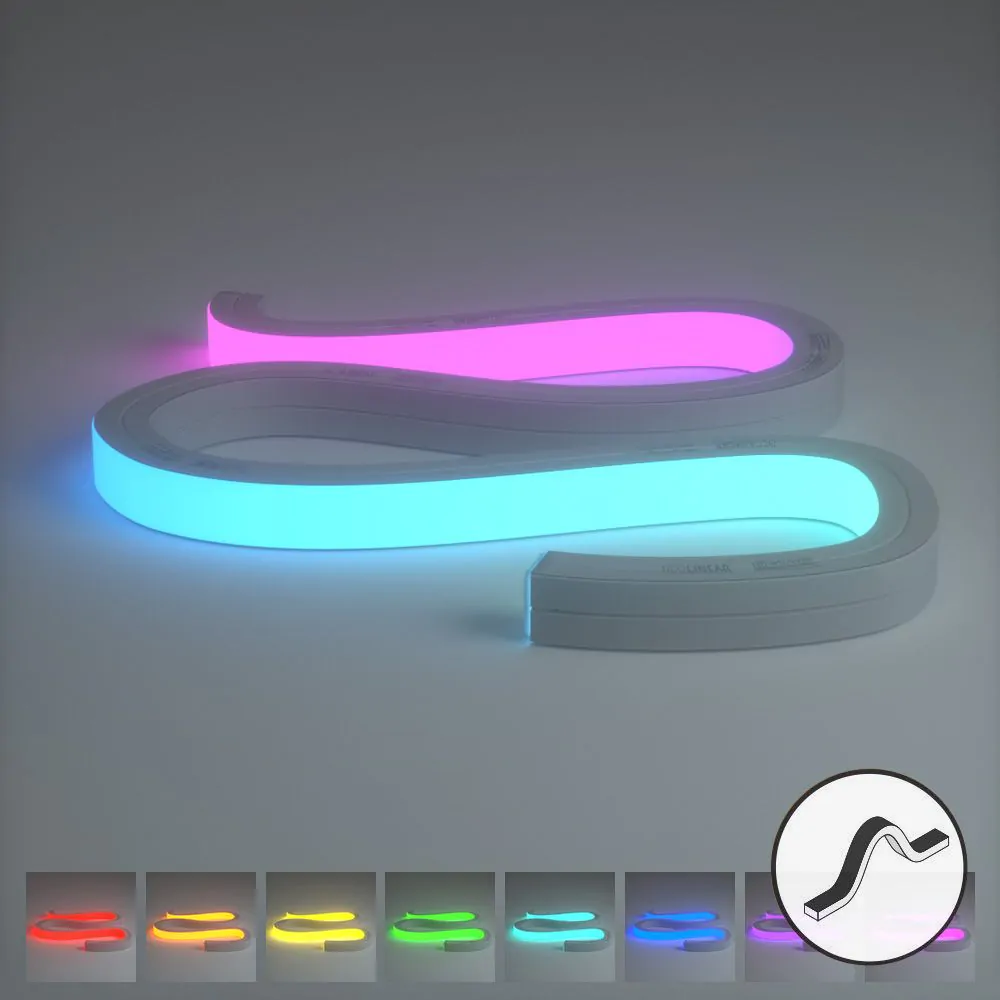

Topview - Pixel

Topview - Pixel RGBW 4000K

Code: 101.962

  • DMX-Addressable HD
  • 8 Pixel Blocks / Metre
  • IP67 Waterproofing
View Product
Sideview - Pixel

Sideview - Pixel RGBW 4000K

Code: 101.963

  • DMX-Addressable HD
  • 8 Pixel Blocks / Metre
  • 15W/m Bright Output
View Product
View All NEOLINEAR Pixel HD

What is NEOLINEAR?

NEOLINEAR is a premium architectural Neon LED strip delivering a seamless, uniform glow with unmatched flexibility for high-end commercial and residential installations.

light_mode

Uniform Glow

Provides seamless continuous illumination that reads as premium neon, reducing visual hotspots and improving brand presentation.

polyline

Flexibility

Allows smooth bends and profile integration into curved facades, signage and furniture without visible breaks.

eco

Energy Efficiency

Low running cost and lower maintenance compared with traditional neon or high wattage solutions.

shield

Durability & Ingress

Long life and IP67 availability protect installations from weather and reduce the total cost of ownership.

What Is The Difference Between Side View And Top View?

Top View

Top view strips shine light upwards and bend up and down, great for coves or outlines.

Side View

Side view strips shine outwards and bend side to side, perfect for signage, lettering or curved edges.

Top View vs Side View Diagram

Perfect For These Applications

Discover the versatility of the NEOLINEAR™ range across various residential and commercial settings.

Jewellery Display
Jewellery Display
Lighting Feature
Lighting Feature
House Light and Display
Residential Light & Display
Creative Neon Display
Creative Display
Kitchen Lighting
Kitchen Illumination

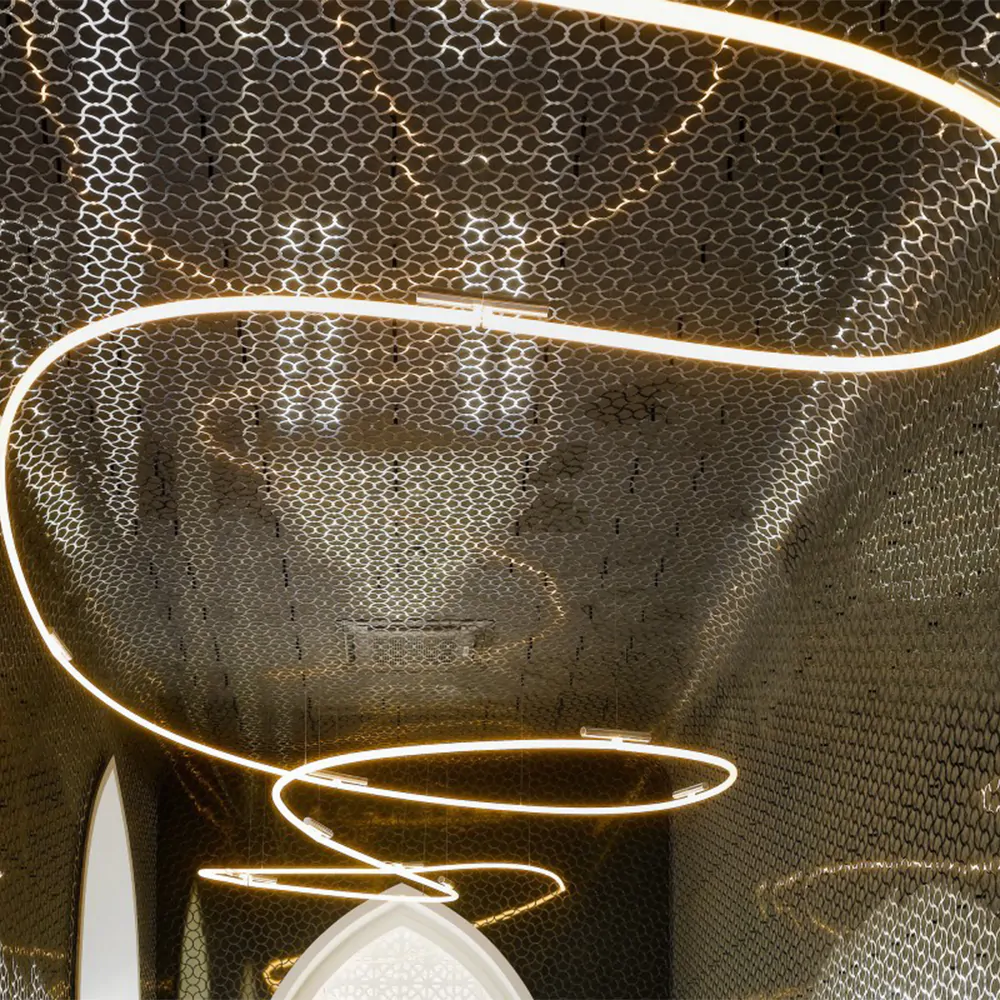

Hallway Ceiling Lighting
Hallway Ceiling Lighting

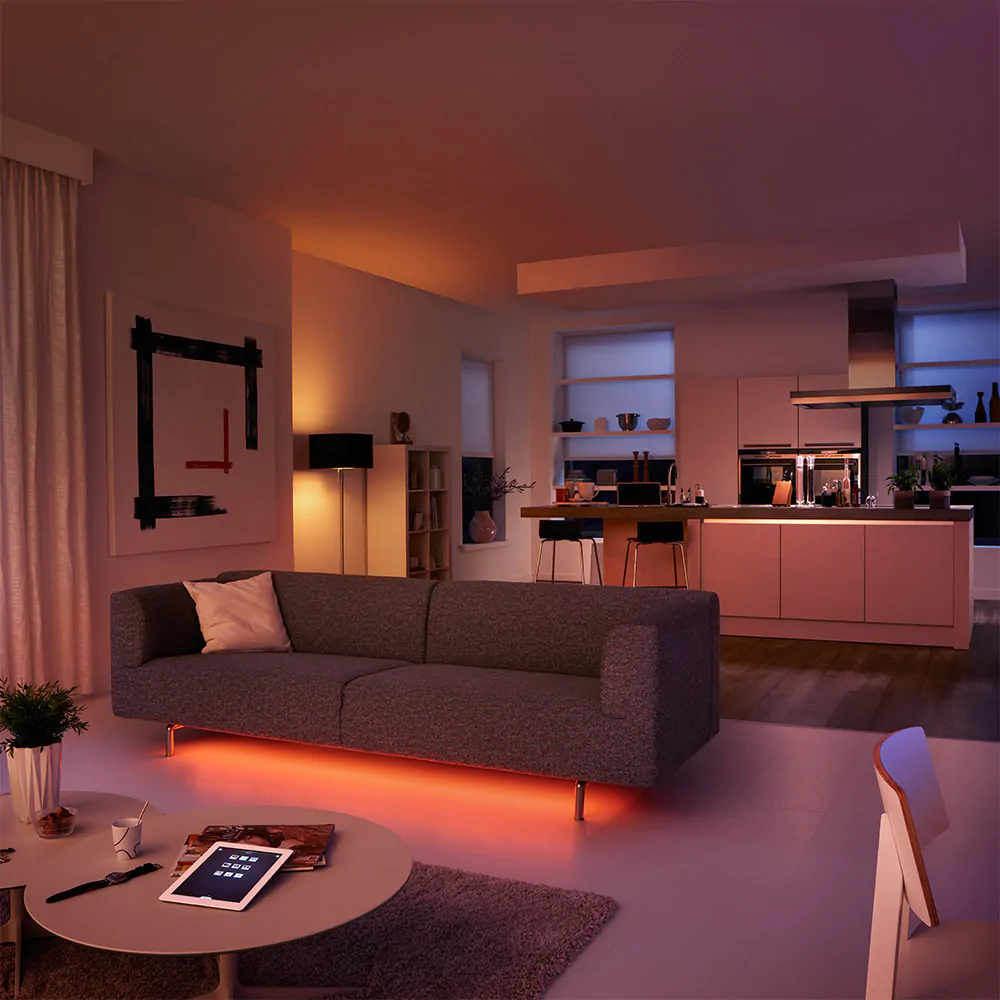

Under Sofa Lighting
Under Sofa Lighting

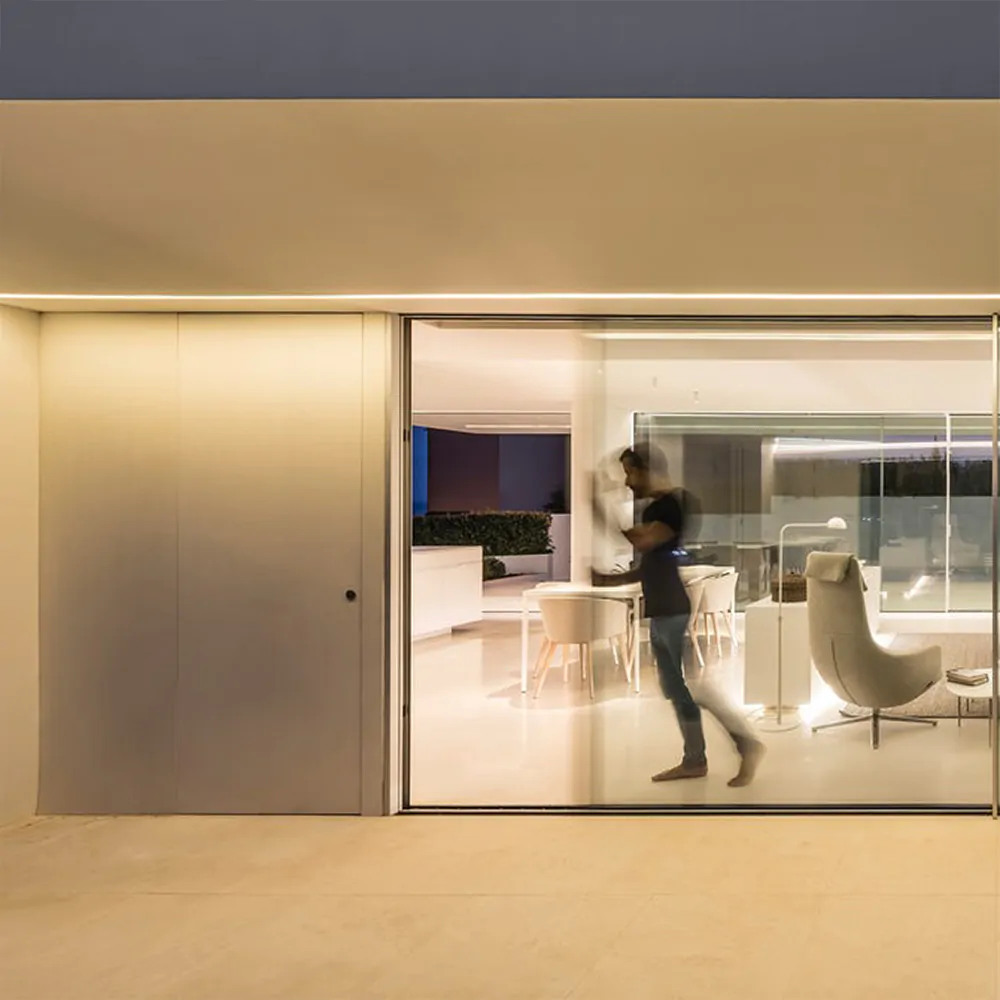

Commercial Setting
Commercial Setting

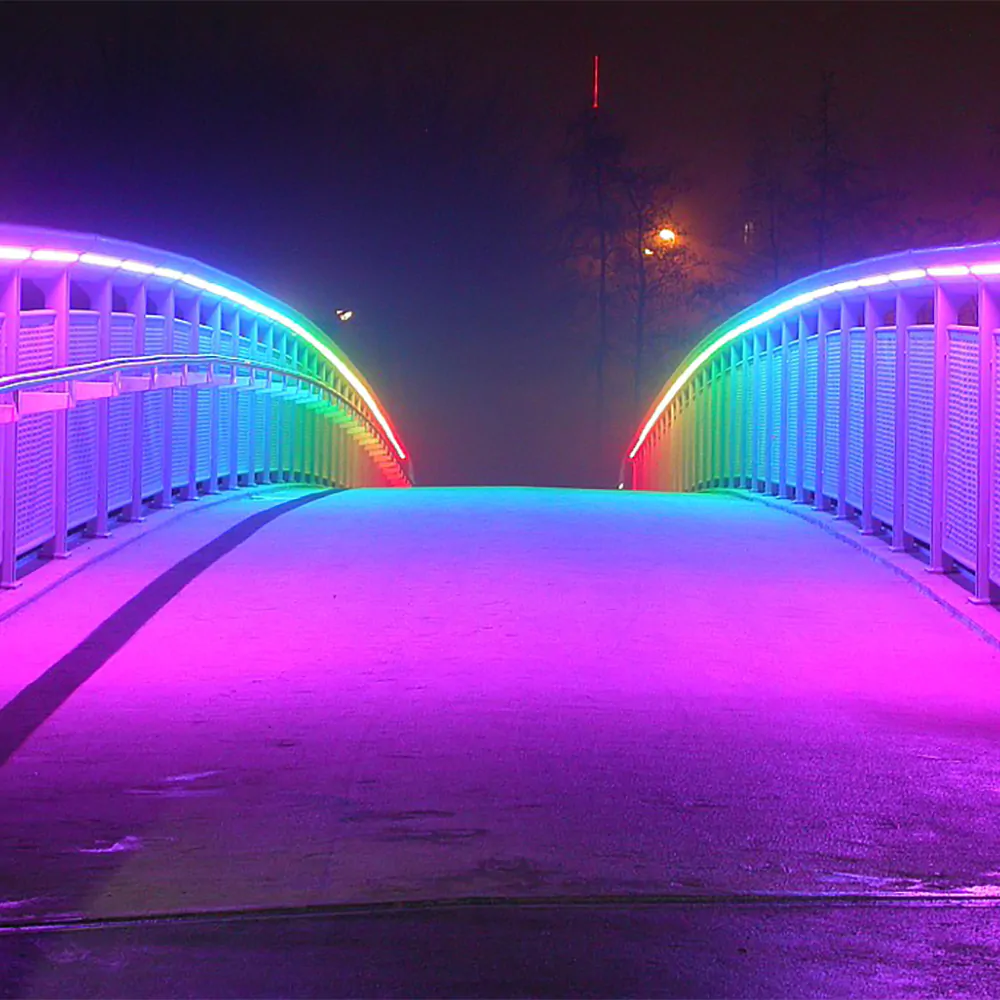

Pixel Lighting Run
Pixel Lighting Run

Quick Compare Chart

Technical specification breakdown across the series.

Specification Professional Mini Nano Express
Standard Roll Length5 Metres5 Metres5 Metres5-10 Metres
Width x Height17x16mm (T) / 11.5x20mm (S)10x10mm (T) / 4x8mm (S)3 x 6mm16x15mm (T) / 12x20mm (S)
LEDs Per Metre14424024080-192
Power Consumption10-12W/m6-10W/m9W/m11-15W/m
IP RatingIP67 (Waterproof)IP67 (Waterproof)IP67 (Waterproof)IP67 (Waterproof)
Input Voltage24V DC24V DC24V DC24V DC
Beam Angle120°120-180°120°120°
Min Bend Radius150mm100mm30mm200mm
Cut IntervalsT: 83mm / S: 100mmT: 35.7mm / S: 25mmFree Cutting Anywhere62.5-125mm
Available ViewsTop & Side ViewTop & Side ViewSide ViewTop & Side View
Colour Options12+ Colours + RGB/W4 White + RGBW10 White/Colour OptionsRGB+W/CCT/Pixel
CRI Rating>80>90>90>80
Average Life30k-50k hours50,000 hours50,000 hours30,000 hours
DimmableYesYesYes (PWM)Yes
Warranty3 Years3 Years5 Years3 Years
Run Length10m (1) / 20m (2)5m Standard5m Standard13-20m
Best ForGeneral CommercialHigh-End RetailPrecision & CustomDynamic Effects
Explore Range View Professional View Mini View Nano View Express
Explore All NEOLINEAR™ Products

Looking for a bespoke solution?

We offer more than what is listed online. For custom shapes, specialist finishes or technical advice for complex projects, our team is here to help.

Call Us: 01260 540014 Mon-Thu 8:30am-5pm | Fri 8:30am-4pm
Live Chat Talk to our experts for instant advice.
Email Us Send us your project requirements.
Bespoke Manufacturing Need a custom shape? View our production services.
Looking for ALL our LED strips?

EXPLORE LED STRIPS

Click here to view our complete collection

Shop ALL LED Strips Here
