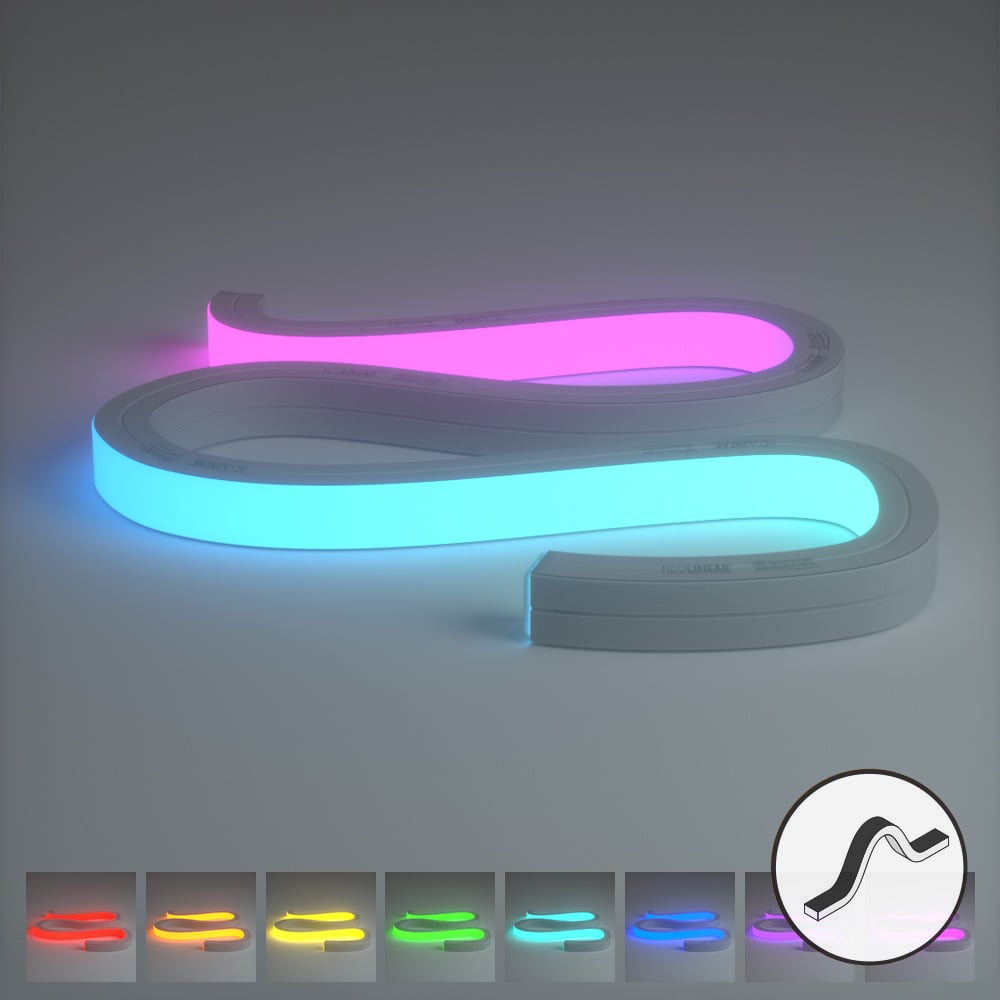

Neon Flex Express Pixel RGBW (4000K) Topview 5MTR | NEOLINEAR

Product Code: 101.962

DMX controllable LED pixel neon
8 x Quad colour (RGBW) pixels / m
IC Type: UCS512C2L
80 x LED's /m
15w /m
IP67 rated (waterproof)
24v input voltage
Linkable in 5m lengths (driver to each 5m length)
3 Year Warranty

View full product details and specification

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Currently in Stock

Next day delivery available*

In stock

Speak with an Expert

Product Details

Product Description

Introducing the NeoLinear™ Express Pixel Neon effect product, an exceptional choice for architectural projects that require moving bands of coloured light to highlight buildings or other architectural elements.

This high-grade Pixel Neon boasts a brightness of 15W/m and showcases 8 programmable pixel blocks, each containing 8 RGBW (4000K) quad-coloured LEDs per metre. Thanks to its compatibility with the popular UCS512C2 control chips, it can be effortlessly controlled using a standard DMX 512 controller. Each 5m roll of Pixel Neon occupies 460 DMX addresses, meaning that a 15m length (consisting of 3 x 5m rolls) requires 1 DMX universe for control.

While the 5m lengths can be connected together, it is important to note that each individual 5m length requires a suitable driver to power it. This specific version of Pixel Neon is designed for "Top View" installation, allowing the LEDs to face upward. This flexibility enables the product to be wrapped around building corners, with the LEDs emitting light outward, provided that the bending of the Neon does not exceed 200mm.

With an IP67 rating, this product is designed to withstand outdoor use, as well as indoor applications and wet or damp conditions.

Please bear in mind that addressing each of the UCS512C4 chips requires the use of a DMX writer.

Should you require technical assistance or support regarding our NeoLinear™, NeoLinear™ Express, or Mini-Neon products, our dedicated technical sales team is here to help. Contact us via phone, email, or Live Chat on our website for prompt and reliable assistance.

Quick Specs

Applications

TV Studios
Theatres
Bathrooms
Signage

What's in the box?

1 x 5m Roll of Top View RGBW Pixel NeoLinear Express

Technical Specification

Product Code:	101.962
Product Packed	Anti static Bag
Manufacturer	LED Technologies
Product Type	Neon Flex
Colour	RGB / Natural White
IP Rating	IP67 Waterproof
LEDs Per Metre The amount of LED chips per 1 meter length.	80 LEDs/m
Metres	5 MTR
View	Top View
Colour Temperature Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.	4000K
Guarantee Period The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.	3 Years
Guarantee Info	*Warranty is 3 years for our standard production item. For customisation warranty is subject to negotiation.
Wattage	75W
Current	625 mA/M
Input Voltage This is the required amount of volts needed to power the product.	24V DC
Output Voltage	24V DC
PCB Weight	2oz

Size	16 x 15 x 5000mm Roll (WHL)
Reel Length	5M
Beam Angle:	120 degree
Power Consumption:	15w
Light Intensity Per LED	4200 - 6800 mcd/LED
Lumens Per LED	R:44lm/m G:119lm/m B: 34lm/m 4000k:153lm/m
Lumens Per Metre	350lm/m
CRI Rating (greater than)	CRI >80
Dimmable:	Yes
Cut Intervals:	125mm
LED Quantity	80 p/Mtr
LED Type	5050RGBW 4-in-1
Continuous run	5 mtr
Average LED life Hrs	30,000
Continuous Operation	Not suitable for 24/7 continuous use
Max Bend	200mm
Pixelation	5% Max Variable
Base Type	With rear mould injection 50cm cable on both sides
Operating Temp	-20 to +45
