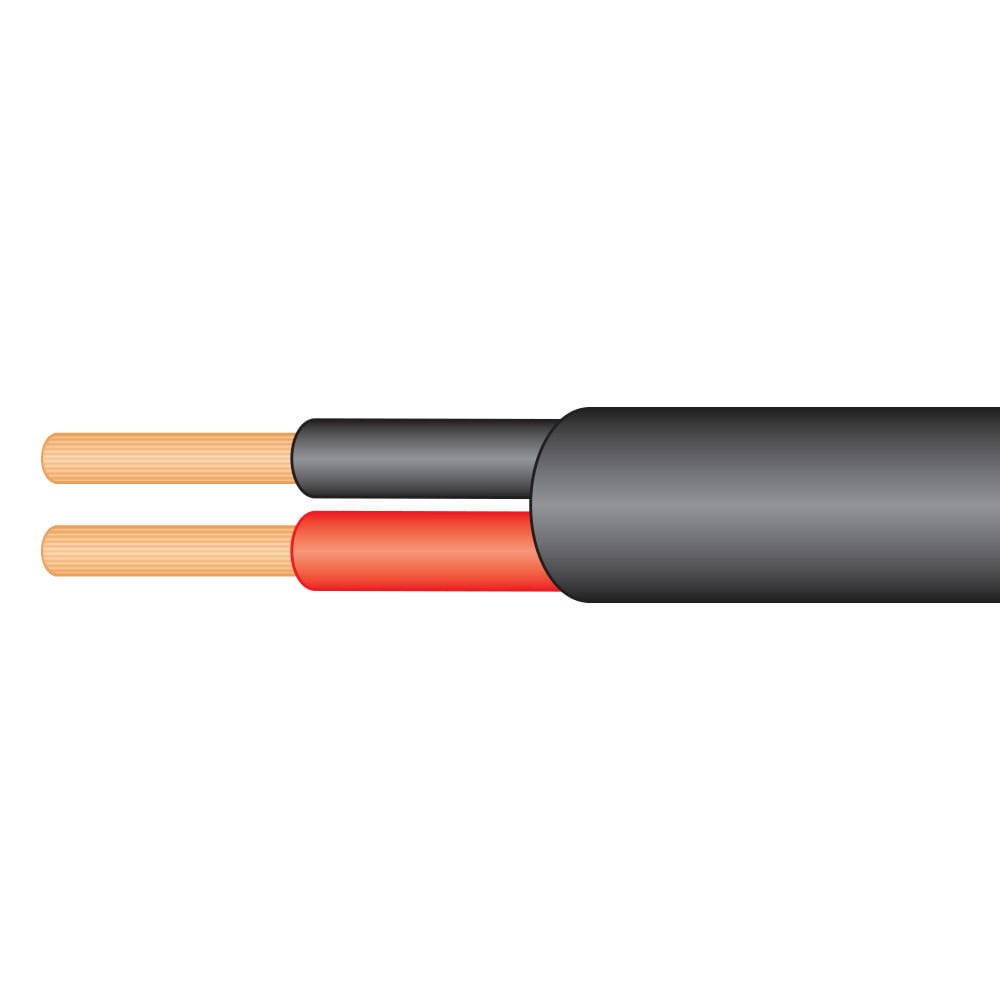

Two Core 10A Cable 50M

Product Code: 100.977
  • Twin core colour coded cable
  • Up to a maximum load of 10A
  • For single colour high wattage LED
  • Black PVC outer sheath
  • Multi-stranded 1mm2 cable
  • Overall cable diameter of 5mm
  • Supplied on a 50m roll
  • Durable and Flexible
Black
check-circle Same day shipping available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This 2 core LED cable is excellent for powering our single-colour LED strip lights. This LED 2 core cable can be utilised up to a maximum power consumption of 10A. This equates to 12v LED luminaires up to a maximum of 120w or 24v LED products up to 240w.



Each individual wire on this handy 50m roll of LED 2 core cable is colour-coded red & black. This will allow you to easily connect your LED lighting, ensuring the correct connection. This 2 core LED cable can be cut to bespoke lengths from the 50m roll. Our selection of LED 2 core cables can be used on our range of LED strip lighting products and other LED lights.



This LED 2 core cable features a super soft black silicone sheath that protects the wires and allows the five-core cable to be used in colder temperatures.

Important: Do not connect more than the recommended load of 10A.



For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Accessories through our website or contact our technical sales team.

Quick Specs

  • ColourBlack
  • Guarantee Period1 Year

What's in the box

  • 50m roll of Two Core 10A cable

Technical Specification

  • Product Code: 100.977
  • Product Packed Box
  • Manufacturer LED Technologies
  • Product Type Cables
  • Colour Black
  • Guarantee Period 1 Year
  • Current 10A Max
  • PCB Weight Not Applicable
  • Reel Length 50m
  • Dimmable: No
  • Insulation PVC
  • Flame Retardant Grade VW-1
  • Conductor Material Copper
  • Rated Temperature 80deg C
  • Rated Voltage 300V

Product Datasheets
