SYS Series RF LED Receivers / Controllers
If you would like to control your SYS lighting products via a wireless signal, then our Host Controller / Receivers from Mi-Boxer are the product you need. Compatible with all the SYS range of Mi-Light / Mi-Boxer products, it will enable control over your lighting from any compatible 2.4GHz transmitting device. This includes products such as the FUTD01 DMX signal transmitter or any of the 2.4GHz handsets or wall panels...

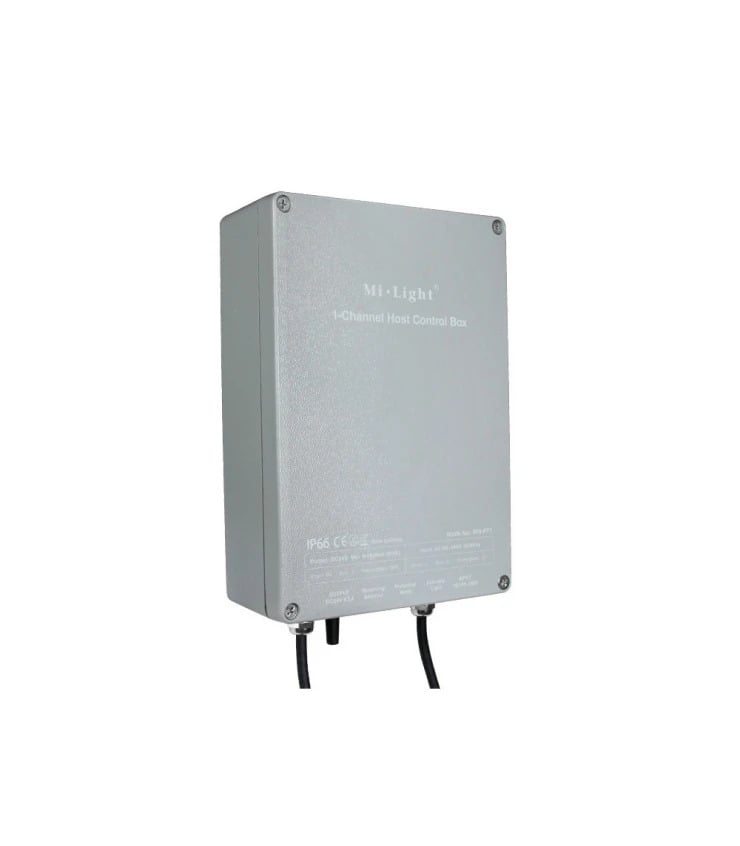

SYS Host Control BoxFrom our range of Mi-Light & Mi-Boxer RF receiver units comes this 1-Zone Host LED Light Control box and 2.4GHz Receiver. Unlike our range of RF receivers, this LED Control Box can control up to an impressive 200W of Mi-Light SYS lighting products in a single zone.
The remote control LED Receiver box requires a mains supply with an input voltage of 100v-240v AC 50/60Hz to the power input. Then connect the 24V data output to your SYS single colour, dual white or RGB+CCT lighting products. Then pair it to a compatible 2.4GHz M-Light / Mi-Boxer RF (Radio Frequency) handset or Wall Panel controllers.
Please see the detailed datasheet from the control box product page for more information on powering your 1-Channel Host Control Box.
SYS LED Signal Amplifier BoxOur 1-Zone LED Signal Amplifier is designed to expand the capabilities of your SYSPT1 LED control box. By implementing an amplifier box to your SYS lighting system, you can power additional SYS Lighting products. This can be done in a single zone and will expand control over your lights up to 200W (8.5A) by boosting the control signal.
The Amplifier repeater Box requires a mains supply with an input voltage of 100v-240v AC 50/60Hz to the power input. Connect an input signal cable from the SYSPT1 Host Controller, then connect the 24V data output to your additional SYS single colour, dual white or RGB+CCT lighting products.
This product expands your Host Controller's capabilities, doubling the amount of power supply to your lighting.
Important Note: The Host Controller and amplifier are only suitable for use with the SYS series of Mi-Light Lighting products. The control box will not work with other lighting products in the Mi-Light / Mi-Boxer range.
