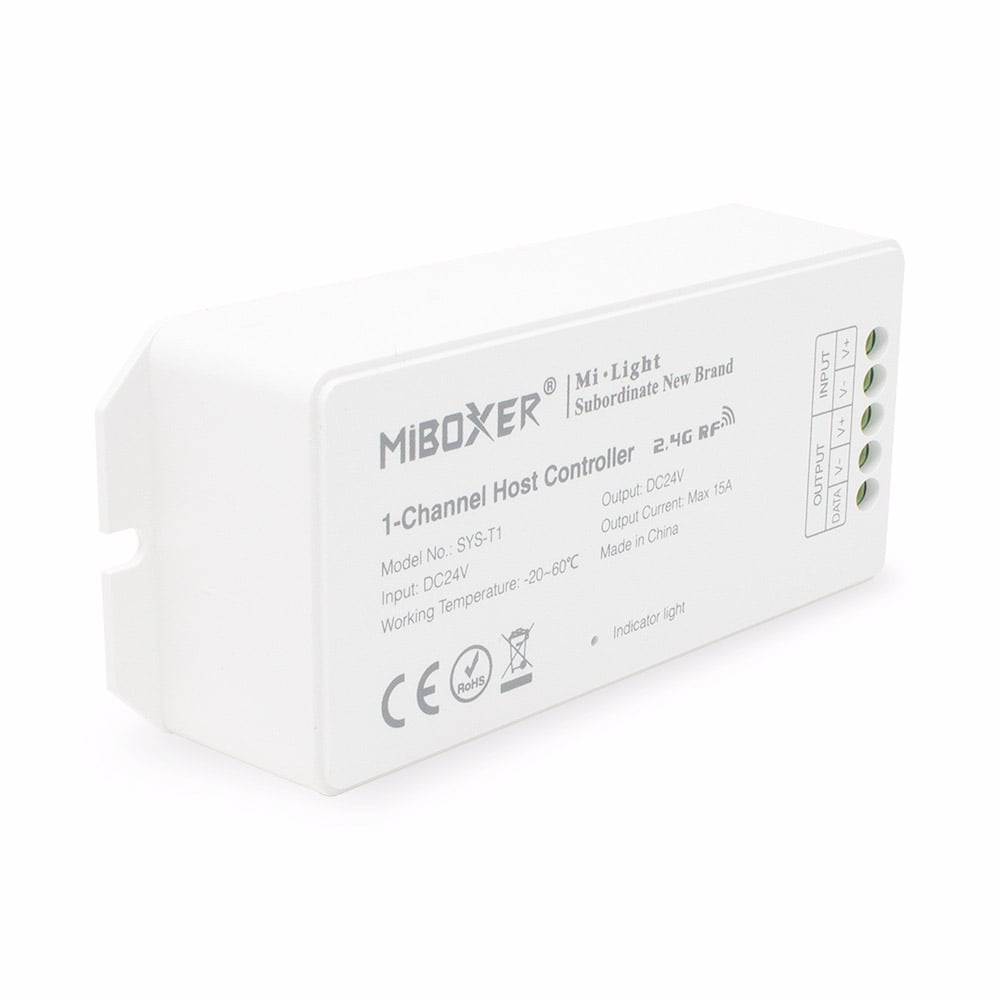

SYST1 MiBoxer 1-Channel Host Controller

Product Code: SYST1
  • Sole UK Distributor
  • 2.4GHz RF 1-Channel Host Receiver
  • Compatible with all the SYS range of Mi-Light / Mi-Boxer products
  • Smartphone Compatible
  • 30m signal transmitting and synchronization between receivers
  • Quick and easy to pair with handsets and wall panels
24V DC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This host single-channel receiver is available from our excellent MiBoxer range. This is perfect for controlling SYS lighting products via a wireless signal. Compatible with all the SYS range of Mi-Light / Mi-Boxer products, it will enable control over your lighting from any compatible 2.4GHz transmitting device. This includes the FUTD01 DMX signal transmitter or any of the 2.4GHz remote control handsets or wall panels.



As with all the 2.4GHz products, this product features auto transmitting & synchronising functions. When multiple receivers are paired to the same zone on the controller, all the receivers in the group will synchronise the lighting together with no interconnecting control cables. Provided they are all within 30m of each other and one unit is within 30m of the controller.

In addition to being able to pair with the compatible Mi-Light controllers detailed above, this Host Controller / Receiver can control your SYS lighting from your smartphone application or via voice control through your smart speakers. (Additional hub required for these features).



For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Quick Specs

  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Input Voltage24V DC

What's in the box

  • 1-Channel Host Controller
  • 3M Sticky Pad
  • Instruction manual

Technical Specification

  • Product Code: SYST1
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type Controller / Receiver
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 24V DC
  • Output Voltage 24V DC
  • Connectivity RF
  • Size L115mm x W48mm x H27mm
  • Dimmable: No
  • Wireless Range Up to 30 metres
  • Transmitting Power 6dBm
  • Operation Frequency 2.4GHz
  • Operating Temp -20~60°C
  • Total Output Max15A
  • Output Max 15A/Channel

Product Datasheets

  • pdf SYST1 - Datasheet Download
  • pdf MiBoxer Distributor Authentication Notice Download
