D5W72 MiBoxer 72W RGB+CCT AC100-240V DMX LED Wall Washer

Product Code: D5W72
  • RGB+CCT DMX LED Wall Washer
  • 72W / AC 100-240V
  • Colour temperature 2700K~6500K

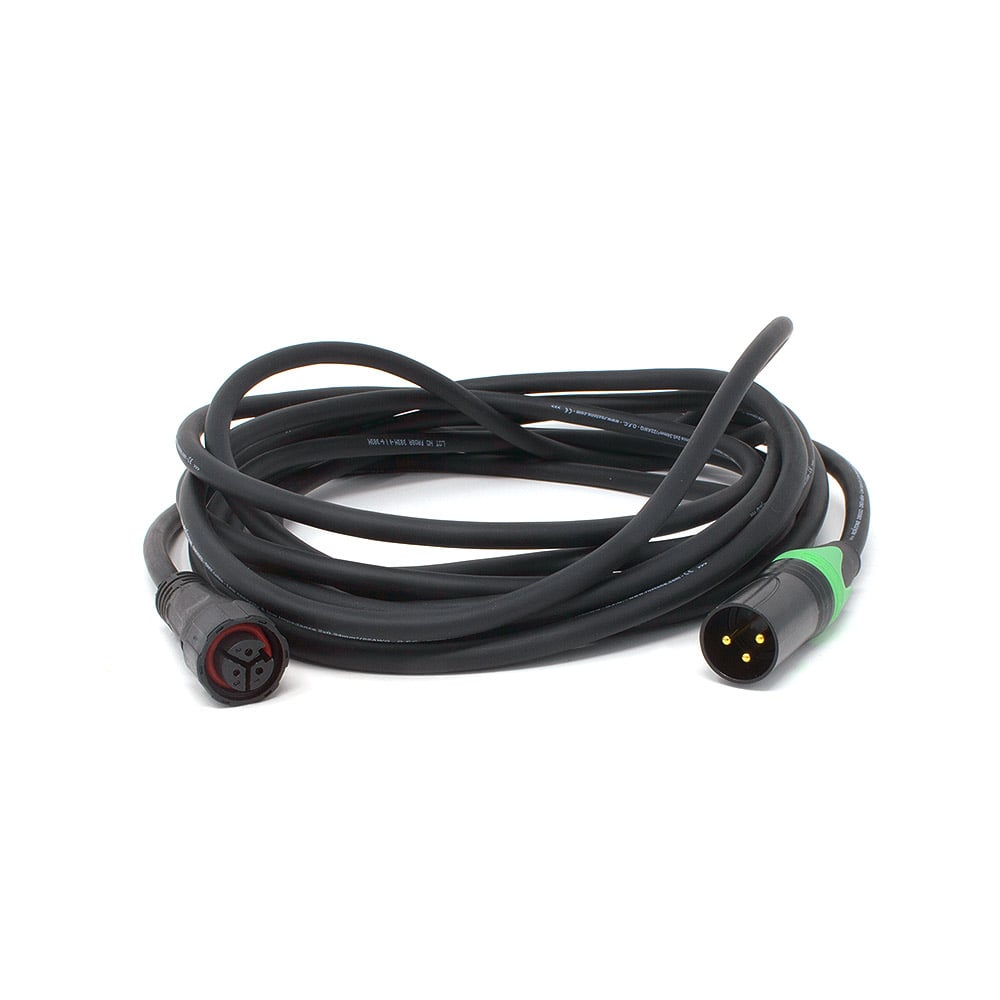

  • Starter Cable required: DMXLINE
  • Auto synchronization
  • 5 Year Guarantee
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

With numerous professional features this 1m long LED baton uses DMX512 protocols and can be controlled by any DMX512 controller.  The baton can be installed individually or linked together with other batons as required either indoors or outdoors.

Each baton emits 72w of light from the RGB+CCT LED's which when controlled with a DMX desk can produce over 16 million colour combinations and in addition, colour temperature adjustable white can be selected giving total control from warm white in the 2700K region to cool white 6500K producing the exact colour combination you want enabling you to get the most out of your lighting.

The baton can be tilted on the brackets supplied, up to a maximum angle of 180deg enabling the light to be focussed exactly where required.  Features incorporated into the baton include RDM (Remote Device Management) which enables the various setting on the baton to be adjusted remotely from the DMX desk (RDM enabled control desk required).  Otherwise, the various functions can be set using the three-button user interface and digital display. User-adjustable settings include DMX Address input (000-512), Diming Curve (Linear or logarithmic), smooth or standard dimming adjustment and auto-lock which prevents the setting from being accidentally changed once set by the user.

Each baton has a mains power input cable and a DMX input cable at one end and a DMX out cable at the opposite end of the baton enabling them to be linked together as required.

For product assistance please contact us by telephone, email or via the online chat.

Quick Specs


What's in the box?

  • DMX LED Wall Washer
  • Instruction manual
Product Code: D5W72
Product Packed Gift box
Manufacturer Mi-Light / MiBoxer
Product Type Wall Washer
IP Rating IP66 Splashproof
Colour Temperature
Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.
2700 - 6500K
Guarantee Period 5 Years
Wattage 72w
Input Voltage
This is the required amount of volts needed to power the product.
100v - 240v AC
Connectivity RF
Size 1020mm X 62mm X 64mm
Beam Angle: 15x60 degree
CRI Rating (greater than) CRI >80
Dimmable: Yes
Average LED life Hrs 50,000
Power Factor > 0.9
Wireless Range Up to 30 metres
Transmitting Power 6dBm
Operation Frequency 2.4GHz
Operating Temp -20~45°C
Luminous Flux - Red 280LM
Luminous Flux - Green 540LM
Luminous Flux - Blue 150LM
Luminous Flux - CW 1800LM
Luminous Flux - WW 1650LM
Datasheet - D5W72 Download
