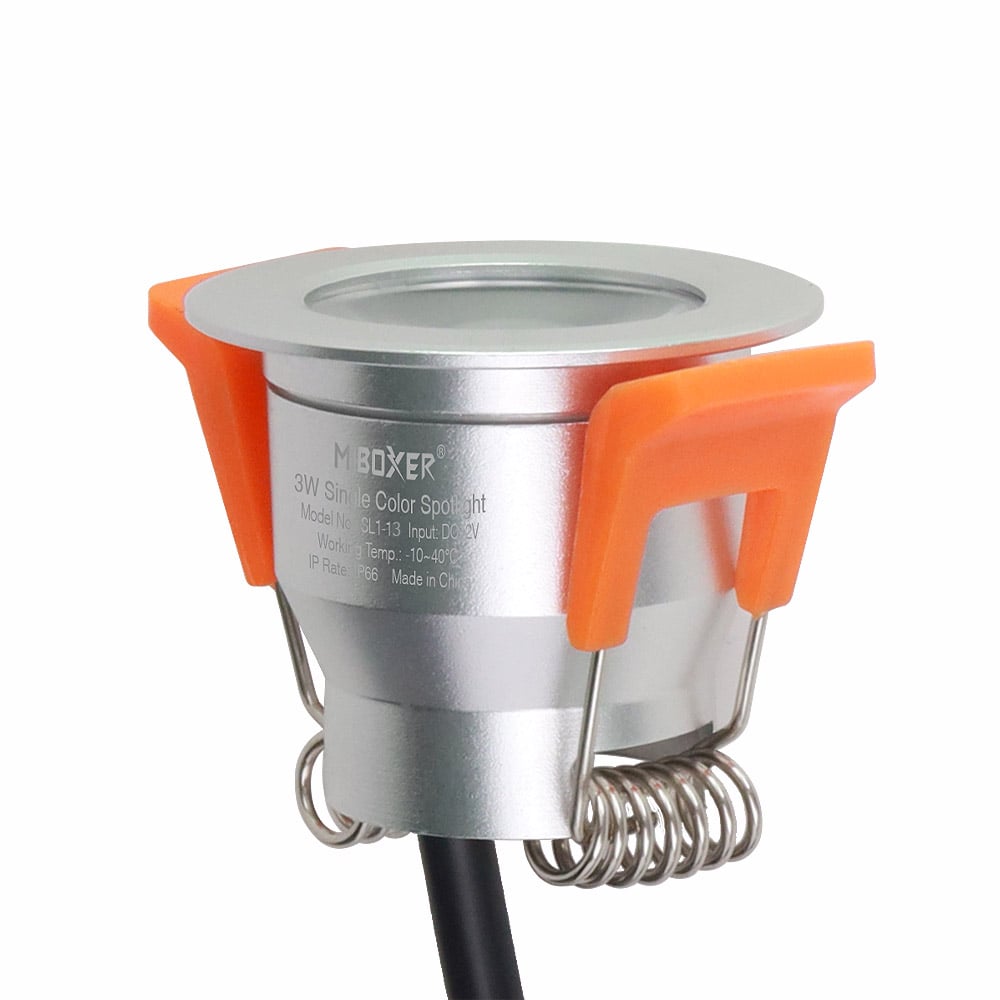

SL113 MiBoxer 3W Mini Downlighter 12V 3900-4100K

Product Code: SL113
  • Single Colour Downlight
  • 3W / DC12V
  • Colour temperature 3900K~4100K
  • Dimmable
  • Cut-out diameter: ø36mm
  • 5 Year Guarantee
  • SL113 Starter Cable
  • SL113 Extension Cable
Daylight White
12V DC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

This single-colour mini LED spotlight is available from our stunning range of Mi-Light products. Providing a lumen rating of 154.7LM, it is perfect for achieving subtle and modern lighting.



This small LED spotlight runs at 3W, featuring a beautiful daylight white with a colour temperature of 3900-4100K. This small spotlight can be fully dimmed, ensuring control over the lighting aesthetic.



Our MiLight MiBoxer mini downlights are long-lasting and reliable products, perfect for lighting in both commercial and domestic projects. It has a narrow 36-degree beam angle which will achieve a spot-light effect, the perfect solution for applications that require focused light.



Installation

The downlighter is housed in an aluminium IP66-rated case. This makes it perfect for use both indoors and outdoors in wet or damp environments.



Our mini spotlight has a diameter of 42 with a height of 36mm. A void with a diameter of 36mm is required to instal this miniature LED downlight. Push the downlighter through the hole and clip it into place with the attached spring-loaded wings. This will hold the lights firmly in position.

Note: It is important that enough ventilation is available around the light. It is not recommended to cover them with insulating materials such as loft insulation.



Multiple mini spotlights can be connected, up to a maximum of 20 so that they can be controlled together. The first downlighter in the chain will require a 2-core starter cable, and subsequent downlighters will require a 2-core link cable.

Mini Downlights Connection Diagram

Compatible Mi-Light LED controllers & additional lighting are sold separately.



For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Downlights through our website or contact our technical sales team.



Mi-Light MiBoxer Mini LED Downlights

Quick Specs

  • CRI Rating (greater than)CRI >80
  • Beam Angle:36 degree
  • ColourDaylight White
  • Guarantee Period5 Years
  • IP RatingIP66 Splashproof
  • Input Voltage12V DC

What's in the box

  • LED Mini Downlight
  • Instruction manual

Technical Specification

  • Product Code: SL113
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type Downlight
  • Colour Daylight White
  • IP Rating IP66 Splashproof
  • Colour Temperature 3900 - 4100K
  • Guarantee Period 5 Years
  • Wattage 3W
  • Current 0.1881A
  • Input Voltage 12V DC
  • Connectivity RF
  • Size ø42 X 52mm Width X 36mm Height
  • Beam Angle: 36 degree
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • Average LED life Hrs 50,000
  • Power Factor > 1.0
  • Wireless Range Up to 30 metres
  • Operation Frequency 2.4GHz
  • Operating Temp -10 to 40ºC
  • Luminous Flux: 154.7LM
  • Light Efficiency: 65.56LM/W

Product Datasheets

  • pdf Datasheet - SL113 Download
