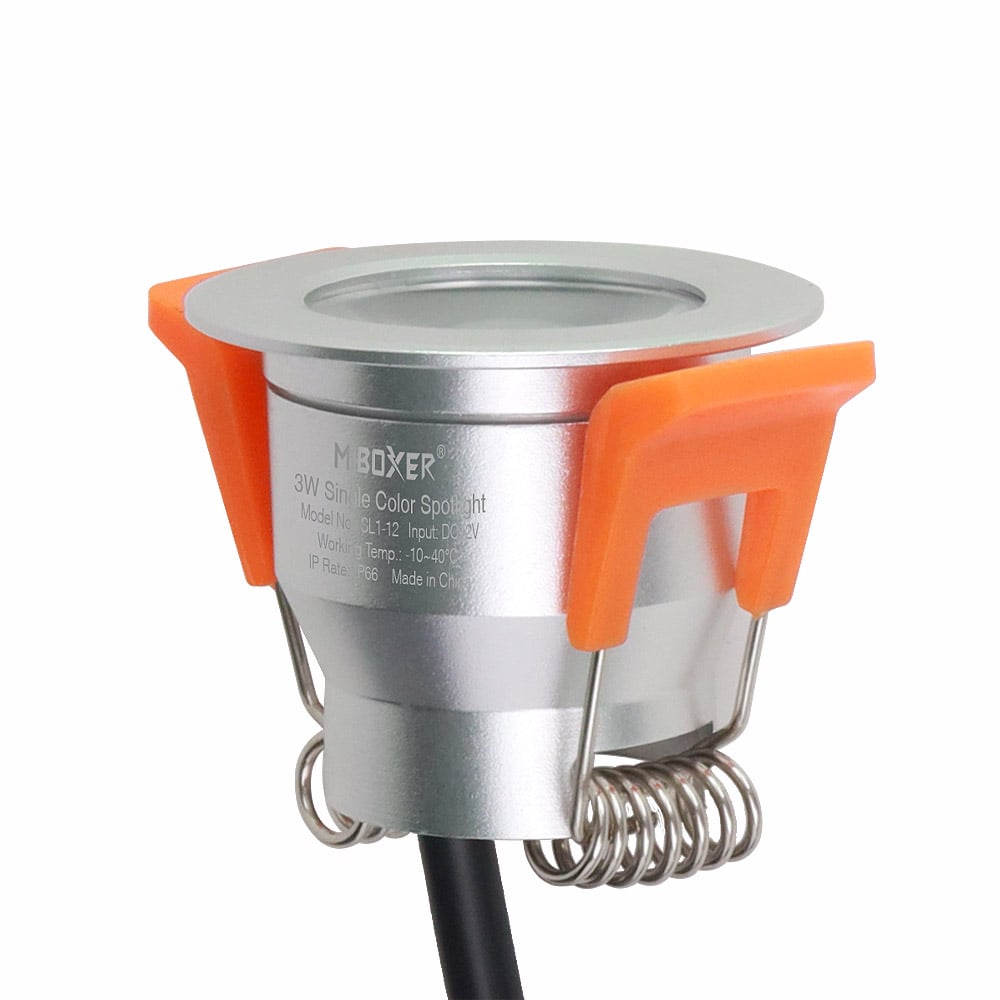

SL112 MiBoxer 3W Mini Downlighter 12V 1800-2200K

Product Code: SL112
  • Single Colour Downlight
  • 3W / DC12V
  • Colour temperature 1800K~2200K
  • Dimmable
  • Cut-out diameter: ø36mm
  • 5 Year Guarantee
  • SL112 Starter Cable
  • SL112 Extension Cable
Warm White
CRI 80
5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP66
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This single-colour mini LED spotlight is available from our stunning range of Mi-Light products. Providing a lumen rating of 154.7LM, it is perfect for achieving subtle and modern lighting.



This small LED spotlight runs at 3W, featuring a gorgeous warm white with a colour temperature of 1800-2200K. This small spotlight can be fully dimmed, ensuring control over the lighting aesthetic.



Our MiLight MiBoxer mini downlights are long-lasting and reliable products, perfect for lighting in both commercial and domestic projects. It has a narrow 36-degree beam angle which will achieve a spot-light effect, the perfect solution for applications that require focused light.



Installation

The downlighter is housed in an aluminium IP66-rated case. This makes it perfect for use both indoors and outdoors in wet or damp environments.



Our mini spotlight has a diameter of 42 with a height of 36mm. A void with a diameter of 36mm is required to instal this miniature LED downlight. Push the downlighter through the hole and clip it into place with the attached spring-loaded wings. This will hold the lights firmly in position.

Note: It is important that enough ventilation is available around the light. It is not recommended to cover them with insulating materials such as loft insulation.



Multiple mini spotlights can be connected, up to a maximum of 20 so that they can be controlled together. The first downlighter in the chain will require a 2-core starter cable, and subsequent downlighters will require a 2-core link cable.



Mini Downlights Connection Diagram

Compatible Mi-Light LED controllers & additional lighting are sold separately.



For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Downlights through our website or contact our technical sales team.



Mi-Light MiBoxer Mini LED Downlights

Quick Specs

Warm White
CRI 80
5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP66
12v
This is the required amount of volts needed to power the product.
RF

What's in the box?

  • LED Mini Downlight
  • Instruction manual
Product Code: SL112
Product Packed Gift box
Manufacturer Mi-Light / MiBoxer
Product Type Mini Downlight
Colour Warm White
IP Rating IP66 Splashproof
Colour Temperature
Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.
1800 - 2200K
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Wattage 3W
Current 0.1881A
Input Voltage
This is the required amount of volts needed to power the product.
12V DC
Connectivity RF
Size ø42 X 52mm Width X 36mm Height
Beam Angle: 36 degree
CRI Rating (greater than) CRI >80
Dimmable: Yes
Average LED life Hrs 50,000
Power Factor > 1.0
Wireless Range Up to 30 metres
Operation Frequency 2.4GHz
Operating Temp -10 to 40ºC
Luminous Flux: 154.7LM
Light Efficiency: 65.56LM/W
Lightsource Report - SL112 Download
Datasheet - SL112 Download
