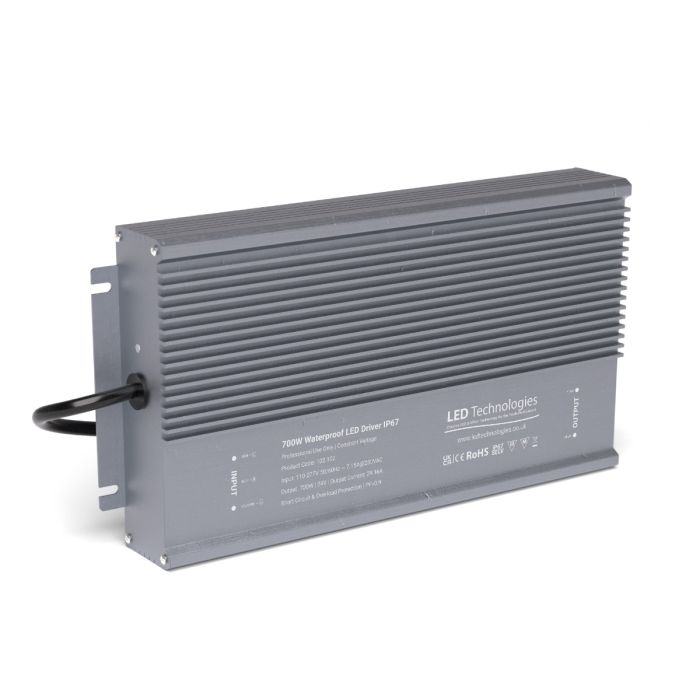

LEDTech | 700W 24V LED Driver

Product Code: 102.102

Constant Voltage 24V output
Input Voltage 110V - 277V AC
Maximum output current 29.1A
Recommended continuous load is 490W
IP67 rated for indoor / outdoor applications
Short circuit, over load & over temperature protection
Flicker free operation
Air cooled

View full product details and specification

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Currently in Stock

Next day delivery available*

In stock

Speak with an Expert

Product Details

Product Description

With a high output of 700W, this professional grade 24V LED driver from our LEDTech range is perfect for commercial and domestic projects that require a more powerful driver than the lower-wattage units.

A lot of LED controllers are now rated with a high output per channel and as such they require either a large driver or multiple drivers connected to them, multiple drivers would require power sharing and tend to be an expensive option.

These high-powered Constant Voltage LED Drivers have many built-in safety features including Short Circuit Protection and Over voltage protection. Should either of these fault states occur simply remove the fault condition and the driver will automatically re-set. If an over-temperature state is detected, the driver should then be powered down and when cooled, powered back on.

As this 700W LED Driver is air-cooled it is important to take this into account when locating the units. All air-cooled drivers need to be situated in a more open area with no insulation covering them, we also recommend running the high-powered drivers at around 70% of the driver's output value which would be 490W for this unit.

Running the diver up to full power supplied (700W) is manageable for shorter amounts of time. When powering drivers that are controlling CCT or colour-changing LED Strips this value can be increased since not all the colours will be running at the same time. Running at this level will ensure the longevity of the unit and your LED Lights.

For more details on this and our extensive range of LED drivers, control products and luminaires, please contact our technical sales team by phone, email or via Whats App and live chat on our website.

Quick Specs

What's in the box?

24V 700W Constant Voltage LED Driver

Technical Specification

Product Code:	102.102
Product Packed	Box
Manufacturer	LED Technologies
Product Type	Controller / Driver
Colour	Brushed Aluminium
IP Rating	IP67 Waterproof
Guarantee Period The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.	3 Years
Wattage	700W
Input Voltage This is the required amount of volts needed to power the product.	110V - 277V AC
Output Voltage	24V DC
Size	280 x 145 x 50mm
Beam Angle:	N/A
Dimmable:	No
Average LED life Hrs	50,000
Power Factor >	0.98
Base Type	Tails
Unit Weight	3.1Kg
