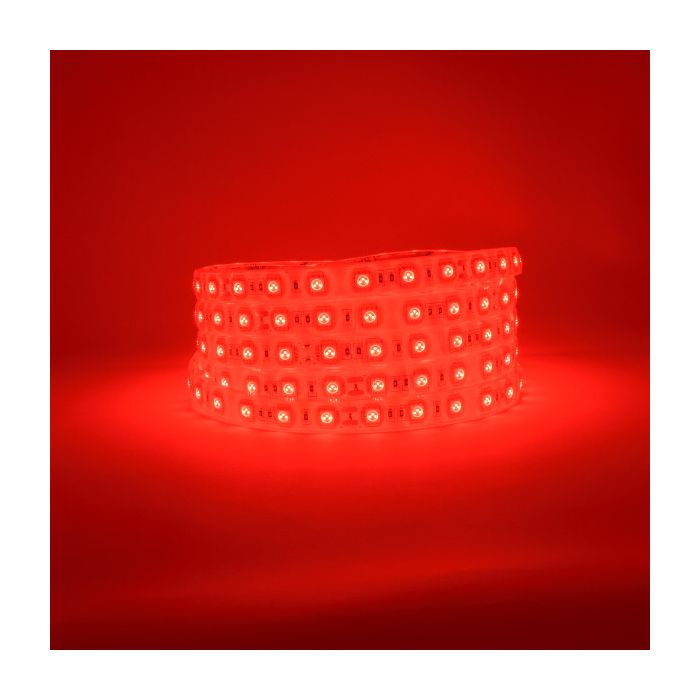

ProFlex Red LED Strip 24V 72W IP67

Product Code: 100.277
  • Red (620-630nm) LED Strip
  • 10mm PCB / 12mm With Coating
  • 60 x 5050 LED's Per Metre
  • 14.4W Per Metre
  • Built with high quality materials
  • 3 Year warranty
  • 5 Metre Roll
  • 100mm Cut Intervals
rthrhrh
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This single colour, Red ProFlex product is a very bright, flexible lighting strip used widely in the installation industry where a reliable professional LED product is demanded. Our ProFlex products are supplied on a 5m roll and can be cut to size every 100mm and fixed into place with the attached 3M sticky backing.

With it's IP67 rated, resin coating this version of ProFlex is splash proof and can therefore be installed in damp indoor environments such as kitchens and bathrooms. ProFlex can be installed into channelling and is compatible with our range of aluminium extrusions. Simply connect ProFlex to a suitable 24v driver to achieve a bright, consistent band of red light.

If more control is required however, ProFlex is fully dimmable and compatible with our range of dimmable 24v drivers. In addition, full remote dimming and control can be achieved with our RF controllers and we also stock a range of DMX Decoders for incorporating the flex into an existing DMX control system.

Quick Specs

rthrhrh
This is the required amount of volts needed to power the product.

Applications

  • TV Studios
  • Exhibitions
  • Theatres
  • Office Spaces
  • Living Areas
  • Kitchens
  • Bathrooms
  • Gardens

What's in the box?

  • 1 x 5 Metre Roll Of Strip
  • 10 x Bridging Clips for Fixing
  • 1 x Installation Guide
Product Code: 100.277
Product Packed Anti static Bag
Manufacturer LED Technologies
Product Type LED Strip Light
Colour
rthrhrh
Red
IP Rating IP67 Waterproof
LED per mtr
The amount of LED chips per 1 meter length.
60 p/Mtr
Metres 5 MTR
Colour Temperature
Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.
620-630nm
Guarantee Period 3 Years
Wattage 72w
Current 600mA/M
Input Voltage
This is the required amount of volts needed to power the product.
24v DC
Brightness High Brightness
PCB Weight 2oz
Size 12x4.8x5000mm
Reel Length 5M
Beam Angle: 120 degree
LED Spacing 16.7mm
Lumens P/LED 5-6lm
Lumens P/Mtr 300 - 350lm
Dimmable: Yes
Cut Intervals: 100mm
LED QTY 60 LED Per Mtr
LED Type SMD5050
Continuous run 5 mtr
Average LED life Hrs 50,000
Peelable Back 300LSE 3M Adhesive Tape
Colour Temperature Variation IP67 Yes
Base Type Connector one end tails other
Datasheet - 100.277 Download
