Snap-O-LED™ 1123mm 4000K 24v CRI90

Product Code: 101.127
  • Daylight White (4000k) LED
  • Seamless connection
  • Easy & quick install
  • Stylish aluminium finish
  • Built with high quality materials
  • 5 Year warranty
  • 1123mm linear length
  • 13.5mm (H) x 12.5mm (W)
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This 1123mm LED slim light bar is from the Snap-O-LED™ range. This impressive natural white LED strip light offers a stunning white glow perfect for a range of uses.


Features of Snap-O-LED™

This snap on LED light bar comes in 1.123M lengths. Multiple lengths can be connected together using the simple connector clips.

There are L, T and X shape bars available as well as longer length bars. You can create unique and interesting lighting with ease. You can connect multiple bars in a single row up to 10M.

Shaped SNAP-O-LED:


The bespoke click and connect system is extremely easy to use and eradicates the need to cut, rejoin and solder to achieve desired lengths. This also allows you to easily change your lighting design in the future giving you freedom of placement and effects.

The LED interior lights have a daylight white with a colour temperature of 4000k. This gives a beautiful natural colour to your space.

Read more about Colour Temperature using our case study.

The LED tape comes in a high quality LED profile. It is a lightweight aluminum featuring an opaque diffuser. This reduces spotting of your white lighting and creates a soft lighting effect.

The LED lights are also fully dimmable, enabling you control over brightness. This can create the perfect atmosphere that you want to create.


LED light bars are a perfect alternative to halogen lighting. LED strip lights are extremally energy efficient. It uses less energy while also producing less heat. This results in lower energy wastage saving you money on energy bills.

They also have a longer life span, therefore these LED warm white strip lights will not need to be replaced regularly.


Using Snap-O-LED™

The dimmable LED light bar has a range of uses in both commercial and domestic markets. It can beautifully light up your spaces in a natural white lighting.

They are the perfect installation for home lighting. They are suitable for kitchens, living rooms and bedrooms.

They are particularly useful for under cabinet lighting in the kitchen. The aluminum housing protects the LED's from steam that can come from kettles. It can be easily fixed under cabinets or shelves. It offers a consistent light that focuses the light where you need it, such as kitchen counters.

They are also perfect for wardrobe lighting. The unique shapes enable the lights to be places in corners creating the perfect lighting in wardrobes. or other storage areas. They are an exquisite solution to lighting any space in magnificent natural light.

The small lengths also makes this the perfect product for lighting up focal points in your home. Whether its picture frames, statues or glass cabinets, this is the perfect product. It will embellish your accents in beautiful highlights and shadows.

The light bars are an ideal replacement for light bulbs, ceiling lights or table lamps. This is because the light emitted from the bars are focused and bright. They are a contemporary solution to home lighting.


The indoor lighting is also perfect for commercial uses. It can be used in spaces such as retail outlets, restaurants or hotels. The sleek and modern design will provide an attractive white light to create a contemporary and comfortable atmosphere.

It is perfect for under counters in hotel lobbies or for lighting up paintings in restaurants. The soft white lighting is ideal for achieving a professional look.

Installing Snap-O-LED™

To provide a power supply to your LED lighting circuit, you will need a Snap-O-LED™ starter cable. Simply push the bar onto the the clip and plug into a suitable power source.

Each bar or shape has a female snap connector socket at each end. This enables the bars to be connected using the rigid connectors that come in a pack of 5. Press the bar or shape until you hear the connector snap together, which locks the section in securely.

If a gap between each light bar or shape, 1m link cables are available. You can also use the start cable paired with 2 core cables as the cable has a connector at one end and wire tails at the other.

They can be mounted in any position and any angle, giving you freedom of placement.


The LED lighting can be controlled through a range of lighting protocols. This includes RFDMXDALI0-10vZIGBEE and Z-WAVE. Choose an appropriate receiver for the control system you would like which can then be connected to the lights.. These control systems give you a choice of control options through wall panels, dimmer switches and handsets.

Your lighting can then be used in your home automation network. This will enable the strips to be voice controlled. This will need an additional hub such Philips Hue or Amazon Alexa.


For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Other Products

LED Technologies offer a wide range of lighting solutions including

  • Strip lights
  • Modules
  • Downlighters
  • Floodlights


Shop our range of products through our website or contact our technical sales team.

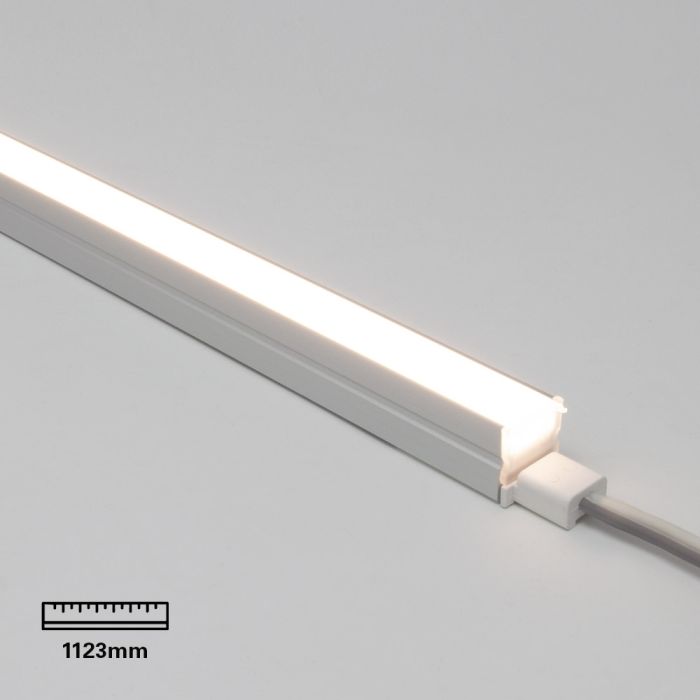

LED Light Bar 1123mm lit

Quick Specs

The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
This is the required amount of volts needed to power the product.


  • Furniture
  • Office Spaces
  • Living Areas

What's in the box?

  • 1 X Snap-O-LED 1123mm light bar
Product Code: 101.127
Product Packed Anti static Bag
Manufacturer LED Technologies
Product Type LED Light Bar
Colour Daylight White
IP Rating IP20 Non-Waterproof
Colour Temperature
Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Wattage 12w
Input Voltage
This is the required amount of volts needed to power the product.
24v DC
Brightness High Brightness
Connectivity Click Connect
Size L1123 x W12.5 x H13.5 mm
Power Consumption: 12w
Lumens P/Mtr 130lm
CRI Rating (greater than) CRI >90
Dimmable: Yes
LED Type SMD2216
Average LED life Hrs 50,000
Materials Die Cast Aluminium
Pixelation Pixel Free
Operating Temp -20 to +45
Datasheet - 101.127 Download
SnapoLED_Series_Product_Focus Download
