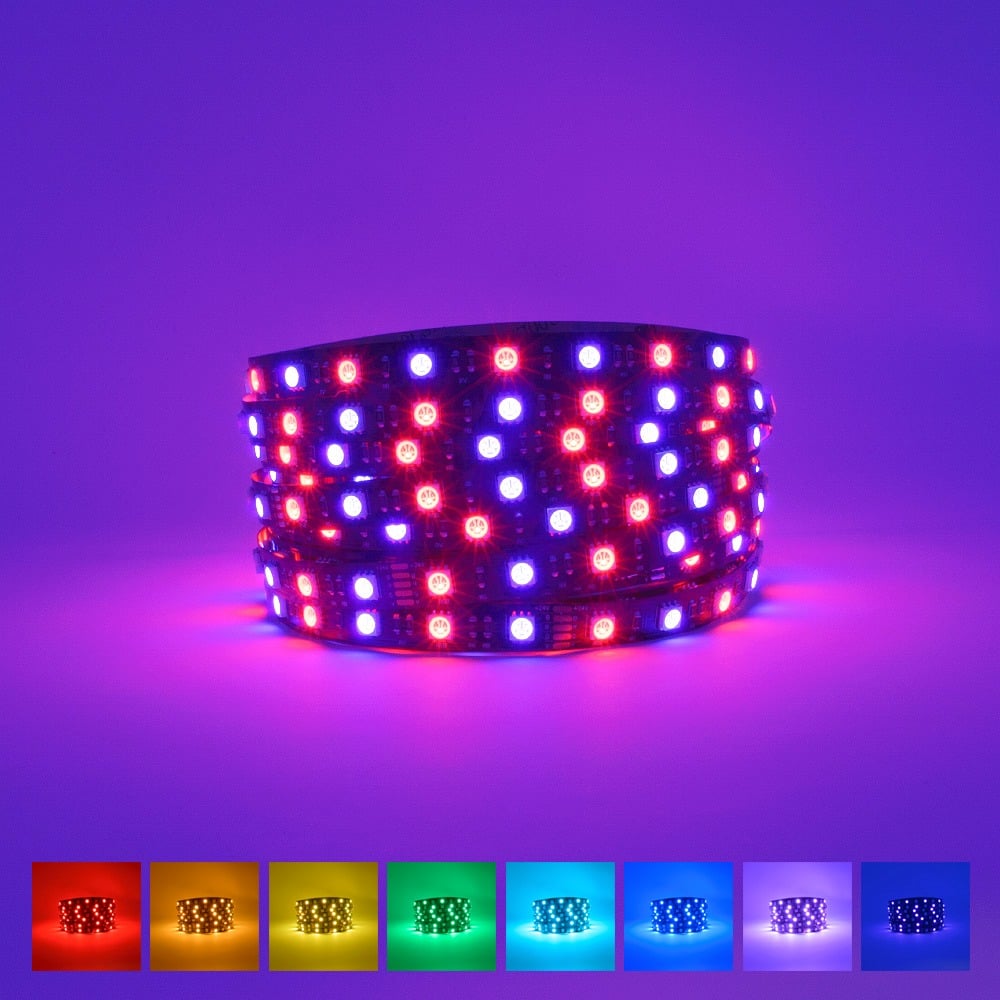

ProFlex RGB UV LED Strip (395NM) 24V IP20 Black PCB

Product Code: 100.813
  • RGB UV (395-400nm)
  • 10mm Wide Black PCB
  • 60 x 5050 LED's Per Metre
  • 14.4W Per Metre
  • 100mm Cut Intervals
  • 3 Year warranty
  • 5 Metre Roll
  • 395-400nm Wavelength
RGB / Ultra Violet
IP20 No
24V DC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This unique RGB UV LED strip is available from our professional ProFlex strip light range. This LED strip light features a black PCB board that reflects a small amount of light as well as blending more seamlessly into a low-lighting project.



With a colour temperature of 395-400NM, this ultra violet RGB LED lighting is perfect for creating a huge range of unique lighting. Perfect for special effects as it will react with UV reactive paint or white surfaces for unique lighting effects.

Our ultra violet lighting provides a lumen rating of 150LM per metre (RGB: 14LM per metre UV: 2.5LM per metre). With a 120-degree beam angle, this UV LED light will illuminate a large space in a unique and beautiful colour. It is supplied in 5m lengths, which can be adjusted to shorter lengths by cutting on the marked points that are every 166.7mm.



Our LED UV light is made from high-quality components that ensure this is a durable luminaire that will not need replacing regularly. This is the perfect lighting solution for creative designs in both commercial and domestic projects.



Installation

This ultraviolet lighting has an IP20 rating and is therefore perfect for interior lighting. For a range of creative strip light installations, have a look through our case studies.



Installation is effortless as it has a strong 300LSE adhesive backing. Simply remove the protective paper and stick a level and clean surface.



For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Strip lights through our website or contact our technical sales team.



Quick Specs

  • CRI Rating (greater than)CRI >80
  • Beam Angle:120 degree
  • BrightnessHigh Brightness
  • ColourRGB / Ultra Violet
  • Guarantee Period3 Years
  • IP RatingIP20 Non-Waterproof
  • Colour Temperature VariationIP20 No
  • Input Voltage24V DC

Applications

  • TV Studios
  • Theatres

What's in the box

  • 1 x 5 Metre Roll Of Strip
  • 10 x Bridging Clips for Fixing
  • 1 x Installation Guide

Technical Specification

  • Product Code: 100.813
  • Product Packed Poly / Anti static Bag
  • Manufacturer LED Technologies
  • LED Strip Brands Limelight Series
  • LED Strip Type SMD
  • Product Type LED Strip Light
  • Colour RGB / Ultra Violet
  • IP Rating IP20 Non-Waterproof
  • LEDs Per Metre 60 LEDs/m
  • Metres 5 MTR
  • Colour Temperature 395-400nm
  • Guarantee Period 3 Years
  • Wattage 72W
  • Current 600mA/M
  • Input Voltage 24V DC
  • Brightness High Brightness
  • PCB Weight 2oz
  • PCB Colour Black PCB
  • Size 10 x 1.9 x 5000mm Roll
  • Reel Length 5M
  • Beam Angle: 120 degree
  • LED Spacing 16.7mm
  • Appx Lumens: RGB: 147lm/meter UV: 2.5lm/meter
  • Lumens Per Metre 150lm
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • Cut Intervals: 166.7mm
  • LED Quantity 60 p/mtr
  • LED Type SMD5050
  • Continuous run 5 mtr
  • Average LED life Hrs 50,000
  • Peelable Back 300LSE 3M Adhesive Tape
  • Power Factor > Not Applicable
  • Continuous Operation Not suitable for 24/7 continuous use
  • Base Type Tails
  • Strip Light Width 10mm

Product Datasheets

  • pdf Datasheet - 100.813 Download

Related Products

Pixel HD RGB 60LEDs p/m 14W p/m IP67 Black PCB
Pixel HD RGB 60LEDs p/m 14W p/m IP67 Black PCB
101.953
Pixel HD RGB 60LEDs p/m 14W p/m IP20 Black PCB
Pixel HD RGB 60LEDs p/m 14W p/m IP20 Black PCB
101.952

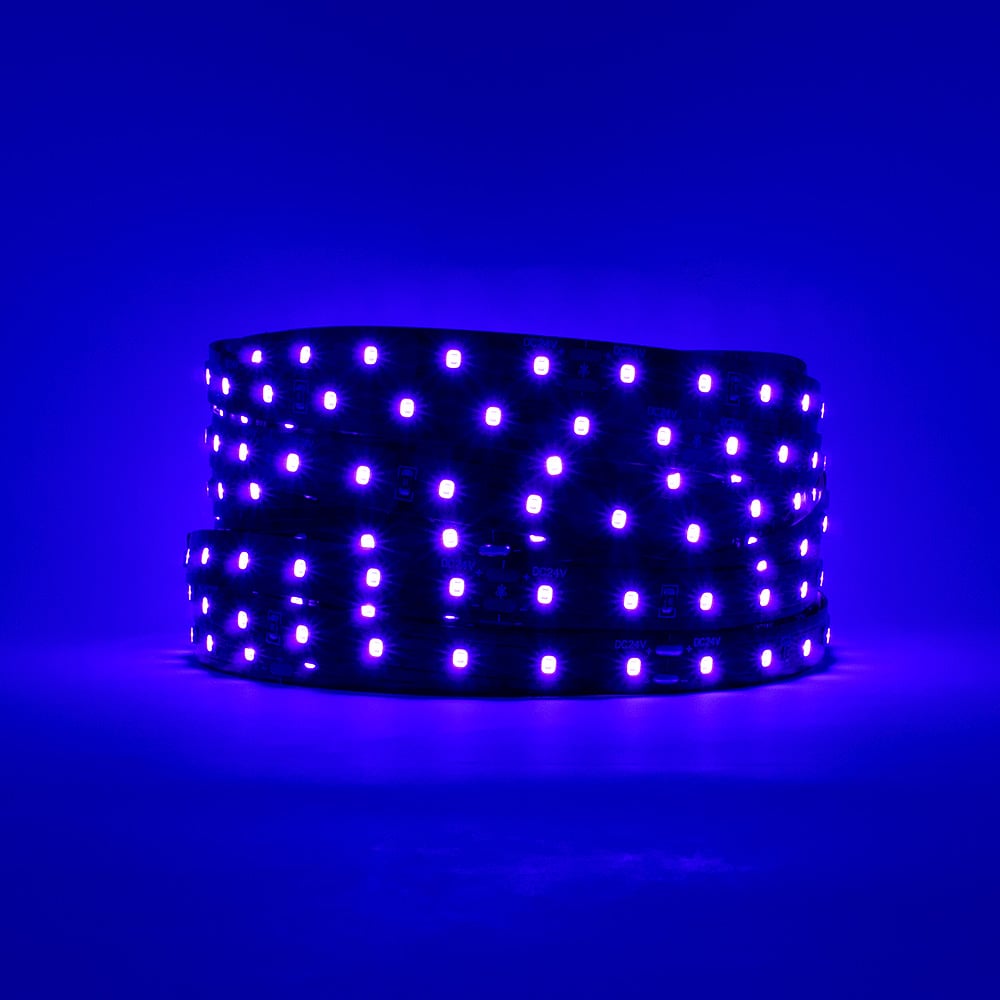

Limelight UV (395-400NM) LED Strip 24V IP20 72W Black PCB
Limelight UV (395-400NM) LED Strip 24V 70 LEDs P/Mtr Black PCB
100.119

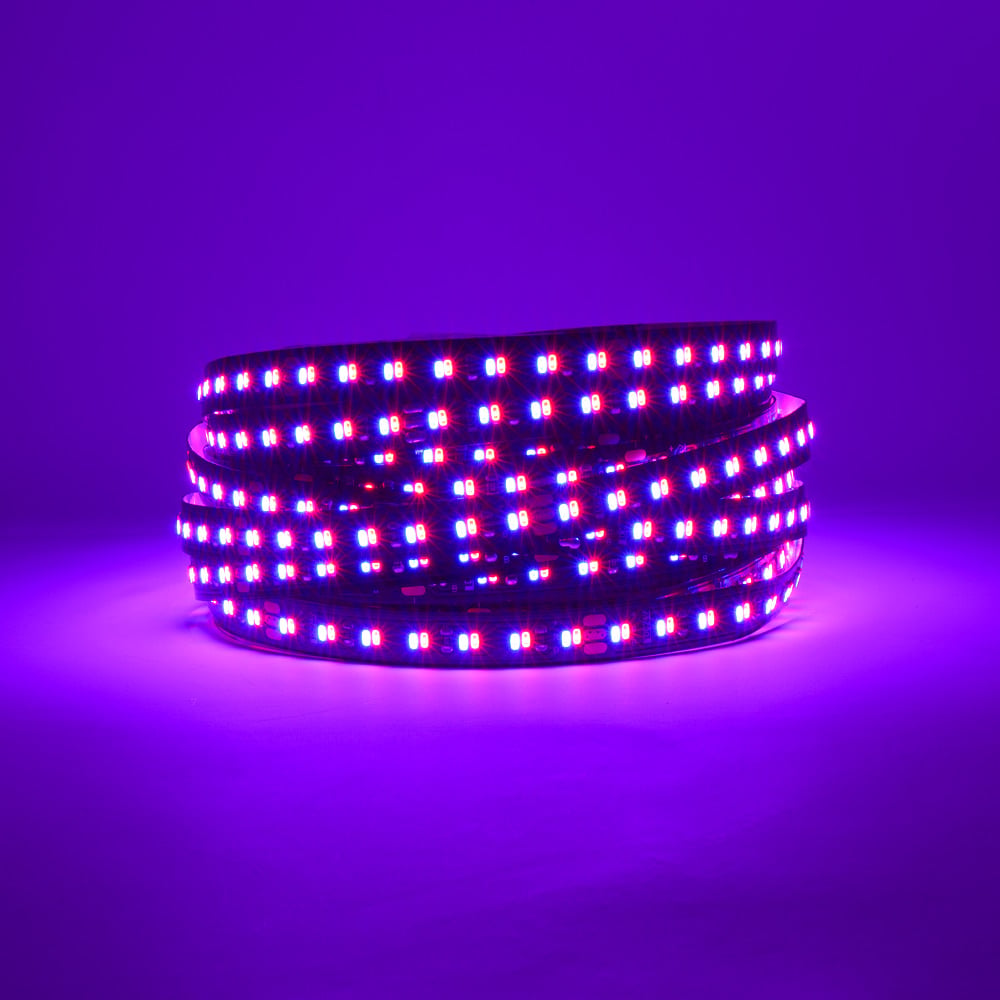

Limelight Dynamic Purple LED Strip Light 90W
Limelight Dynamic Purple LED Strip Light 90W
101.180

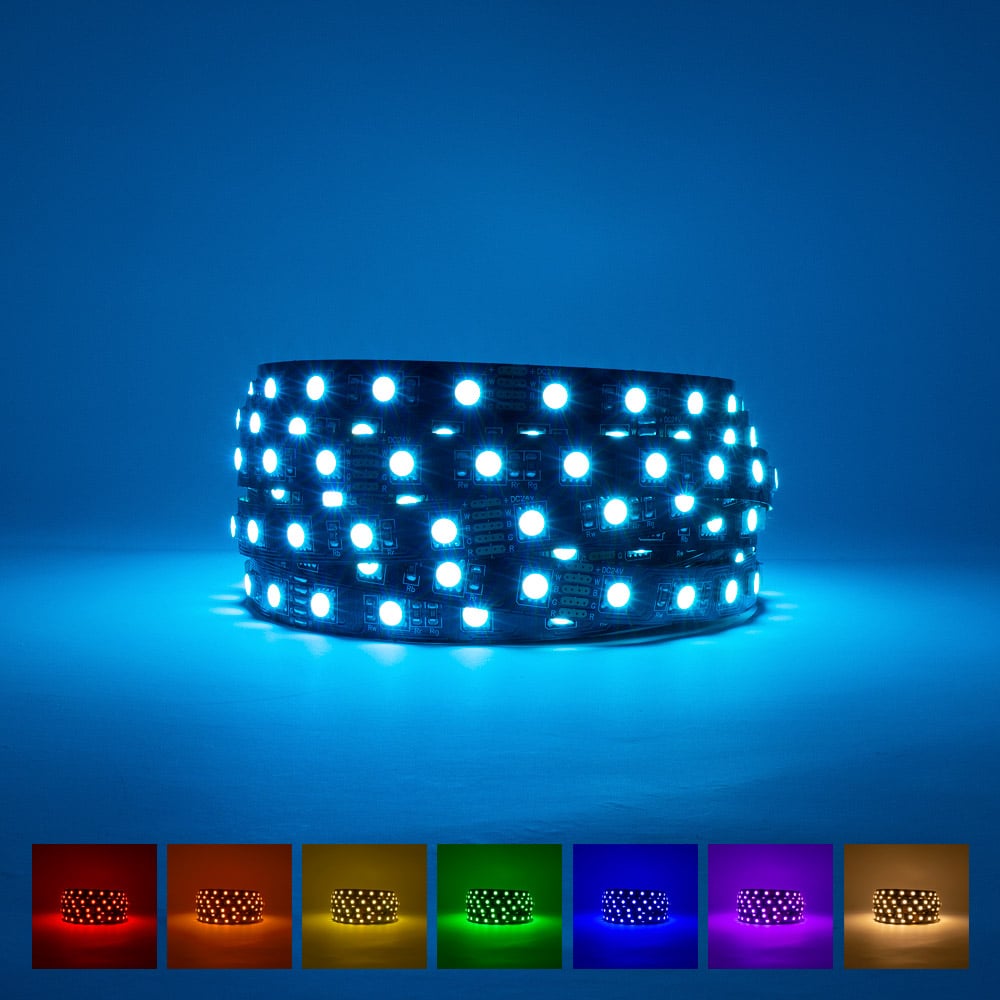

ProFlex RGB Warm White LED Strip Light Black PCB 24V 96W IP20
ProFlex RGBWW LED Strip Light (Black PCB) 24V 96W IP20
101.151

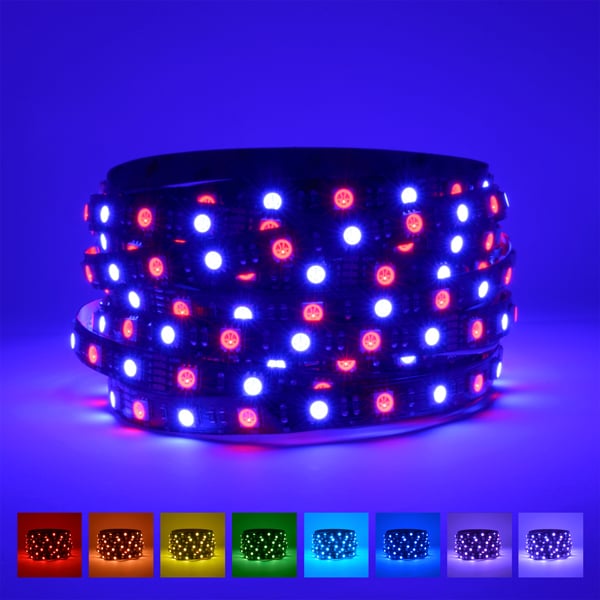

ProFlex RGB Indigo (450NM) 24V IP20 Black PCB
ProFlex RGB Indigo (450NM) 24V IP20 Black PCB
100.777

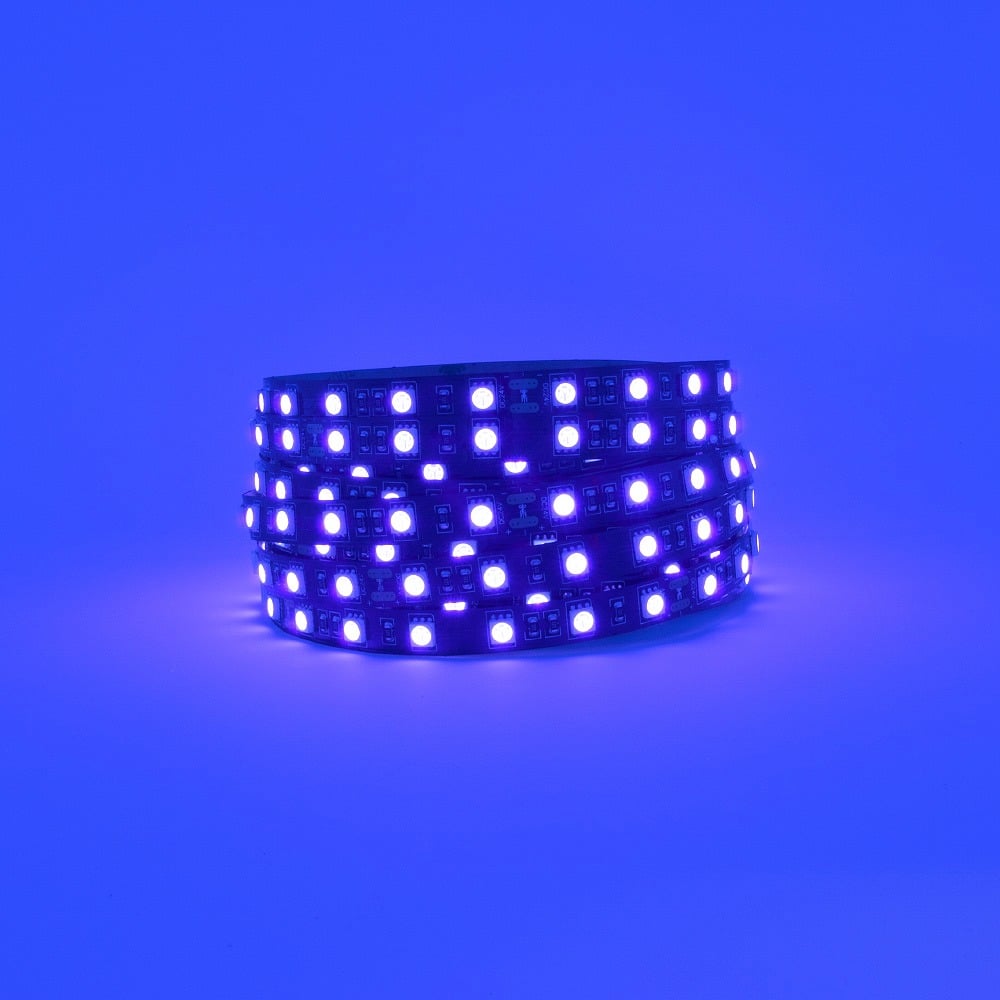

Black PCB UV LED strip lit and coiled up on purple background
Limelight Ultra Violet / UV LED Strip 24V 60 LEDs P/Mtr Black PCB
100.291

We found other products you might like!

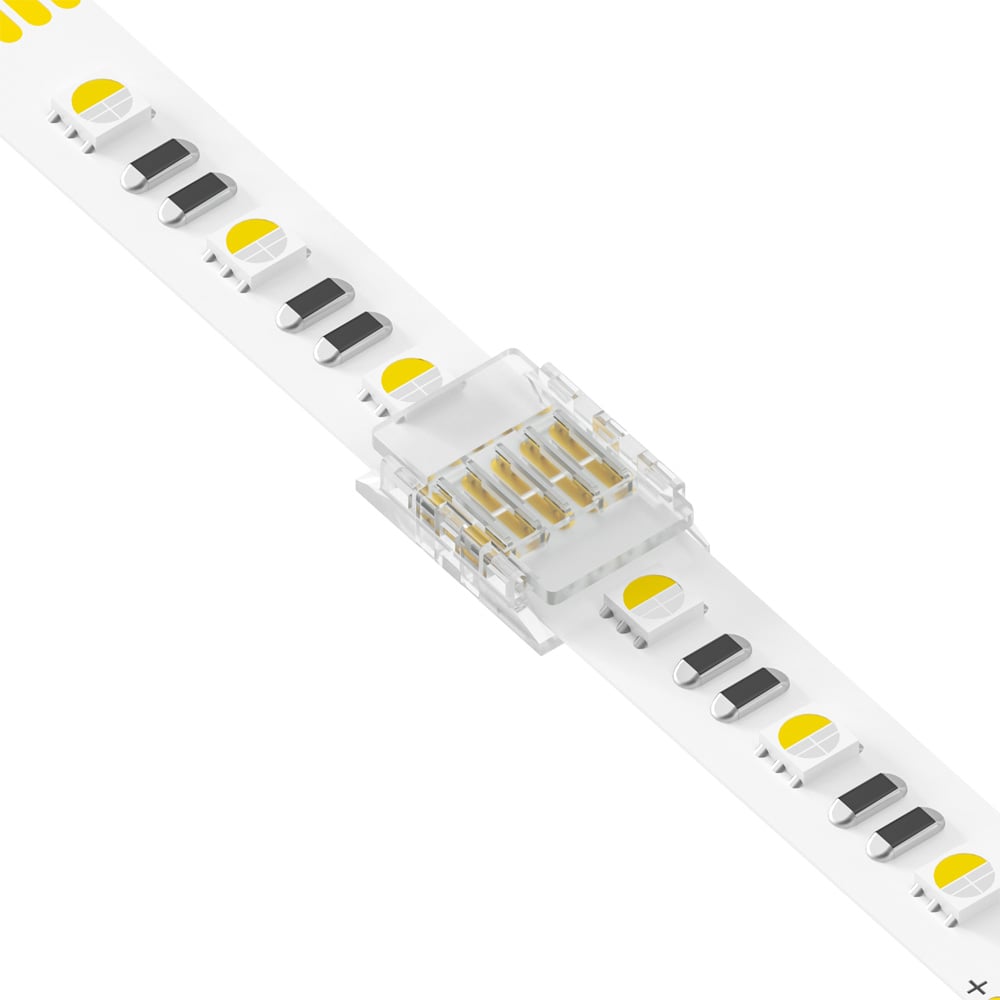

5 Pin Strip to Strip Clip Joint for IP20 RGBW 10mm SMD Strip Pack of 5 SMD
