Deep Recessed LED Strip Profile 2 MTR

Product Code: 101.170
  • Suitable for strips up to W12.5mm
  • Durable anodised aluminium
  • Acts as a heat sink, aids cooling
  • Reduces glare and softens light output
  • Sturdy housing protects LED strip
  • Clip in Diffuser
  • Easy fit end caps and diffuser
  • Easy installation
CRI 80
IP Rating 20
2 mtr
View full product details and specification

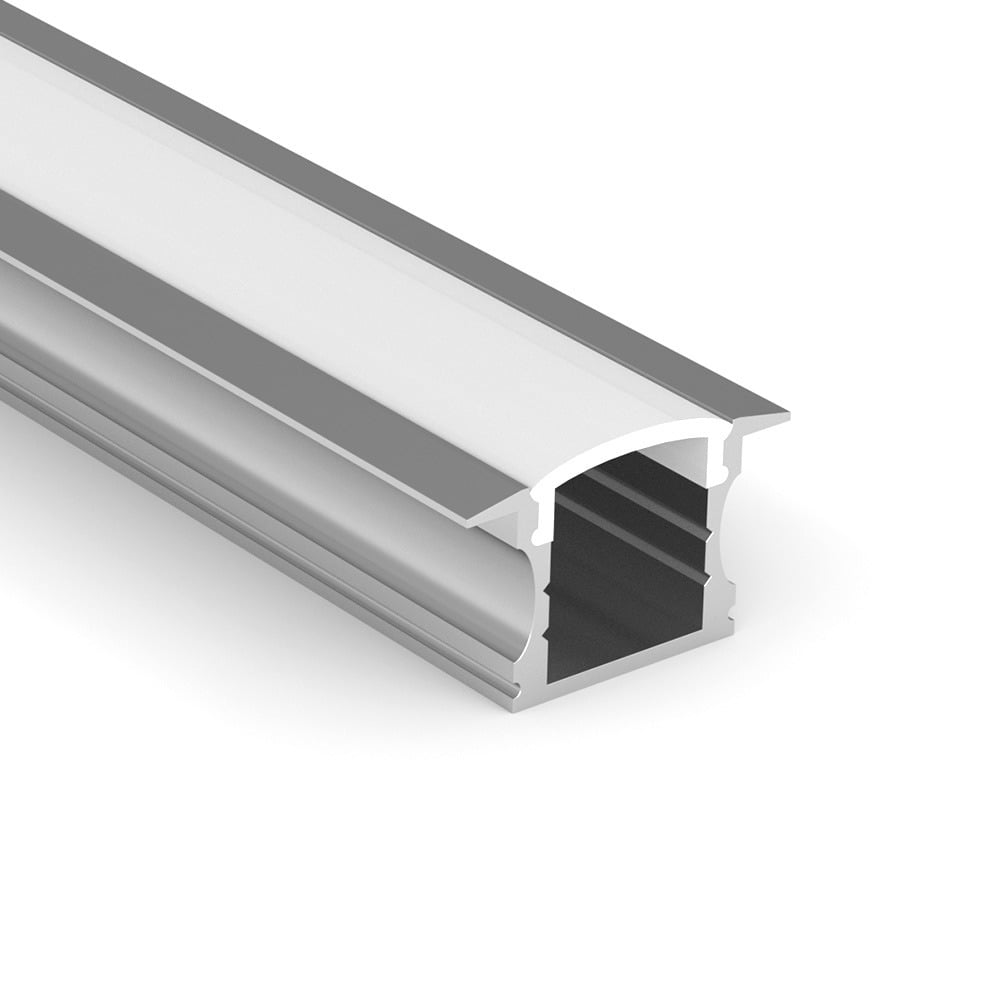

main product photo
Currently in Stock
Next day delivery available*
In stock
Speak with an Expert

All 2 Metre Length LED Profiles have a Minimum Order Quantity of 6x2m Profiles.

Due to handling & shipping rates our 1 & 2 mtr profiles now have a shipping surcharge in addition to our standard next day service.

If you order online we will contact you to confirm your order alternatively please contact our sales office on 01260 540014 to place your order.

Speak with an Expert

Product Description

This deep recessed LED channel is perfect for housing LED strip lights on surfaces to make it look like the lighting is a part of the surface. This LED channel can be recessed into the surface to make the lighting looks like part of the surface.

This recessed LED light channel requires a 14.5mm deep and 17.3mm wide void, with a LED tape of no more than 12.5mm in width. It is 2m in length that can be cut to size so that it fits perfectly into the space.



Our LED strip recessed profiles are made from high-quality anodised aluminium with a slide-in diffuser and end caps. This offers many benefits, including prolonging the life of light strips. Read our  "Why do I need LED profile" blog for 7 reasons why we recommend installing LED profiles.



LED recessed channels are perfect for achieving a professional and neat installation. They will improve the overall look of the LED lighting, perfect for installations in both domestic and commercial projects.



Installation

Recessed LED strip channels can be mounted using the fixing clips provided, or screwing directly through the back with a countersunk-headed screw.

Take care when mounting the tape to ensure the tape is lined up perfectly on the profile. It is not recommended to remove strip lights and re-stick them as this can damage the lights. Therefore it is important to line the lights up properly the first time.

Note: When installing LED strips into a profile, check that the back of the strip remains insulated from the profile. The profile is aluminium, meaning it will conduct the low-voltage power going through the tape, causing it to stop working.



For more information on this product, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Profiles through our website or contact our technical sales team.

Quick Specs

CRI 80
IP Rating 20
2 mtr

What's in the box?

  • 1 x Aluminium Base
  • 1 x Diffuser
  • Fixing Clips
Product Code: 101.170
Product Packed Tube
Manufacturer LED Technologies
Product Type Extrusion
Colour Brushed Aluminium
IP Rating IP20 Non-Waterproof
Metres 2 MTR
PCB Weight Not Applicable
Size See Schematic Diagram
CRI Rating (greater than) CRI >80
Dimmable: No
LED Type Not Applicable
Average LED life Hrs 30,000
Power Factor > Not Applicable
Continuous Operation Not suitable for 24/7 continuous use
Datasheet - 101.170 Download
