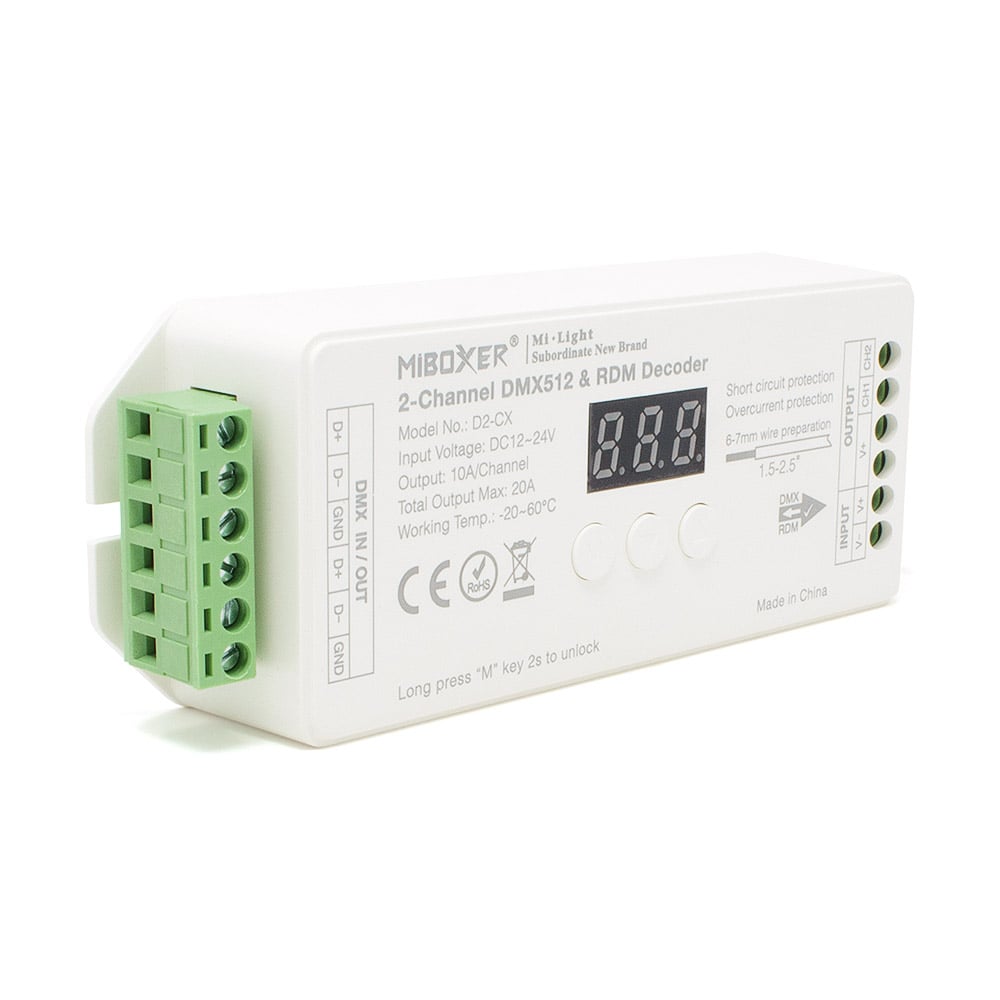

D2CX MiBoxer 2 Channel DMX512 & RDM Decoder

This compact, multi-function two-channel DMX512 Decoder has many professional features. The included RDM functions enable various settings to be adjusted from an RDM-enabled DMX controller. This uses Bi-Directional communication.

The DMX address can be quickly set together with various other parameters which include:

• An adjustable PWM frequency of 500Hz or 2000Hz
• An adjustable dimming curve (Logarithmic or Linear dimming)
• And the ability to select a smooth or standard dimming

All of these are accessed using the menu buttons and digital displays of DMX addresses.

In addition, the constant voltage DMX512 & RDM decoder has various built-in safety features including Anti Reverse protection, Short circuit, and Overcurrent protection. When powered, the unit has a self-check function to ensure it is working correctly.

There is also a digital lock included in the DMX512 RDM decoder to prevent tampering. This facility can be disabled if required otherwise it activates automatically after eight seconds of being idle.

The DMX512 & RDM Decoder has a maximum load of 20A (10A per channel). There are three output connections on the decoder so that you can split the load if required.

This two-channel DMX decoder is designed to control your dual white colour 12v or 24v DC LED lighting products. The DMX RDM decoder uses the DMX 512 standard protocols and takes up two DMX channels.

Note: Connect a suitable 12v or 24v constant voltage driver to the input on the DMX512 & RDM decoder. This will ensure it suits the load that you are controlling.

For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Quick Specs

• Guarantee Period5 Years
• IP RatingIP20 Non-Waterproof
• Input Voltage12V / 24V DC
• Input SignalDMX512, RDM
