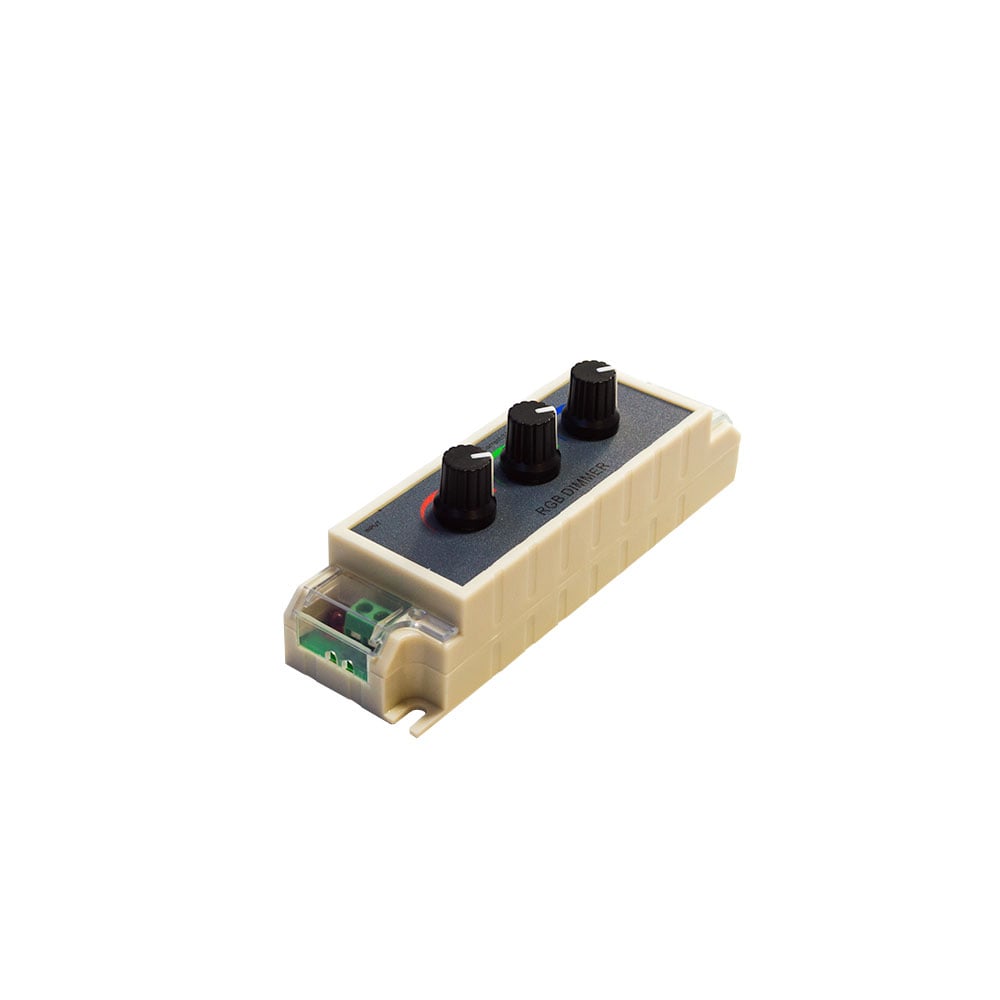

This is a simple but effective way of mixing a custom colour on our Tri-Colour LED flexible lighting products. Simply connect a suitable LED driver to the input terminals and your Tri-Colour (R,G,B)LED 12v or 24v flexible lighting product to the output terminals on the dimmer.
Note: Make sure that the output voltage of the driver is the same as the voltage rating of the tape.
By turning each of the Red, Green and Blue rotary controls you will be able to adjust the intensity of each colour effectively using the RGB colours to mix your own custom colour.
The dimmer offers a smooth dimming curve over Red, Green & Blue with a maximum load of up to 3A per channel (maximum total load 9A).
Please make sure that the 9A load on the dimmer is not exceeded otherwise this will damage the product and invalidate the warranty.
Product Code: | 100.634 |
---|---|
Manufacturer | LED Technologies |
Product Type | Controllers / Drivers |
Colour | NA |
IP Rating | Not Applicable |
Guarantee Period | 1 Year |
Weight (g) | 0.3000 |
PCB Weight | Not Applicable |
Appx Lumens: | Not Applicable |
Beam Angle: | N/A |
Power Consumption: | Not Applicable |
Power Factor (greater than) | Not Applicable |
CE and RoHS: | Yes |
CRI Rating (greater than) | N/A |
Input Power: | 12 / 24v |
Size: | 130 x 38 x 29mm |
Wattage | Not Applicable |
Continuous Operation: | Not Applicable |
Dimmable: | No |
