LED Technologies / Connection SystemsPrecision in Every Connection

01 Solderless LED Strip Connections

Solderless Clips & Connectors.

Small Components.
Brilliantly Connected.

Join, bridge and power your LED strip with precision. Discover compact solderless connections for single colour, multicolour and waterproof installations.

Find Your ConnectorView All Connectors
Fig. 01 / Strip-to-Strip BridgeTransparent solderless clips bridging two lengths of yellow COB LED strip
Transparent HousingCompact Connection
01 / Match Your Strip02 / Choose Your Connection03 / Build with Confidence

02 Power Distributors

One Input.
More Possibilities.

Five Power Distributors

Bring multiple LED runs together in one organised installation. These compact, high power distributors use colour-coded latch levers and parallel connections to make branching simple.

400.31201 Input / 09 Outputs
Single Colour High Power 9-Way Power Distributor 1x Input to 9 x OutputsSingle Colour power distributor with wiring connected

Single Colour

9-Way Power Distributor

View Product
400.31301 Input / 06 Outputs
CCT High Power 6-Way Power Distributor 1x Input to 6 x OutputsCCT power distributor with wiring connected

CCT

6-Way Power Distributor

View Product
400.31401 Input / 04 Outputs
RGB High Power 4-Way Power Distributor 1x Input to 4 x OutputsRGB power distributor with wiring connected

RGB

4-Way Power Distributor

View Product
400.31501 Input / 03 Outputs
RGBW High Power 3-Way Power Distributor 1x Input to 3 x OutputsRGBW power distributor with wiring connected

RGBW

3-Way Power Distributor

View Product
400.31601 Input / 03 Outputs
RGB+CCT High Power 3-Way Power Distributor 1x Input to 3 x OutputsRGB+CCT power distributor with wiring connected

RGB+CCT

3-Way Power Distributor

View Product
Input Voltage
5–48V DC
Maximum Total Load
25A
Maximum per Port
10A
Installation
IP20Indoor Use

Choose the distributor to match your LED strip type. Keep the combined load within 25 A and each output within 10 A. Input cable: 22–12 AWG. Output cable: 24–16 AWG. Power supply and controller ratings must also suit the installation.

Two-Pin Splitters & Plugs

More options for smaller branches.

03 Single Colour / IP20

The Right Fit.
A Cleaner Finish.

From a straight join to a change of direction, build your layout with compact 2-pin LED strip connectors. Choose the width and connection style that match your single colour strip.

8 mm10 mmCOB & SMD Options
01 / Screw Connection
2 Pin Strip to Strip Screw Connector for IP20 Single Colour 8mm COB & SMD Strip Pack of 5

Strip to Strip

Screw Connection

Shop 8 mmShop 10 mm

Pack of 5 · Check Strip Compatibility

02 / Beetle Clip
2 Pin Strip to Power Beetle Clip Connector for IP20 Single Colour 8mm COB & SMD Strip Pack of 5

Strip to Power

Beetle Clip

Shop 8 mmShop 10 mm

Pack of 5 · Check Strip Compatibility

03 / Beetle Clip
2 Pin Strip to Strip Bridge Beetle Clip Connector for IP20 Single Colour 8mm COB & SMD Strip Pack of 5

Bridge Connection

Beetle Clip

Shop 8 mmShop 10 mm

Pack of 5 · Check Strip Compatibility

04 / Beetle Clip
2 Pin Strip to Strip Joint Beetle Clip Connector for IP20 Single Colour 8mm COB & SMD Strip Pack of 5

Straight Joint

Beetle Clip

Shop 8 mmShop 10 mm

Pack of 5 · Check Strip Compatibility

05 / L Shape Beetle Clip
2 Pin Strip to Strip L Shape Corner Beetle Clip Connector for IP20 8mm Single Colour COB Pack of 5

Corner Connection

L Shape Beetle Clip

Shop 8 mmShop 10 mm

Pack of 5 · Check Strip Compatibility

More Ways to Connect

Standard clips, screw terminals and T-shaped connections, in the same easy-to-find format.

Strip to Power Clip
Strip to Strip Bridge Clip
Straight Clip Joint
T & L Shape Screw Connector
Strip to Wire Screw Connector
T & L Shape Clip Connector

Planning a Larger Installation?

The 8 mm strip-to-power Beetle connector is also available with a 1 m tail, in a pack of 100.

View the 100-Pack
View All Connectors

04 Product Spotlight

The 9-in-1
Beetle Connector

One Compact Clip.
So Many Ways to Connect.

A versatile solderless connector for single colour COB and high-density SMD LED strips. Its piercing contacts create a secure connection, while the transparent housing keeps the connection discreet.

  • Multiple connection types and shapes
  • Compact enough for small LED profiles
  • Available in 8 mm and 10 mm variants
Shop the 8 mm BeetleShop the 10 mm Beetle
Fig. 02 / A Closer Look8 mm + 10 mm

05 Multicolour & CCT / IP20

Every Channel.
Connected.

Connect colour-changing RGB and RGBW strips, or tune the white with CCT. Match the strip technology, width and contact layout before choosing your clip.

400.125 / Bridge Connection5 Pin
5 Pin Strip to Strip Bridge Clip Connector for IP20 RGBW 12mm COB Strip Pack of 5
RGBW / 12 mm COBMatch Every Contact
LED Strip SystemChoose Your Connection
3 Pin Strip to Power Clip Connector for IP20 CCT 10mm COB Strip Pack of 5

CCT

10 mm · COB

Power ClipBridge ClipStraight JointPower BeetleBridge Beetle
4 Pin Strip to Power Clip Connector for IP20 RGB 10mm COB Strip Pack of 5

RGB

10 mm · COB

Power ClipBridge ClipStraight JointPower BeetleBridge Beetle
4 Pin Strip to Strip Joint Beetle Clip Connector for IP20 CCT & RGB 10mm COB Strip Pack of 5

CCT & RGB

10 / 12 mm · COB

10 mm Beetle Joint12 mm Beetle Joint
5 Pin Strip to Strip Bridge Clip Connector for IP20 RGBW 12mm COB Strip Pack of 5

RGBW

12 mm · COB

Power ClipBridge ClipStraight Joint
3 Pin Strip to Strip Clip Joint for IP20 CCT 10mm SMD Strip Pack of 5

CCT

10 / 12 mm · SMD

10 mm Clip Joint12 mm Clip Joint
4 Pin Strip to Strip Clip Joint for IP20 RGB 10mm SMD Strip Pack of 5

RGB

10 mm · SMD

10 mm Clip Joint
5 Pin Strip to Strip Clip Joint for IP20 RGBW 10mm SMD Strip Pack of 5

RGBW

10 / 12 mm · SMD

10 mm Clip Joint12 mm Clip Joint

Pin count alone is not enough. Always check the PCB width, contact spacing and COB or SMD compatibility on the product page.

View All Connectors

06 Waterproof Connection Systems

Made for
More Demanding
Environments.

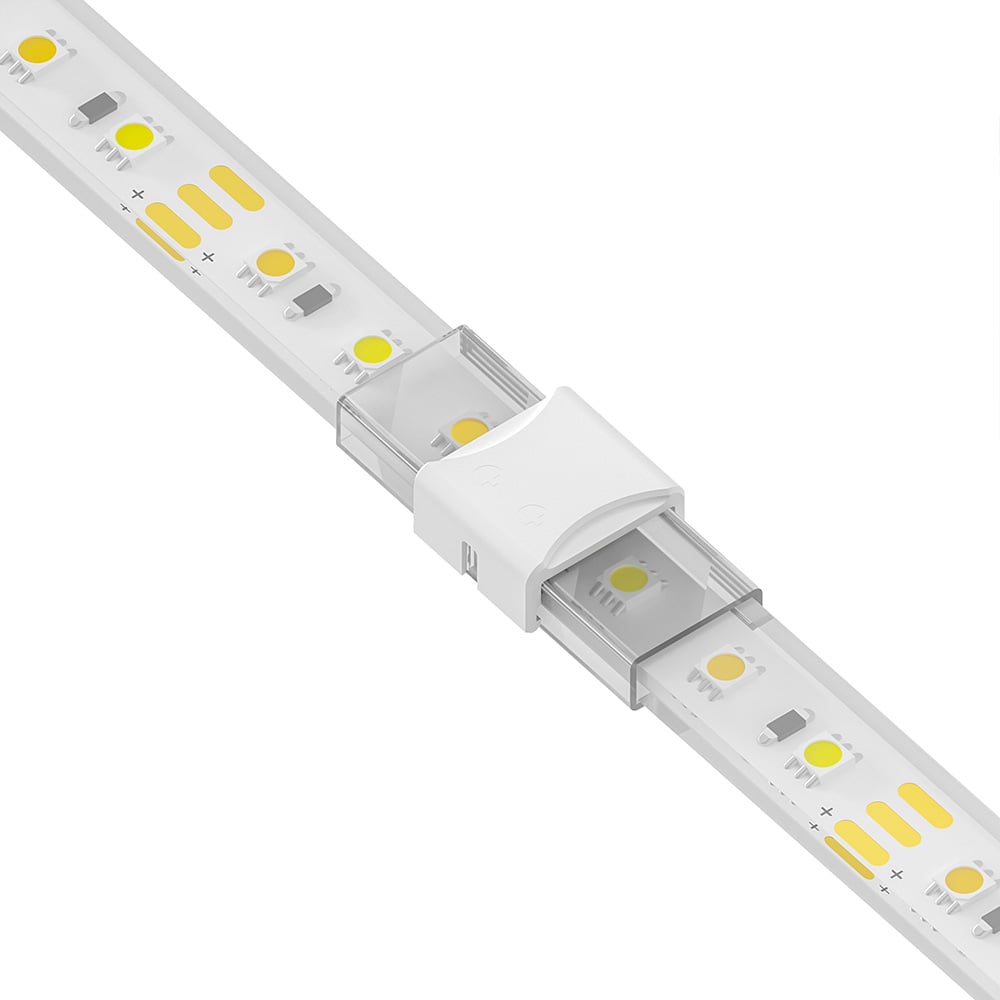

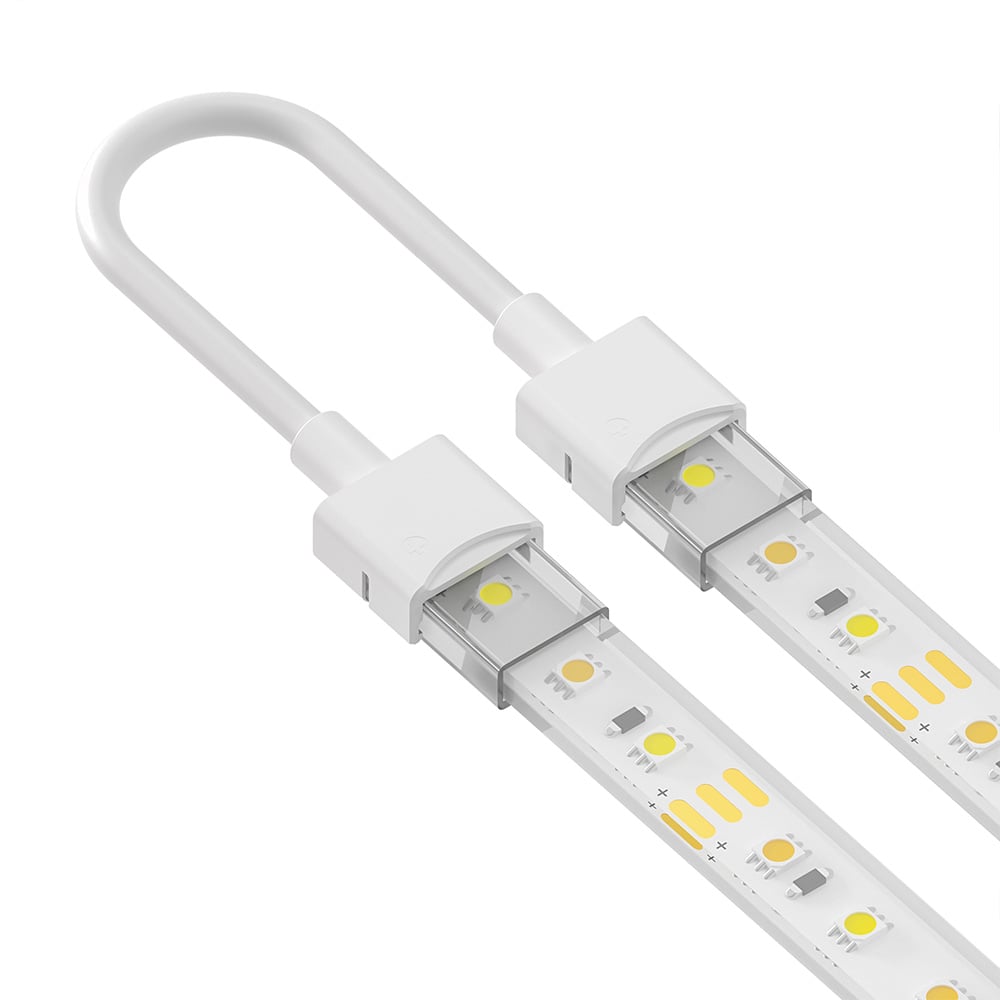

IP67 LED strip connectors for compatible waterproof tape. Choose from strip-to-power clips, flexible bridge connections and straight joints for exterior and high-moisture installations.

Measure Twice. Connect Once.
Match both the inner PCB width and the outer waterproof coating width.

IP67
2 Pin Strip to Strip Bridge Clip Connector for IP67 Single Colour 10mm (Inner) 12mm (Outer) SMD & COB Strip Pack of 5
Waterproof Bridge / 10 mm Inner · 12 mm Outer
Strip TypeInner / Outer WidthConnection Options

Single Colour

2 Pin

8 mm / 10 mm

Single Colour

2 Pin

10 mm / 12 mm

CCT

3 Pin

10 mm / 12 mm

RGB

4 Pin

10 mm / 12 mm

RGBW

5 Pin

12 mm / 14 mm

The completed connection depends on correct fitting and compatible strip dimensions. Follow the product’s installation and sealing requirements.

07 Assembly & Technical Guide

From Cut
to Connection.

Four clear steps for a neat solderless clip connection. Prepare carefully, align the contacts and test before the strip goes into its final position.

  1. Cutting LED strip at a marked copper cut-point01

    Prepare the Strip

    Switch off the supply. Cut the LED strip squarely at its designated copper cut-points.

  2. Aligning an LED strip with the connector contacts02

    Align the Contacts

    Insert the strip into the correct connector, matching the contact pads and polarity.

  3. Closing the solderless connector with pliers03

    Secure the Connection

    Press the clip cover firmly until secure. Follow the fitting instructions for your connector.

  4. Testing the connected illuminated LED strip04

    Test the Installation

    Check the connection, then restore power and test the strip before final installation.

Lessons in LED

See the
Connection.

Get a closer look at the solderless range with our technical video guide.

Solderless LED Connectors / Lessons in LED

08 Get the Details Right

Connection Questions.
Clear Answers.

Solderless LED strip connectors simplify joining LED tape, introducing power and creating corners or branches. Compact clips help keep connections neat inside compatible LED profiles, with options for residential and commercial installations.

View All ConnectorsCall Our LED Experts
How Do I Choose the Right Connector?

Match your strip’s PCB width, number of contacts, COB or SMD construction and IP rating. Then choose the connection you need: strip to power, a straight join, a bridge or a corner. Check the selected product’s electrical ratings and dimensions.

Can I Use IP20 Clips Outdoors?

IP20 connectors are for dry indoor installations. For compatible waterproof strips, choose the IP67 range and follow its fitting and sealing instructions, including the required inner and outer strip dimensions.

What Does a Power Distributor Do?

A distributor branches a compatible input into several parallel outputs. It does not replace an LED driver or controller. Match the distributor to the strip’s channel configuration and keep the system within every component’s current and voltage limits.

Will the Clip Fit Inside My LED Profile?

Check the connector’s width and height against the internal clearance of your chosen profile. The compact Beetle range is designed for small profiles, but the exact fit depends on the combination you select.
