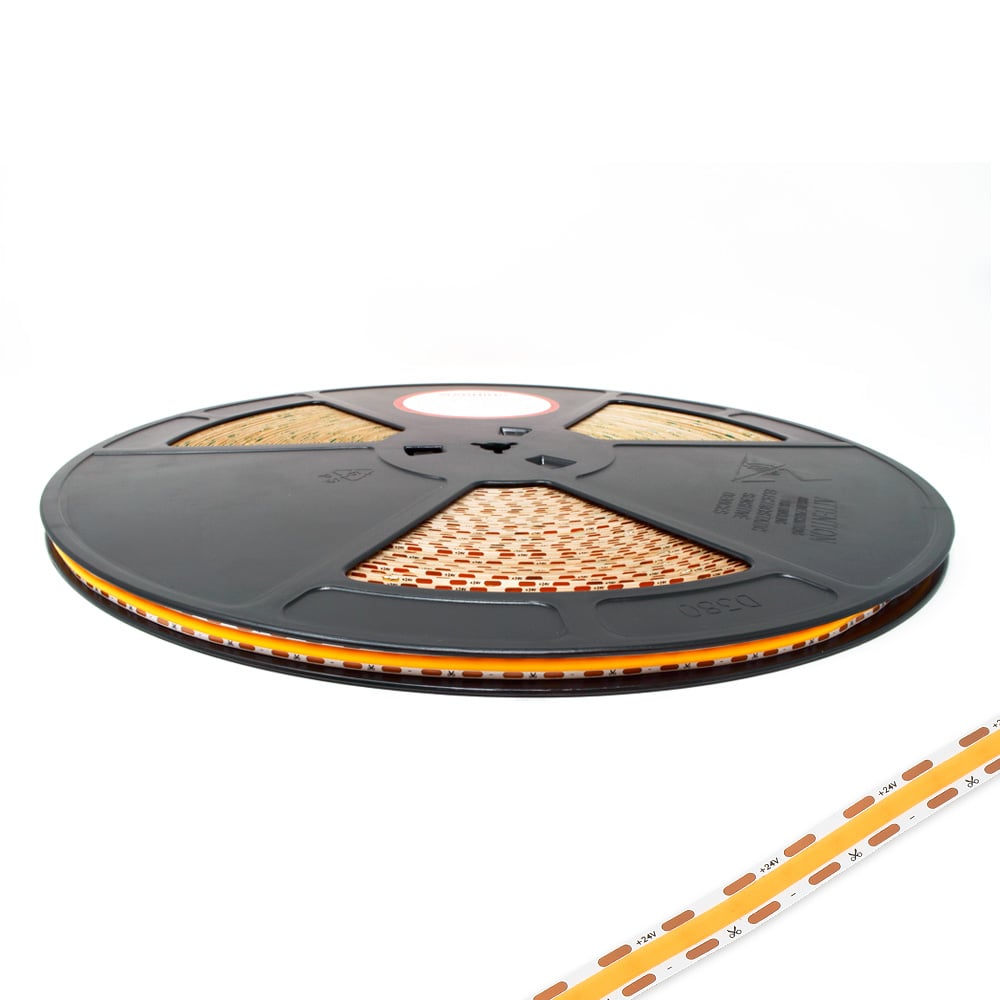

NeoLED Orange/Amber COB LED Strip 24V 50Mtr Roll (Free Cutting)

Product Code: 102.134
  • Supplied on a 50m roll
  • Pixel free single COB LED Strip
  • One continuous band of light
  • CRI>90
  • 24V constant voltage Input
  • Can be cut freely between solder connections
  • 5m maximum lengths
  • 8mm wide circuit board
  • Works with 8mm COB connectors
Angle 180
Super high Brightness
Orange
3 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

Supplied on a 50m roll for convenience, this excellent quality single COB LED "free cutting" LED Strip is available from our NeoLED range of professional products. This Seamless LED Strip is just 8mm wide enabling it to fit into narrow shallow LED profiles.

As the LED strip features pixel-free LEDs, the profile does not need to be deep to create a single line of Bright Orange/Amber Light. The light output of the strip is rated at 10W /m and should be powered by a suitable constant current 24V LED Driver. When connected to a suitable PWM controller the COB (chip on board) LED strip is fully dimmable.

Important: Although the LED Strip is supplied on a 50m roll, these LED Strip Lights can only be powered up to a length of 5 metres per driver, you cannot power the full 50m reel. Any additional length should be connected back to the power supply or up to 10m can be linked if powered from both ends.

This dotless LED Strip features an integral, high-quality 3M™ sticky backing to hold the LED Strip in place. This is the ideal lighting solution for projects where a bright Pixel-free light is required.

Warning: Do not apply power to the LED light strip while coiled on the 50m roll. Powering all 50m in one line (even off the roll) will damage the LED Strip. Please ensure you turn off the power to the LED strip when cutting or trimming the NeoLED strip.

For more information on the 50m NeoLed strip or any of our other LED products or professional control equipment, please contact our technical sales team by phone, email or via live chat and WhatsApp on our website.

Quick Specs

Angle 180
Super high Brightness
Orange
3 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP Rating 20
24v
This is the required amount of volts needed to power the product.

Applications

  • Furniture
  • TV Studios
  • Exhibitions
  • Theatres
  • Office Spaces
  • Living Areas

What's in the box?

  • 1 x 50 Metre Roll of NeoLED
  • 1 x Installation Guide

ATTENTION

NeoLED must be handled and installed at a minimum ambient temperature of 19ºC. Please ensure it is not removed from the roll until it has had time to reach this temperature. If unrolled below 19ºC the coating will crack/fail and will produce a blue light. This will not be covered under the warranty.

Product Code: 102.134
Product Packed Anti static Bag
Manufacturer LED Technologies
Product Type LED Strip Light
Colour Orange
IP Rating IP20 Non-Waterproof
Metres 50 MTR
Colour Temperature
Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.
600-610nm
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
3 Years
Wattage 10W/m
Current 430mA/M
Input Voltage
This is the required amount of volts needed to power the product.
24V DC
Brightness Super High Brightness
PCB Weight 2oz
Size 8mm x 1.8mm x 50,000mm Roll
Reel Length 50m
Beam Angle: 180 degree
Dimmable: Yes
LED Quantity 480 LEDs Per Metre
LED Type Chip on board (COB)
Continuous run
You can run longer lengths but this may result in voltage drop causing reduced brightness and longevity - please contact our Technical Team for advice before installation - 01260 540014
5 mtr
Average LED life Hrs 30,000
Peelable Back 3M™ Adhesive Tape
Voltage Type Constant Voltage
Base Type N/A
Datasheet - 102.134 Download
Photometrics - 102.134 Download
