NEOLED COB strip lights deliver a continuous band of light with minimal pixelation and excellent efficiency. Designed for specification, installation and display projects, the NEOLED family covers waterproof nano coated products, long run commercial reels and very high output wide body strips.

Technology and key benefits

COB or Chip on Board places LED chips directly on the substrate to create a dense continuous LED line. This is the main reason COB strips deliver a dotless linear appearance when viewed through diffusers and shallow profiles.

Feature Why it matters
No hot spots High chip density eliminates visible spots when viewed through diffusers
Brightness More chips per metre means higher lumen output for the same footprint
Efficiency Lower thermal resistance converts more energy into light
Flexibility Small diodes and close placement increase mechanical flexibility for curved runs
Range Available in whites, adjustable white and colour changing options for creative projects

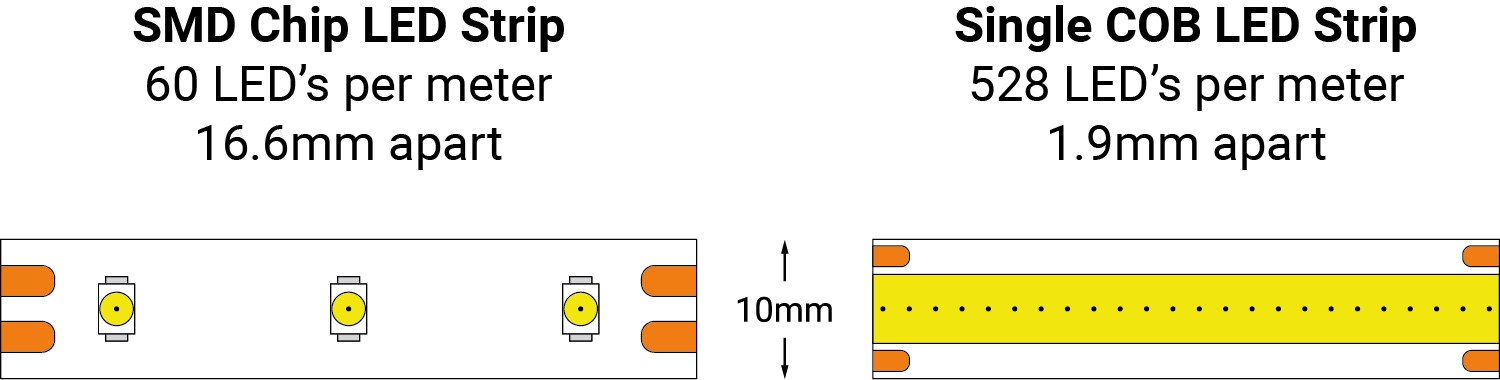

COB versus SMD quick comparison

Aspect COB SMD
Look Continual line of light with no pixelation Visible individual chips at common viewing distances
Density High density, many chips per metre Lower density, chips spaced on PCB
Typical use Plinths, coves, display run lighting Accent lighting, pixel work, where chips are wanted

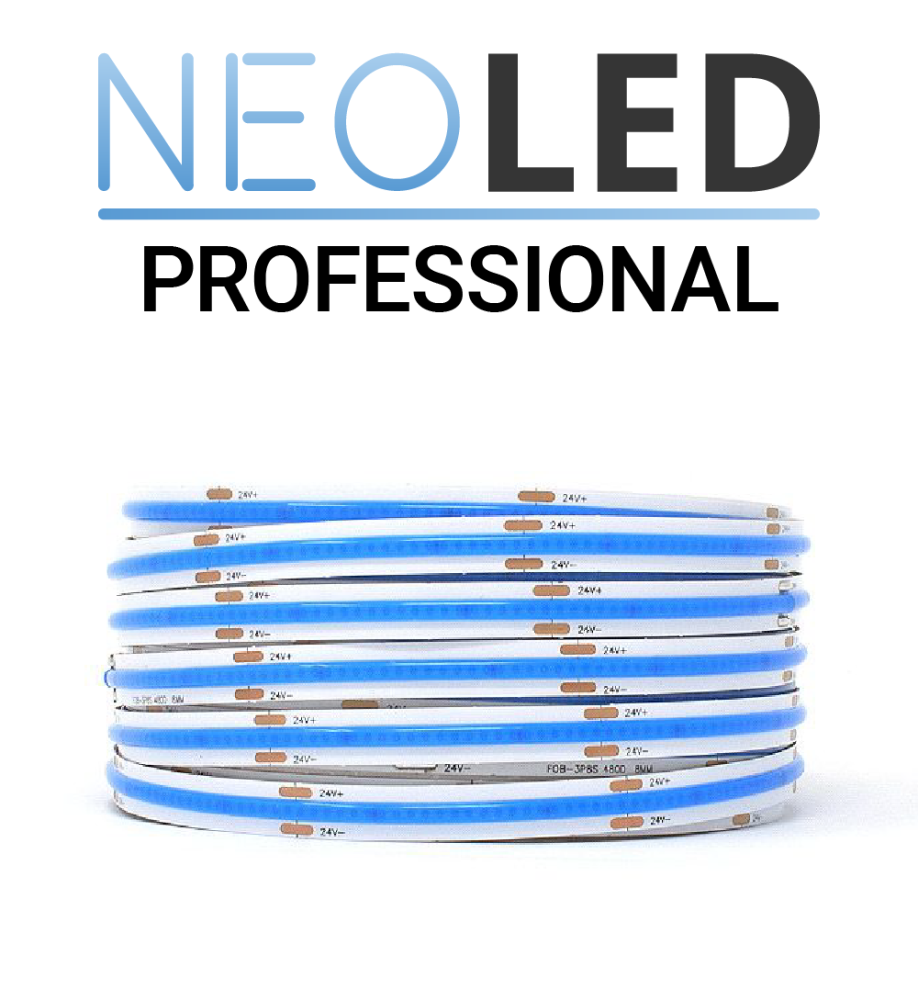

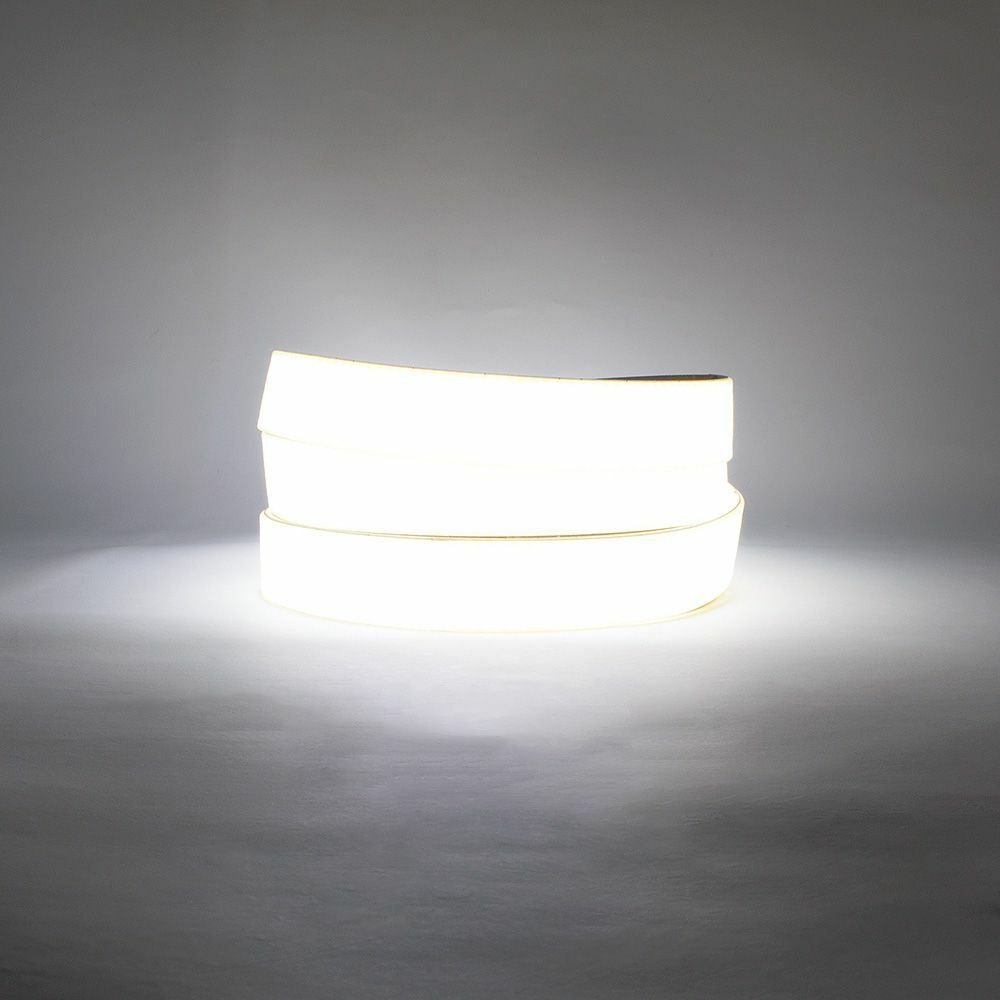

Premium COB LED strips using high density printed chip technology to produce a dotless, continuous line of illumination. Ideal for diffused extrusions, plinths and high quality interior ambient lighting.



Colours offered: single colours red, green, blue, orange, yellow and pink, plus RGB, RGBW and 11 single whites ranging from 2200K all the way up to 6500K



Key specs:

  ● Typical lengths 5 m rolls

  ● IP20 for indoor installations

  ● Compatible with RF, ZigBee, DMX, DALI, 0 to 10 V and Triac dimmers

  ● Reliable performance and long life components

  ● Trade ready with adhesive backing and pre soldered tails as required



Best for:
Architects, interior fit out contractors and lighting specifiers.

Gallery Image 1 Gallery Image 2 Gallery Image 3 Gallery Image 4

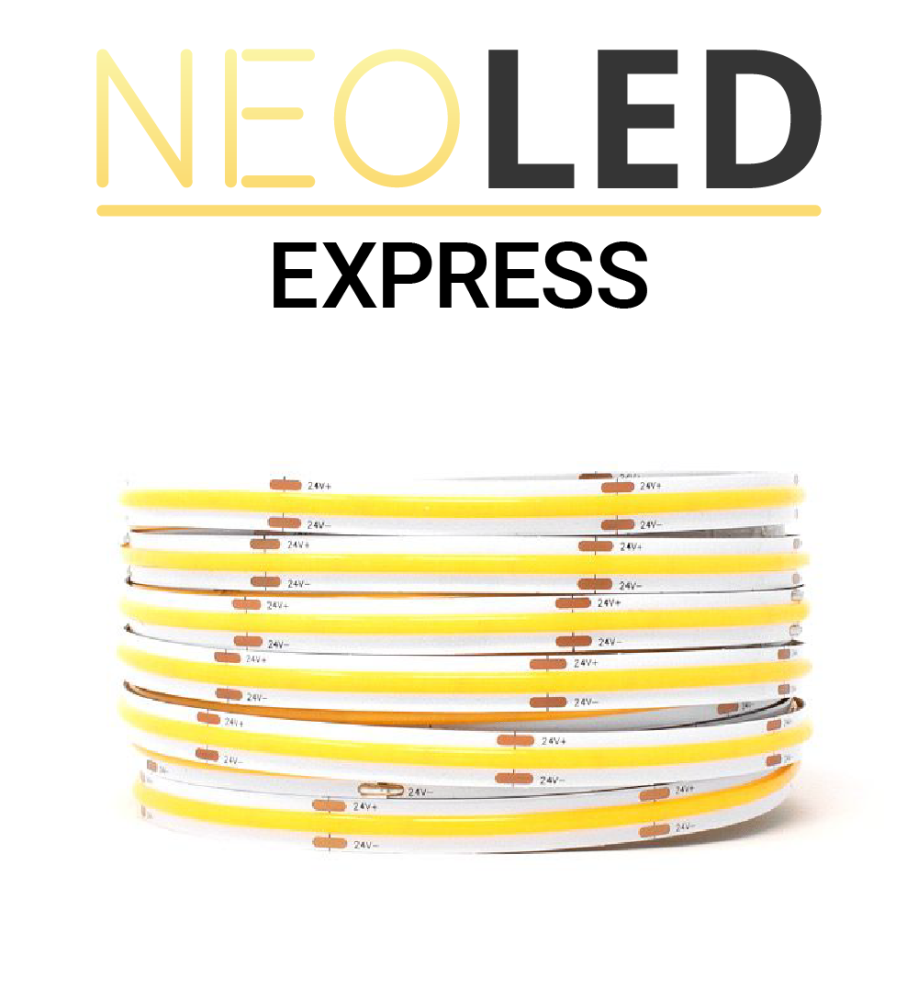

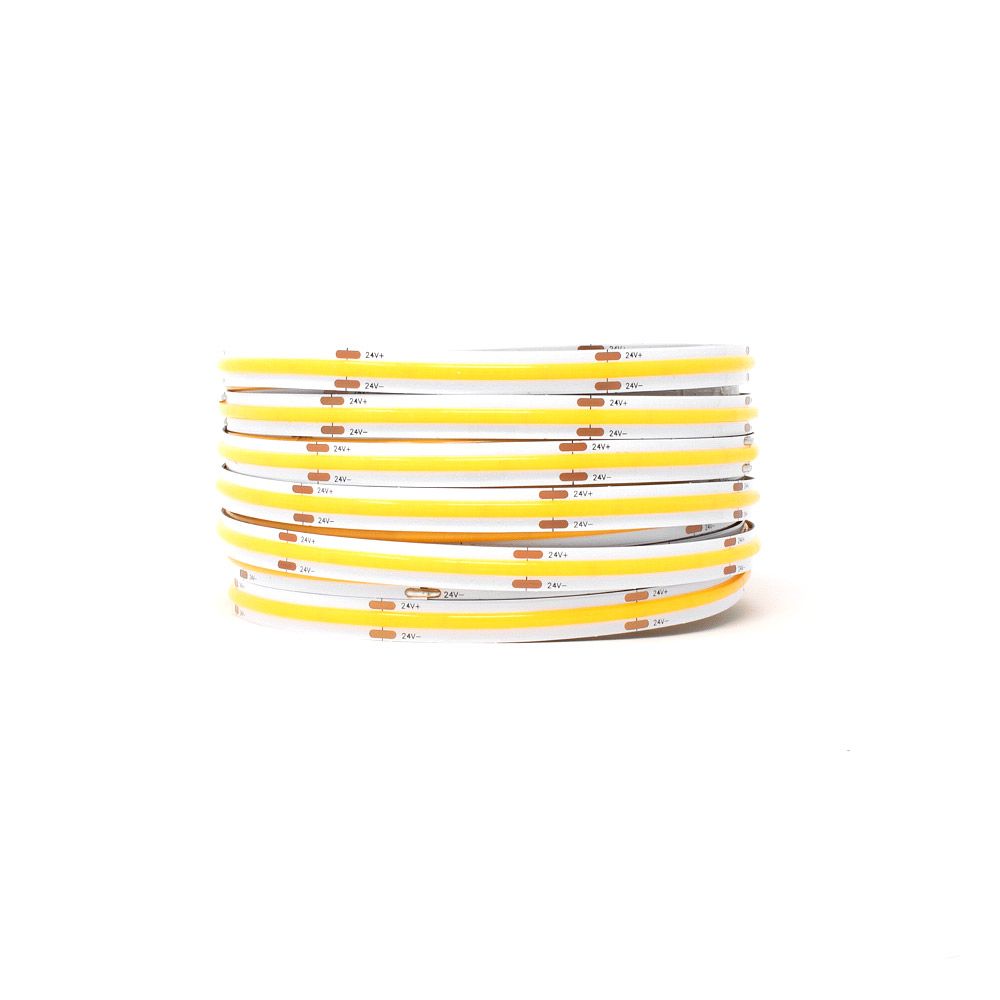

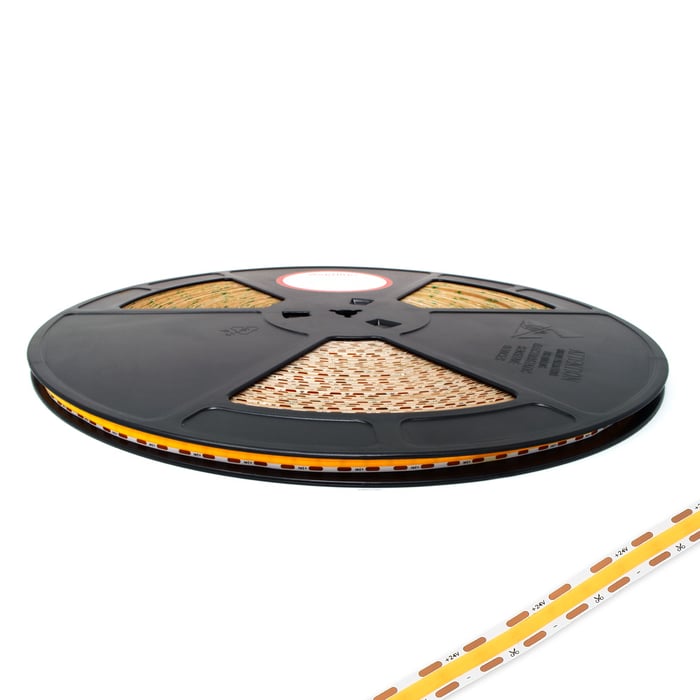

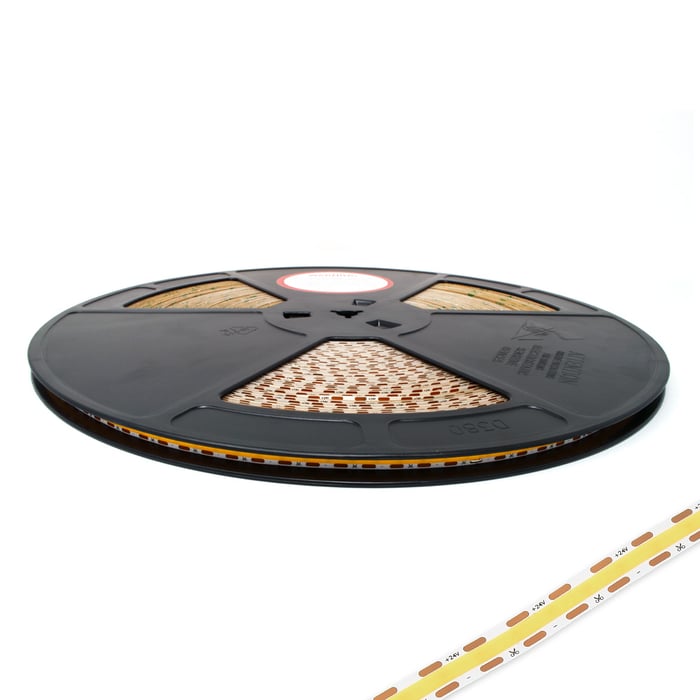

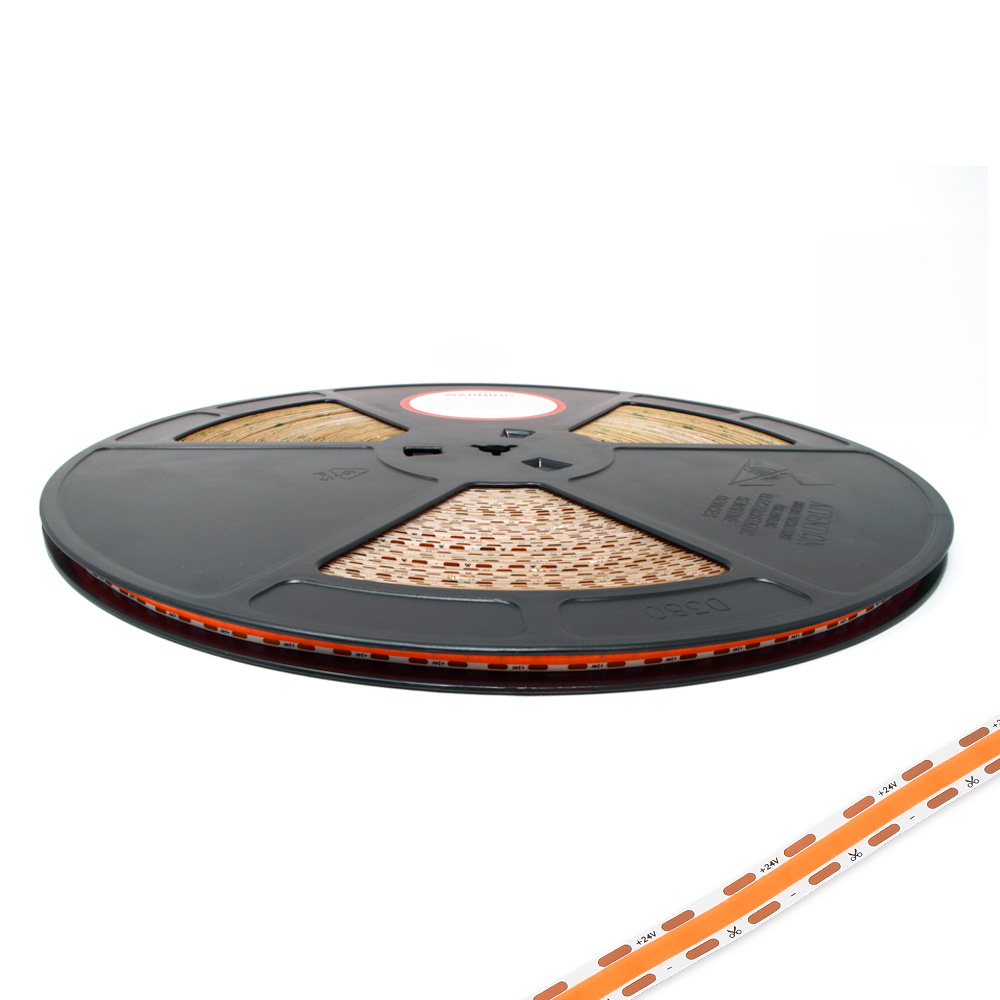

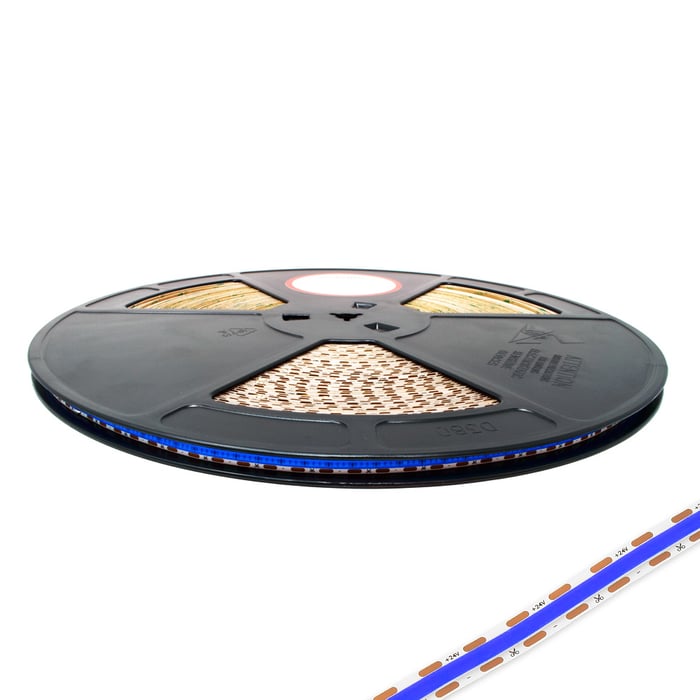

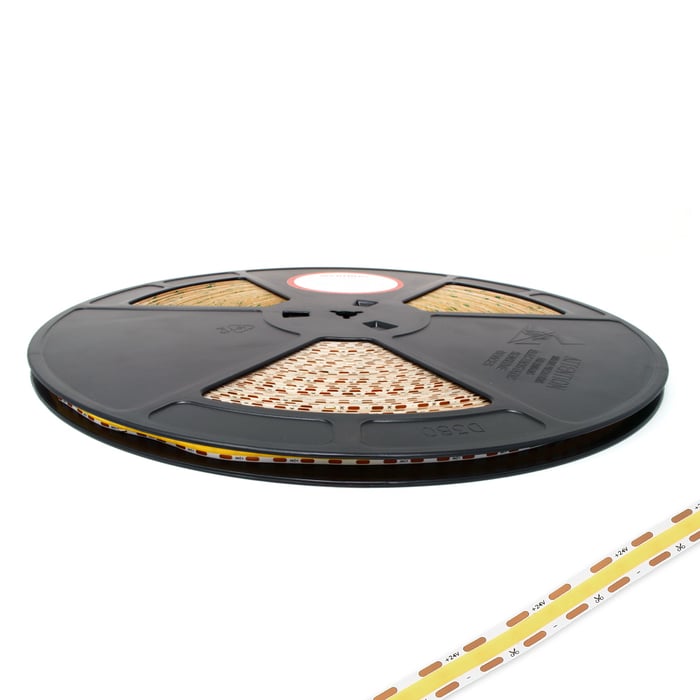

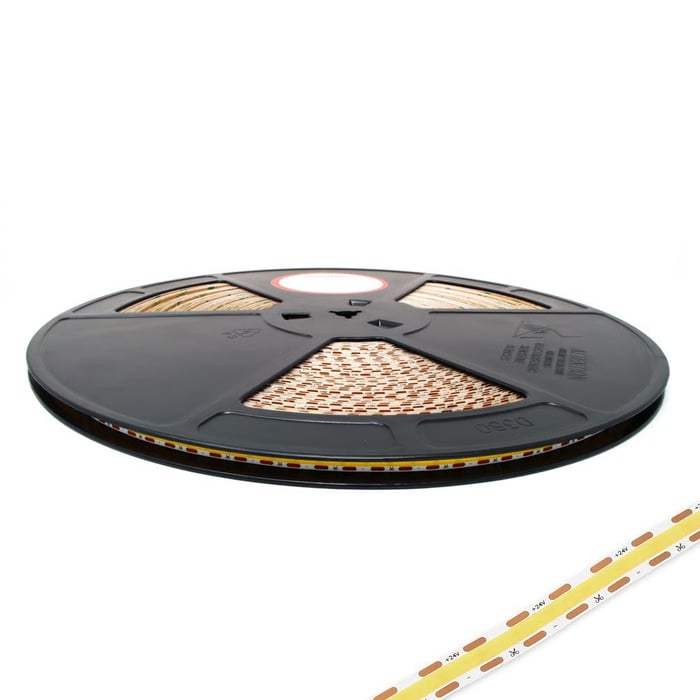

Cost effective 24V single COB strips that deliver continuous light at a reduced cost for price sensitive commercial and domestic projects.



Colours offered: single colours red, green, blue, orange, yellow and pink, plus RGB, RGBW and whites including warm white 1800K to 2000K, warm white 2850K to 3150K, natural white 3750K to 4250K and cool white 6000K to 6500K.



Key specs:

  ● 24V DC operation

  ● Continuous dotless appearance

  ● Balance of performance and price



Best for:
Value driven commercial builds, retail roll outs and contractor projects.

Gallery Image 1 Gallery Image 2 Gallery Image 3 Gallery Image 4

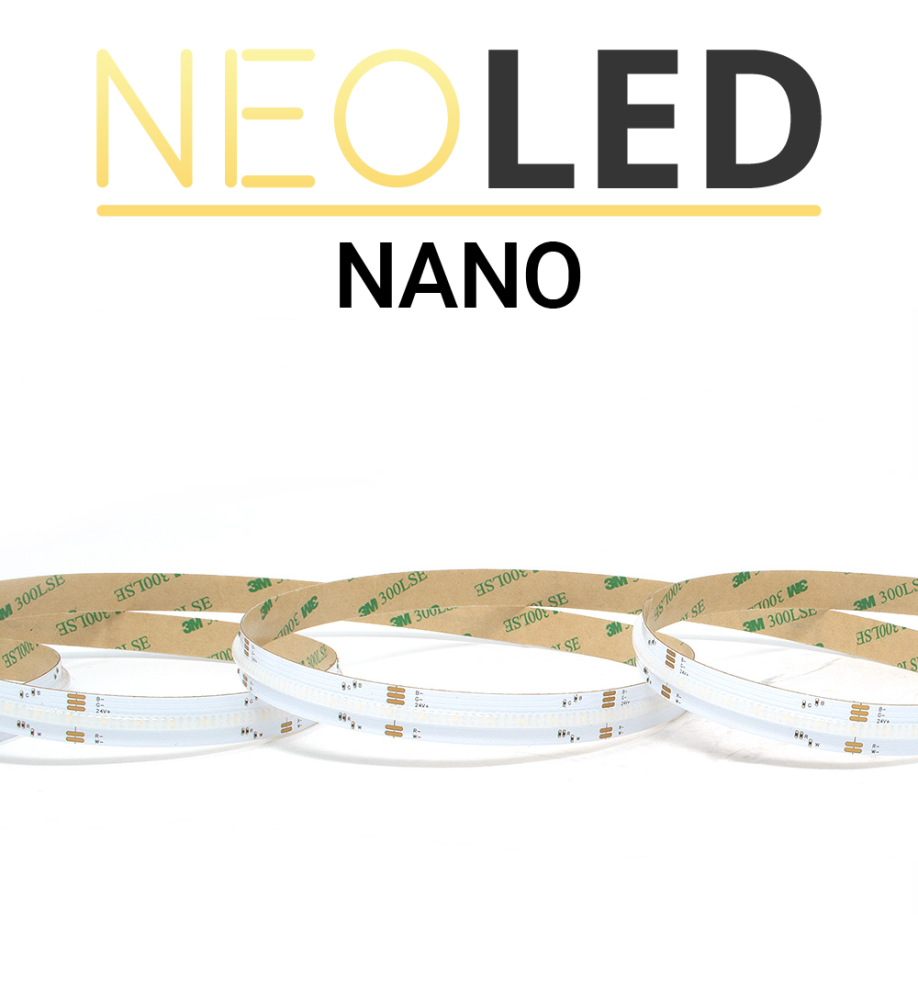

Nano coated, IP65 rated COB strips with RGBW and RGB plus CCT options. Water resistant for damp areas and protected outdoor applications where immersion is not required.


Colours offered: full RGB with over 16 million colours plus CCT adjustable white 2700K to 6000K, and RGBW with dedicated natural white 4000K.


Key specs:

  ● IP65 nano coating

  ● 5 m rolls with adhesive backing and pre soldered tails

  ● Protected against splash and damp conditions

  ● High colour fidelity for film and photography work

  ● Over 16 million colour options for dynamic applications


Best for:
Kitchens, bathrooms, display cases, TV and film production, hospitality features.

Gallery Image 1 Gallery Image 2 Gallery Image 3 Gallery Image 4

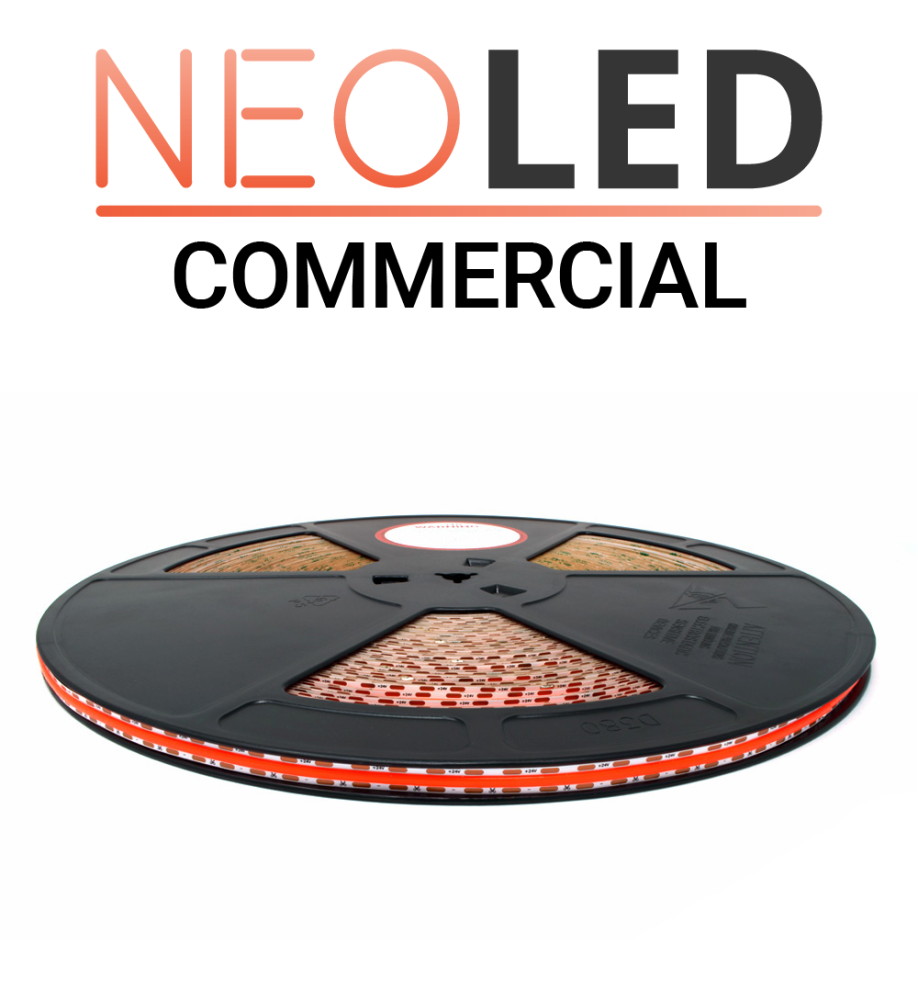

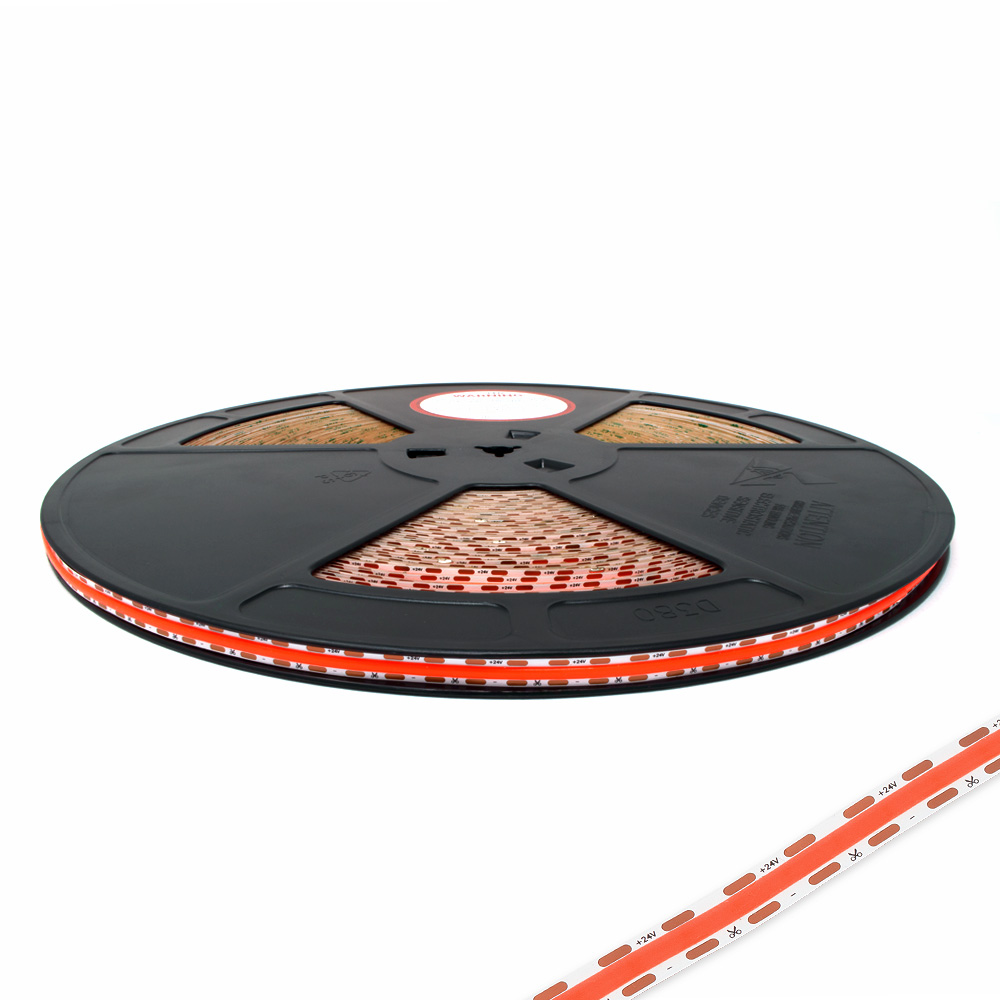

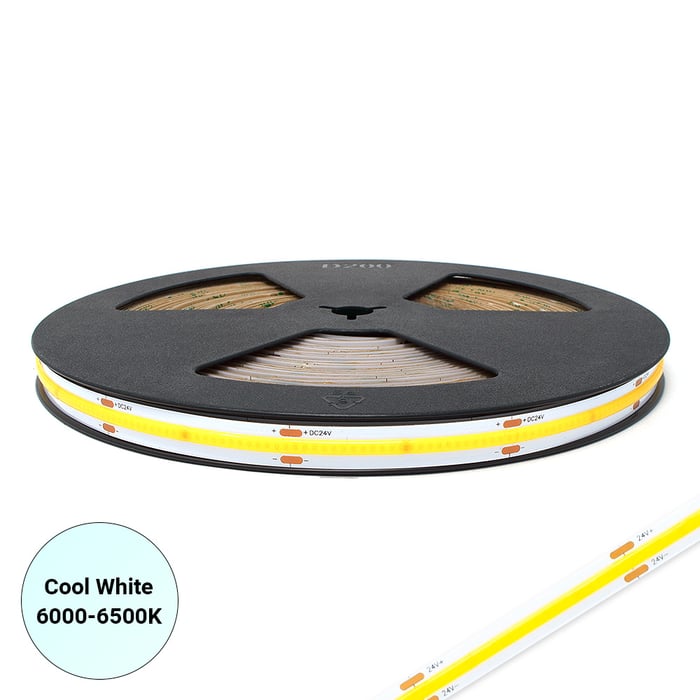

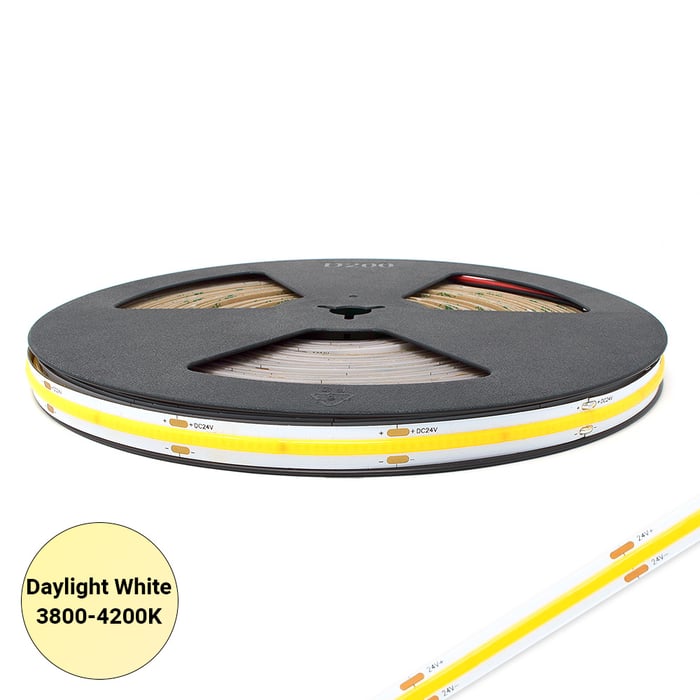

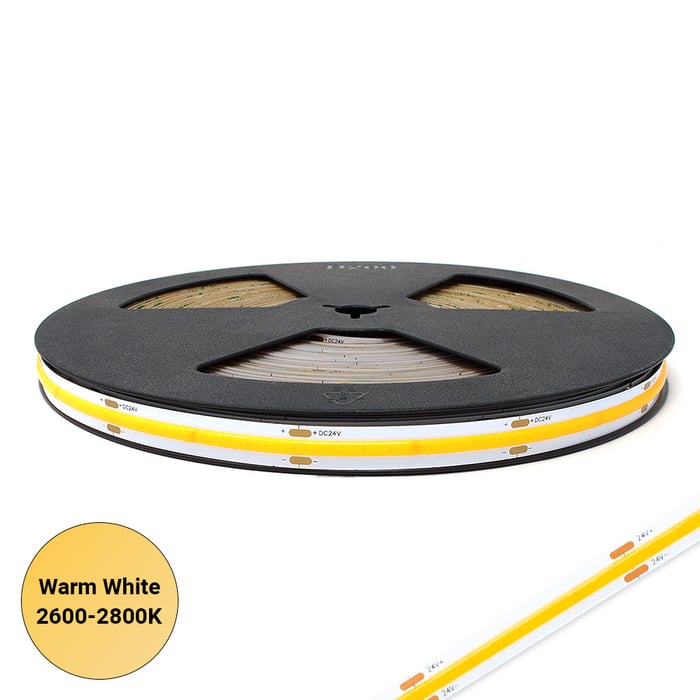

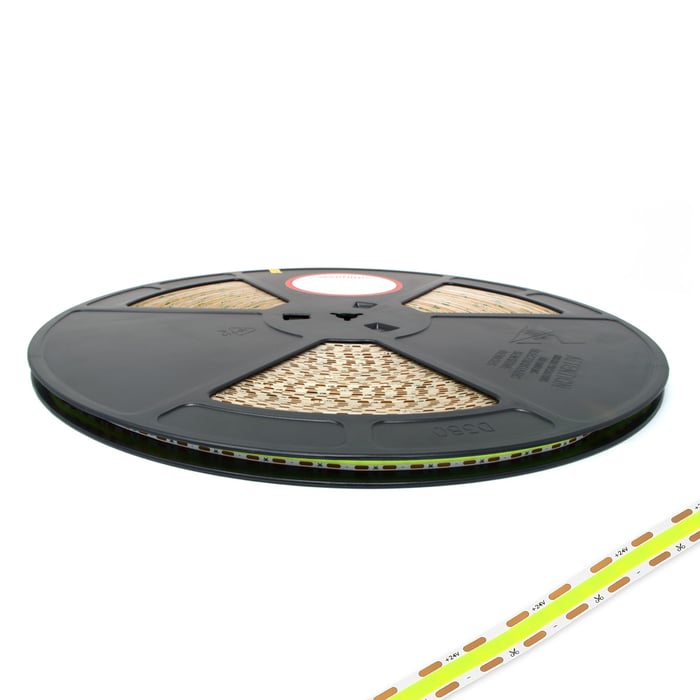

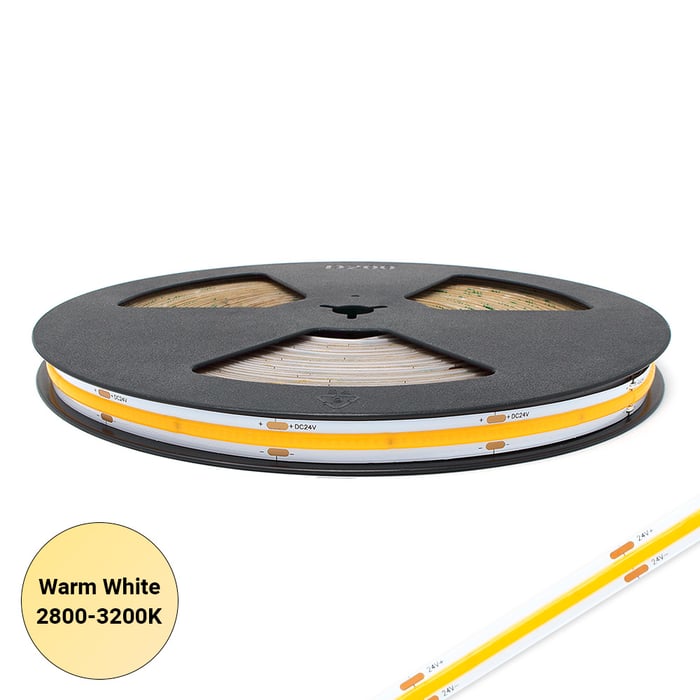

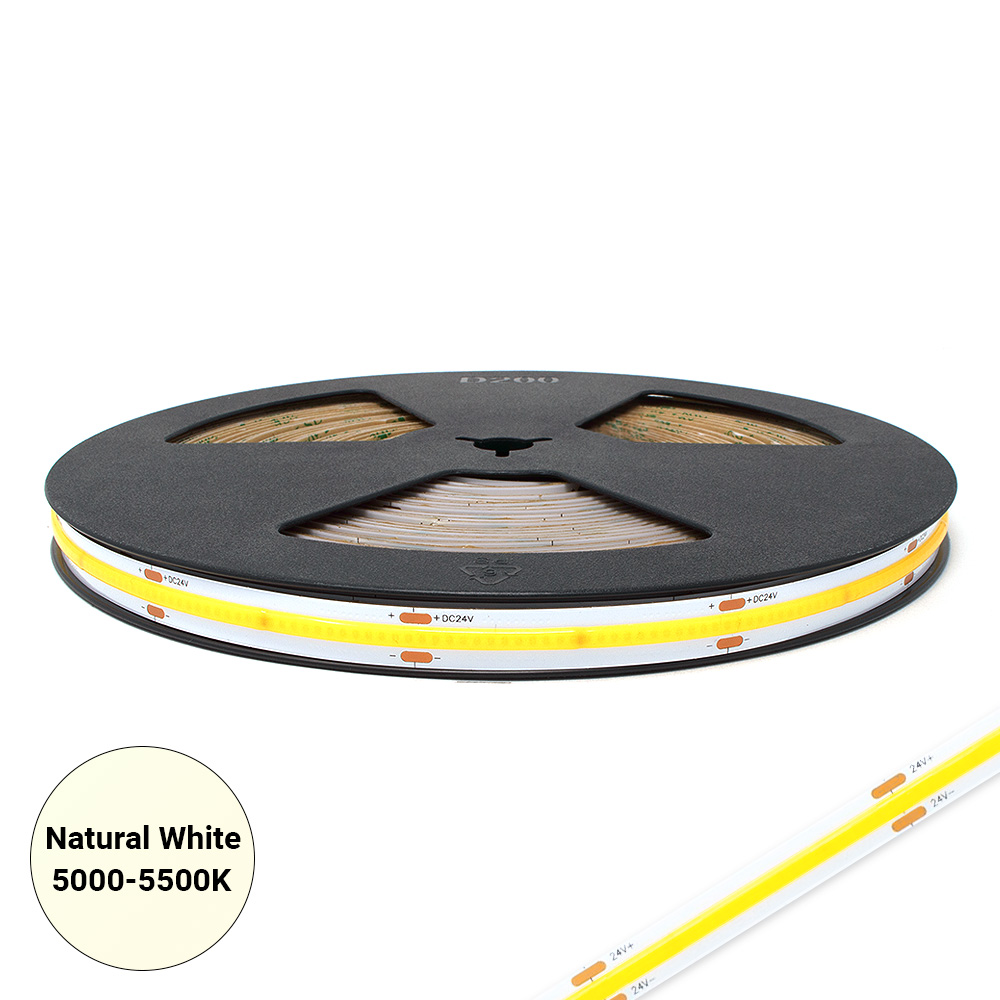

Long length COB strips offered in 15m rolls or larger for commercial projects that require seamless continuous runs with minimal joins and controlled voltage drop.


Colours offered: fixed whites 2700K, 3000K, 4000K, 5000K and 6000K and single colours including red, green, blue, yellow, orange, and pink.


Key specs:

  ● 15m roll options and 50m supply options where applicable

  ● Designed to be powered from one end up to 15m and from both ends for longer runs

  ● Better for continuous coves, retail front end runs and architectural lighting

  ● Long uninterrupted runs reduce installation time and visual joins


Best for:
Large scale fit outs, retail strips, building cove lighting and specialist installers.

Gallery Image 1 Gallery Image 2 Gallery Image 3 Gallery Image 4

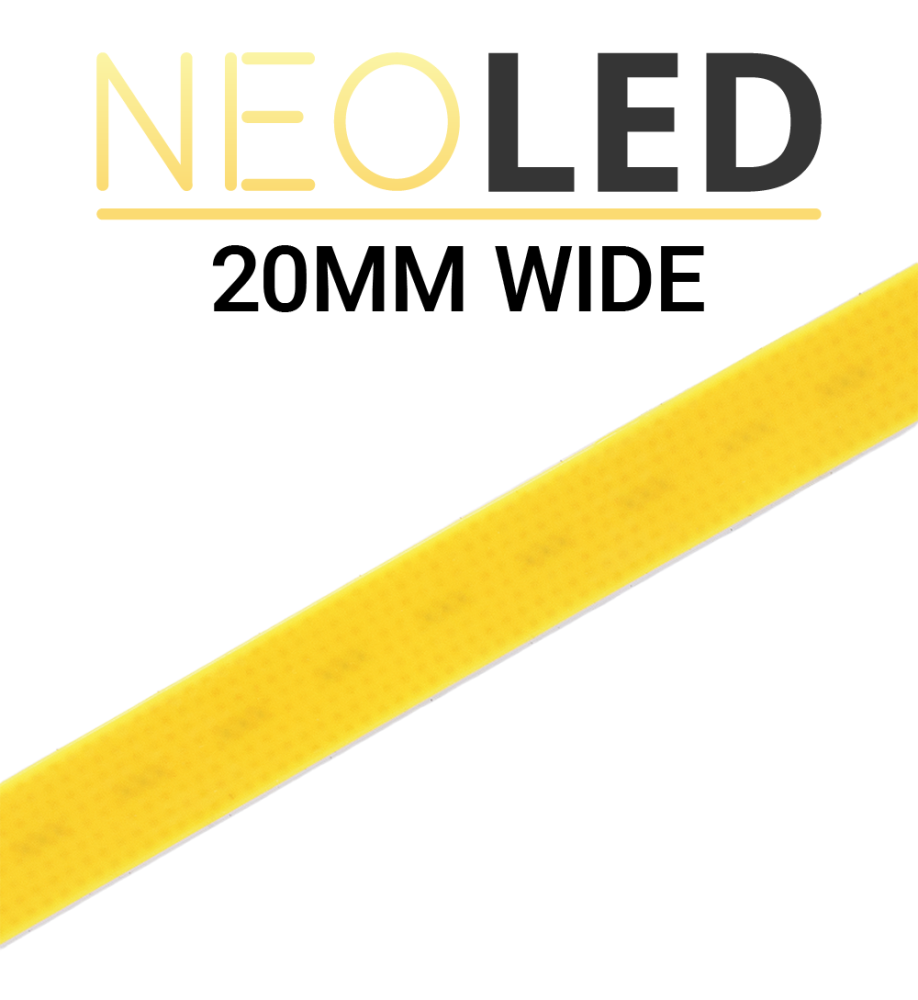

Wide body single COB strips for high lumen output. A heavy duty strip for retail, architectural and specialist lighting where brightness and even light are essential.



Colours offered: fixed whites 2700K, 3000K, 4000K and 6000K



Key specs:

  ● Rated at 30W per metre across typical 5m roll length

  ● An impressive 3,072 white LEDs per metre

  ● Cut intervals at small increments for precision

  ● Very high lumen output suitable for open/main light fixtures



Best for:
Retail feature aisles, architectural accent lighting, spaces needing high lux levels.

Gallery Image 1 Gallery Image 2 Gallery Image 3 Gallery Image 4

Quick Compare Chart

Spec Professional Express Nano Commercial 20mm Wide
Strip width 8mm, 10mm, 12mm 8mm, 10mm, 12mm 12mm 8mm, 10mm 20mm
Power consumption in Watts 50W, 75W, 80W 50W, 75W, 80W 80W 10W per metre 30W per metre
Input voltage 24V 24V 24V 24V 24V
IP rating IP20 Indoor Use Only IP20 Indoor Use Only IP65 Splashproof nano coated IP20 Indoor Use Only IP20 Indoor Use Only
CRI >80 >80 >80 >90 >90
Reel lengths available 5 metres 5 metres 5 metres 15 metres or 50 metres 5 metre rolls
Colours offered Single colours (red, green, blue, orange, yellow, pink), RGB, RGBW, CCT fixed whites (2700K, 3000K, 4000K, 5000K, 6000K) Single colours (red, green, blue, orange, yellow, pink), RGB, RGBW, and whites from 1800K to 6500K depending on SKU RGB + CCT (2700K to 6000K) and RGBW (4000K) Single colour (red, green, blue, yellow, orange, pink), Fixed whites (2700K, 3000K, 4000K, 5000K, 6000K) Fixed whites (2700K, 3000K, 4000K, 6000K)
Dimmable Yes Yes Yes Yes Yes
Warranty 5 year 2 year 5 year 3 year 5 year
Beam angle 180 degree 180 degree 180 degree 180 degree 180 degree
PCB Colour White White White White White
