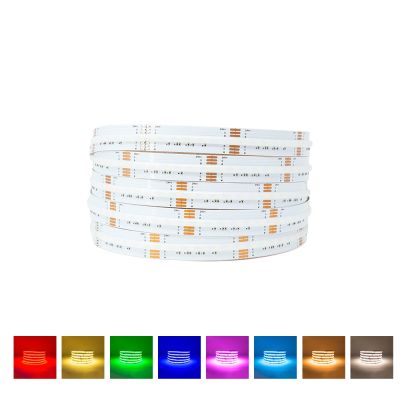

NeoLED RGB+CCT (2700-6000K) 24V 12mm IP65 Nano Coated Single COB LED Strip Light

Product Code: 102.225
  • Uniform line of light
  • Single COB LED (Chip on Board)
  • IP65 splash proof Nano coated
  • 840 x LED chips p/m
  • 16W p/m - 24V DC
  • 180º Beam angle p/m
  • CRI >90
  • Over 16 Million Colour Combinations + CCT
  • 2700K - 6000K Colour Temperature Adjustable
  • 5 Year warranty
  • 300LSE 3M™ Adhesive backing
    • RGB / CW & WW
    24V DC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

ATTENTION

Single COB LED Strips must be handled and installed at a minimum ambient temperature of 19ºC. Please ensure it is not removed from the roll until it has had time to reach this temperature. If unrolled below 19ºC, the coating will crack/fail and will produce a blue light. This will not be covered under the warranty.

Product Description

This premium RGB+CCT Single COB LED Strip from LED Technologies delivers exceptional light quality with a seamless single line of illumination and a wide 180º beam angle. Designed for both commercial LED lighting and domestic LED strip lighting projects, this versatile product offers over 16 million colour combinations plus adjustable white light ranging from Cool White (6,000K) to Warm White (2,700K).

With a high CRI rating of >90, this professional-grade LED strip ensures outstanding colour accuracy, making it ideal for film, TV production, photography lighting, and high-end interior applications. Thanks to its COB (Chip-on-Board) technology and dense arrangement of 840 LED chips per metre, the strip produces smooth, dot-free illumination – even in shallow LED profiles – with no visible pixelation.

Each 5m LED strip roll comes with pre-soldered wire tails at both ends, enabling quick installation and easy customisation. The strip can be cut at any of its 41.6mm intervals, reducing waste and offering precise fitting for your project.

Tip: When cutting the LED strip or using clamp-style connectors, apply silicone sealant to exposed points to maintain the IP65 water-resistant rating.

With a power consumption of just 16W/m and IP65 Nano Coating for water resistance, this LED strip is perfect for use in kitchens, bathrooms, outdoor lighting, and other damp or wet environments.

Quick Specs

  • CRI Rating (greater than)CRI >90
  • Beam Angle:180 degree
  • BrightnessSuper High Brightness
  • ColourRGB / CW & WW
  • Guarantee Period5 Years
  • IP RatingIP65 Splashproof
  • Input Voltage24V DC

Applications

  • TV Studios
  • Exhibitions
  • Theatres
  • Office Spaces
  • Living Areas
  • Kitchens
  • Bathrooms

What's in the box

  • 1 x 5 Metre Roll of NeoLED RGB+CCT Single COB
  • 1 x Installation Guide
  • 10 x Soft Silicone Fixing Clips

Technical Specification

  • Product Code: 102.225
  • Product Packed Poly / Anti static Bag
  • Manufacturer LED Technologies
  • LED Strip Brands NEOLED
  • LED Strip Type COB
  • Product Type LED Strip Light
  • Colour RGB / CW & WW
  • IP Rating IP65 Splashproof
  • Metres 5 MTR
  • Colour Temperature 2700K - 6500K
  • Guarantee Period 5 Years
  • Wattage 80W
  • Current 679mA/M
  • Input Voltage 24V DC
  • Brightness Super High Brightness
  • PCB Weight 2oz
  • PCB Colour White PCB
  • Size 12mm x 1.8mm x 5000mm Roll
  • Reel Length 5M
  • Beam Angle: 180 degree
  • LED Spacing N/A
  • Power Consumption: 16W p/m
  • Lumens Per LED R:162lm G: 261lm B: 40lm 2700K: 262lm 6000K: 281lm/m
  • Lumens Per Metre 985.5lm
  • CRI Rating (greater than) CRI >90
  • Dimmable: Yes
  • Cut Intervals: 41.6mm
  • LED Quantity 840 x LEDs Per Metre
  • LED Type Chip on board (COB)
  • Continuous run 5 mtr
  • Average LED life Hrs 50,000
  • Peelable Back 300LSE 3M adhesive tape
  • Voltage Type Constant Voltage
  • Base Type 30cm Tails at both ends
  • Strip Light Width 10mm

Product Datasheets

  • pdf Datasheet - 102.225 Download
  • pdf Photometrics - 102.225 Download
