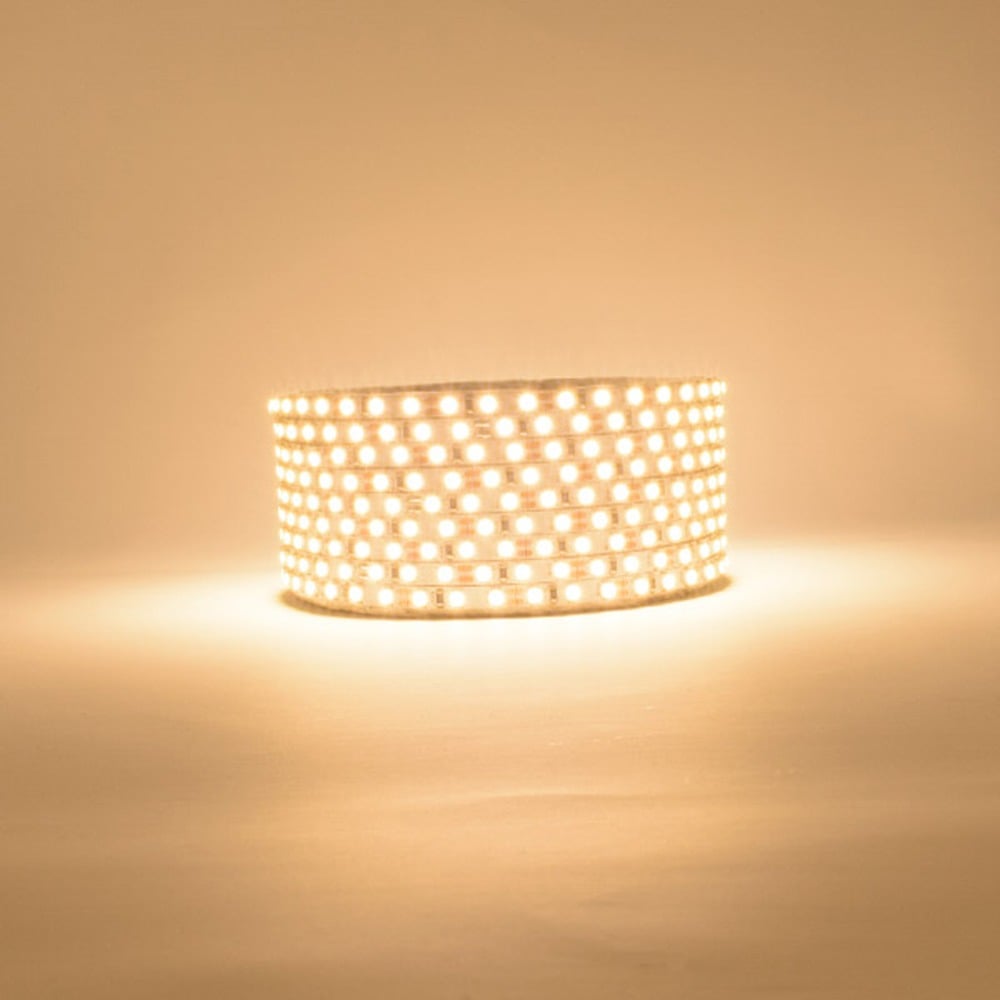

ModelFlex Warm White LED Strip 2900/3100K

Product Code: 100.923

Warm White 2900-3100K
120 LED's Per Metre
28.8W
Relaxing warm white light
Built with high quality materials
3 Year warranty
3 Metre Roll
Narrow gauge product

Warm White

Guarantee

IP Rating

Voltage

View full product details and specification

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Currently in Stock

Next day delivery available*

In stock

Available in more colours

Speak with an Expert

Product Details

Product Description

This superb new "narrow gauge" LED Flex is an ideal product for use in the Model & Sign making industries. Due to its narrow width, short cutting points and the high number of LED’s /m, Model Maker is perfect for edge-lit signs, point of sale displays and in the construction of light panels.

The warm white light produced does not discolour printed graphics and so it can be used in light boxes and signage. Model Maker can also be fitted behind glass or acrylic shelving to edge light them. Light from the flex is then transmitted through the shelving creating a superb effect for use in bar and club installations. Model Maker is an uncoated (IP20 rated) product and so is not suitable for outdoor use and it is supplied on a 3m roll with pre-soldered tails.

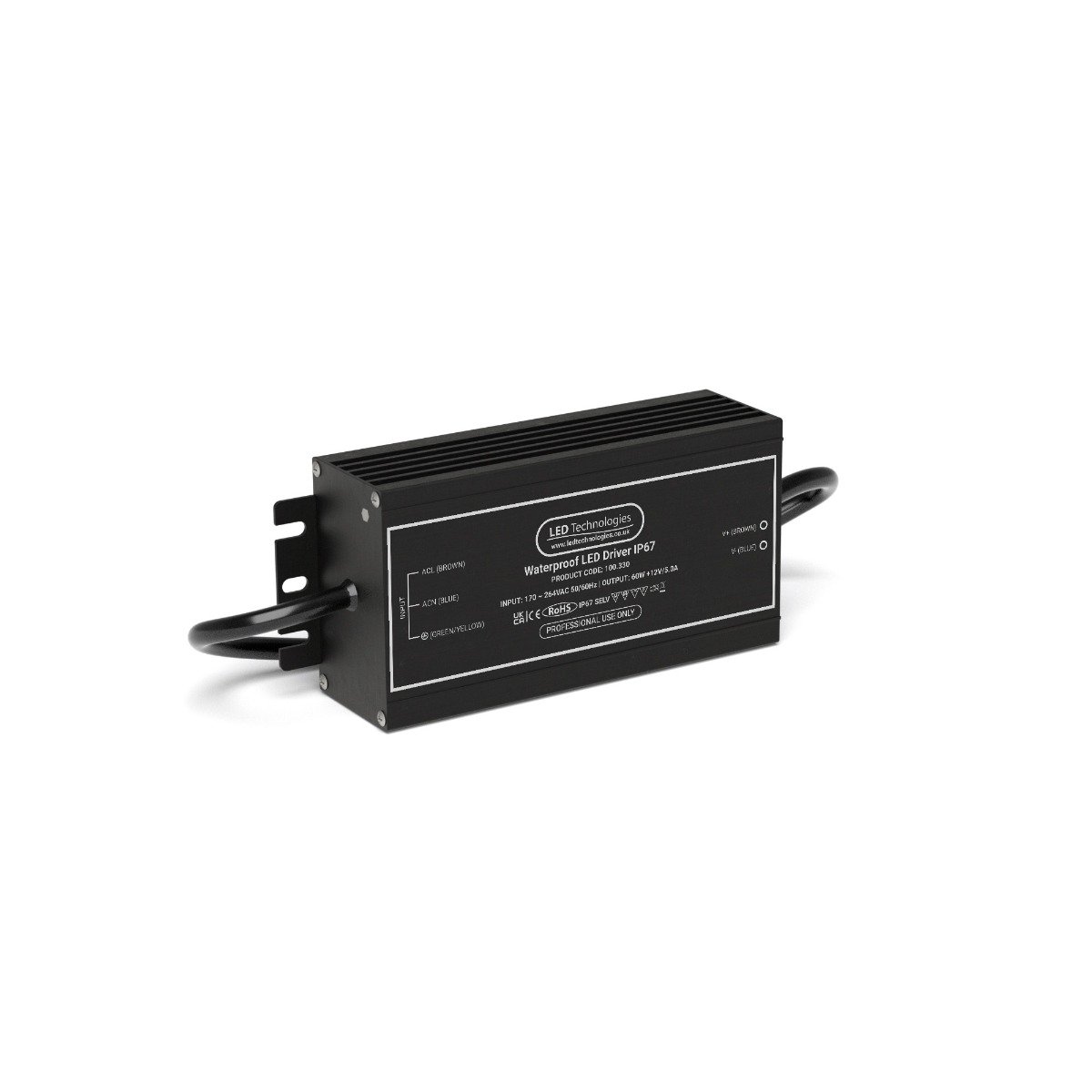

Simply connect Model Maker to one of our range of 12v LED Drivers or if dimming is required, it can be controlled with our comprehensive range of RF Remote control systems, Dimmable Drivers or by DMX through our DMX 512 decoders.

Quick Specs

Beam Angle

Brightness

Warm White

CRI Rating

Guarantee

IP Rating

Voltage

Wattage

Applications

TV Studios
Theatres
Office Spaces
Living Areas

What's in the box?

1 x 3 Metre Roll Of Strip
10 x Bridging Clips for Fixing
1 x Installation Guide

Technical Specification

Product Code:	100.923
Product Packed	Anti static Bag
Manufacturer	LED Technologies
Product Type	LED Strip Light
Colour	Warm White
IP Rating	IP20 Non-Waterproof
LED per mtr	120 p/Mtr
Metres	3 MTR
Colour Temperature	2900 - 3100K
Guarantee Period	3 Years
Wattage	28.8w
Current	400mA/M
Input Voltage:	12v DC
Brightness	Medium Brightness
PCB Weight	2oz
Size:	5mm x 2.2mm x 3000mm Roll
Reel Length	3m

Beam Angle:	120 degree
LED Spacing	8.3mm
Lumens P/LED	6-7lm
Lumens P/Mtr	850lm
CRI Rating (greater than)	CRI 80
Dimmable:	Yes
Cut Intervals:	25mm
LED QTY	120
LED Type:	Led chip 3528
Average LED life Hrs	50,000
Peelable Back	300LSE 3M Adhesive Tape
Base Type	Connector one end tails other

Datasheets

Datasheet - 100.923	Download
Product Focus - Modelflex Warm White	Download
Product Focus - Modelflex Warm White	Download
