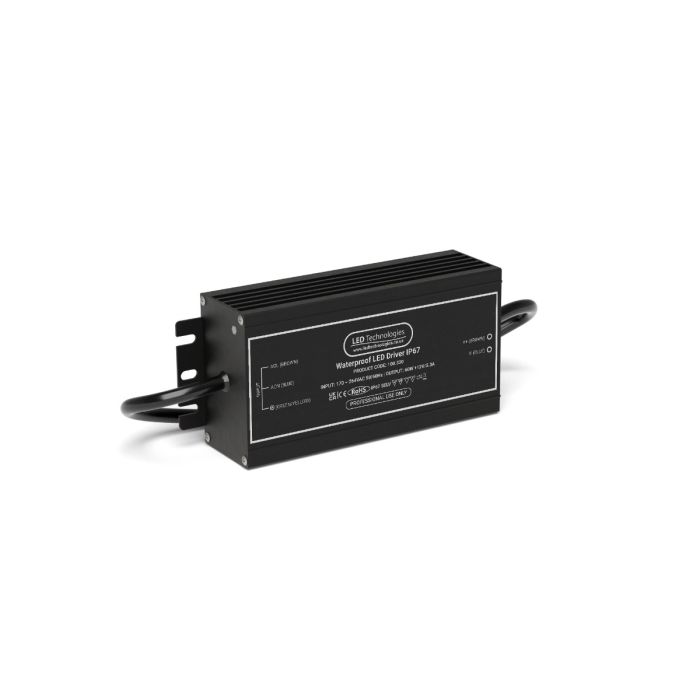

This 12 volt LED strip light driver is from LED Technologies. It is suitable to power our 24W Lifestyle or Proflex 12v products and LED tape lights.
12V LED lighting require a 12v LED power supply unit / LED driver / LED transformer. This will connect your lighting to a mains power supply.
A constant current LED driver is a power supply that regulates the voltage supply to a lighting product such as LED light strips.
To get the best performance out of your drivers, only load the driver to around 75% of the drivers' value. For example, a 100W driver should only run at 75W. Therefore this 60W driver should only be used for 45W or lower lighting fixtures.
Lighting transformers use a constant voltage for powering LED's. The LED light drivers total wattage should be more than the required wattage of the product. Different types of LED drivers will have different output voltages, make sure to select the correct constant voltage LED driver for the product you are powering.
This LED driver measures 132mm wide, 68mm in length and 39mm in height. It is an ideal solution for powering LED lighting products.
This LEDTech driver has an IP rating of IP67. The 6 stands for complete protection against dust. The 7 means that it is protected against temporary immersion. This is between 15cm and 1M.
Therefore, this driver is waterproof and is suitable for indoor and outdoor lighting.
Read our case study on IP rating and what they mean for more information.
It is perfect for powering lights in indoor installations such as in your home in living rooms, bedrooms or hallways. They are also perfect for commercial spaces such as hotels or restaurants. The small compact design enables the LED tape driver to be easily hidden.
It is also suitable for wet and damp environments where the driver way become wet, such as swimming pools, kitchens and bathrooms. It can be installed outside as it can withstand weather such as rain or snow, perfect for powering garden LED lights.
The driver is supplied with input and output wire tails. These need to be connected to a suitably rated junction box such as our IP68 gel connectors. This will maintain the IP67 rating.
The driver features tabs that enable the driver to be drilled into place, whether on a wall, roof or underneath furniture such as shelves so that it it concealed.
To install the driver, effortlessly connect the output to the LED product and then connect to a suitable mains supply. It is a quick and easy set up.
