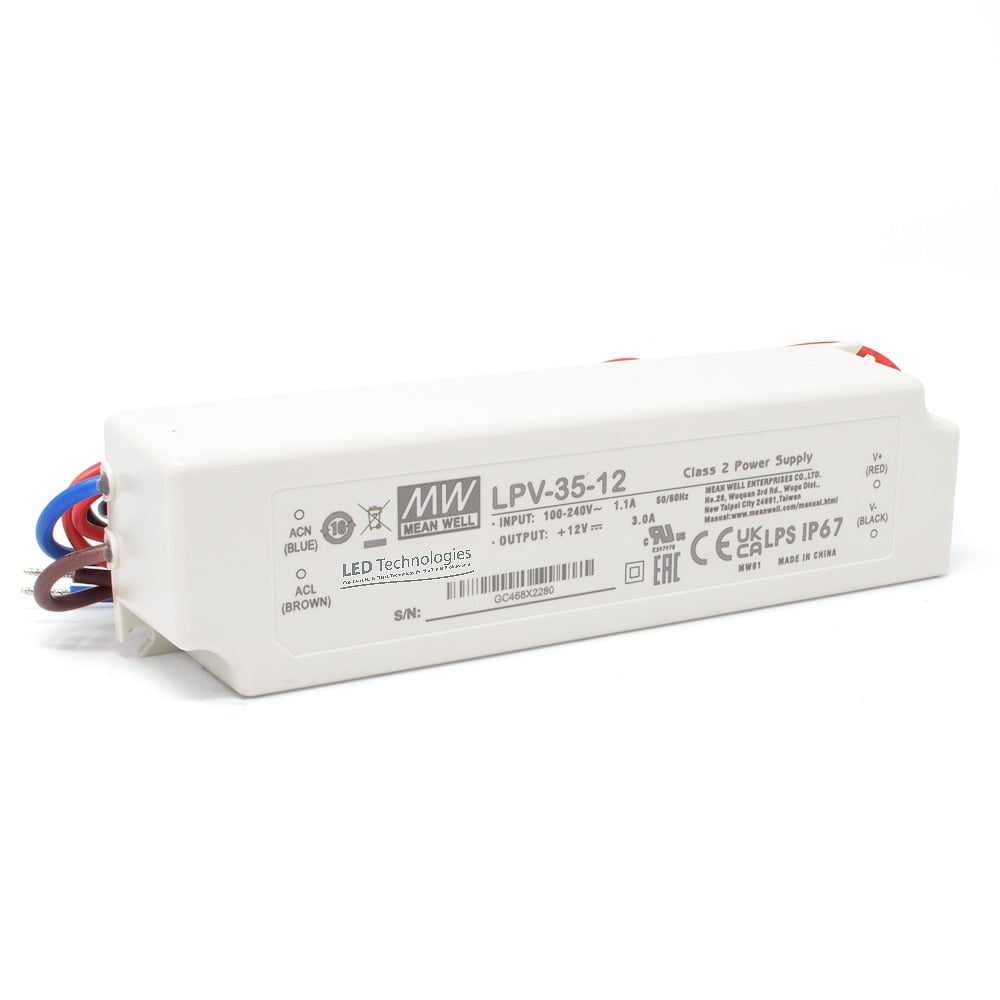

MEAN WELL | LPV-35-12 Power Supply (12V, 35W Constant Voltage Class 2)

Product Code: LPV-35-12
  • 12V MEAN WELL Power Supply
  • 90V-264V AC Input Range
  • 36W Constant Voltage Output
  • Free air cooling
  • OLP / SCP / OVP protection
  • Will withstand 300V AC ofr 5 seconds
  • 100% full load burn test
  • Fully encapsulated to IP67 Rating
  • 2 Year Warranty
White
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

The LPV-35-12 MEAN WELL Driver is a high-quality 12V, 35W constant voltage power supply, perfect for LED fixtures and appliances, including decorative and advertising installations. With a universal AC input range of 90V to 264V, this MEAN WELL 12V LED driver is versatile and suitable for worldwide use.

Encased in a fully isolated plastic housing and rated IP67, this MEAN WELL power supply is built to perform reliably in both indoor and outdoor environments. It offers robust protection against short circuits, overload, and overvoltage, and can handle a 300V AC surge for up to five seconds.

As a Class 2 power supply, it operates through free air convection and adheres to LPS standards. With 100% full-load burn-in testing, the LPV-35-12 delivers dependable performance, making it a trusted choice in the MEAN WELL power supplies range for a variety of LED applications.

For more options, explore our comprehensive selection of MEAN WELL LED drivers, including the MEAN WELL 12V power supply solutions.

Quick Specs

  • ColourWhite
  • Guarantee Period2 Years
  • IP RatingIP67 Waterproof

What's in the box

  • MEANWELL | LPV-35-12 Power Supply

Technical Specification

  • Product Code: LPV-35-12
  • Product Packed Box
  • Manufacturer MEAN WELL
  • Product Type Power Supplies
  • Colour White
  • IP Rating IP67 Waterproof
  • Guarantee Period 2 Years
  • Wattage 35W
  • Output Voltage 12V DC
  • Size 148mm x 40mm x 30mm
  • Dimmable: No
  • Voltage Type Constant Voltage
  • Rated Current 3A
  • Rated Power 36W
  • Ripple & Noise (Max.) 120mVp-p
  • Voltage Tolerance ±5.0%
  • Line Regulation ±1.0%
  • Load Regulation ±2.0%
  • DC Voltage 12V
  • Current Range 0 ~ 3A

Product Datasheets

  • pdf Datasheet - LPV-35-12 Download
