LEDTech | 300W 36V LED Driver

Product Code: 100.725
  • Recommended load 225W
  • Ideal for use with our 36V Proflex
  • 235 x 126 x 54mm
  • Highly efficient
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
This is the required amount of volts needed to power the product.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This 36V LED strip light driver is from LED Technologies. It is suitable to power our Lifestyle or Proflex 36v products and LED tape lights.



36V LED lighting require a 36v LED power supply unit / LED driver / LED transformer. This will connect your lighting to a mains power supply.



A constant current LED driver is a power supply that regulates the voltage supply to a lighting product such as LED light strips.

To get the best performance out of your drivers, only load the driver to around 75% of the drivers' value. For example, a 100W driver should only run at 75W. Therefore this 300W driver should only be used for 225W or lower lighting fixtures.

Lighting transformers use a constant voltage for powering LED's. The LED light drivers total wattage should be more than the required wattage of the product. Different types of LED drivers will have different output voltages, make sure to select the correct constant voltage LED driver for the product you are powering.



This 36 volt LED driver measures 235mm wide, 126mm in length and 54mm in height. It is an ideal solution for powering LED lighting products.

This LEDTech driver has an IP rating of IP67. The 6 stands for complete protection against dust. The 7 means that it is protected against temporary immersion. This is between 15cm and 1M.

Therefore, this driver is waterproof and is suitable for indoor and outdoor lighting.

Read our case study on IP rating and what they mean for more information.



It is perfect for powering lights in indoor installations such as in your home in living rooms, bedrooms or hallways. They are also perfect for commercial spaces such as hotels or restaurants. The small compact design enables the LED tape driver to be easily hidden.

It is also suitable for wet and damp environments where the driver way become wet, such as swimming pools, kitchens and bathrooms. It can be installed outside as it can withstand weather such as rain or snow, perfect for powering garden LED lights.

The driver is supplied with input and output wire tails. These need to be connected to a suitably rated junction box such as our IP68 gel connectors. This will maintain the IP67 rating.

To install the driver, effortlessly connect the female jack socket to the male jack socket on the strip light. Then plug into a suitable mains power supply. It is a quick and easy set up that will enable you to plug and play immediately.



Other Products

LED Technologies offer a wide range of LED Drivers suitable for a range of LED products including:

  • 12v or 24v Drivers
  • Waterproof Drivers
  • 300/350W Drivers



We also offer a huge selection of LED strip lights including

  • Single Colour
  • CCT adjustable
  • White
  • RGB colour changing
  • RGBW
  • Ultra Violet
  • Waterproof and non waterproof



Shop our range of products through our website or contact our technical sales team on 01260 540014.

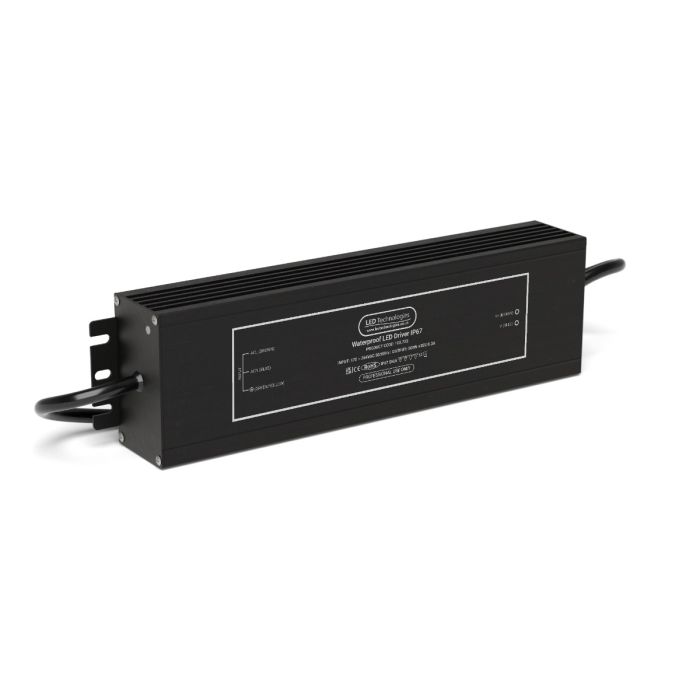

brushed metal 300w 36v led driver on white background



Quick Specs

The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
This is the required amount of volts needed to power the product.
Product Code: 100.725
Manufacturer LED Technologies
Product Type Controller / Driver
Colour Brushed Aluminium
IP Rating IP67 Waterproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
1 Year
PCB Weight Not Applicable
Power Consumption: 300w
Power Factor > 80
CRI Rating (greater than) CRI >80
Input Voltage
This is the required amount of volts needed to power the product.
240v AC
Size 235 x 126 x 54mm with 2 x Cables
Wattage 300w
Average LED life Hrs 30,000
Continuous Operation Not suitable for 24/7 continuous use
Output Voltage 36v DC
Dimmable: No
LED Type Not Applicable
Datasheet-100.725 Download
