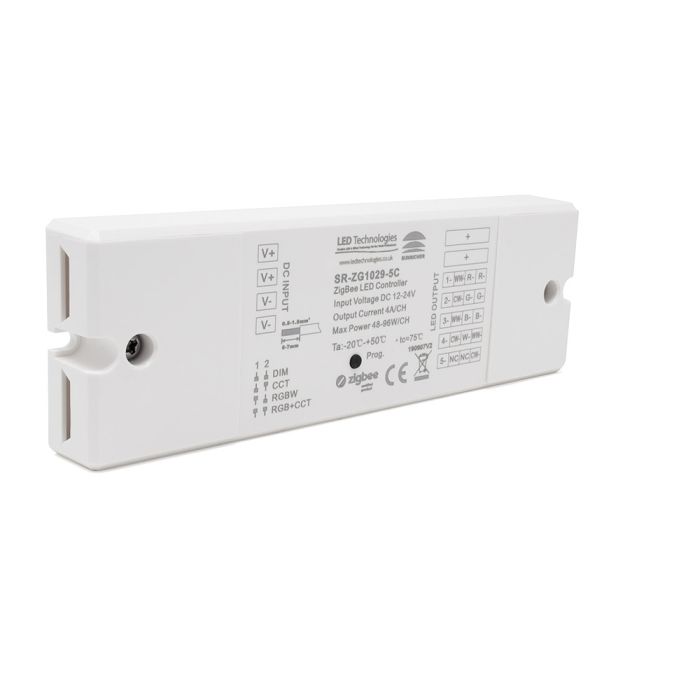

Sunricher ZIGBEE Five Channel RGB & CCT 4 in 1 Constant voltage Receiver

Product Code: SRZG10295C
  • Uses latest ZIGBEE 3 protocols
  • Works with all ZIGBEE devices & hubs
  • Supports "find & bind" mode
  • Enables "touch-link" commissioning
  • Extends ZIGBEE network
  • Works with ZIGBEE remote controllers
  • Controls RGB & CCT LED products
  • Can be set to 1, 2, 3, 4 or 5 channel modes
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This high quality 4 in 1 ZIGBEE 5 channel Constant Voltage controller is from the Sunricher range. It uses the latest ZIGBEE 3.0 protocol enabling you to control your RGBW lights.

This is the perfect domestic or commercial installation. It can be used in a wide range of areas, such as bedrooms, hallways or offices to extend your ZIGBEE network.



This ZIGBEE controller is a 4 in 1 unit which means that it can be set to single colour, dual colour (CCT), RGB, RGBW and RGB & CCT modes using the integral dip switches. This makes it an all round units capable of controlling various types of lighting by ZIGBEE protocols.

The ZIGBEE receiver enables control over your RGB channels (1, 2 & 3). Channels 4 & 5 are for colour temperature adjustable products or five channel LED products which have RGB + CW & WW. Channels 1, 2 & 3 use the RGB commands, channels 4 & 5 use the CCT commands.



The LED light controller can be operated with any ZIGBEE device such has ZIGBEE remotes or wall panels.  This ZIGBEE controller enables you to wirelessly control a range of LED lighting. The ZIGBEE receiver can control products such as RGBW LED Tape / LED strip lights.



The ZIGBEE controller supports "touch-link" commissioning and "find and bind" mode. This enables you to pair with other ZIGBEE lighting devices after it has been added to the same ZIGBEE network. You can also "find and bind" a Sunricher ZIGBEE remote control handset or wall panel directly to the controller without a ZIGBEE hub.

The ZIBEE controller requires 12v, 14v, or 36v power supply to operate. Then pair to your ZIBGEE network either through a ZIGBEE Hub or independent of a hub to operate.

This is the perfect installation for your smart home. You can then achieve LED control wirelessly through your phone or home automation network.



Quick Specs

The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.

What's in the box?

  • ZIGBEE Five Channel (4 in 1) Constant Voltage Controller
  • Instruction manual
Product Code: SRZG10295C
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller / Receiver
Colour White
IP Rating IP20 Non-Waterproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Current 5 X 4A
Input Voltage
This is the required amount of volts needed to power the product.
12v / 24v DC
Output Voltage 12v / 24v DC
Connectivity ZIGBEE protocols
PCB Weight Not Applicable
Size 145 x 46.5 x 16mm
CRI Rating (greater than) CRI >80
Dimmable: Yes
LED Type Not Applicable
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Wireless Range Up to 30 metres
Continuous Operation Not suitable for 24/7 continuous use
Voltage Type Constant Voltage
Relative Humidity 8% to 80%
Operation Frequency 2.4GHz
Operating Temp -20 to +45
Datasheet - SRZG10295C Download
