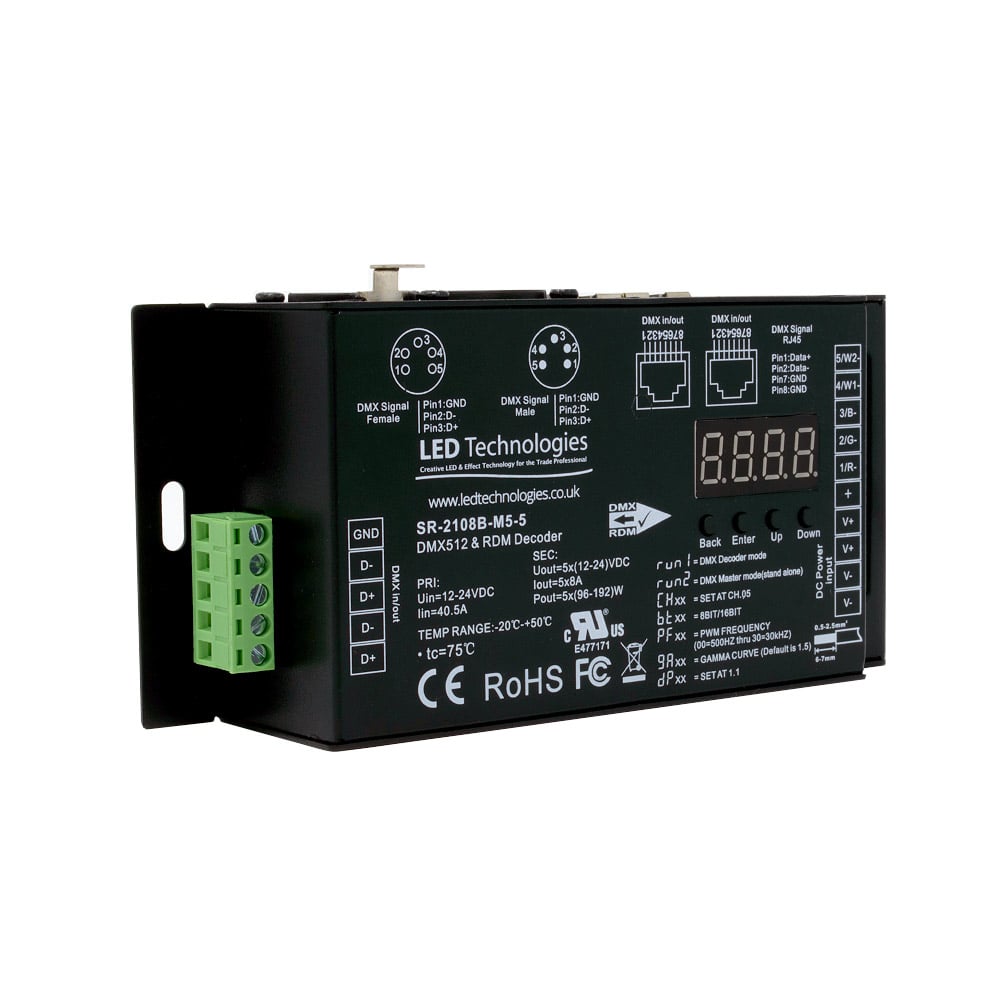

Sunricher DMX Ultra-Pro 5 Channel DMX Decoder with RDM Master Mode

Product Code: SR2108BM55
  • Five channel professional DMX decoder
  • RDM function
  • Adjustable PWM frequency & bit rate
  • Adjustable dim curve & gamma value
  • Adjustable 1, 2, 3, 4 or 5 channel modes
  • 5 pin XLR RJ45 & hard wired DMX in/out
  • Suitable for 4K TV & video production
  • Master mode for control of LED
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This Ultra-Pro 5 DMX Channel Decoder with RDM & Master Mode is available from our professional range of Sunricher DMX LED control solutions.

This five-channel DMX512 decoder is an installation-grade product suitable for use in TV Studios and commercial installations. This product is the perfect solution to use in places such as hotels, restaurants and retail outlets where multiple sets of LED Strip lighting or other LED lighting units need to be connected to a DMX data source.

The RDM bi-direction communication function enables an RDM-equipped DMX master console to detect and display decoder information.

A variety of professional features are available from this DMX controller such as:

  • DMX address setting
  • Output channel quantity
  • PWM output resolution (8 or 16-bit)
  • PWM output frequency
  • GAMMA dimming curve value
  • DMX decoding mode can also be set via the digital display and menu buttons

This decoder also features a DMX signal repeater function. Signal input and output ports for this controller including 5-pin XLR, RJ45 and a hard-wired connection are available.

Please note that this unit also has master control features for basic operation without a DMX desk, connect to an appropriate LED driver in order to control your LED lighting.

The 5 channels on this decoder allow the unit to communicate with a single colour, adjustable white LED tape and also RGB & RGBW LED lighting devices.

Quick Specs

The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.

What's in the box?

  • Five channel professional DMX decoder with RDM
  • Instruction manual
Product Code: SR2108BM55
Product Packed Gift box
Manufacturer LED Technologies
Product Type DMX 512 Decoder
Colour Black
IP Rating IP20 Non-Waterproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Wattage 5 x 96w - 192w
Current 5 x 8A
Input Voltage
This is the required amount of volts needed to power the product.
12v / 24v / 36v DC
Output Voltage 12v / 24v / 36v DC
Connectivity DMX 512 protocols
PCB Weight Not Applicable
Size 164 x 73 x 38mm
CRI Rating (greater than) CRI >80
Dimmable: Yes
LED Type Not Applicable
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Wireless Range Up to 30 metres
Continuous Operation Not suitable for 24/7 continuous use
Voltage Type Constant Voltage
Adjustable Dimming Curve & Gamma Value Yes
Adjustable Bit Rate Yes
Adjustable PWM Yes
Relative Humidity 8% to 80%
RDM Yes
Operating Temp 0-40°C
SR2108BM55 - Datasheet Download
