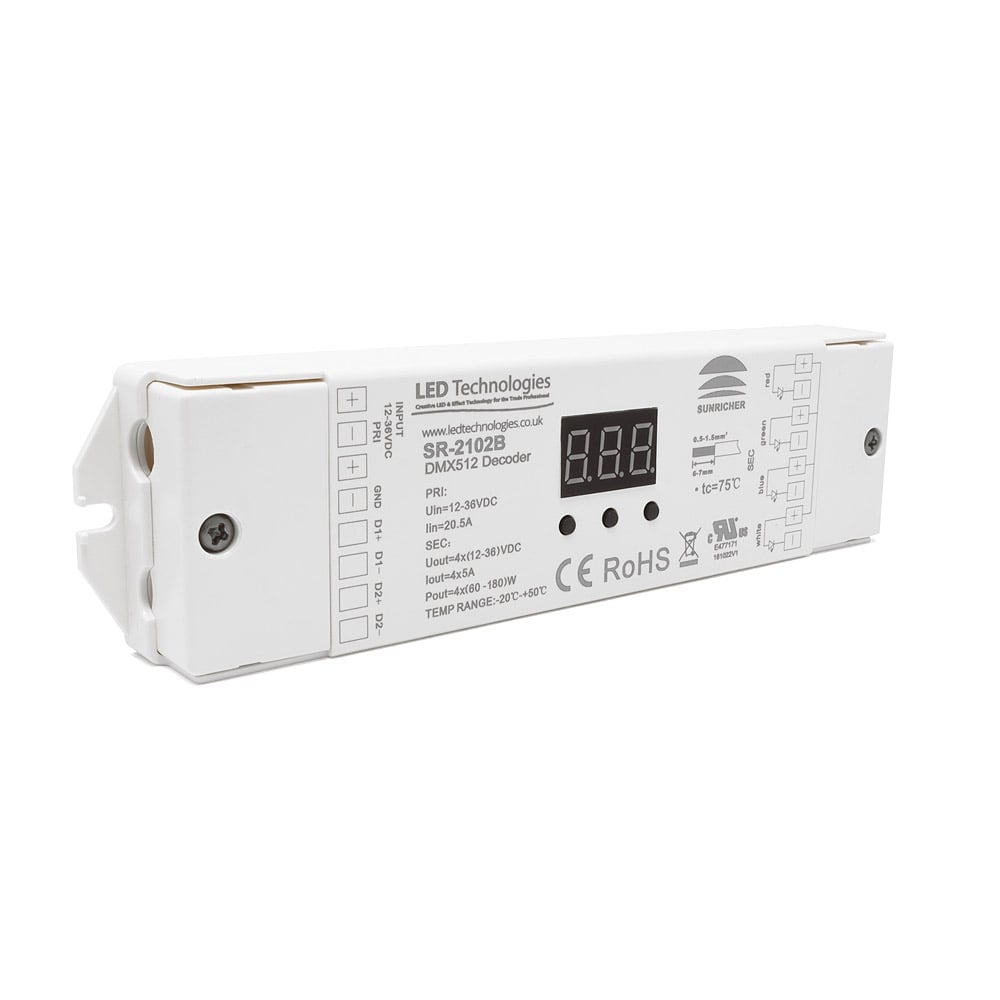

Sunricher DMX Four Channel Constant Voltage DMX Decoder with RDM

Product Code: SR2102B
  • Four channel hard wired DMX decoder
  • RDM enabled for bi-directional communication
  • Constant voltage PWM controller
  • Adjustable 1, 2, 3 or 4 channel modes
  • Adjustable PWM frequency up to 35KHz
  • Adjustable Gamma dimming curve
  • Hard wired DMX in/out
  • Easy setting using the digital interface
  • Works with 12v - 36v LED products
5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP Rating 20
DMX
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This Constant Voltage 4-Channel DMX decoder with RDM is available from our professional range of Sunricher DMX LED control solutions.

This slim, feature-rich, Constant Voltage 4 channel DMX512 decoder is an installation-grade product suitable for use in domestic and commercial environments. This DMX 4 channel decoder is perfect for use in places such as hotels, restaurants and retail outlets, where multiple sets of LED Strip lights and other LED lighting products are to be connected to a DMX512 data source.

In addition to setting the DMX address, a variety of other features can be adjusted with the menu buttons and digital display. Features such as:

  • The PWM frequency can be set to either 200hz up to 35KHz
  • RDM enabled for Bi-directional communication with an RDM enabled DMX controller
  • Output dimming curve gamma value is also adjustable from from 0.1 to 9.9
  • It is also possible to set the decoder to 1, 2, 3 or 4 DMX channel operation

For example, when in single-channel mode all four channels will respond to one DMX address.

With its high frequency PWM rate this product is suitable for film and TV work

The DMX decoders 4 channels allow this decoder to be used with a single colour, adjustable white LEDs, RGB & RGBW LED tapes and other lighting units.

For ease of connection, hard-wired input and output terminals are supplied for power. There are also multiple hard-wired output terminals for your LED products.

For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Decoders through our website or contact our technical sales team.



Quick Specs

5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP Rating 20
DMX

What's in the box?

  • Four channel Constant Voltage DMX decoder
  • Instruction manual
Product Code: SR2102B
Product Packed Gift box
Manufacturer LED Technologies
Product Type DMX 512 Decoder
Colour White
IP Rating IP20 Non-Waterproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Wattage 4 x 60W - 180W
Current 4 X 5A
Input Voltage
This is the required amount of volts needed to power the product.
12V / 24V / 36V DC
Output Voltage 12V / 24V / 36V DC
Connectivity DMX 512 protocols
PCB Weight Not Applicable
Size 178.9 x 45.5 x 18.6mm
Dimmable: Yes
LED Type Not Applicable
Power Factor > Not Applicable
Voltage Type Constant Voltage
Adjustable Dimming Curve & Gamma Value Yes
Adjustable Bit Rate No
Adjustable PWM Yes
Relative Humidity 8% to 80%
RDM Yes
Operating Temp 0-40°C
Datasheet - SR2102B Download
