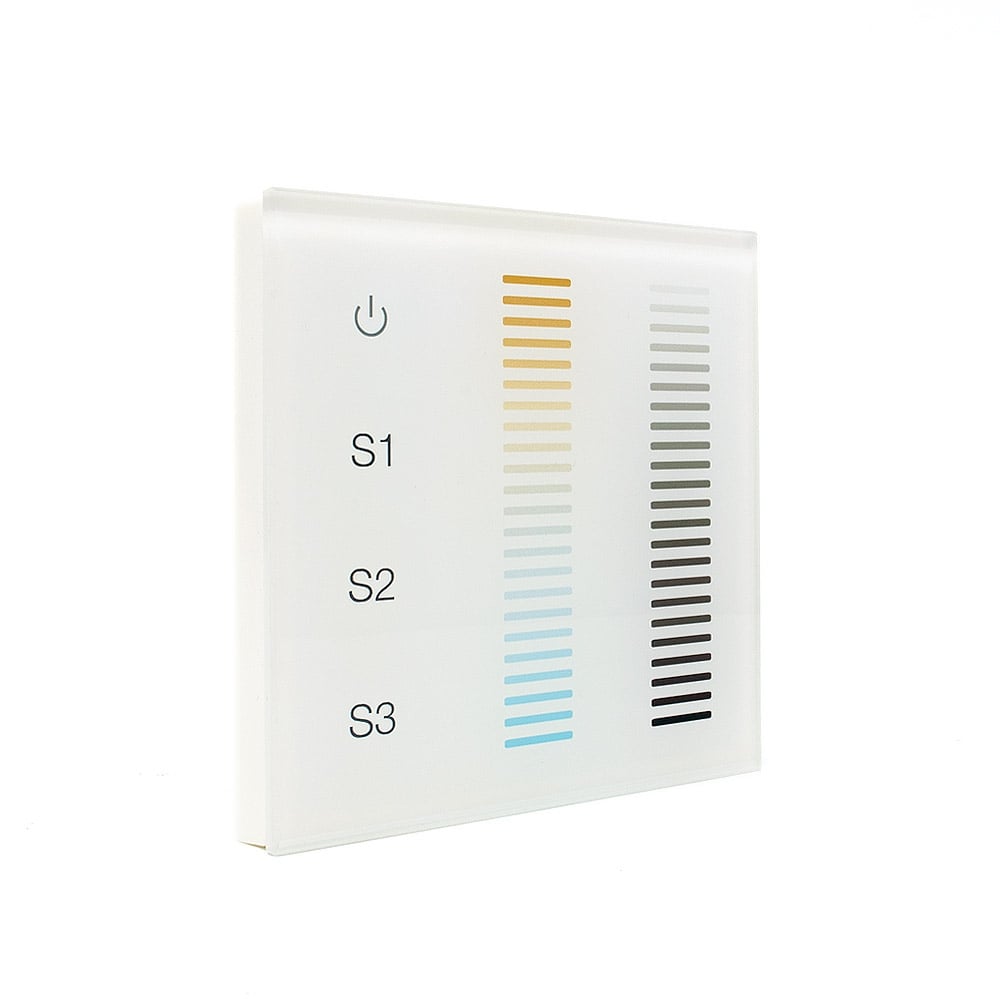

Sunricher RF Dual Colour (CCT) Double Touch Slider RF Wall Panel White (Mains voltage)

Product Code: SR2834BACWH
  • Two touch back-lit slider controls
  • Three scenes for store & recall
  • Works with dual colour LED products
  • 100v - 240v connection only required
  • Smooth dual colour adjustment & dimming
  • Separate CCT adjust & dimming sliders
  • Quick and easy to pair with receivers
  • Stylish white glass panel design
White
IP20 No
100V - 240V AC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This touch-sensitive LED colour temperature controller is available from our wonderful range of Sunricher control gear. Featuring a stylish touch-sensitive slider, it has an elegant white glass finish. Perfect for easy CT control over LED lighting from up to 20m away from the receiver.

Radio Frequency (RF) is an easy and lighting control system that operates using radio waves. It is often the first choice for controlling a range of LED products including LED strip lights.



Using the touch-sensitive sliders and buttons, this high-quality CCT wall panel features:

  • Easy Switching (On/Off)
  • Smooth brightness control
  • Smooth colour temperature adjustment
  • 3 programmable scenes
  • Backlight (For operation in the dark)



This CCT control panel wall switch requires the main voltage power supply. Wire the wall panel according to the instructions on the datasheet. Install into a standard UK wall box and pair to an appropriate receiver.



For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Quick Specs

  • CRI Rating (greater than)CRI >80
  • ColourWhite
  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Colour Temperature VariationIP20 No
  • Input Voltage100V - 240V AC

What's in the box

  • Dual Colour (CCT) Double Touch RF White Wall Panel
  • Fixing kit
  • Instruction manual

Technical Specification

  • Product Code: SR2834BACWH
  • Product Packed Gift box
  • Manufacturer LED Technologies
  • LED Strip Brands Sunricher
  • Product Type Controller
  • Colour White
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Current 15mA
  • Input Voltage 100V - 240V AC
  • Connectivity RF
  • PCB Weight Not Applicable
  • Size 86 x 86 x 29.1mm
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • LED Type Not Applicable
  • Average LED life Hrs 30,000
  • Power Factor > Not Applicable
  • Wireless Range Up to 20 metres
  • Continuous Operation Not suitable for 24/7 continuous use
  • Voltage Type Mains Voltage
  • Relative Humidity 8% to 80%
  • Operation Frequency 869.5 / 434MHz
  • Operating Temp 0-40°C

Product Datasheets

  • pdf Datasheet - SR2834B Download
