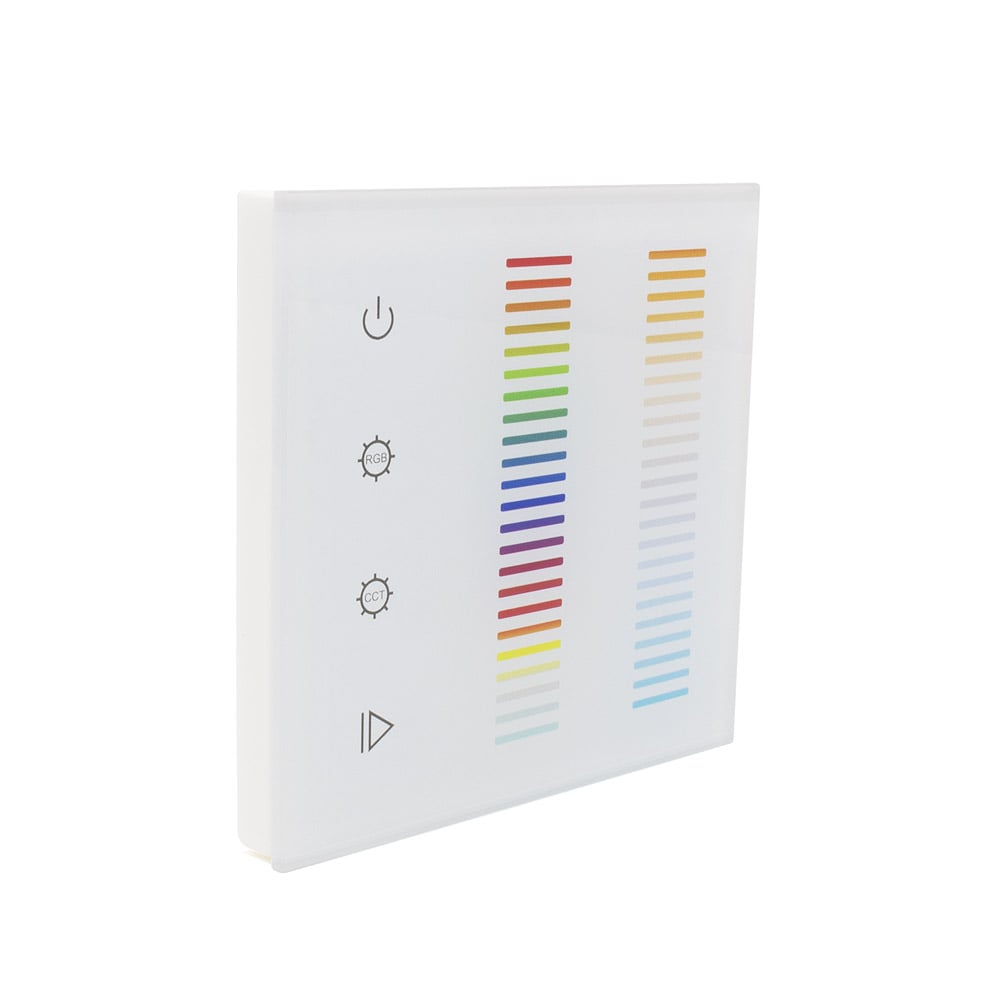

Sunricher RF 5 x Channel RGB+CCT Double Touch Slider RF Wall Panel White (Mains voltage)

Product Code: SR28345CACWH
  • Twin touch back-lit slider controls
  • Single scene for store & recall
  • Ten built in programs
  • 100v - 240v connection only required
  • Smooth RGB+CCT adjustment & dimming
  • Separate main dimming control
  • Quick and easy to pair with receivers
  • Stylish white glass panel design
White
IP20 No
100V - 240V AC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This touch-sensitive RGB+CCT panel is available from our fantastic range of Sunricher control gear. Featuring easy to use touch sliders with a stylish white glass finish. This is perfect for full control over LED lighting up to 20m away from the receiver.

Radio Frequency (RF) is an easy and lighting control system that operates using radio waves. It is often the first choice for controlling a range of LED products including LED strip lights.



Using high-quality touch-sensitive sliders, this RGB CCT wall panel features:

  • Easy Switching (On/Off)
  • Smooth Colour changing
  • Smooth colour temperature adjustment
  • Smooth brightness control
  • 10 pre-programmed dynamic modes
  • Single programmable scene
  • Backlit (for operation in the dark)



This RGB+CCT wall panel requires the main voltage supply. Wire the panel according to the instructions on the datasheet and install it into a UK wall box. Then pair it with an appropriate LED receiver.



For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Quick Specs

  • CRI Rating (greater than)CRI >80
  • ColourWhite
  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Colour Temperature VariationIP20 No
  • Input Voltage100V - 240V AC

What's in the box

  • RGB+CCT Double Touch RF Wall Panel
  • Fixing kit
  • Instruction manual

Technical Specification

  • Product Code: SR28345CACWH
  • Product Packed Gift box
  • Manufacturer LED Technologies
  • LED Strip Brands Sunricher
  • Product Type Controller
  • Colour White
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 100V - 240V AC
  • Connectivity RF
  • PCB Weight Not Applicable
  • Size 86 x 86 x 29.1mm
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • LED Type Not Applicable
  • Average LED life Hrs 30,000
  • Power Factor > Not Applicable
  • Wireless Range Up to 20 metres
  • Continuous Operation Not suitable for 24/7 continuous use
  • Voltage Type Mains Voltage
  • Relative Humidity 8% to 80%
  • Operation Frequency 869.5 / 434MHz
  • Operating Temp 0-40°C

Product Datasheets

  • pdf Datasheet - SR2834-5CH Download
  • pdf Pre-Programmed Effects List Download
