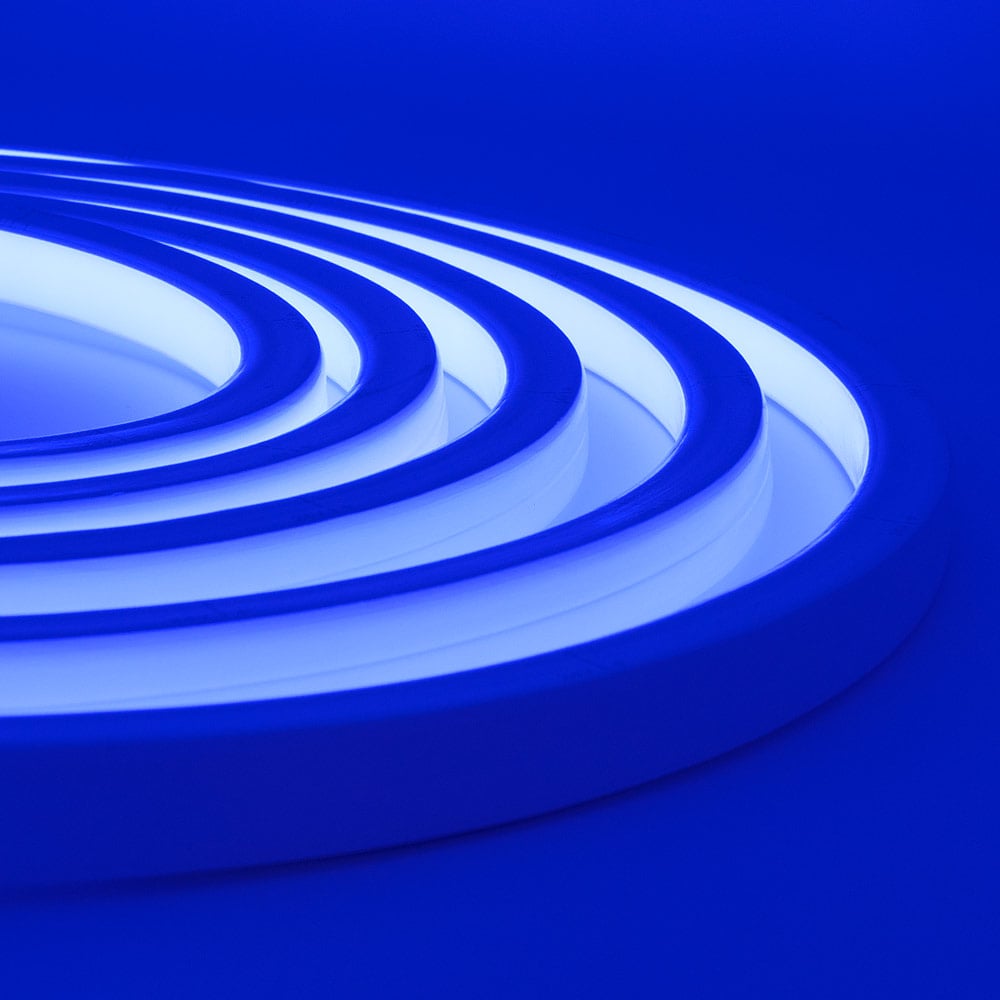

NEOLINEAR™ Topview Blue (465-470nm) 5mtr

Product Code: 100.868

  • Blue (465-470nm)
  • Can be flexed ''up and down''
  • 0% Pixelation
  • Bespoke & Available from Stock
  • 17 x 16 x 5000mm (W x H x L)
  • Rear Fed 1 Metre Cable at Both Ends
  • 5 Metre Roll
  • Daisy chain 10m in one line

From our NEOLINEAR™ range of professional flexible LED lighting solutions this "top view" Blue version (465-470nm) is manufactured from high quality components.  NEOLINEAR™ is designed for professional installation purposes and is especially suitable for outdoor architectural projects.  NEOLINEAR™ is highly durable, super flexible and pixel free.

Availability: In stock

Order in ? hours ?? minutes ?? seconds to get this item on Thursday 24th October*

Details

Our Blue (465-470nm) NEOLINEAR™ "top view" emits a rich, bright Blue light from the top of the flex.  It is designed for both outdoor and indoor architectural projects in commercial installations such as shopping centres, hotels, restaurants and many other applications.

The IP67 rating offers protection against water, salt water, UV radiation and solvents making this product ideal for use in exposed locations and challenging environments such as coastal holiday resorts and theme parks.  Side view can be flexed "up & down" with a maximum radius of 15cm.

It is ideal for highlighting around the inside or outside of architectural features and a full range of accessories are available.  Each 5m length has a 1m wire tail from the underside of both ends.

NEOLINEAR™ products are fully dimmable and compatible with our RF remote and wall mounted controllers from the professional SunRicher control equipment range of products.  These including DMX512, PWM, ZIGBEE, 1-10v and DALI protocols.

Specification

Product Code: 100.868
Manufacturer LED Technologies
Product Type Neon Flex
Colour Blue
IP Rating IP67 Waterproof
LED per mtr 144 p/Mtr
Metres 5 MTR
Colour Temperature 465-470nm
Guarantee Period 3 Years
Wattage 50w
Current 416 mA/M
Input Voltage: 24v DC
Output Voltage 24v DC
PCB Weight 4oz
Weight (g) 2500.0000
Size: 17 x 16 x 5000mm Roll (W*H*L)
Reel Length 5M
Beam Angle: 120 degree
Power Consumption: 10w
Lumens P/LED 1-1.5 lm/m
Lumens P/Mtr 100lm
CRI Rating (greater than) N/A
Dimmable: Yes
Cut Intervals: 83mm
LED QTY 144 p/Mtr
LED Type: EPISTAR 3528
Continuous run 10mtrs Power 1 end, 20mtrs power both ends
Average LED life Hrs: 30,000
CE and RoHS: Yes
Max Bend 150mm
Operating Temp -20 to +45
Pixelation Pixel Free
Base Type With rear mould injection 100cm cable on both sides
