Neon Flex Topview 2600-2900K 5mtr | NEOLINEAR

Product Code: 100.906
  • Warm White (2600-3000k)
  • Can be flexed ''up and down''
  • 0% Pixelation
  • Bespoke & Available from Stock
  • 17 x 16 x 5000mm (W x H x L)
  • Rear Fed 1 Metre Cable at Both Ends
  • 5 Metre Roll
  • Daisy chain 10m in one line
Warm White
rthrhrh
Guarantee
IP Rating
Voltage
This is the required amount of volts needed to power the product.
View full product details and specification

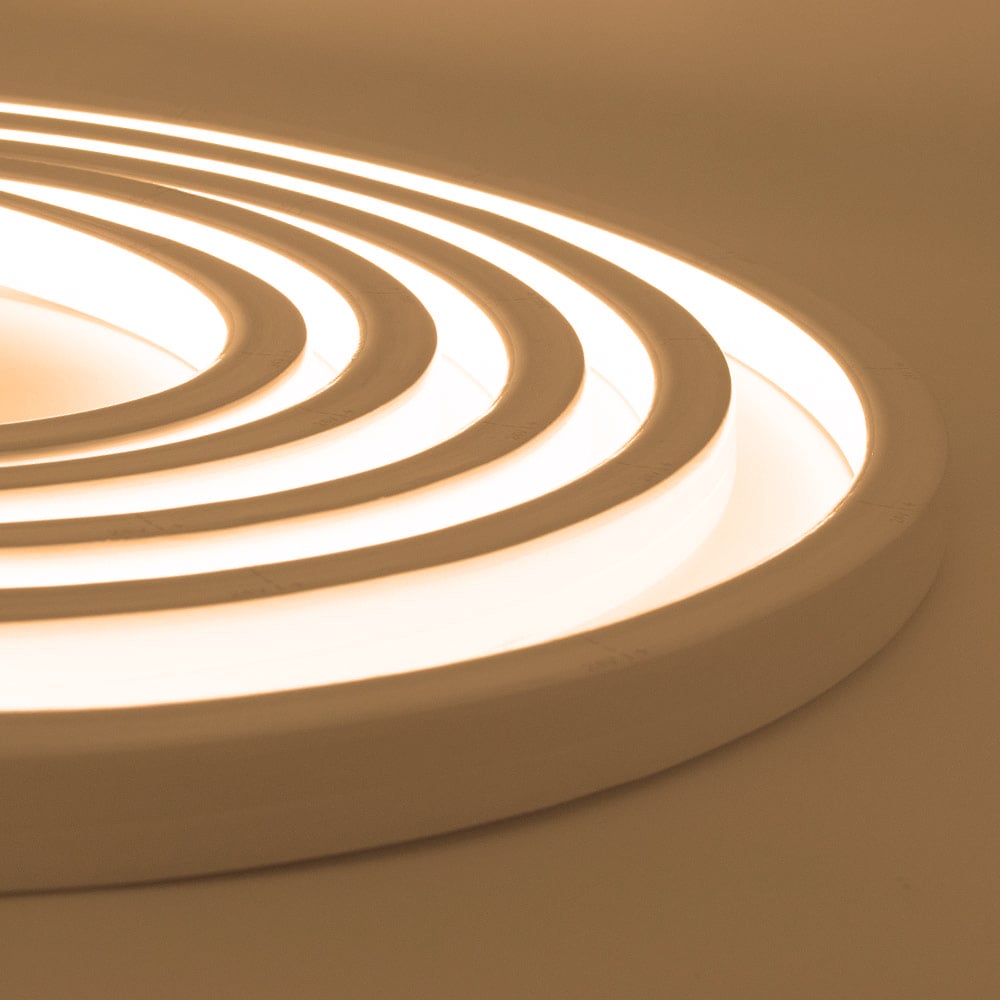

main product photo
Currently in Stock
Next day delivery available*
In stock
Speak with an Expert
Speak with an Expert

Product Description

Our Warm White (2,600-3,000K) NEOLINEAR™ "top view" emits a bright warm white light from the top of the flex.  It is designed for both outdoor and indoor architectural projects in commercial installations such as shopping centres, hotels, restaurants and many other applications.

The IP67 rating offers protection against water, salt water, UV radiation and solvents making this product ideal for use in exposed locations and challenging environments such as coastal holiday resorts and theme parks.  Top View can be flexed "up & down" with a maximum radius of 15cm.

It is ideal for highlighting around the inside or outside of architectural features and a full range of accessories are available.  Each 5m length has a 1m wire tail from the underside of both ends.

NEOLINEAR™ products are fully dimmable and compatible with our RF remote and wall mounted controllers from the professional SunRicher control equipment range of products.  These including DMX512, PWM, ZIGBEE, 1-10v and DALI protocols.

Quick Specs

Beam Angle
Warm White
rthrhrh
Guarantee
IP Rating
Voltage
This is the required amount of volts needed to power the product.
Wattage
View

Applications

  • TV Studios
  • Theatres
  • Bathrooms
  • Signage
Product Code: 100.906
Product Packed Anti static Bag
Manufacturer LED Technologies
Product Type Neon Flex
Colour
rthrhrh
Warm White
IP Rating IP67 Waterproof
LED per mtr
The amount of LED chips per 1 meter length.
144 p/Mtr
Metres 5 MTR
View Top View
Colour Temperature
Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.
2600 - 3000K
Guarantee Period 3 Years
Wattage 50w
Current 416 mA/M
Input Voltage
This is the required amount of volts needed to power the product.
24v DC
Output Voltage 24v DC
PCB Weight 4oz
Size: 17 x 16 x 5000mm Roll (W*H*L)
Reel Length 5M
Beam Angle: 120 degree
Power Consumption: 10w
Lumens P/LED 6lm
Lumens P/Mtr 420lm
Dimmable: Yes
Cut Intervals: 83mm
LED QTY 144 p/Mtr
LED Type: EPISTAR 3528
Continuous run 10mtrs Power 1 end, 20mtrs power both ends
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Continuous Operation: Not suitable for 24/7 continuous use
Max Bend 150mm
Operating Temp -20 to +45
Pixelation Pixel Free
Base Type With rear mould injection 100cm cable on both sides
Adjustable PWM Not Applicable
Datasheet - NEOLINEAR_Topview Download
Photometrics - 100.906 Download
