Mini Lip Raised LED Profile 2 MTR
- Suitable for IP20 strips up to W11mm
- Durable anodised aluminium
- Acts as a heat sink, aids cooling
- Reduces glare and softens light output
- Sturdy housing protects LED strip
- Clip In Diffuser
- Easy fit end caps and diffuser
- Easy installation
*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.
Product Description

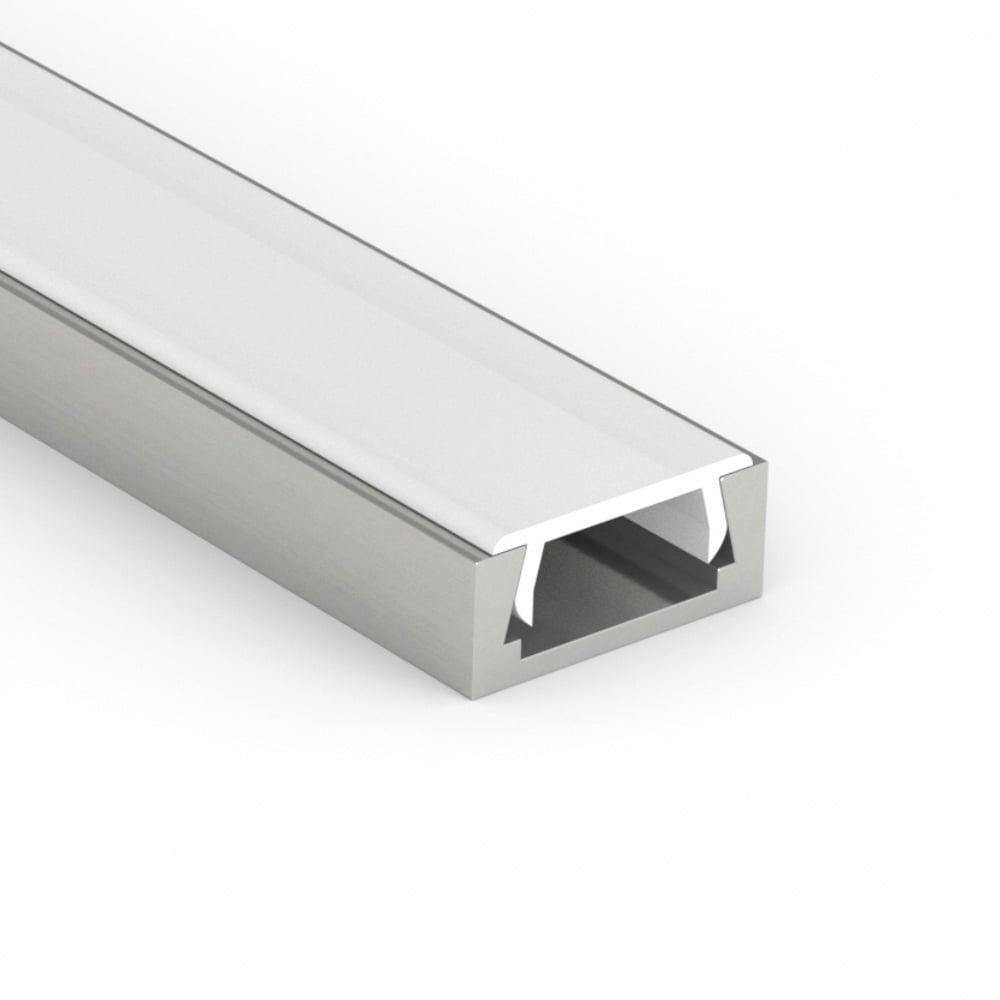

This mini lip-raised LED flat extrusion is a high-quality and durable solution for housing LED strip lights. This LED extrusion is 2 metres in length and is suitable for LED strip lights that are no more than 11mm in width.
Made from high-quality anodised aluminium with a clip-in diffuser and diffuser end-caps, this LED flat extrusion is designed to be discreet. It enables an attractive lighting design to be easily achieved.
LED tape flat extrusions offer a huge amount of benefits that include prolonging the life of the LED strip lights. Read our "Why do I need LED profile" blog for 7 reasons why we recommend utilising LED profiles.
Flat profiles for strip lights are a vital element of professional installations. They improve the look of the strip lights, ensuring it is clean and reducing pixelation effects. LED profiles are perfect for both commercial and domestic projects.
Installation
Flat aluminium extrusions can be mounted using the mounting clips provided or hanging clips. It can also be fixed into place by screwing through the back of the profile with a countersunk-headed screw.
Note: When installing LED strips into a profile, check that the back of the strip remains insulated from the profile. The profile is aluminium, meaning it will conduct the low-voltage power going through the tape, causing it to stop working.
For more information on this product, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.
Shop our range of LED Profiles through our website or contact our technical sales team.
Quick Specs
- CRI Rating (greater than)CRI >80
- ColourBrushed Aluminium
- IP RatingIP20 Non-Waterproof
- Colour Temperature VariationIP20 No
What's in the box
- 1 x Aluminium Base
- 1 x Clip In Diffuser
- 2 x End Caps
- 4 x Fixing Clips
Technical Specification
- Product Code: 100.668
- Product Packed Tube
- Manufacturer LED Technologies
- Product Type Extrusion
- Colour Brushed Aluminium
- IP Rating IP20 Non-Waterproof
- Metres 2 MTR
- PCB Weight Not Applicable
- Size See Schematic Diagram
- CRI Rating (greater than) CRI >80
- Dimmable: No
- LED Type Not Applicable
- Average LED life Hrs 30,000
- Power Factor > Not Applicable
- Continuous Operation Not suitable for 24/7 continuous use
