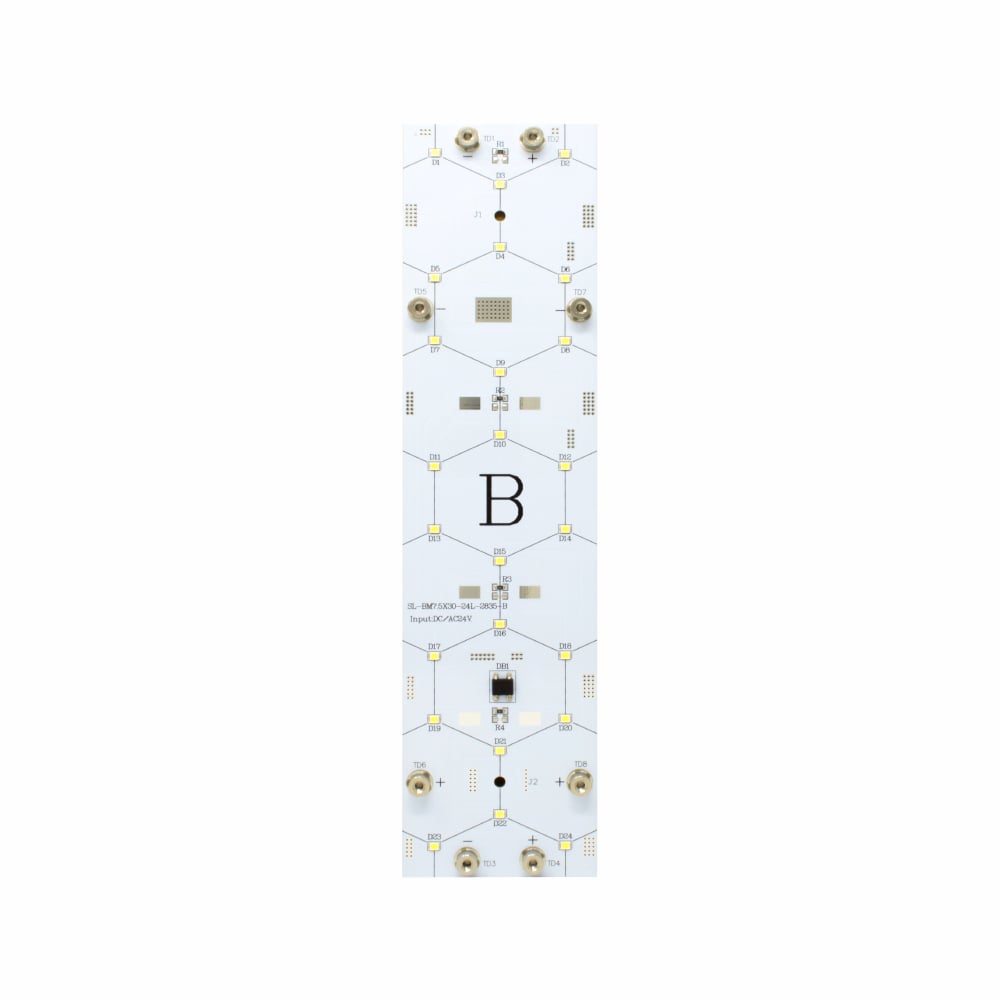

LEDTech Honeycomb Module B

Product Code: 100.409
  • Honeycomb Module B
  • 2W per panel
  • Perfect for Shallow Lightboxes
  • 75mm x 300mm
  • Built with high quality materials
  • Linkable with other panels
  • 24 LED's
  • Wide beam angle
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This honeycomb panel LED lights are a high quality product from LED Technologies. This impressive LED panel 24v emits a dazzling cool white perfect for range of uses.



Features of Honeycomb LED Modules

It has a slimline printed circuit board with high powered LEDs.

This LED panel is 75mm wide and 300mm in length. The panel can be configured with other products available to create a custom size.

The honeycomb lighting design offers an even light distribution with a wide beam angle of 120 degrees. The panel lights emits a dazzling cool white light with a colour temperature of 5500 - 6500k.

This LED light sheet has an Ingress Protection rating of IP20 which means they are not waterproof. The 2 stands for protection against solid objects over 12mm so for example touching. The 0 stands for no protection from liquids at all. The non-waterproof lights are ideal for interior decoration and lighting.

Read more about Colour Temperature and IP ratings using our case study.



The LED modules are also fully dimmable offering you freedom over the brightness of your lights. This gives you control over the lighting effect.

LED lighting is a perfect alternative for traditional halogen lighting. Light emitting diodes (LEDs) are wonderfully energy efficient. This is due to the fact that LED lights use less power as well as wasting less energy.

LED lights waste less energy because they do not create as much heat, and therefore most power is being transformed into light. This is a cost-effective way to lighting lightboxes or signs.

The panels will also offer a longer life span therefore, the LED panel lights will not need replacing regularly.



The honeycomb panels can be connected with other products in this range:

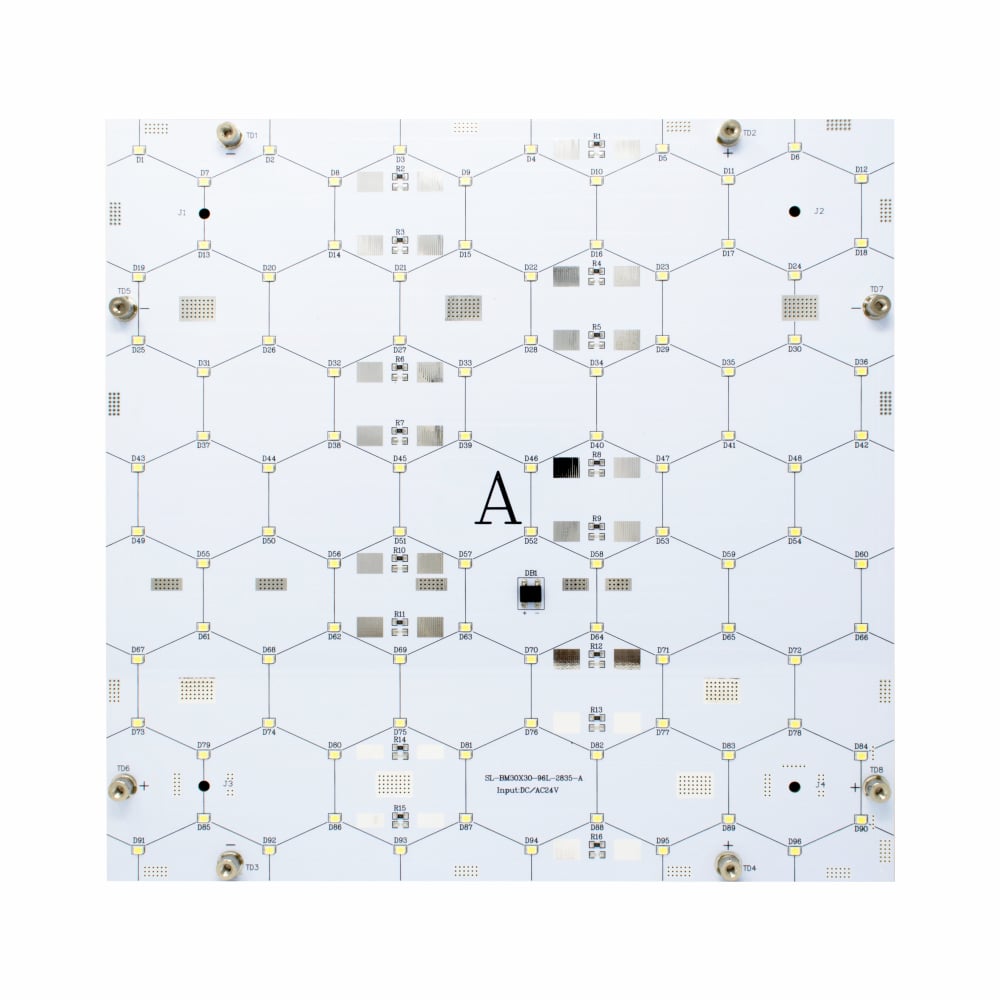

  • "A" panel: 300mm x 300mm

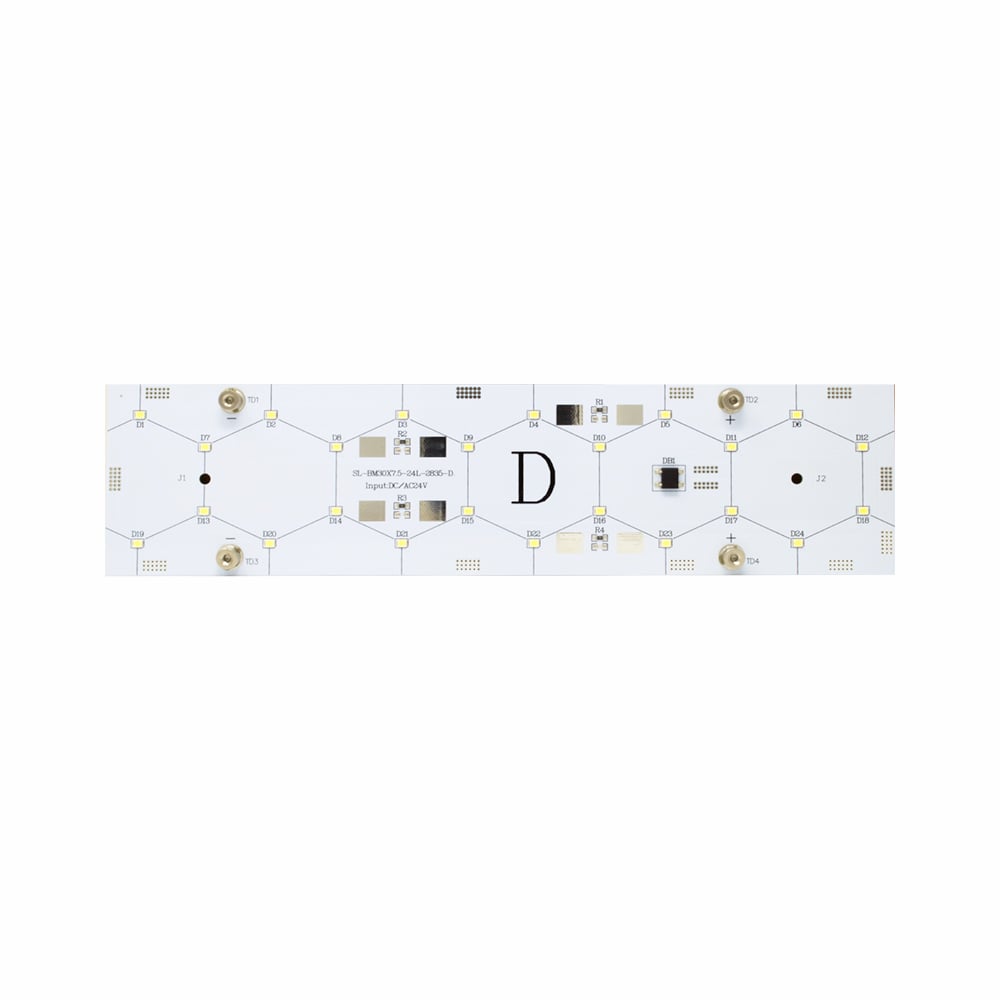

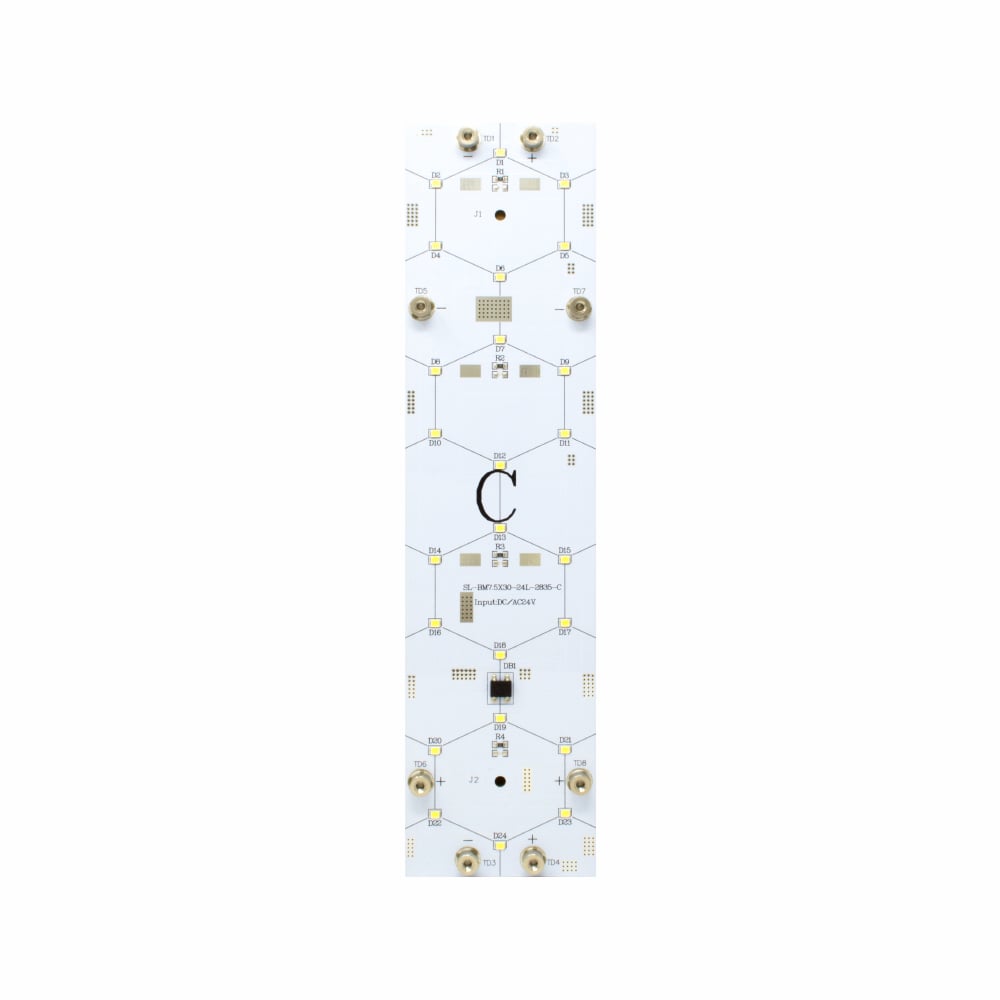

  • "C" & "D" panels: 300mm x 75mm

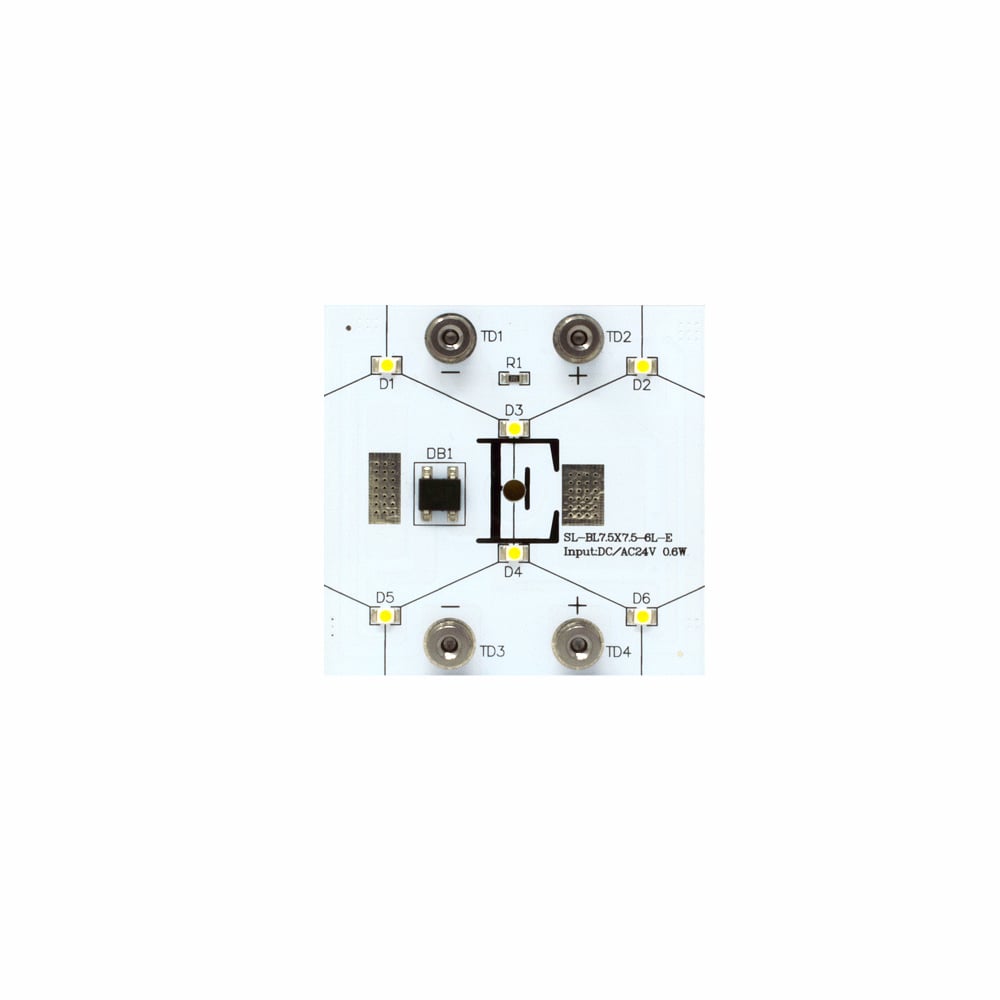

  • "E" & "F" panels: 75mm x 75mm



This ability allows you to create custom sizes for any space that you require.

Note: The orientation of the panels will determine which size panel to use.



Using Honeycomb LED Modules

The LED backlight panel has a variety of uses in both commercial and domestic markets.

The LED panel is perfect for creating sleek and professional LED light boxes. The panels allow a slim lightbox of just 25mm to be achieved, perfect for commercial LED lightboxes. This includes menu light boxes or information light boxes. It can even be used to create professional lighting for product photos due to its bright and clear cool white colour.

The panel can also be used for LED sign lighting. The panel can provide excellent backlighting to simple vertical signs to achieve a stunning glow. Illuminated signs or adverts are perfect for gaining attention and attract customers into your business.



Installing Honeycomb LED Modules

The LED panels are extremely easy to install. The panels are attached to each other using the connecting kit provided with each product. Only one panel will require powering as connecting bars will transmit the power across connected panels.

The panel can be wall mounted or surface mounted. Fix the panels into place behind an opaque diffuser to achieve the required effect.



For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.



Other Products

LED Technologies offer a wide range of lighting products including



Shop our range of products through our website or contact our technical sales team.

LEDTech Honeycomb Module B

Quick Specs

The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
This is the required amount of volts needed to power the product.

What's in the box?

  • 2 x Rubber Washers
  • 2 x Fixing Screws
  • 6 x Tab Screws
  • 6 x Connecting Bars (These transmit power across the Connected Panels)
Product Code: 100.409
Product Packed Anti static Bag
Manufacturer LED Technologies
Product Type Light Panel
Colour Cool White
IP Rating IP20 Non-Waterproof
Colour Temperature
Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.
5500 - 6500K
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
3 Years
Wattage 2 w
Input Voltage
This is the required amount of volts needed to power the product.
24v DC
Output Voltage 24v DC
PCB Weight Not Applicable
Size 300mm x 75mm x 1mm
Beam Angle: 120 degree
Appx Lumens: 180
CRI Rating (greater than) CRI >80
Dimmable: Yes
Cut Intervals: Not Applicable
LED QTY 24 x High Power 3527 led's
LED Type Led chip 3527
Average LED life Hrs 50,000
Colour Temperature Variation IP20 No
Power Factor > 80
Equivalent to: Not Applicable
Continuous Operation Not Applicable
Base Type N/A
Datasheet - B Download
