Honeycomb Flexible LED Light Sheets



BEND, SHAPE, CONTOUR & ILLUMINATE

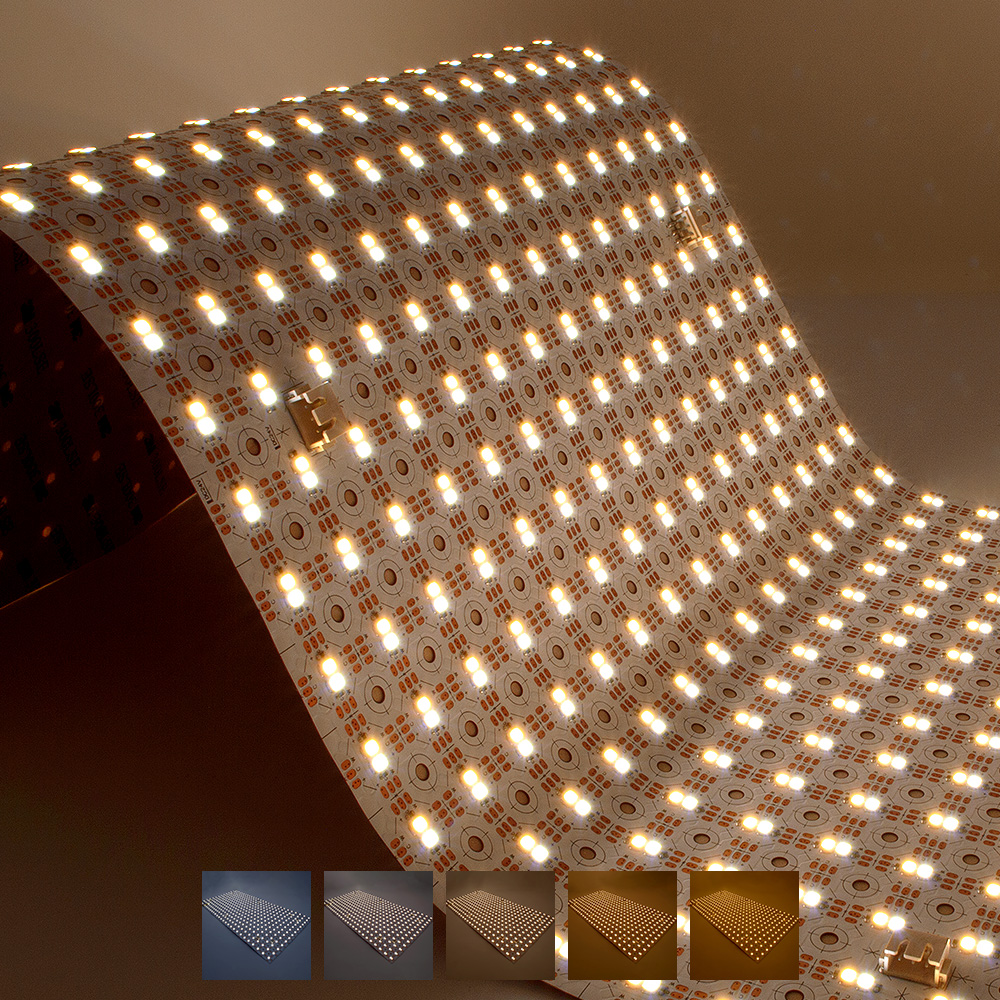

CCT Adjustable LED Sheet
Dynamic White

CCT Adjustable (2700K - 6500K)

Perfect for environments where ambiance changes throughout the day. Adjust from a warm, cozy 2700K to a crisp, focus-enhancing 6500K Cool White instantly.

  • Fully Adjustable Colour Temperature
  • High Output: 2570 Lumens per sheet
  • Pack of 3 Sheets (32W each)
  • Requires Dual Channel Controller
  • Product Code: 102.115
View Product

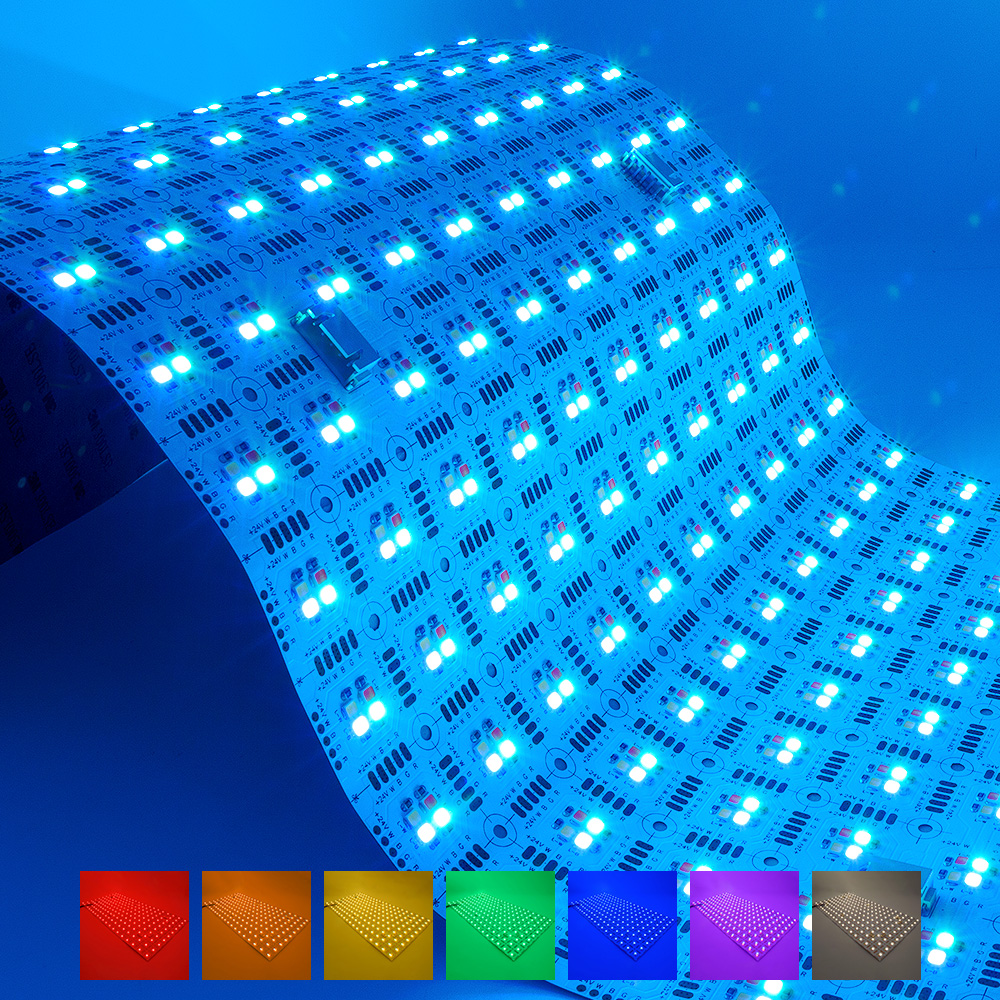

RGBW Colour Changing LED Sheet
Creative Control

RGBW Colour Changing

The ultimate in creative freedom. Access 16 million colours plus a dedicated 4000K Natural White chip for general illumination. Ideal for sensory rooms, bars, and dynamic signage.

  • RGB + Natural White (4000K)
  • 1635 Lumens per sheet
  • Pack of 3 Sheets (32W each)
  • Requires RGBW Controller
  • Product Code: 102.116
View Product

Standard White & Single Colour Sheets

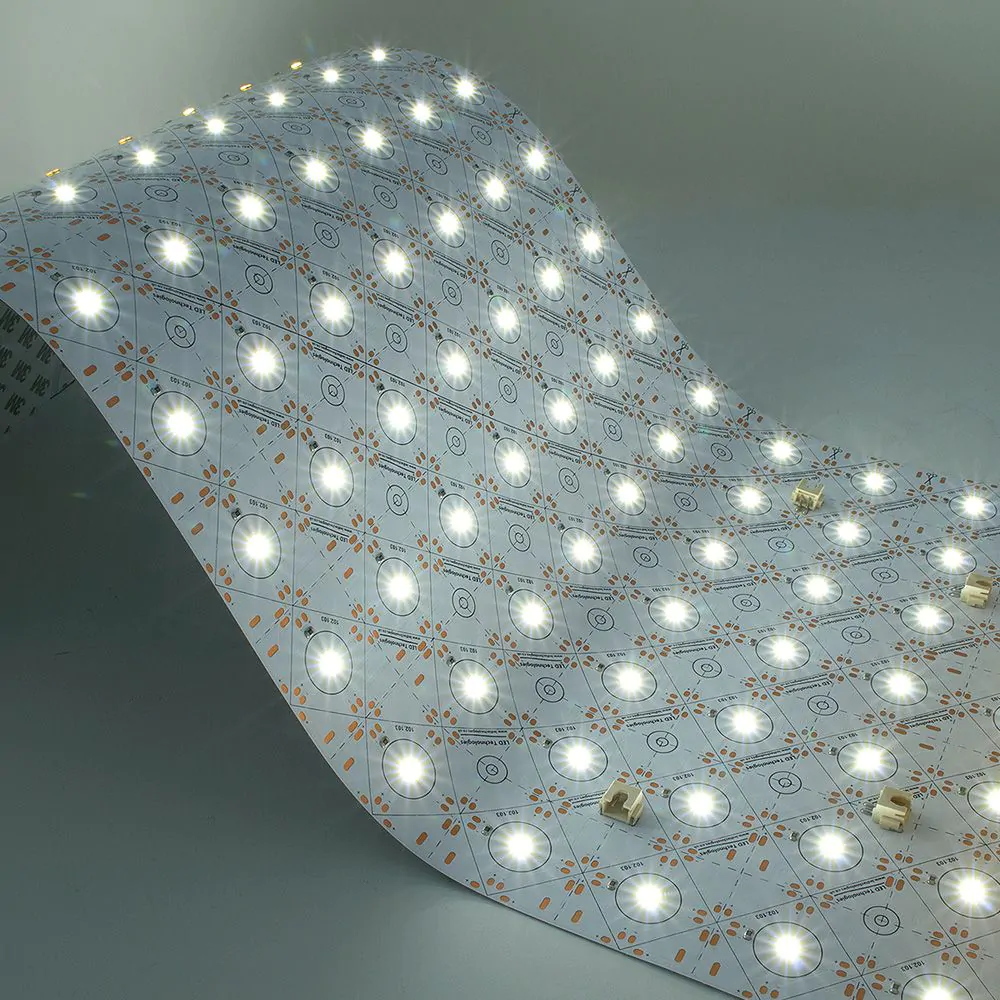

11W Cool White
Low Wattage

11W Cool White (4pcs)

  • 6000-6500K Cool White
  • 1100 Lumens per sheet
  • Pack of 4 Sheets
  • High flexibility
  • Code: 102.103
View Product

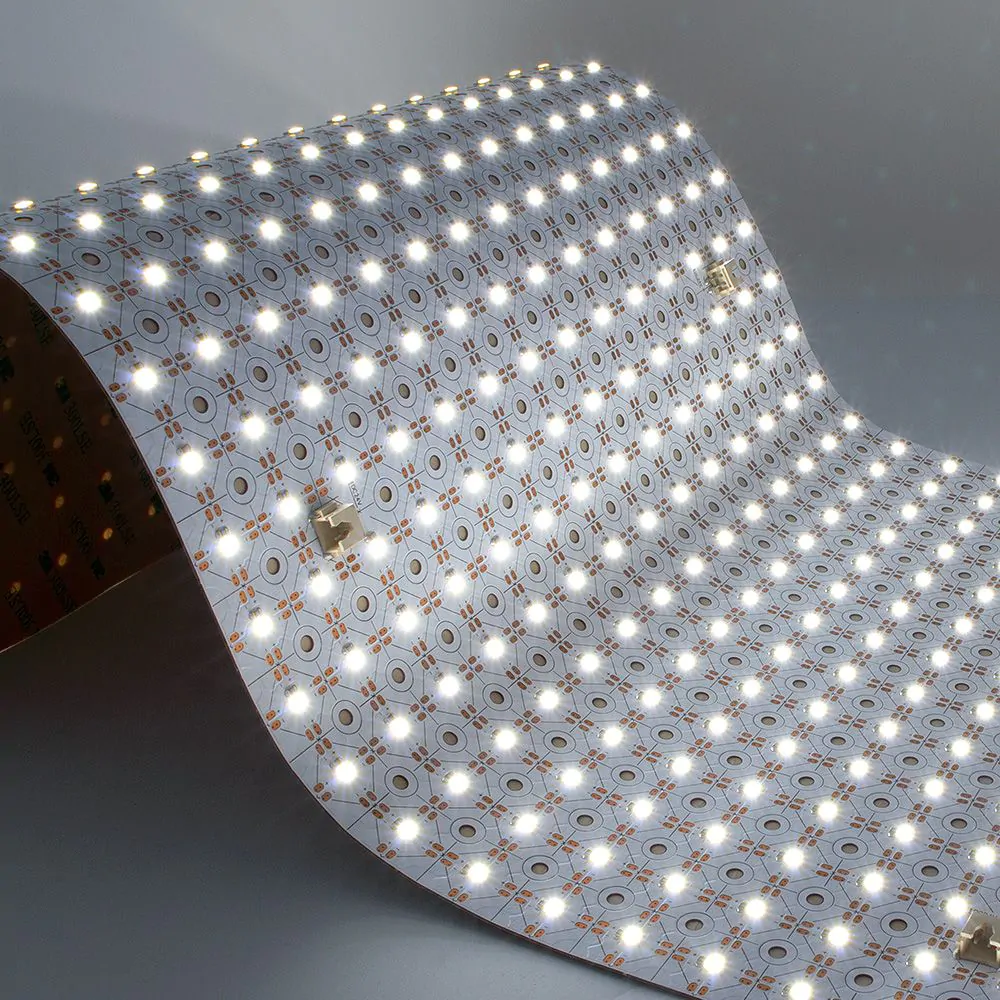

32W Cool White
Fixed Whites

32W Cool White (3pcs)

  • 6500K Cool White (CRI >90)
  • 2660 Lumens per sheet
  • Pack of 3 Sheets
  • High flexibility
  • Code: 102.109
View Product

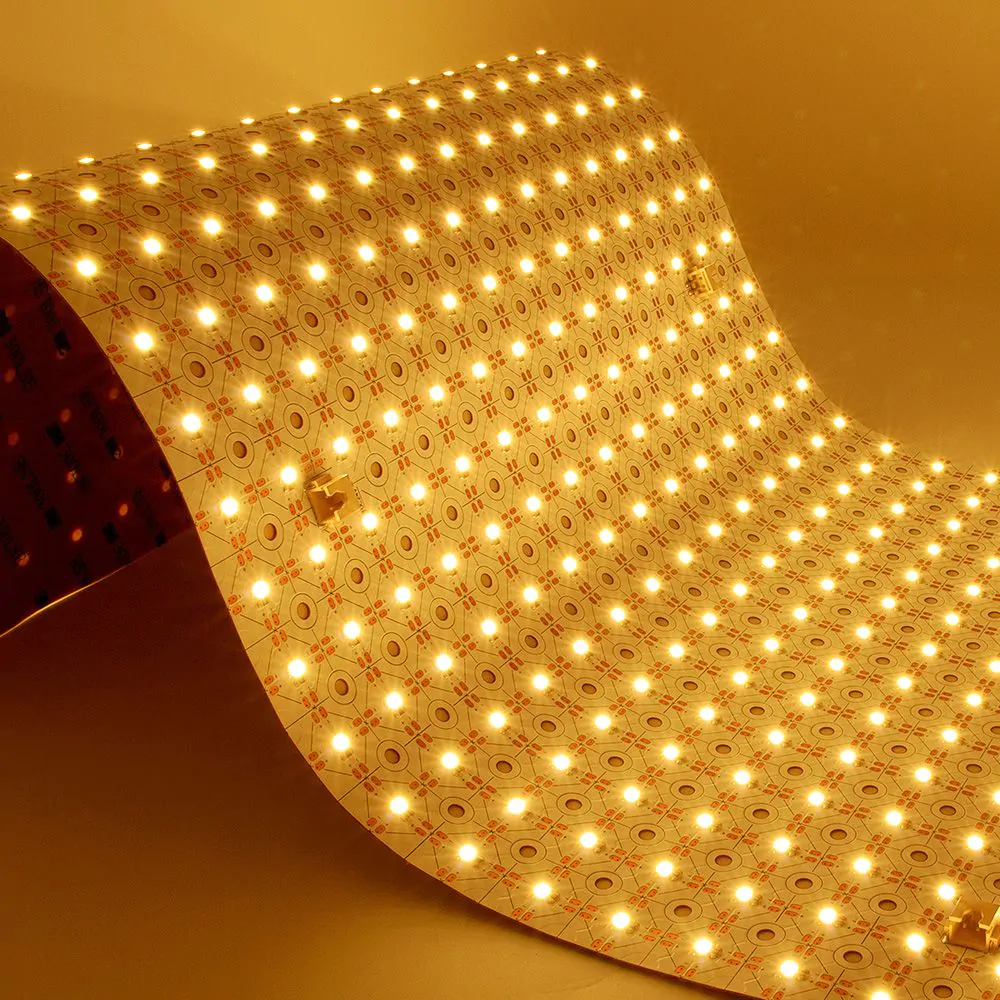

32W Warm White
Fixed Whites

32W Warm White (3pcs)

  • 2700K Warm White (CRI >90)
  • 2560 Lumens per sheet
  • Pack of 3 Sheets
  • High flexibility
  • Code: 102.108
View Product
32W UV Effect
Special Effect

32W UV Effect (3pcs)

  • 395-400NM UV Effect
  • 1190 Lumens per sheet
  • Pack of 3 Sheets
  • High flexibility
  • Code: 102.114
View Product

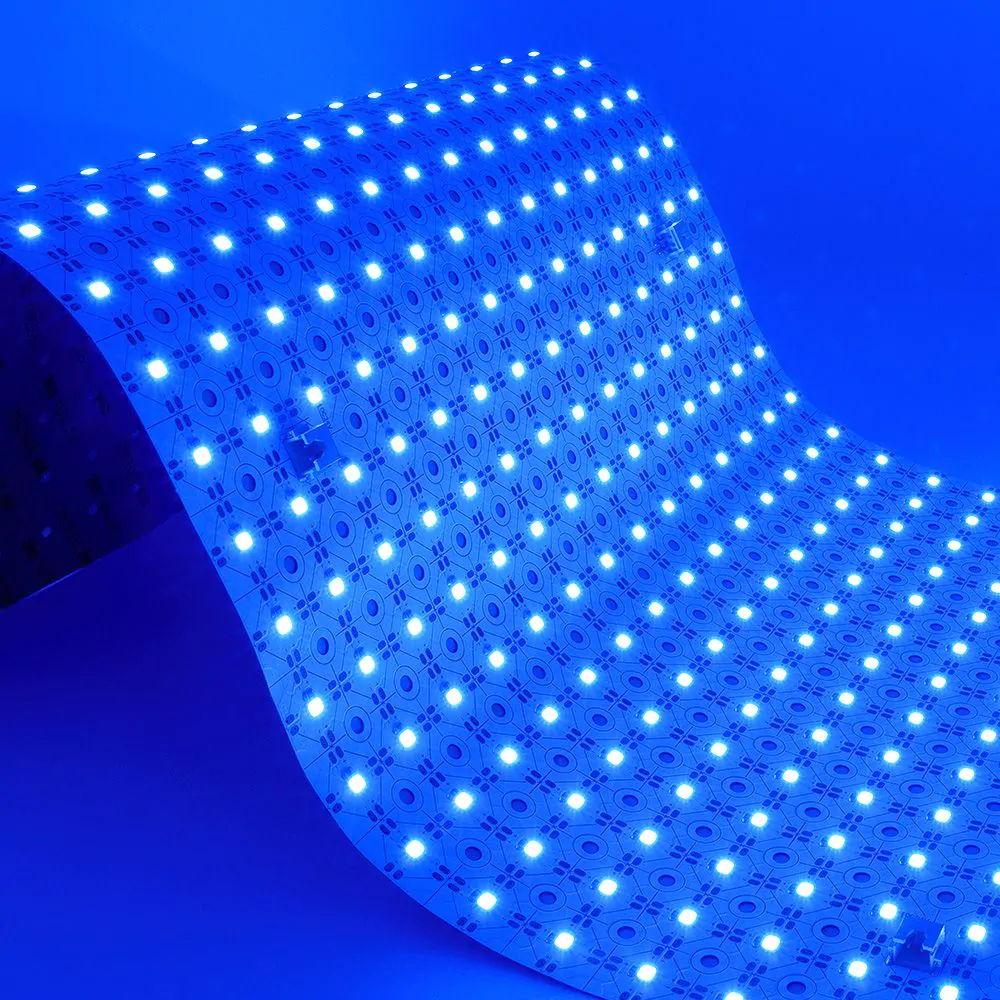

32W Blue
Single Colour

32W Blue (3pcs)

  • Bright Blue (460-470nm)
  • 1053 Lumens per sheet
  • Pack of 3 Sheets
  • High flexibility
  • Code: 102.112
View Product

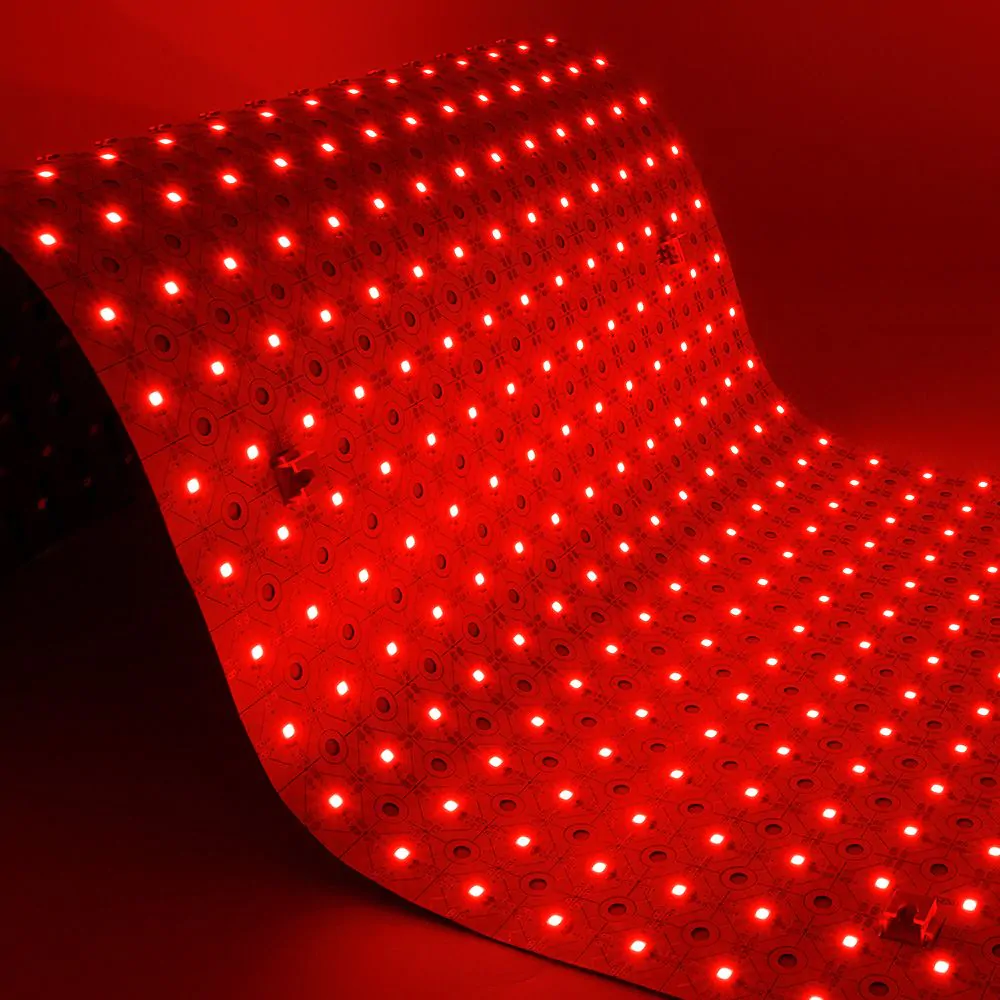

32W Red
Single Colour

32W Red (3pcs)

  • Bright Red (620-625nm)
  • 498 Lumens per sheet
  • Pack of 3 Sheets
  • High flexibility
  • Code: 102.110
View Product

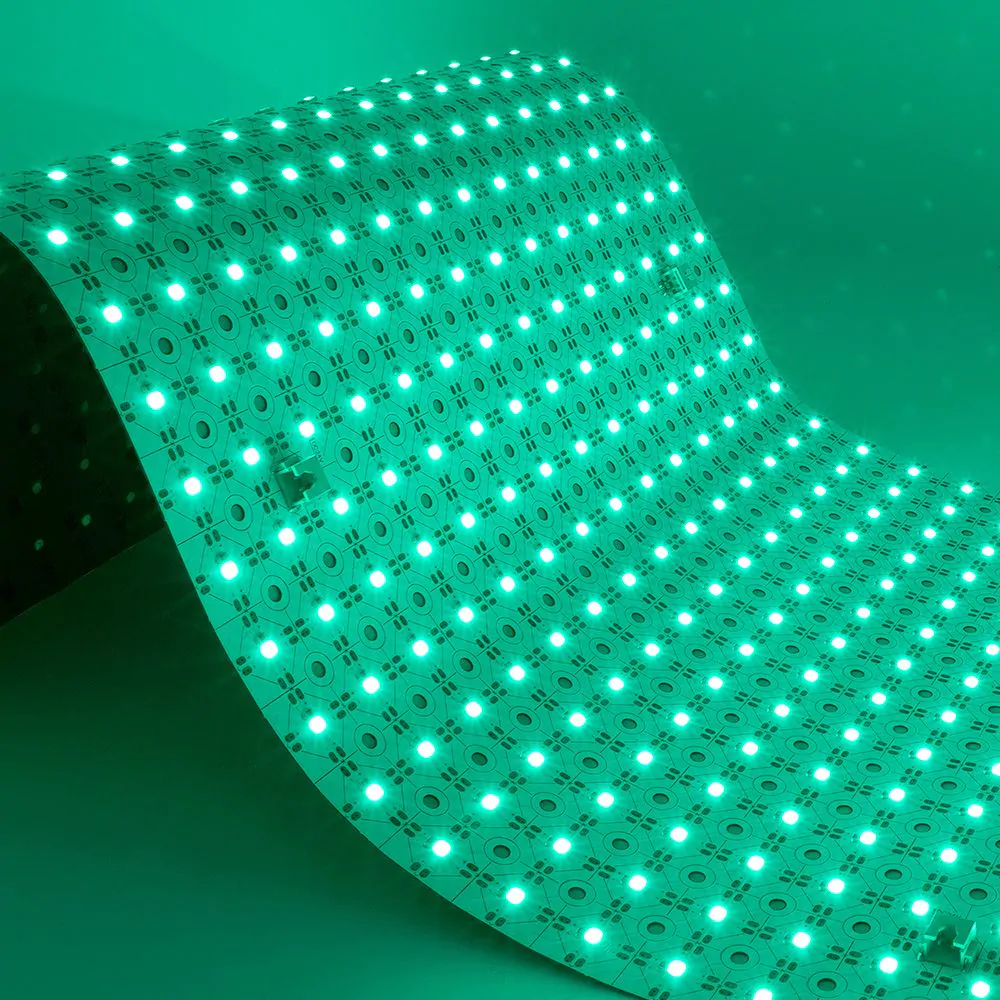

32W Green
Single Colour

32W Green (3pcs)

  • Bright Green (510-520nm)
  • 2279 Lumens per sheet
  • Pack of 3 Sheets
  • High flexibility
  • Code: 102.111
View Product

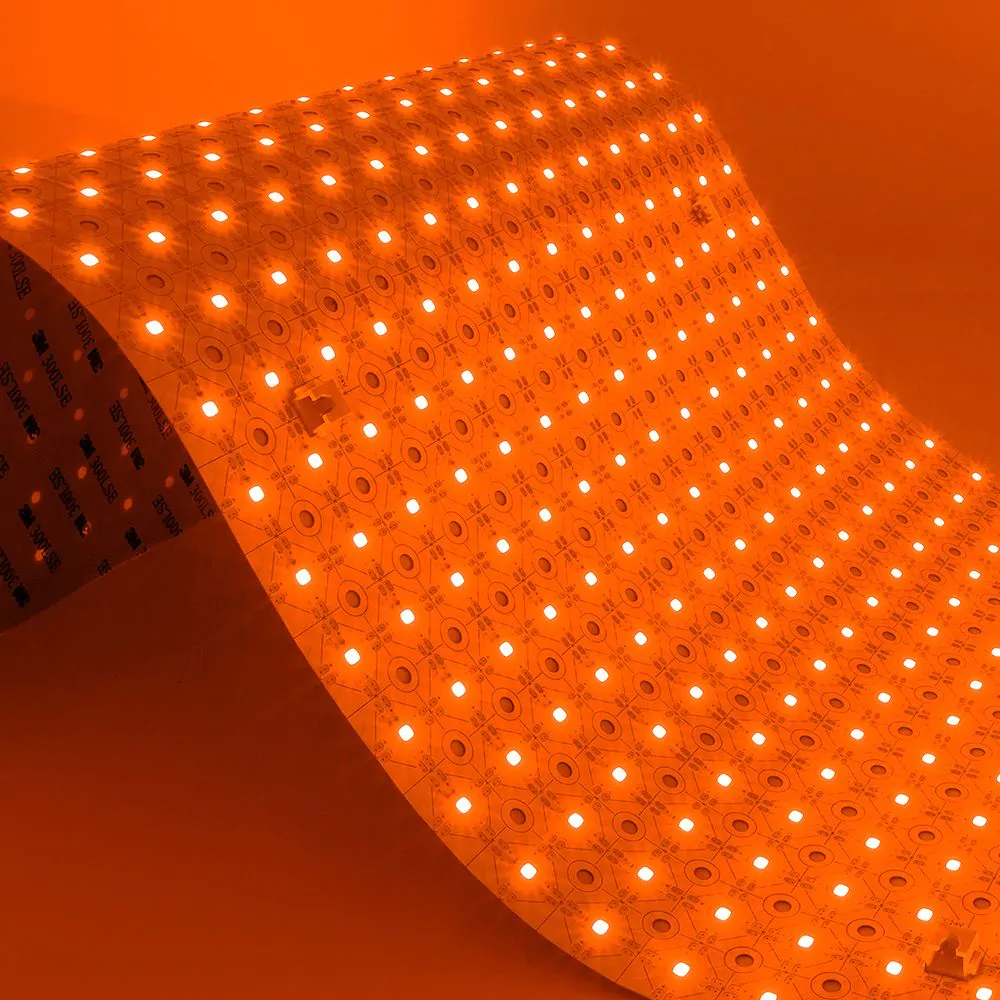

32W Orange
Single Colour

32W Orange (3pcs)

  • Bright Orange (600-610nm)
  • 1780 Lumens per sheet
  • Pack of 3 Sheets
  • High flexibility
  • Code: 102.113
View Product

Want to learn more?

Watch our technical guide to see exactly how to cut, shape, and install our Flexible LED Sheets for complex bespoke projects.

Engineered Versatility

Professional lighting tech designed for complex architectural challenges.

01

FLEX

Structural flexibility allows for organic curves and complex geometry without diode failure.

02

CUT

Millimetre-perfect bespoke sizing for custom signage, light boxes, and tight corners.

03

LINK

Seamless plug-and-play expansion allows for large-scale arrays on a single power source.

04

STICK

Equipped with industrial-grade 3M™ 300LSE adhesive for permanent mounting on diverse surfaces.

Multi-Axis Flexibility

Engineered to adapt. The unique honeycomb mesh design allows for movement in multiple directions, ensuring a perfect fit on complex architectural surfaces.

Inwards

Capable of folding in on itself to fit concave curves, alcoves, and internal corners without damaging the PCB mesh.

Outwards

Folds back on itself effortlessly to wrap around round pillars, external corners, and convex architectural features.

90 Degrees

Capable of tight bends and twists to navigate sharp corners or create geometric lighting shapes with continuous illumination.

Limitless Shaping & Cutting

Unlike traditional LED strips, the matrix circuit design allows free cutting in any direction. Remove central sections without breaking the power circuit for the remaining LEDs.

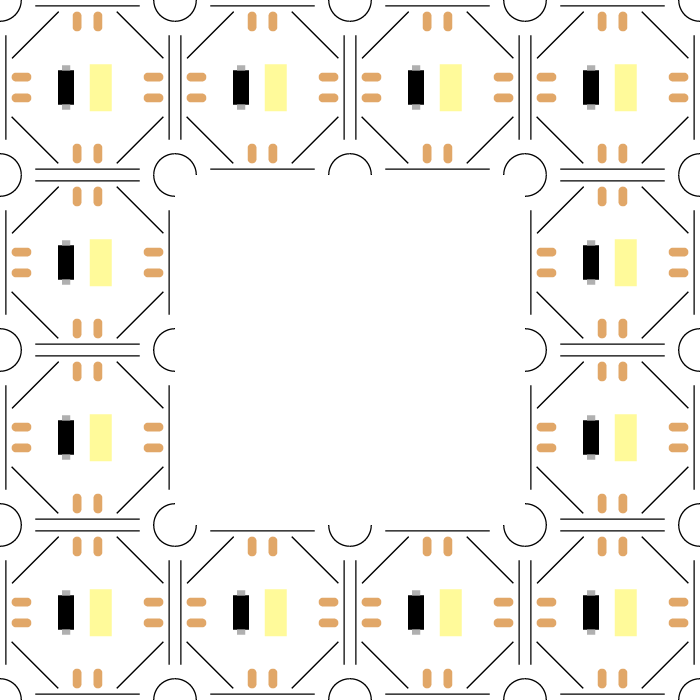

Internal Cutouts Diagram

Internal Cutouts

Navigate obstacles effortlessly. Cut holes through the centre for sockets or pipes while keeping the sheet fully lit.

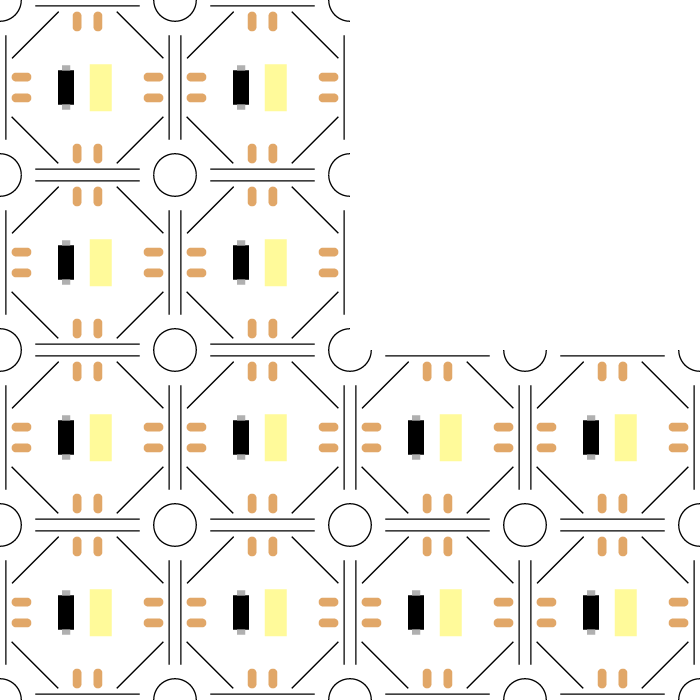

Bespoke Geometry Diagram

Bespoke Geometry

Create custom shapes for unique light boxes. Trim outer edges to fit 'L' shapes, 'T' shapes, or curves.

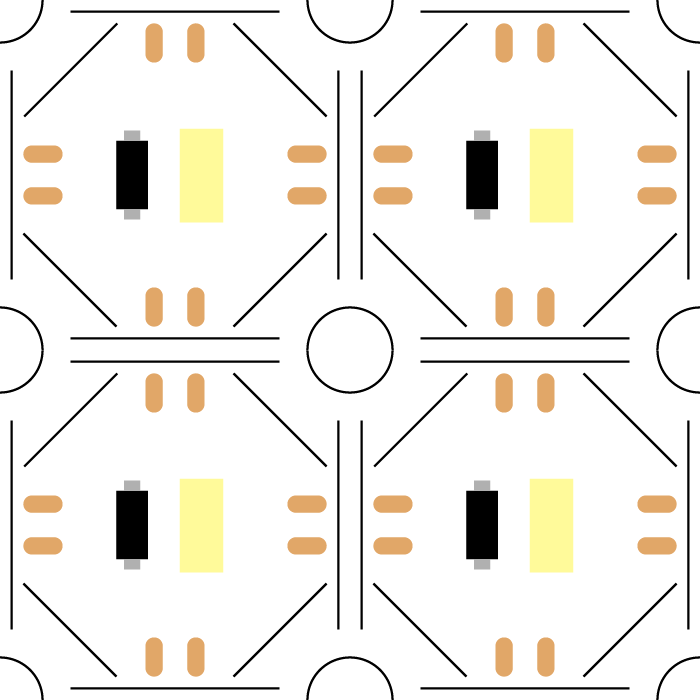

Matrix Reliability Diagram

Matrix Reliability

The redundant matrix circuit ensures power finds alternative paths. Remaining LEDs maintain full brightness even with sections removed.

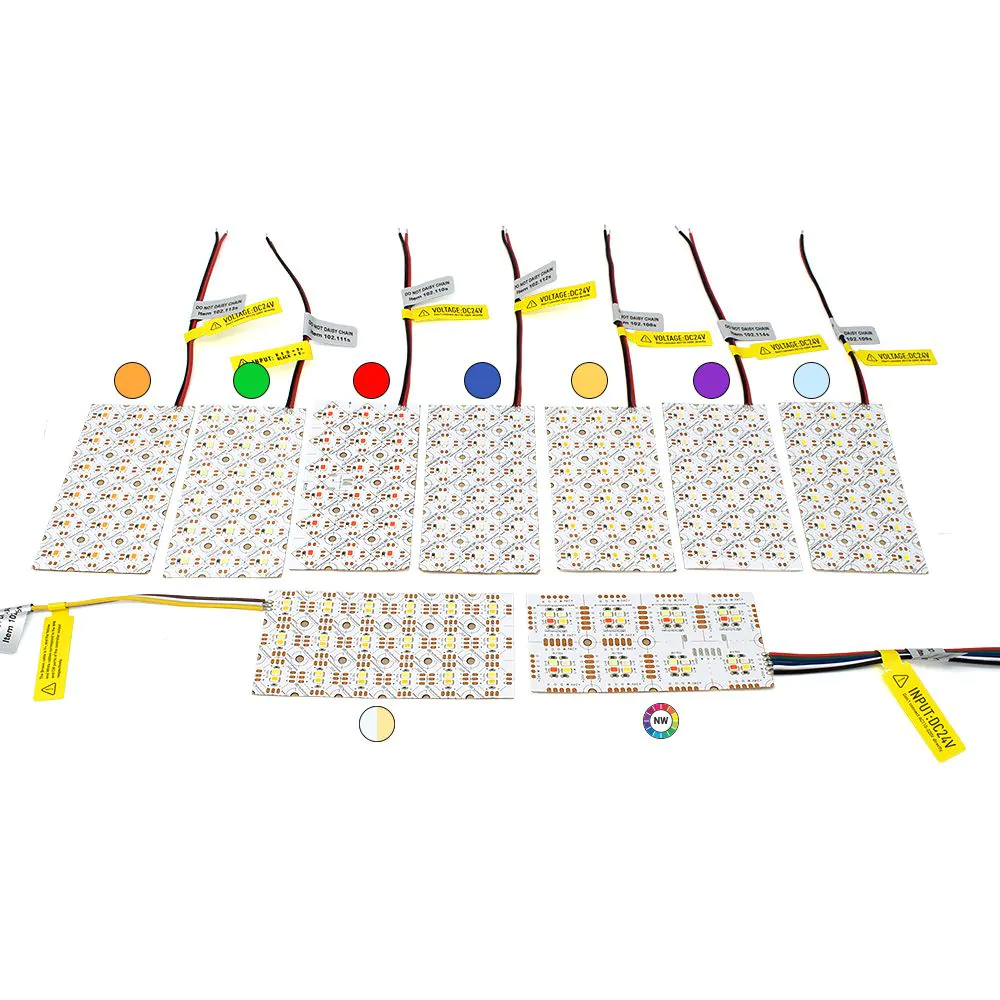

Honeycomb Sample Pack
Can't Decide?

Get the Honeycomb Sample Pack

Unsure which colour temperature or colour is right for your project? Our sample pack includes a 103mm x 51mm pre-soldered sample of every 32W sheet we offer.

  • Includes: Cool White, Warm White, CCT, RGBW, Red, Green, Blue, Orange, UV Effect
  • Pre-soldered connections for easy testing (24V Driver required)
Order Now

Installation Essentials & Accessories

Don't forget your connectors and starter cables.

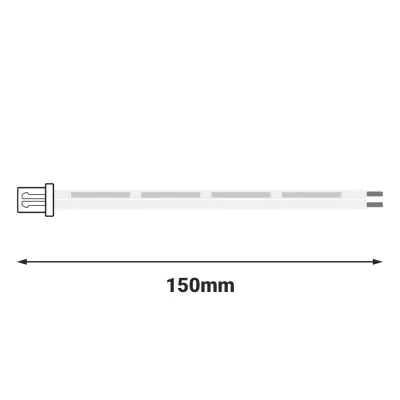

Starter Wire Pack 11W
Starter Wire Pack (11W)
Code: 102.106 • Pack of 10
View Product

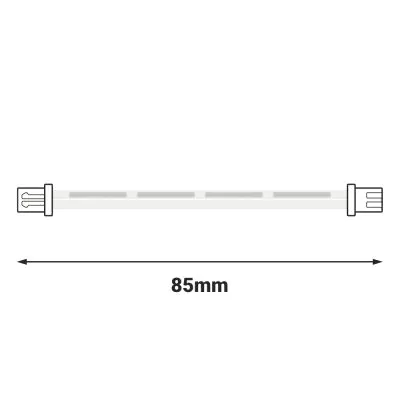

Connector Pack 11W
Connector Pack (11W)
Code: 102.105 • Pack of 10
View Product
T Power Connector 11W
'T' Power Connector (11W)
Code: 102.107 • 1.5m
View Product
Starter Wire Pack 32W
Starter Wire Pack (32W Single)
Code: 102.117 • Pack of 10
View Product

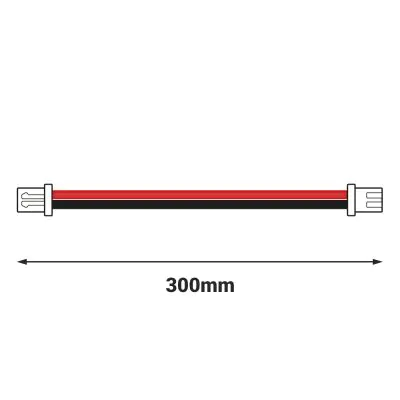

Link Cable Pack 32W
Link Cable Pack (32W Single)
Code: 102.118 • Pack of 10
View Product

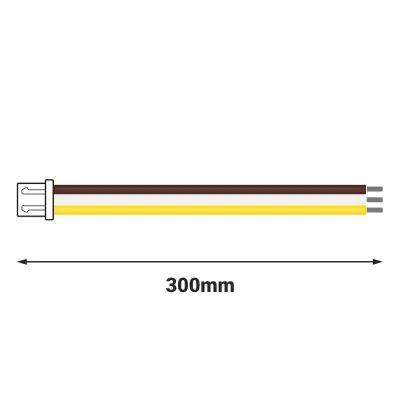

Starter Wire Pack CCT
Starter Wire Pack (32W CCT)
Code: 102.119 • Pack of 10
View Product

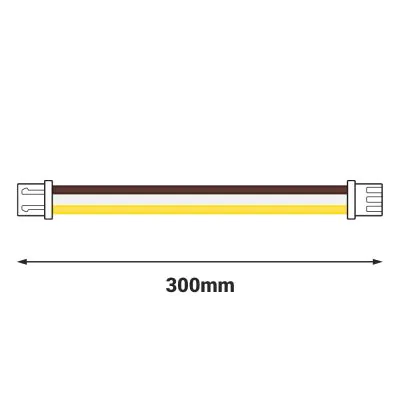

Link Cable Pack CCT
Link Cable Pack (32W CCT)
Code: 102.120 • Pack of 10
View Product

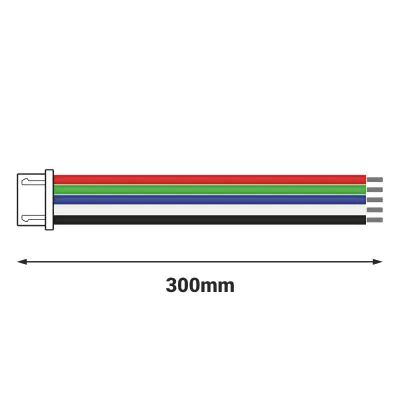

Starter Wire Pack RGBW
Starter Wire Pack (32W RGBW)
Code: 102.121 • Pack of 10
View Product

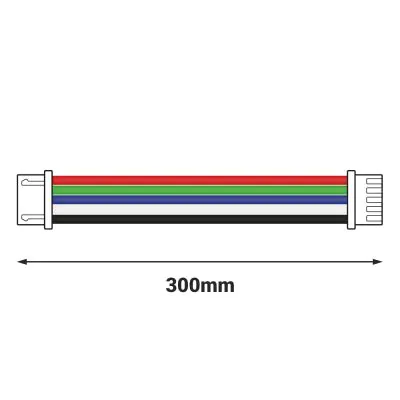

Link Cable Pack RGBW
Link Cable Pack (32W RGBW)
Code: 102.122 • Pack of 10
View Product
